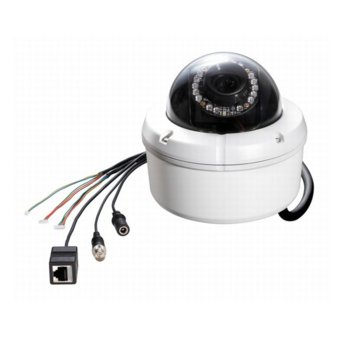

IP камера D-Link DCS-6511, 1.3Mpix, мрежова, Securicam Day & Night WDR, PoE, 3GP, IR LED, IR Cut

D-Link Securicam Day & Night Megapixel WDR Fixed Dome Network Camera, PoE, H.264, 3GP, IR LED, IR Cut
Камера

Интерфейс 10/100BASE-TX Fast Ethernet
Резолюция HD resolution: 1280 x 1024 (Megapixel)
Сигурност Advanced Security and Network Management
Други Мрежови протоколи: IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTTP, HTTPS, UPnP™ Port Forwarding, Samba, SMTP, PPPoE, NTP (D-Link), FTP, RTP, RTSP, UDP, RTCP, ICMP, 3GPP
Захранване DC 12 V / AC 24 V / PoE
Размери, mm 152 x 192 x 127 mm
Power Over Ethernet (PoE) 802.3af Power over Ethernet (PoE)
Входни/Изходни портове 1 x microphone - input; 1 x speakers - output; 1 x video - output - BNC
Сензор, тип CMOS
Размер на оптичния сензор 1/0.118 mm (1/3 ")
Фокално разстояние 3.3 - 12 mm
Минимална осветеност, lx Color: 0.2 lx F1.4; B&W: 0.02 lx F1.4
Максимална резолюция, pixels 1280x1024
Формати на компресиране H.264, MPEG4, MJPEG
Скорост на предаване на кадри 30 fps
Поддържани мрежови протоколи IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTTP, HTTPS, UPnP™ Port Forwarding, Samba, SMTP, PPPoE, NTP (D-Link), FTP, RTP, RTSP, UDP, RTCP, ICMP, 3GPP
Мрежов интерфейс 1x network / power - Ethernet 10Base-T/100Base-TX - RJ-45
Поддържани карти за памет SD
Нощно виждане yes
Външен монтаж yes
Работна температура -40 °C to 50 °C
Диапазон на влажноста при експлоатация 20 - 80%
Допълнителни функции Motion sensor, date/time stamp, progressive scanning, SD-card slot, Power over Ethernet, e-mail alerts, image flip, image mirror, Wide Dynamic Range (WDR), heater, built-in cooling fan, 12 infrared LEDs, light sensor, infrared cut filter

General Specification

• 1/3” Megapixel WDR Progressive Scan CMOS sensor
• WDR SN ratio: 100 dB
• Motorized varifocal autofocus lens 3.3 ~ 12 mm, F1.4 ~ F360C

View Angle

• Vertical 63.6° (W) ~ 17.9° (T)
• Horizontal 89.8° (W) ~ 23.9° (T)
• Diagonal 125.7° (W) ~ 29.9° (T)

IR LED

• 12 LEDs and light sensor
• 20 meter illumination distance

Minimum illumination

• Color: 0.2 lux @ F1.4
• B/W: 0.02 lux @ F1.4
• B/W: 0 lux with IR LED on

3-axis angle

• Vertical: 120
• Horizontal: 340
• Rotational: 300

System requirements

• Operating System: Microsoft Windows XP, Vista, Windows 7
• Internet Explorer 6 or above, Firefox 3.5 or above, Safari 4

Networking Protocols

• IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTTP, HTTPS, UPnP™ Port Forwarding, Samba, SMTP, PPPoE, NTP (D-Link), FTP, RTP, RTSP, UDP, RTCP, ICMP, 3GPP

Network Interface

• 10/100BASE-TX Fast Ethernet

Video codecs

• H.264
• MPEG4
• MJPEG
• JPEG for still images

Resolution (up to 30 fps)

• 1280x1024
• 1280x720
• 640x480
• 320x240
• 160x120

Video features

• Adjustable image size, quality and bit rate
• Time stamp and text overlays
• 3 configurable privacy masks
• Flip & mirror

Audio codecs

• G.726
• G.711

Power input

• 12 V DC 1.25 A
• 24 V AC
• 802.3af PoE

Physical and Environmental

• IP-66 weather-proof standard
• IK-10 vandal-proof standard
• Built-in heater and fan

Temperature

• Operation: -40 to 50 ˚C (-40 to 122 ˚F)
• Storage: -20 to 70 ˚C (-4 to 158 ˚F)

Relative Humidity

• 20% to 80% non-condensing

Certifications

• FCC
• IC
• C-Tick
• CE
• LVD

http://www.dlink.com/uk/en/support/product/dcs-6511-outdoor-hd-poe-day-night-vandal-resistant-fixed-dome-camera-with-ir-led
