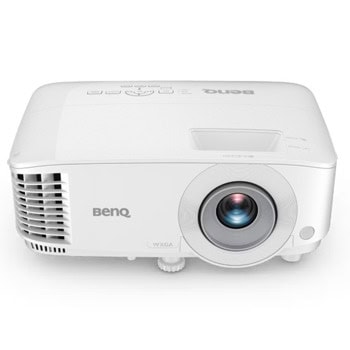

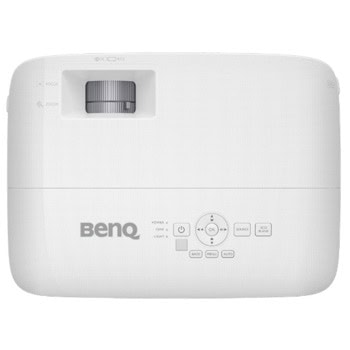

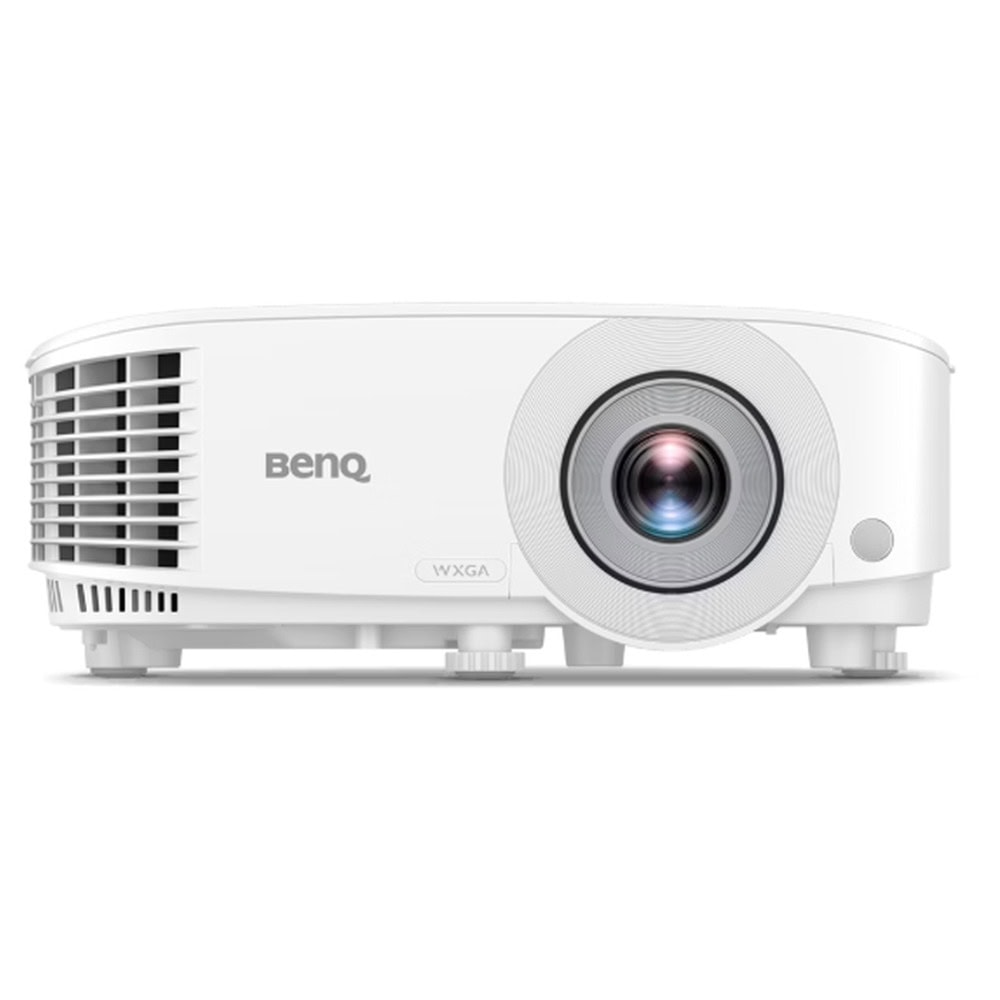

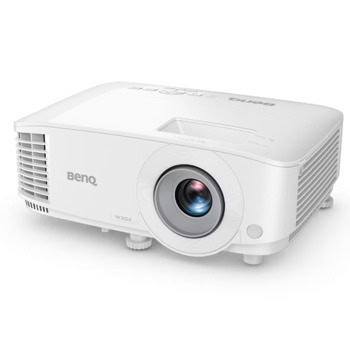

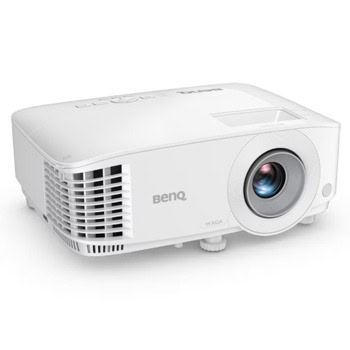

Проектор BenQ MW561, DLP, WXGA (1280x800), 20 000:1, 4000 lm, HDMI, VGA, USB, RS232

MW560 | 4000AL WXGA Projector with SmartEco Power Saving

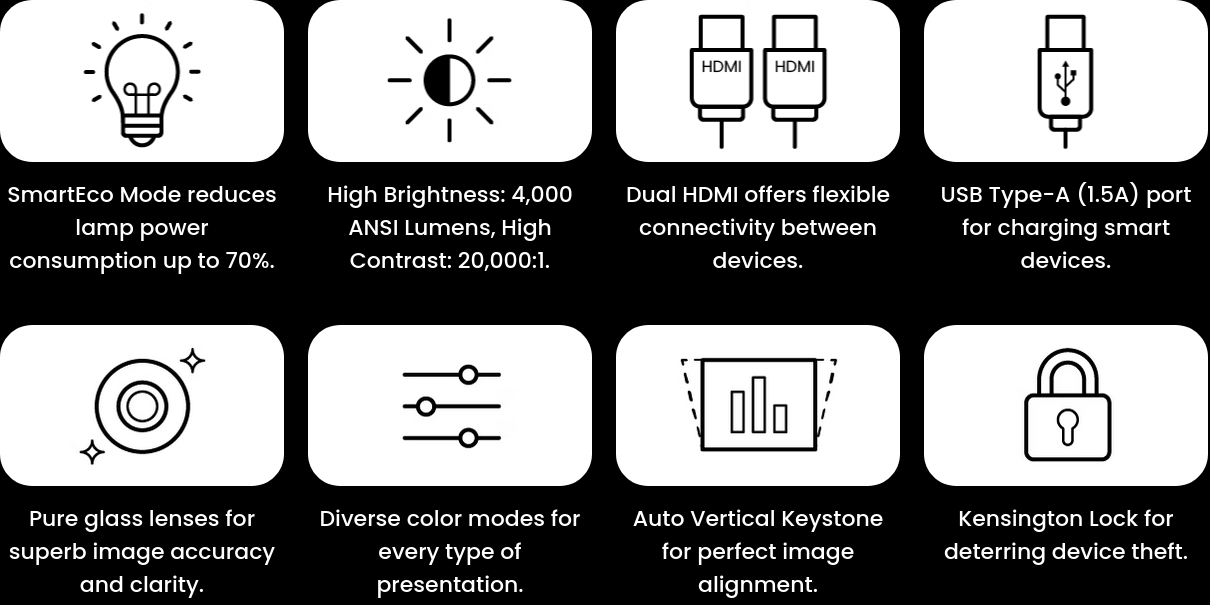

Save Energy Without Compromise

BenQ SmartEco technology reduces energy consumption up to 70% compared to traditional Eco Mode, adjusting lamp power intelligently without sacrificing picture quality. Extend your lamp life, reduce maintenance costs, and see everything.

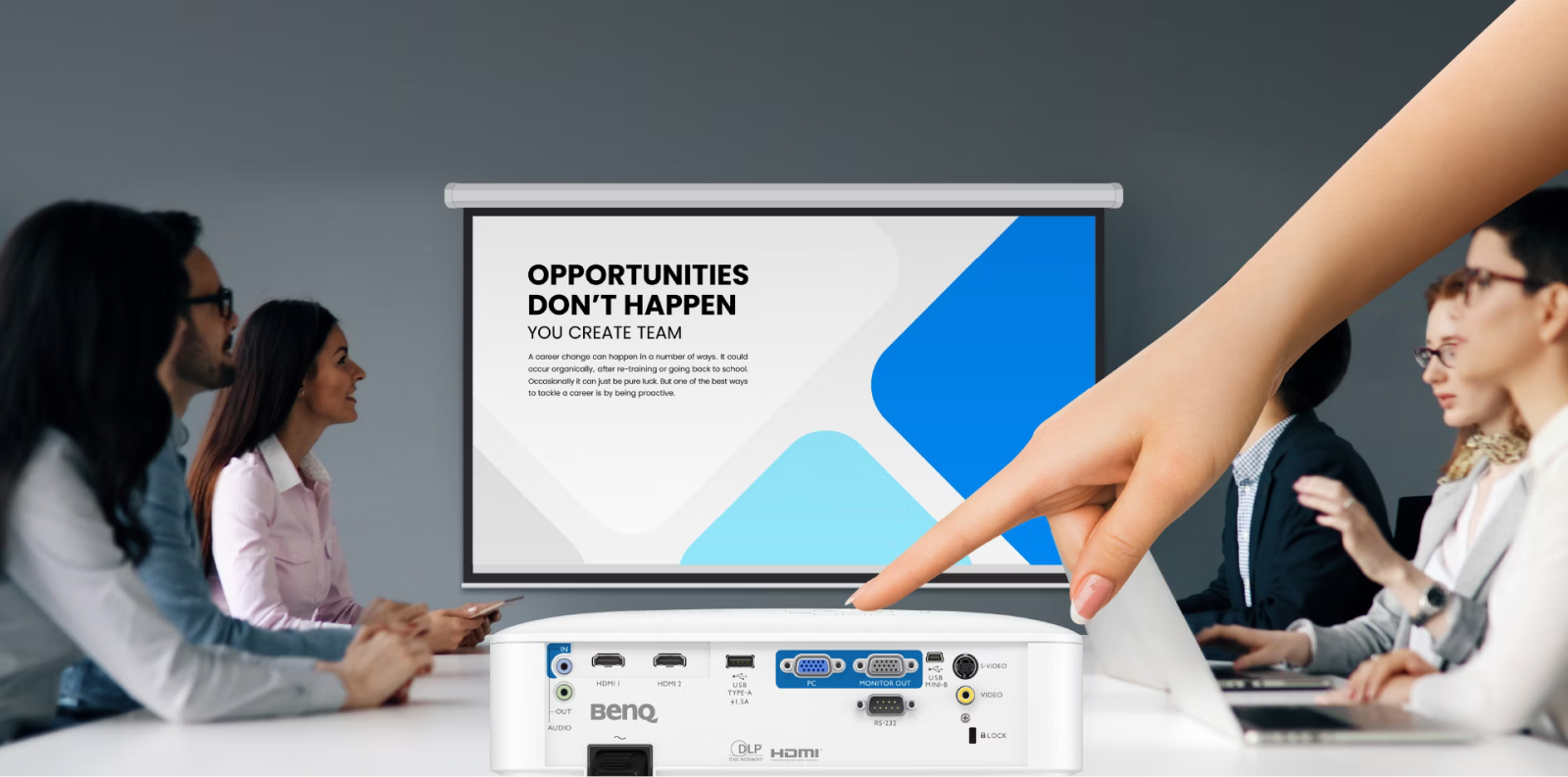

Start Meetings in a Blink

Introducing our thoughtfully designed projector that allows you to quickly start your meetings with ease. Simply turn it on and you're almost ready to go.

Your Trustworthy DLP Projector

Choose BenQ with confidence for all your projection needs. As the world's top-selling DLP projector brand for over 10 years, we deliver unparalleled performance, with the quality you deserve.

Display

• Brightness (ANSI lumens)

  4000

• Resolution

  WXGA (1280x800)

• Native Aspect Ratio

  16:10

• Contrast Ratio (FOFO)

  20,000:1

• Display Color

  30-bit (1.07 billion colors)

• Light Source

  Lamp

• Light Source Life

  a. Normal 6000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs

Optical

• Throw Ratio

  1.55~1.7

• Zoom Ratio

  1.1x

• Lens

  F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm

• Projection Offset (Full-Height)

  100%

• Keystone Adjustment

  1D, Vertical ± 40 degrees


• Picture Modes

  3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2

Compatibility

• Resolution Support

  VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

• Horizontal Frequency

  15K~102KHz

I/O Interface

• PC in (D-sub 15pin)

  (x1)

• Monitor out (D-sub 15pin)

  (x1)

• Composite Video in (RCA)

  (x1)

• S-Video in (Mini DIN 4pin)

  (x1)

• HDMI in

  (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)

• USB Type A

  (x1)

• USB Type Mini B

  (x1)

• RS232 in (DB-9pin)

  (x1)

Audio

• Speaker

  (x1), 10W

• Audio in (3.5mm Mini Jack)

  (x1)

• Audio out (3.5mm Mini Jack)

  (x1)

Environment

• Operating Temperature

  0~40℃

• Power Supply

  AC 100 to 240 V, 50/60 Hz

• Typical Power Consumption (110V)

  260W/110V

• Acoustic Noise (Typ./Eco.)(dB)

  34/29

Accessories

• Remote Control w/ Battery

  RCX016

• Power Cord (by region)

  x1 (1.8M)

• VGA(D-sub 15pin) Cable

  1 (1.5m)

• User Manual CD

  1 (24L)

• 3D Glasses

  DGD5, (Optional)

• Quick Start Guide

  (x1) 21L

• Warranty Card (by region)

  Yes

• Universal Ceiling Mount

  CM00G3, (Optional)

Dimension & Weight

• Dimensions (WxHxD) (mm)

  296 x120 x221

• Net Weight (kg)

  2.3

Projection System

• Projection System

  DLP
