AMD Radeon RX 6600 XT Challenger D 8GB OC
- Clock: GPU / Memory
Boost Clock: Up to 2593 MHz / 16 Gbps
Game Clock: Up to 2382 MHz / 16 Gbps
Base Clock: 2000 MHz / 16 Gbps - Key Specification
7nm AMD Radeon™ RX 6600 XT
8GB GDDR6
AMD RDNA™ 2 Architecture
DirectX 12 Ultimate
PCI® Express 4.0 Support
1 x 8-pin Power Connector
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR - Key Features
Dual Fan Design
Striped Axial Fan

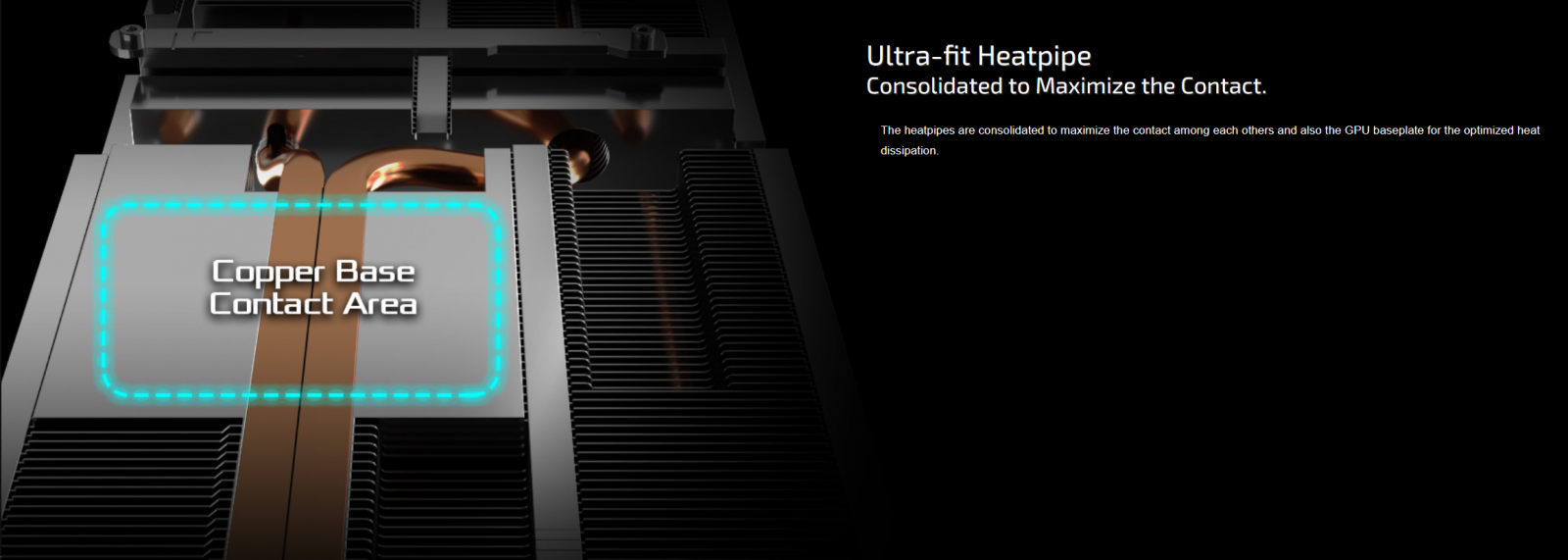

Ultra-fit Heatpipe
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card
.png)

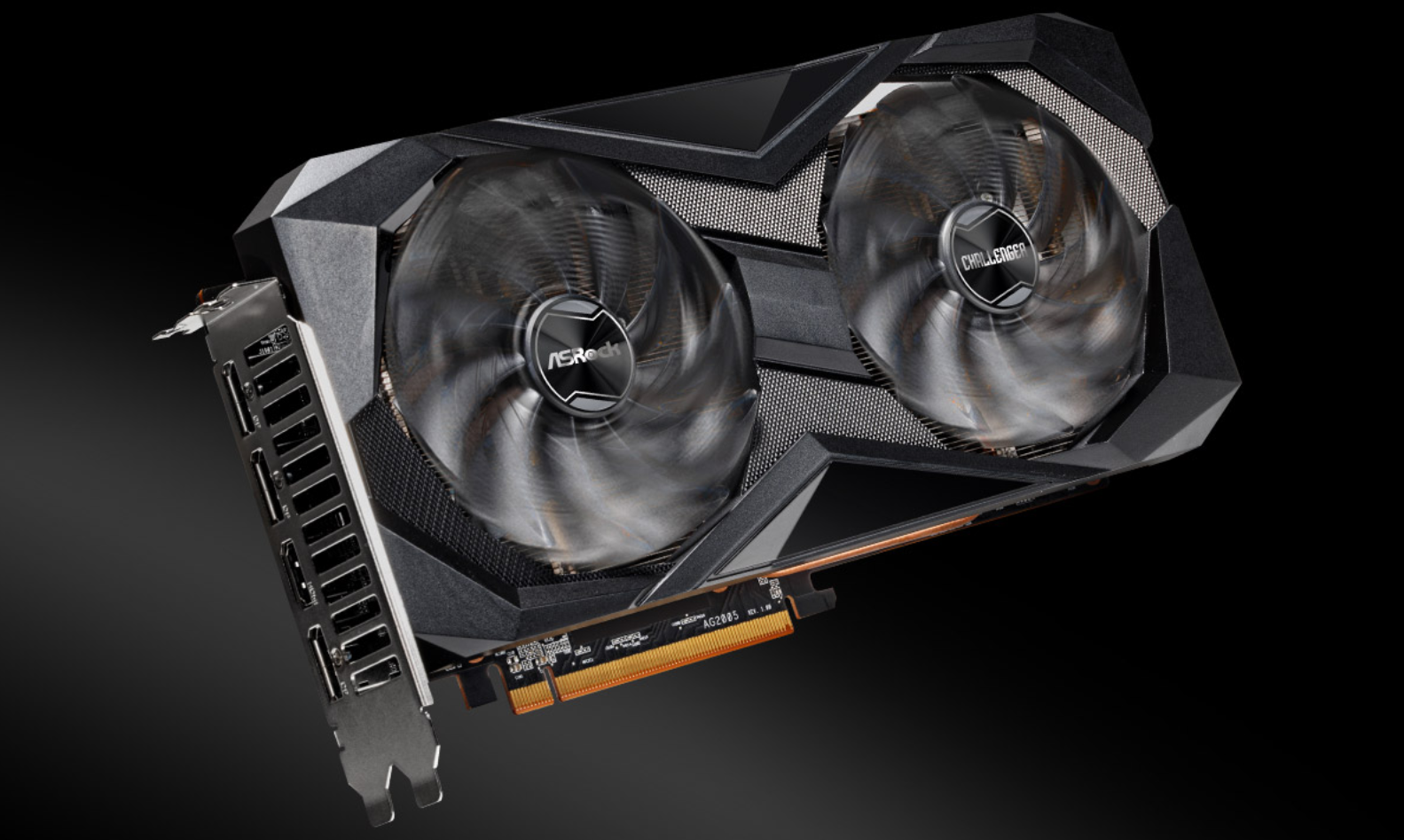

Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
.png)

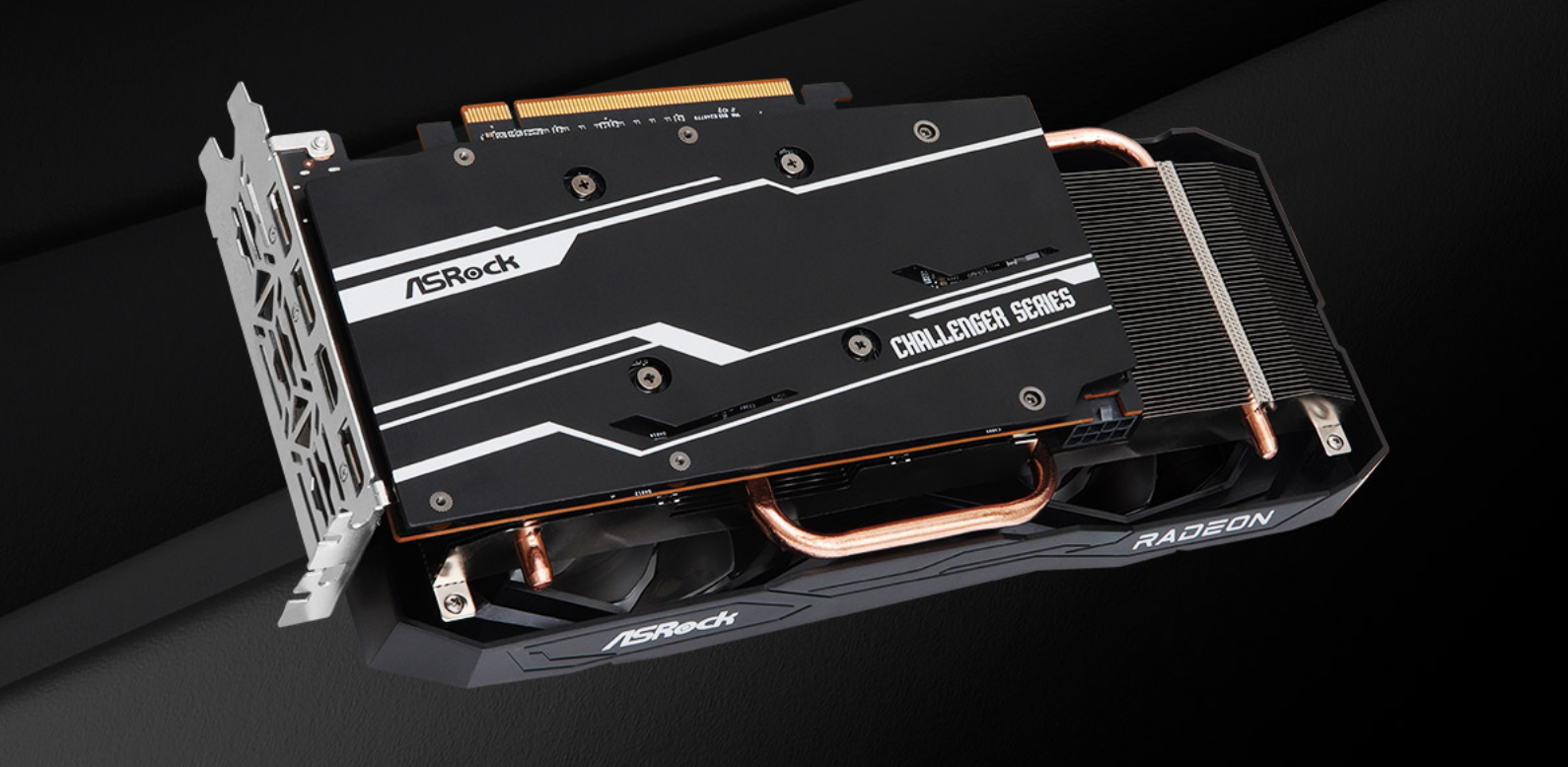

Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
.png)

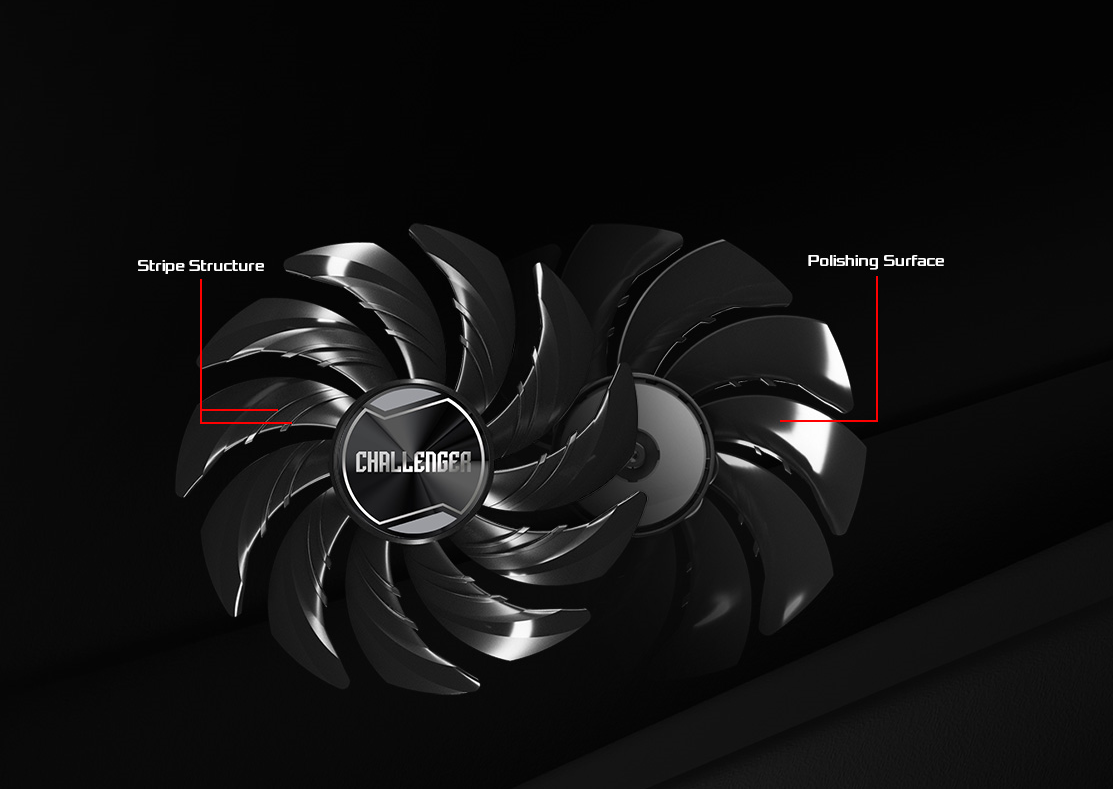

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
.png)
![SAV [High Density Glass Fabric PCB]](https://www.asrock.com/Graphics-Card/features/SAV-HDPCB.jpg) |
![SAV [Matte Black PCB]](https://www.asrock.com/Graphics-Card/features/SAV-MattePCB.jpg) |
![SAV [2oz Copper PCB]](https://www.asrock.com/Graphics-Card/features/SAV-2oz.jpg) |
| High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity. | A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card. | Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. |
![SAV [Nichicon 12K Black Caps]](https://www.asrock.com/Graphics-Card/features/SAV-Nichicon12KBlack.jpg) |
![SAV [Premium 90A Power Choke]](https://www.asrock.com/Graphics-Card/features/SAV-60APowerChoke.jpg) |
![SAV [Dr.MOS] 50A](https://www.asrock.com/Graphics-Card/features/SAV-DrMOS.jpg) |
| Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. | Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card. | Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance. |
.png)
-
Graphics Engine- AMD Radeon™ RX 6600 XT
-
Bus Standard- PCI® Express 4.0 x8
-
DirectX- 12 Ultimate
-
OpenGL- 4.6
-
Memory- 8GB GDDR6
-
Engine Clock- Boost Clock: Up to 2593 MHz
- Game Clock: Up to 2382 MHz
- Base Clock: 2000 MHz -
Stream Processors- 2048
-
Memory Clock- 16 Gbps
-
Memory Interface- 128-bit
-
Resolution- Digital Max Resolution: 7680 x 4320
-
Interface- 1 x HDMI™ 2.1 VRR
- 3 x DisplayPort™ 1.4 with DSC -
HDCP- Yes
-
Multi-view- 4
-
Recommended PSU- 500W
-
Power Connector- 1 x 8-pin
-
Dimensions- 269 x 132 x 41 mm
-
Net Weight- 640 g
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Видео карти ASRock
Виж всички Видео карти в категорията
Документация
Декларация за съответствие Asrock RX6600XT CLD 8GO.pdfТехнически характеристики
| GPU производител: | AMD Radeon |
|---|---|
| Капацитет: | 8 GB |
| Тип памет на видеокарта: | GDDR6 |
| Битове (BUS памет): | 128 Bit |
| Интерфейс: | DP HDMI |
