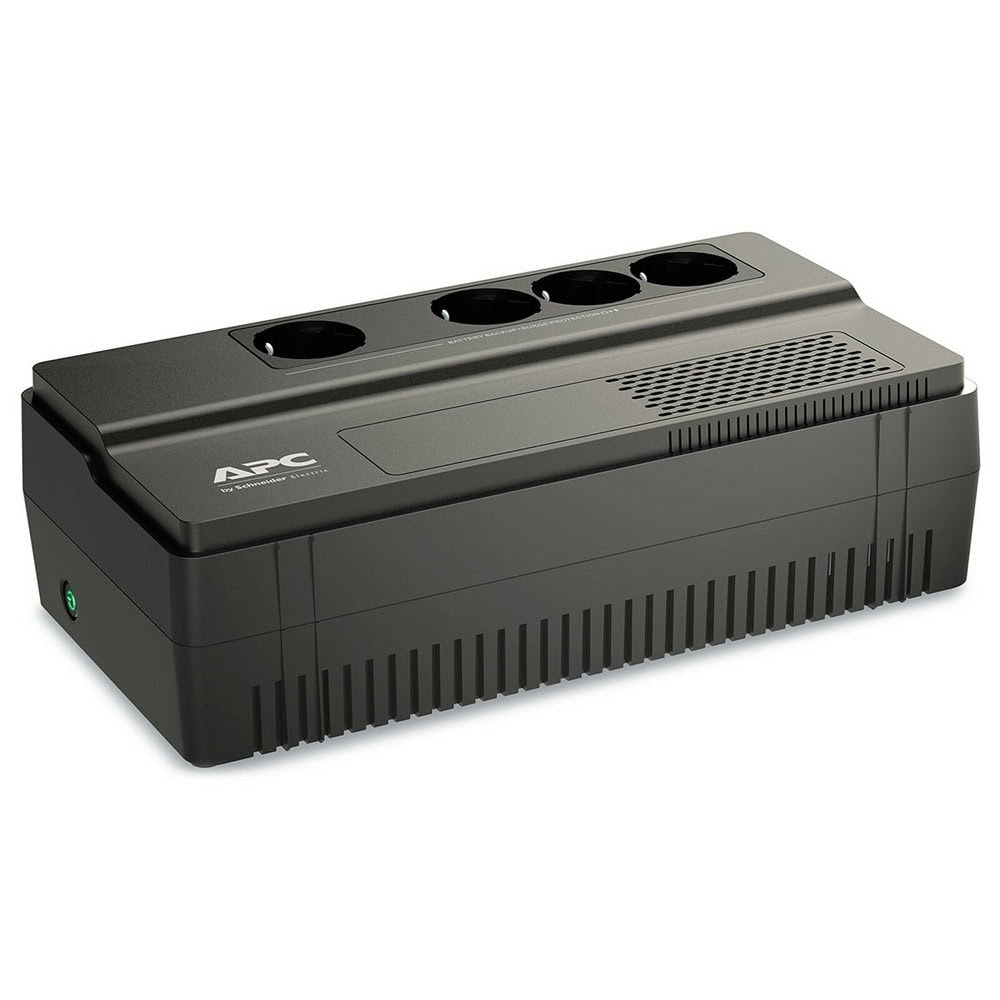

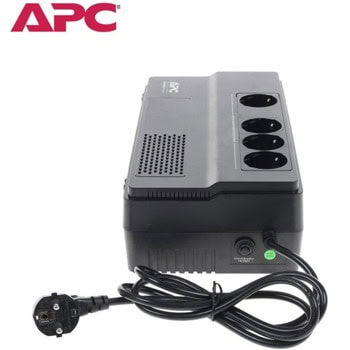

UPS APC Smart-UPS SMT1000IC 1000VA/700W в комплект с UPS APC Back-UPS BV AVR BV800I, 800VA/450W, Line Interactive, Tower

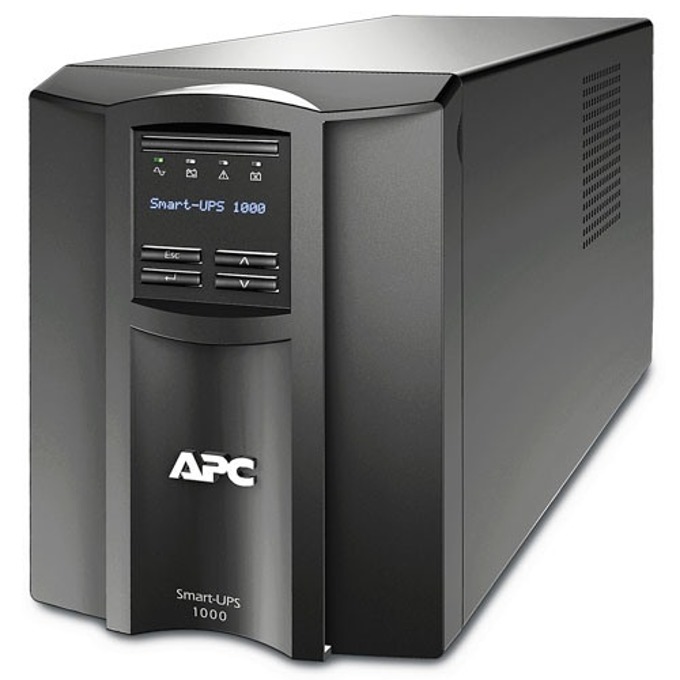

APC Smart-UPS 1000VA LCD 230V with SmartConnect

SMT1000IC

Output

Output power capacity
700Watts / 1.0 kVA

Max Configurable Power (Watts)
700Watts / 1.0 kVA

Nominal Output Voltage
230V

Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion
Less than 5%

Output Frequency (sync to mains)
50/60Hz +/- 3 Hz

Other Output Voltages
220, 240

Topology
Line Interactive

Waveform type
Sine wave

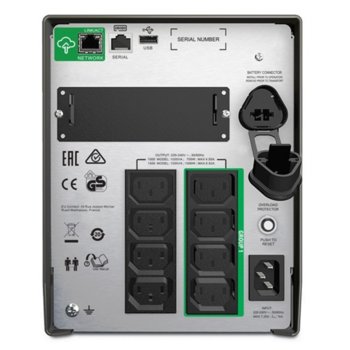

Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Transfer Time
6ms typical : 10ms maximum

Input

Nominal Input Voltage
230V

Input frequency
50/60 Hz +/- 3 Hz (auto sensing)

Input Connections
IEC-320 C14

Input voltage range for main operations
160 - 286V

Input voltage adjustable range for mains operation
151 - 302V

Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time
3hour(s)

Replacement Battery
RBC6

Expected Battery Life (years)
3 - 5

RBC Quantity
1

Runtime
View Runtime Graph
View Runtime Chart

Communications & Management

Interface Port(s)
SmartSlot , USB

Control panel
Multi-function LCD status and control console

Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)
Optional

Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
459Joules

Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
219mm , 21.9CM

Maximum Width
171mm , 17.1CM

Maximum Depth
439mm , 43.9CM

Net Weight
18.86KG

Shipping weight
22.77KG

Shipping Height
376mm , 37.6CM

Shipping Width
328mm , 32.8CM

Shipping Depth
595mm , 59.5CM

Color
Black

Units per Pallet
12.0

Environmental

Operating Temperature
0 - 40 °C

Operating Relative Humidity
0 - 95 %

Operating Elevation
0-3000meters

Storage Temperature
-15 - 45 °C

Storage Relative Humidity
0 - 95 %

Storage Elevation
0-15000meters

Audible noise at 1 meter from surface of unit
41.0dBA

Online thermal dissipation
100.0BTU/hr
