Аксесоар Hagor HA DH, Black

HA DH 400 - 700 L
Ceiling mount

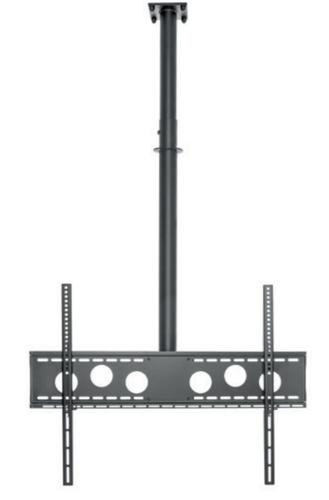

The HA DH 400 - 700 L is a ceiling mount for a single screen from 55 to 75 | 140 - 191 cm screen diagonal. The installation can electively be done in landscape or portrait format.

A TV holding fixture is already included and supports screens from min. VESA 100 x 100 mm up to max. VESA 800 x 600 mm. The tilt angle of the TV holding fixture can be adjusted between -5° and +30° without tools, using the rotary handles on the side.

Thanks to the oblong holes on the side in the lower pipe segment, the TV holding fixture can be swiveled by ±15° with tools. This means that even slight differences in the case of, for example, a faulty drilling can be compensated.

The ceiling distance can be varied in 100 mm steps between min. 438 and max. 738 mm. This information refers to the centre of the screen.

The cables are routed internally, hidden from view and unauthorized access. A cover ring for suspended ceilings is included in the scope of delivery and ensures a clean appearance. The surfaces of the HA DH 400 - 700 L are finished with an impact and scratch resistant powder coating in black.

The max. load is 50 kg.
