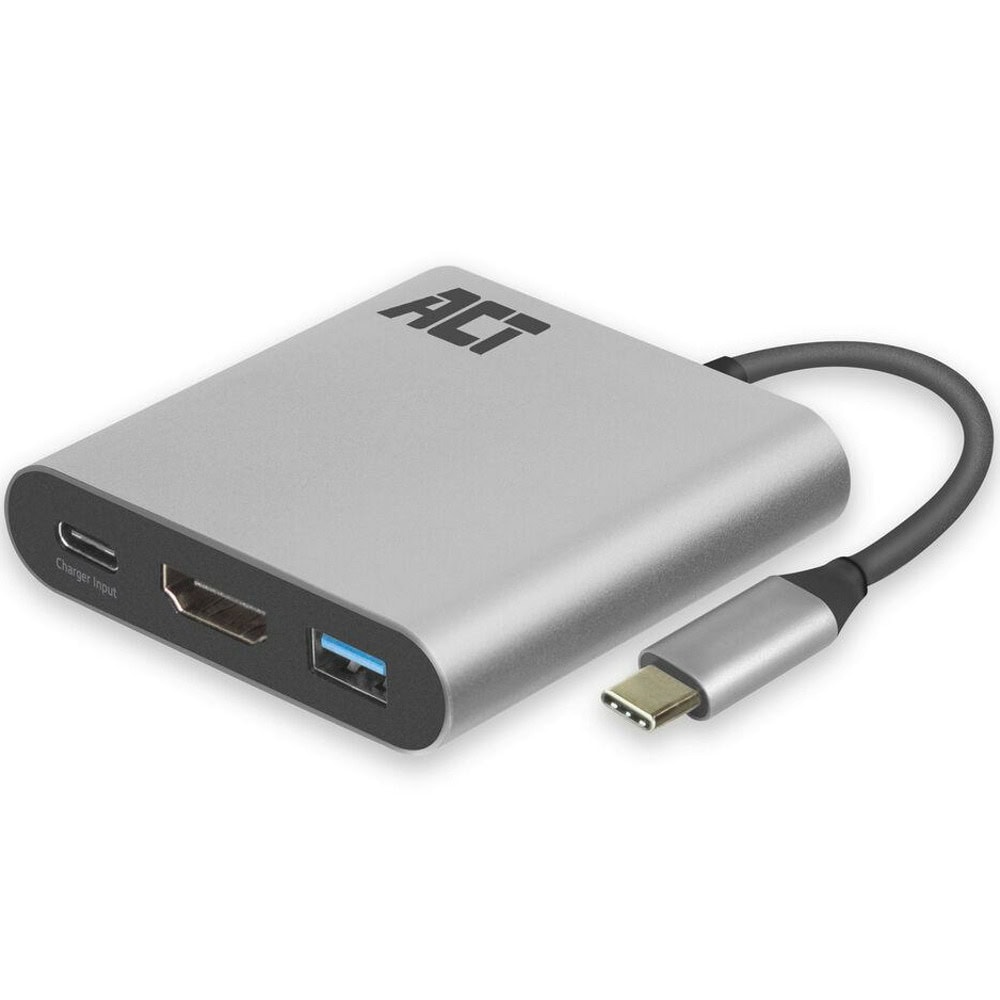

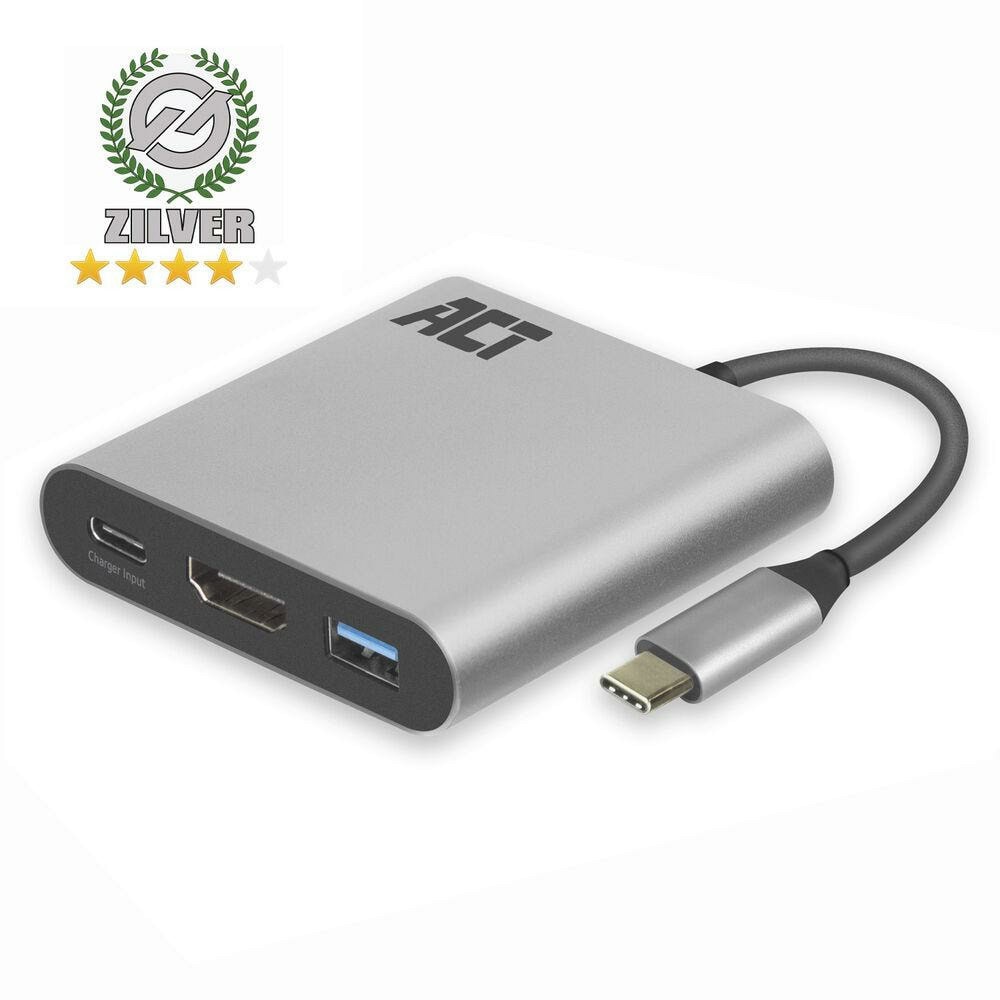

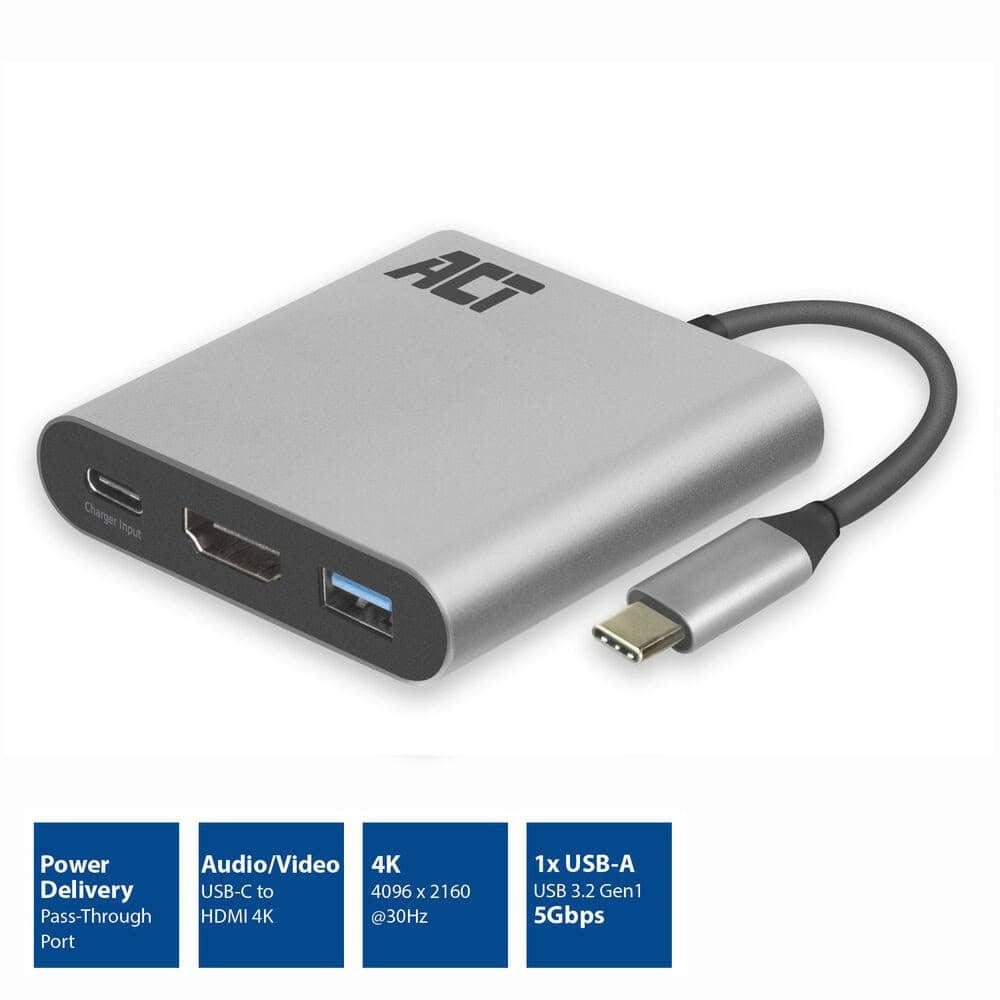

Solid aluminium USB-C 3.2 Gen1 to HDMI video adapter with a max. resolution of 4096 x 2160 (4K) @30Hz
60W Power Delivery Pass-Through port for charging your connected device
USB-A 3.2 Gen1 data port
Plug and play: a USB-C port with DisplayPort Alternate Mode (DP Alt Mode) is needed

Use the USB-C 3.2 Gen1 to HDMI 4K adapter to connect a HDMI screen or beamer to a notebook. The adapter supports a maximum resolution of 4096 x 2160 (4K) @ 30Hz. The AC7022 has a Power Delivery Pass-Through port (max. 60W) and an additional USB-A port.

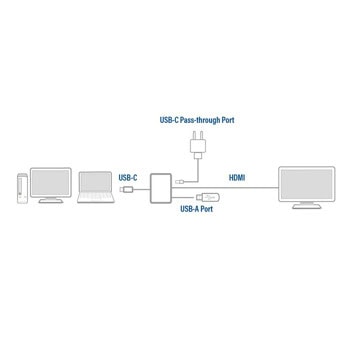

Connect a notebook with USB-C to a monitor or beamer with HDMI
Connect a source device with USB-C to a monitor or beamer with HDMI by using the USB-C 3.2 Gen1 to HDMI adapter. The USB-C port of the source device must support DP Alt Mode. The USB-C to HDMI Adapter supports the maximum resolution of 4096 x 2160 (4K) @ 30Hz. The AC7022 has an additional USB-A data port.

USB-C Power Delivery Pass-Through port 60W
The USB-C Pass-Through port supports power delivery 60W. The notebook is always charged with the right amount of power thanks to the pre-defined Power Delivery profiles. The charger communicates with the notebook to negotiate the most effective charging profile.

Product category	USB-C multiport adapters
USB Type-C	Yes
Length cable	0.12 m
Shielding type	Aluminum Mylar
Conductor material	Tinned copper
Wire gauge	32 AWG
Power Delivery ports	1
Max. Power Delivery power	60 W
Supported Power Delivery profiles	12.0V up to 2.58A, 15.0V up to 2.67A, 20.0V up to 2.75A, 9.0V up to 2.44A
Colour	Grey
Connections	HDMI, USB
Connections (computer)	USB C male (x1)
Connections (display)	HDMI A (full-size) female (x1)
4K compatible	Yes
Max. resolution @ 30Hz	3840 x 2160
Max. resolution @ 60Hz	1920 x 1080
Chroma sampling	4:4:4
Video signal	HDMI
Video specification	HDMI High Speed
USB version	USB 3.2 Gen 1 - SuperSpeed (USB 3.0)
System requirements	USB Alternate mode
Power supply	Bus powered

Виж още Докинг станции ACT
Виж всички Докинг станции в категорията

Технически характеристики

Изход
USB Type-А:	Да
USB Type-C:	Да
Lightning:	Не
USB 2.0:	Не
USB 3.X:	Да
USB 4.X:	Не
Thunderbolt:	Не
DisplayPort:	Не
Mini DisplayPort:	Не
HDMI:	Да
DVI:	Не
VGA (D-Sub):	Не
RJ45:	Не
Аудио изход:	Не
Четец на карти:	Не
