Дънна платка Asus Prime B650M-K, B650, AM5, DDR5, PCI-E 4.0 (HDMI&VGA), 2x M.2, 4x SATA 6Gb/s, 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2.5GbE LAN, Micro ATX

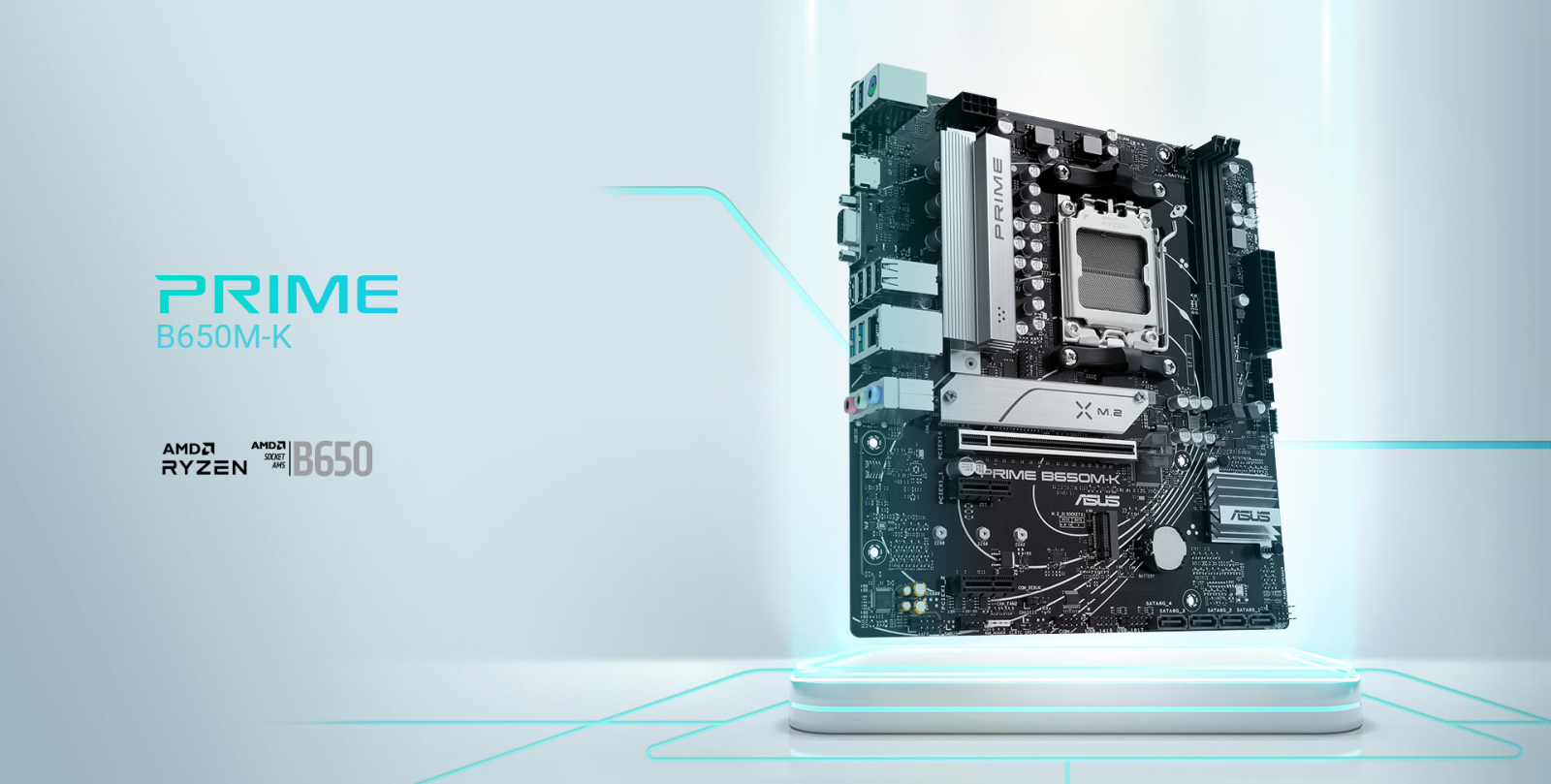

Asus Prime B650M-K

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Tech specs:

CPU

AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors

Chipset

AMD B650 Chipset

Memory

2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics

1 x VGA port
1 x HDMI port**
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*
AMD B650 Chipset
2 x PCIe 4.0 x1 slots
* Specifications vary by CPU types.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**


AMD B650 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.

Ethernet

1 x Realtek 2.5Gb Ethernet

USB

Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)


Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

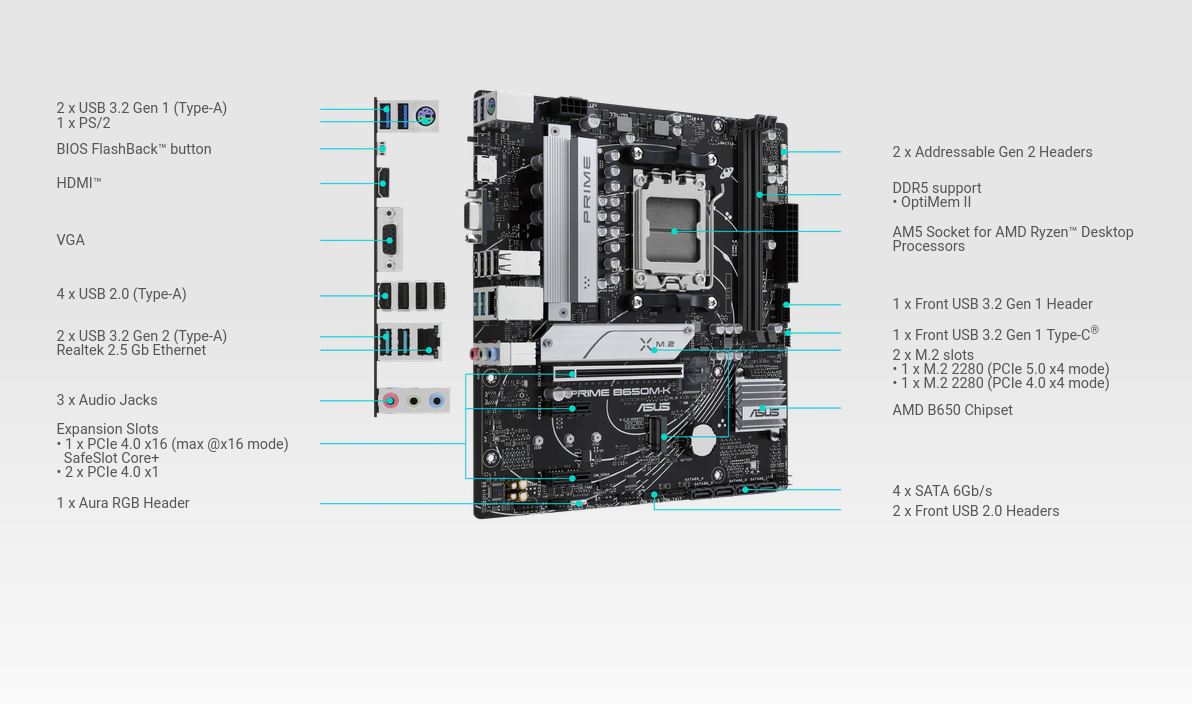

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x VGA port

1 x HDMI port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers


Power related
1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector


Storage related
2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C )

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 port

2 x USB 2.0 headers support 4 additional USB 2.0 ports


Miscellaneous
2 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor
24.4 cm x 22.1 cm
