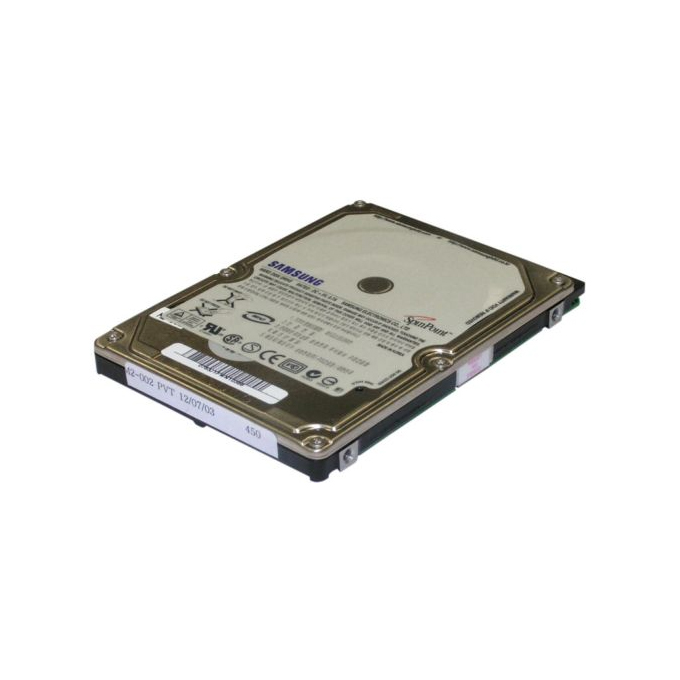

Samsung HM500LI
Drive Configuration
Capacity 500GB
Interface SATA 3.0Gbps
Buffer DRAM Size 8 MB
Byte per Sector 512
Rotational Speed 5,400 RPM
Performance Specifications
Average Seek time(typical) 12 ms
Average Latency 5.6 ms
Data Transfer Rate / Media to/from Buffer(Max.) 860 Mbits/s
Data Transfer Rate / Buffer to/from Host(Max.) 300MB/s
Drive Reday Time(typical) 5 sec
Reliability Specifications
Non-recoverable Read Error 1 sector in 1014 bits
Controlled Ramp Load/Unload 600,000
Acoustics
Idle 2.5 Bel
Performance Seek 2.7 Bel
Environmental Specifications
Temperature / Operating 5 ~ 55 ?
Temperature / Non-operating -40 ~ 70 ?
Humidity(non-condensing) / Operating 5 ~ 90 %
Humidity(non-condensing) / Non-operating 5 ~ 95 %
Liner Shock(1/2 sine pulse) / Operating 325 G
Liner Shock(1/2 sine pulse) / Non-operating 900 G
Vibration / Operating 0.76Grms
Altitude(relative to sea level) / Operating -300 to 3000 m
Altitude(relative to sea level) / Non-operating -400 to 15000 m
Power Requirenents
Voltage +5V±5%
Spin-up Current(Max.) 1000 mA
Seek(typical) 2.6 W
Read/Write(typical) 2.4 W
Low Power Idle(typical) 0.7 W
Standby(typical) 0.25 W
Sleep(typical) 0.2 W
Physical Dimension
Height (Max.) 9.5 mm
Width 69.85 mm
Length 100 mm
Weight(avg.) 115 g
Виж още Твърди дискове Вътрешни Samsung
Виж всички Твърди дискове Вътрешни в категорията
Drive Configuration
Capacity 500GB
Interface SATA 3.0Gbps
Buffer DRAM Size 8 MB
Byte per Sector 512
Rotational Speed 5,400 RPM
Performance Specifications
Average Seek time(typical) 12 ms
Average Latency 5.6 ms
Data Transfer Rate / Media to/from Buffer(Max.) 860 Mbits/s
Data Transfer Rate / Buffer to/from Host(Max.) 300MB/s
Drive Reday Time(typical) 5 sec
Reliability Specifications
Non-recoverable Read Error 1 sector in 1014 bits
Controlled Ramp Load/Unload 600,000
Acoustics
Idle 2.5 Bel
Performance Seek 2.7 Bel
Environmental Specifications
Temperature / Operating 5 ~ 55 ?
Temperature / Non-operating -40 ~ 70 ?
Humidity(non-condensing) / Operating 5 ~ 90 %
Humidity(non-condensing) / Non-operating 5 ~ 95 %
Liner Shock(1/2 sine pulse) / Operating 325 G
Liner Shock(1/2 sine pulse) / Non-operating 900 G
Vibration / Operating 0.76Grms
Altitude(relative to sea level) / Operating -300 to 3000 m
Altitude(relative to sea level) / Non-operating -400 to 15000 m
Power Requirenents
Voltage +5V±5%
Spin-up Current(Max.) 1000 mA
Seek(typical) 2.6 W
Read/Write(typical) 2.4 W
Low Power Idle(typical) 0.7 W
Standby(typical) 0.25 W
Sleep(typical) 0.2 W
Physical Dimension
Height (Max.) 9.5 mm
Width 69.85 mm
Length 100 mm
Weight(avg.) 115 g
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Твърди дискове Вътрешни Samsung
Виж всички Твърди дискове Вътрешни в категорията
Технически характеристики
| Размер: | 2.5" (6.35cm) |
|---|---|
| Капацитет: | 500 GB |
| Интерфейс: | SATA2 |
