 | The right way up
|
From subtle to stunning
|  |
 | Forget the thermal paste
|
Technical specifications
Sockets supported (Intel)
LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
Sockets supported (AMD)
AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
* Compatible using updated LGA 1700 bracket

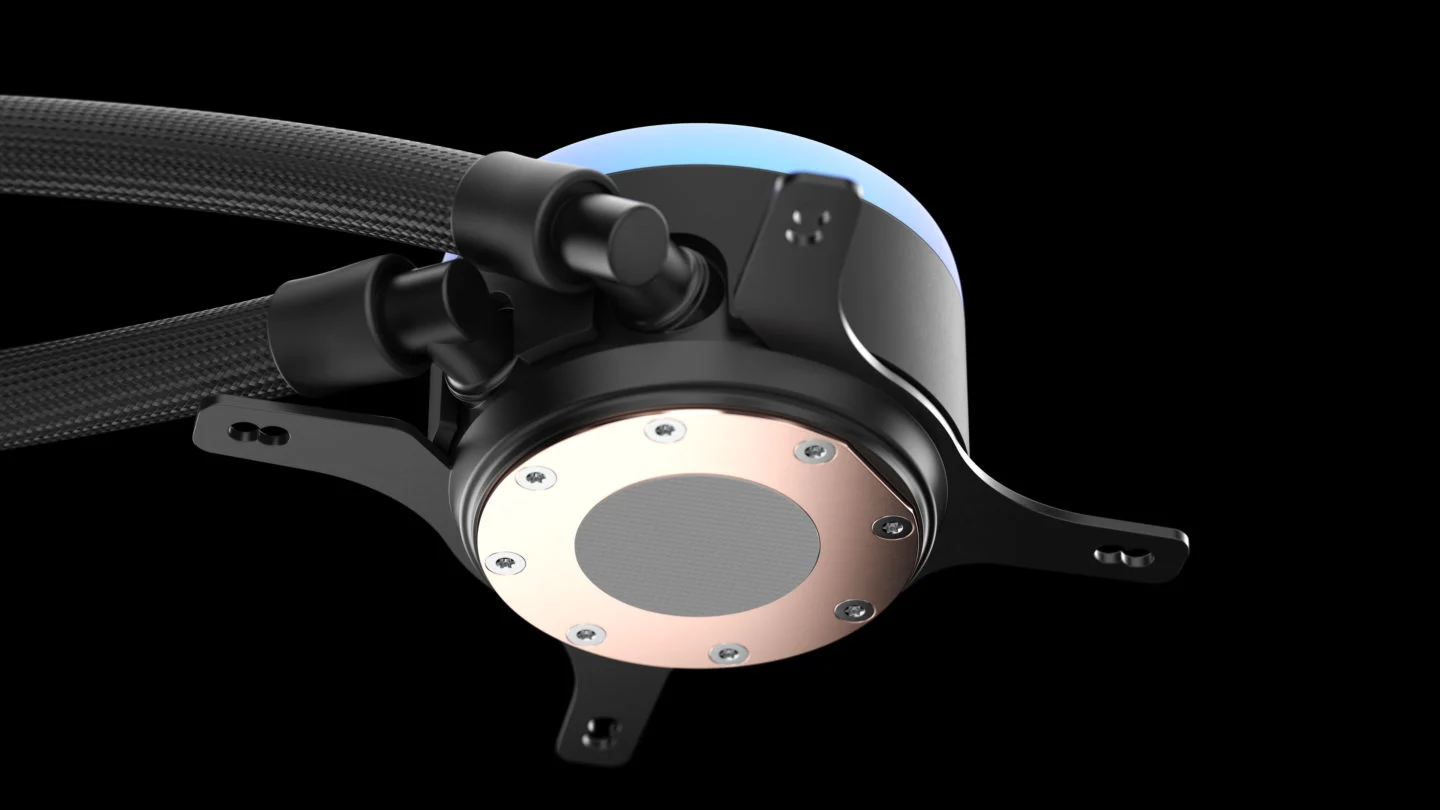

Cold plate material
Copper
Thermal paste
Pre-applied
Tube length
400mm
Tube material
Low-permeability rubber with braided nylon sleeve
Fittings, block side
Articulating 90-degree Elbow
Fittings, radiator side
Barbed fitting
Block height
43mm
Block measurements (with fittings)
79 x 67 mm
Block diameter (main block body)
67 mm
Fan type
Aspect 14 PWM
Rotational speed
500–1700 RPM
Fan bearing
Rifle bearings
Fan PWM control
Yes
Fan acoustical noise
<10–35.5 dBA
Fan maximum air flow
20-78 CFM
Fan maximum static pressure
0.3–2.05 mm H2O
Fan input voltage
12V
Fan maximum input current
0.24A
Fan MTTF
90,000 hours
Pump specifications
Rotational speed
4000 ± 10% RPM
Bearing type
Ceramic
PWM control
No
Acoustical noise (full speed)
22 dBA
Maximum pressure
1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage
12V DC
Input current (without fans)
0.34 A
MTTF
50 000 hours
Radiator specifications
Radiator dimensions
313 x 140 x 27 mm
Radiator housing material
Aluminum
Radiator fin material
Aluminum
Radiator fan screw threads
6-32
