Name: Проектор Vivitek DK8500Z-BK, DLP, UHD (3840x2160), 10000:1, 7500 lm, 2x HDMI, Display Port, 2x RJ-45, USB, черен
Brand: Vivitek
SKU: PJVIVITEKDK8500ZBK
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

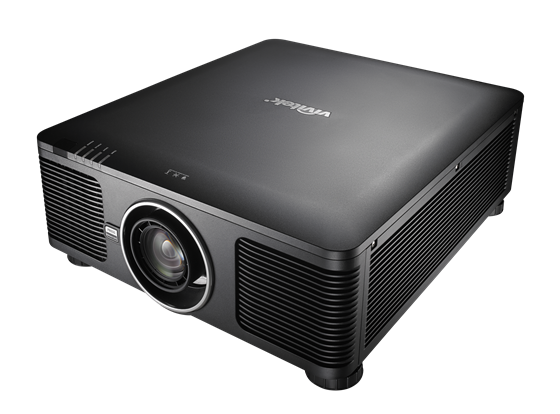

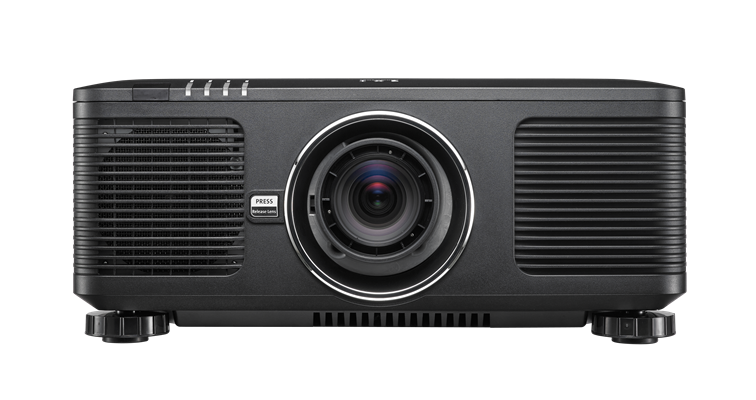

DK8500Z-BK

Low Maintenance Laser Projector

Lamp-Free and Eco-Friendly

The 7,500 lumen laser projector DK8500Z offers extraordinary 4K-UHD resolution with full 8.3 million pixels for large venue applications. It is designed for easy installation with motorized interchangeable lens options and 360° degree set up flexibility. Its long lasting laser light source provides up to 20,000 hours of operation with low maintenance for the peace of mind.

Key features

DLP® technology for vibrant and rich picture quality
4K-UHD resolution with 8.3M pixels to show every details
7,500 ANSI lumens of brightness, and 10,000:1 contrast ratio for clear, crisp and bright projection
Long lasting laser light source for constant brightness level and color performance for up to 20,000 hours operations
3G-SDI & HDBaseT for robustness for long signal transmission
Installation flexibility is ensured with 8 optional lenses from 0.377:1 to 5.34-8.36:1 throw ratio range
Motorized and wide lens shift range allows easy placement of the projector without distorting the image
Image adjustment is made easy with 4 corner correction and keystone correction
Built-in multi-screen edge-blending and warping features
Easy projector monitor and control over network
Designed for heavy duty 24/7 operations with 360° installation angle flexibility
Lens Position Memory to facilitate set up

SPECIFICATIONS

Native Resolution: UHD (3840 x 2160) with SP on
Brightness: 7500 ANSI Lumens
Contrast Ratio: 10,000:1
Max. Supported Resolution: UHD (3840 x 2160) @60Hz
Native Aspect Ratio: 16:9
Lamp Life and Type: Lamp free design. Laser light source lasts up to 20,000 hours
Display Type: Single chip DLP® Technology by Texas Instruments
Chip Size: 0.66” DMD
Image Size (Diagonal): depending on lens selection
Projection Distance: depending on lens selection
Zoom Ratio: Motorized Zoom & Focus
Lens Shift ( Based on Full Image Height): Vertical: +64%, -33%; Horizontal: +24%, -14%
Offset (Based on Full Image Height): Motorized Lens Shift
Keystone Correction: Vertical: +/-40°; Horizontal: +/-60°
Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p, 4K-UHD)

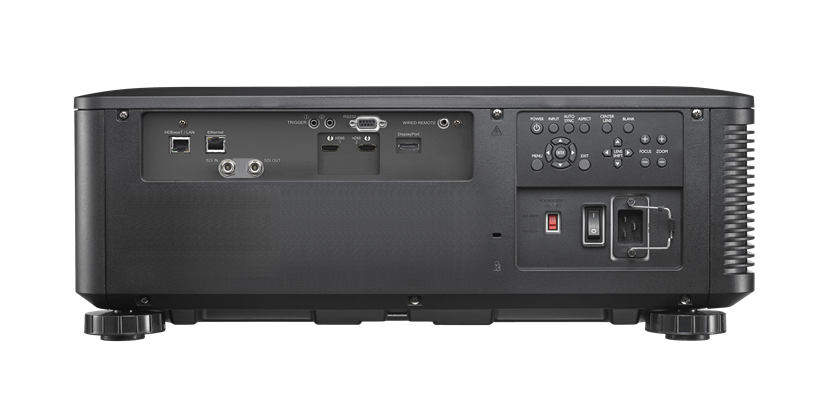

I/O Connection Ports: HDMI (x2), Display Port, RJ45 (x2: HDBaseTx1, LANx1), 12v Trigger (x2), RS-232, 3G-SDI (x2: In and Out), Remote Jack(wire remote)
Dimensions (W x D x H): 500 x 580 x 205 mm
Weight: 28 kg
Noise Level: 40dB (Normal Mode)
Power: Supply: AC 100-240V. 50/60Hz. Consumption: <0.5W (Standby)
Remote Control P/N: 5041848301
Standard Accessories: User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
UPC Code: DK8500Z-BK: 813097023155

Виж още Проектори Vivitek
Виж всички Проектори в категорията

Документация

Data Sheet

Технически характеристики

Тип:	DLP
3D:	Не
Разделителна способност (native):	3840 x 2160
Разделителна способност (max):	3840 x 2160
Яркост:	7500 lm
Контраст:	10000
Мрежови възможности:	RJ-45
Говорители:	Не
4K:	Да
Разстояние на проектиране:	Не е указано
Short Throw:	Не
