Проектор ViewSonic LSD500HD, Laser Phosphor, Full HD (1920x1080), 3 000 000:1, 5500lm, HDMI, USB, LAN, RS232

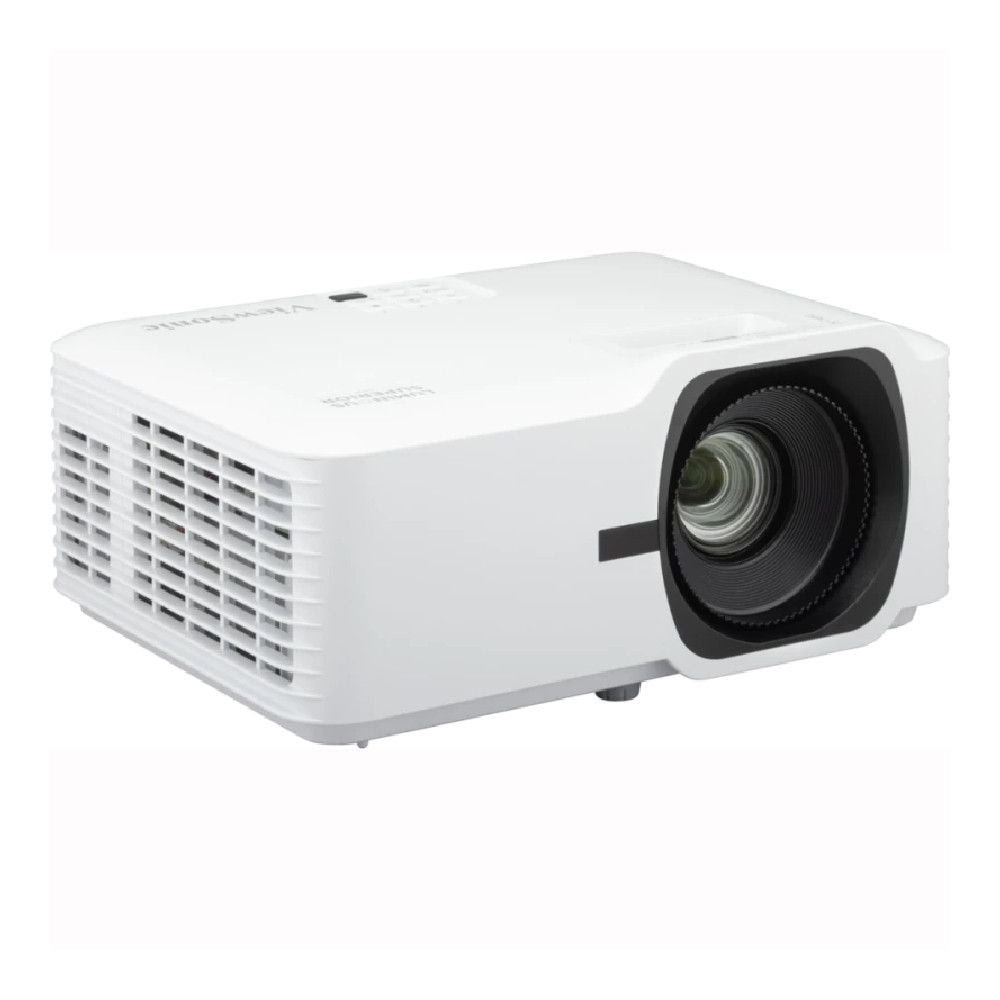

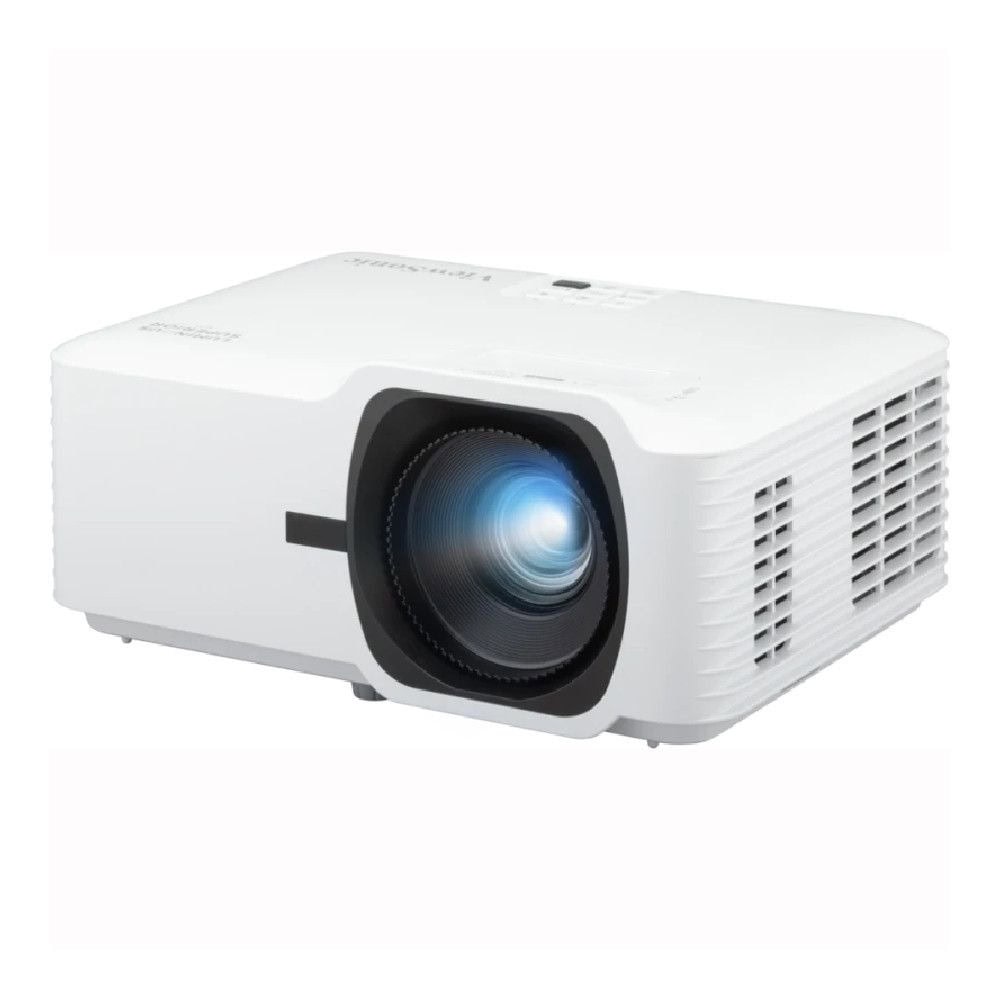

ViewSonic LSD500HD

5,500 ANSI Lumens 1080p Laser Installation Projector

• 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
• 5,500 ANSI Lumens offering bright images in any environment
• Up to a 300" ultra-large screen with a lower cost-per-inch
• Centralized LAN control for efficient management
• Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode

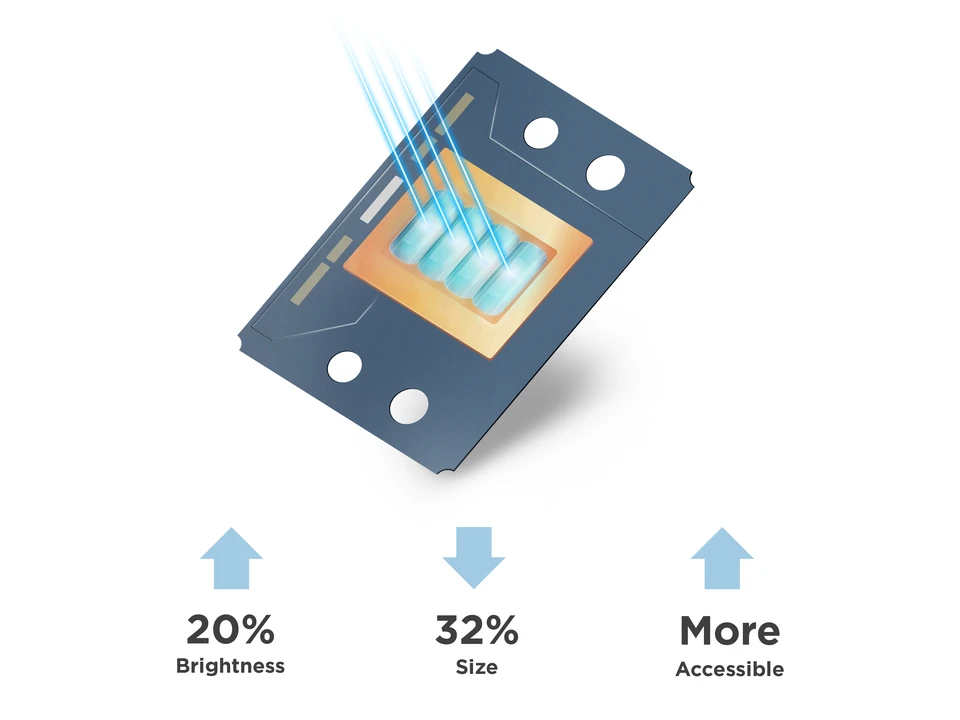

Bright, Compact, Durable

The LSD500HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Bright Images for Large Venues

Delivering 5,500 ANSI Lumens, the LSD500HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.

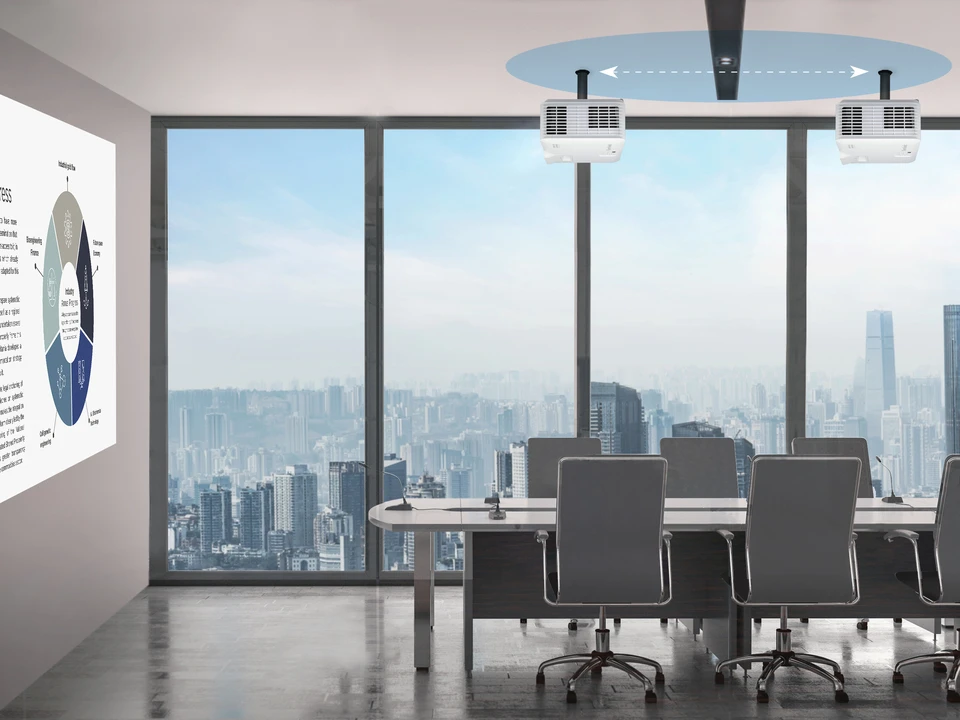

Enhanced Installation Flexibility

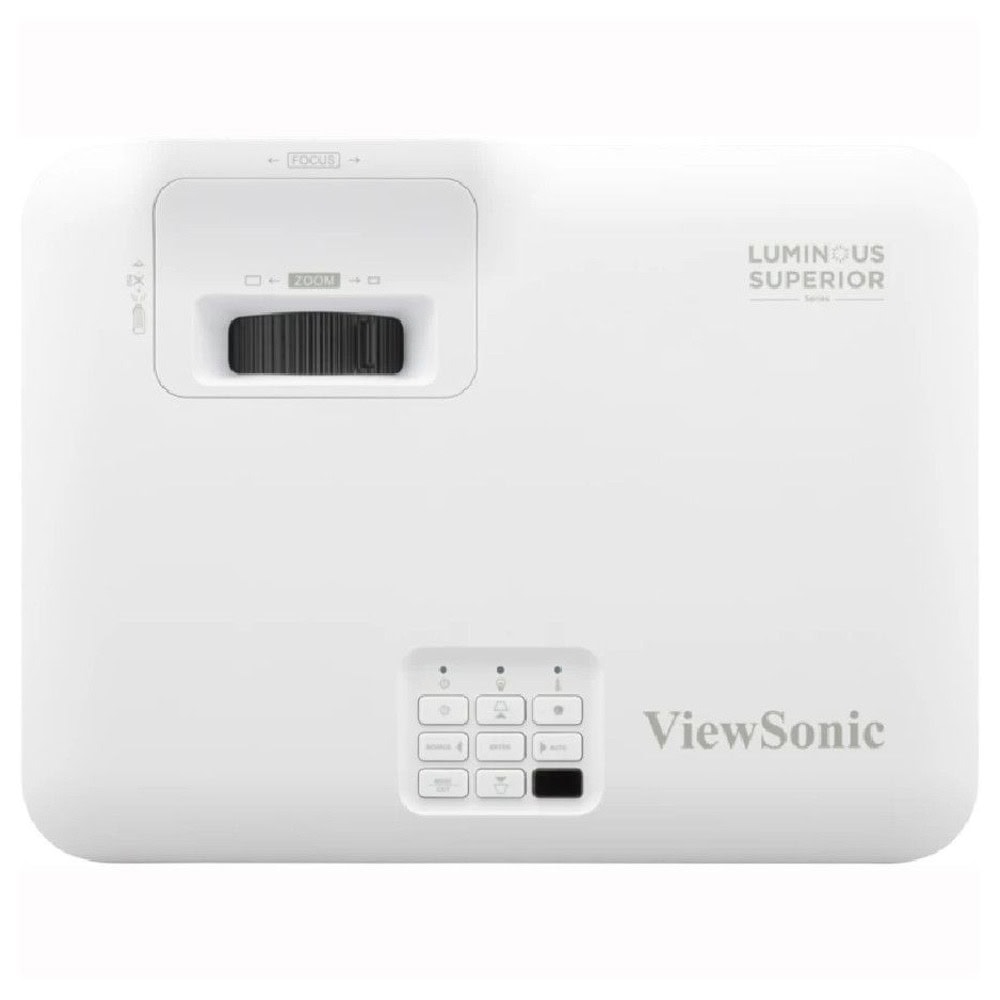

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.

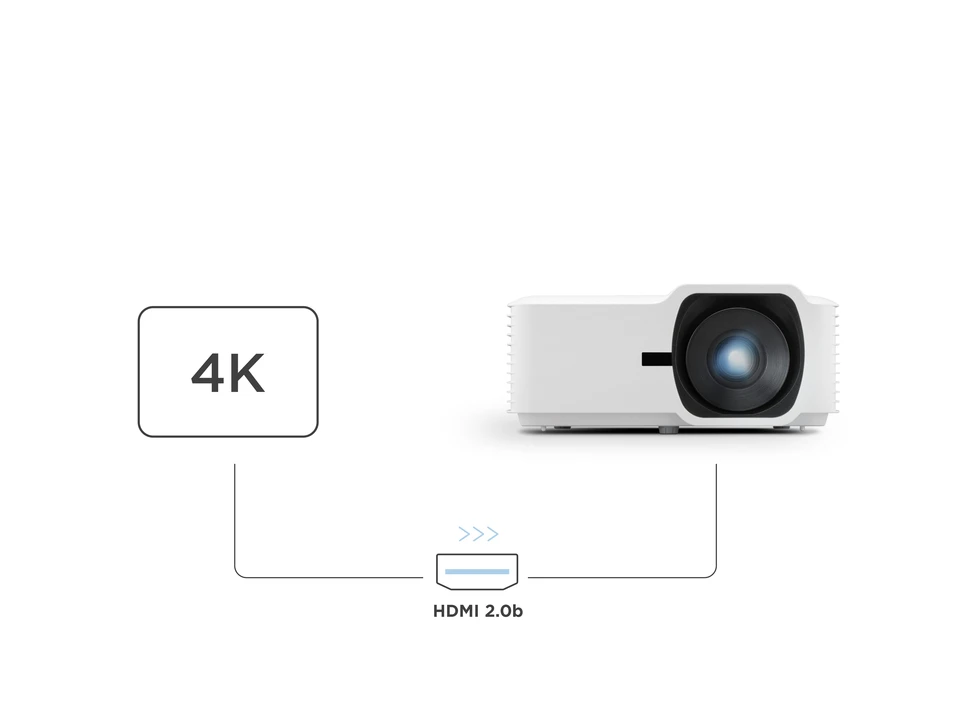

HDR / HLG / 4K UHD supported by HDMI 2.0b

The LSD500HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.

SPECIFICATIONS


• Specification

  Projection System: 0.65" 1080P
  Native Resolution: 1920x1080
  Brightness: 5500 (ANSI Lumens)
  Brightness (Center Lumens): 6000
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.43-2.78, f=16.90-21.61mm
  Projection Offset: 132%+/-10%
  Throw Ratio: 1.13-1.47
  Optical Zoom: 1.3X
  Digital Zoom: 0.8x-2.0x
  Image Size: 30"-300"
  Throw Distance: 0.75-9.76m
  (100"@2.50m)
  Keystone: H:+/-30° , V:+/-30°
  Audible Noise (Normal): 32dB
  Audible Noise (Eco) : 27dB
  Input Lag: 16.8ms
  Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-135KHz
  Vertical Scan Rate: 24-120Hz

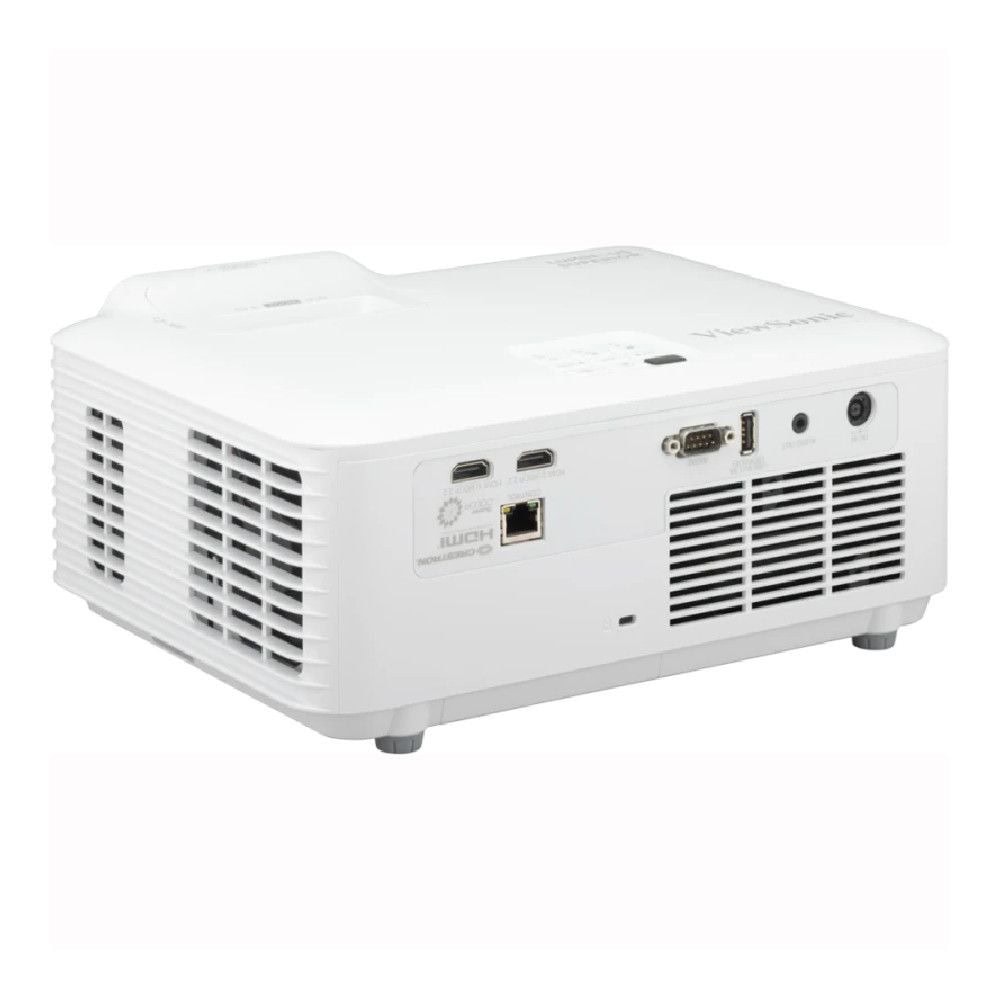

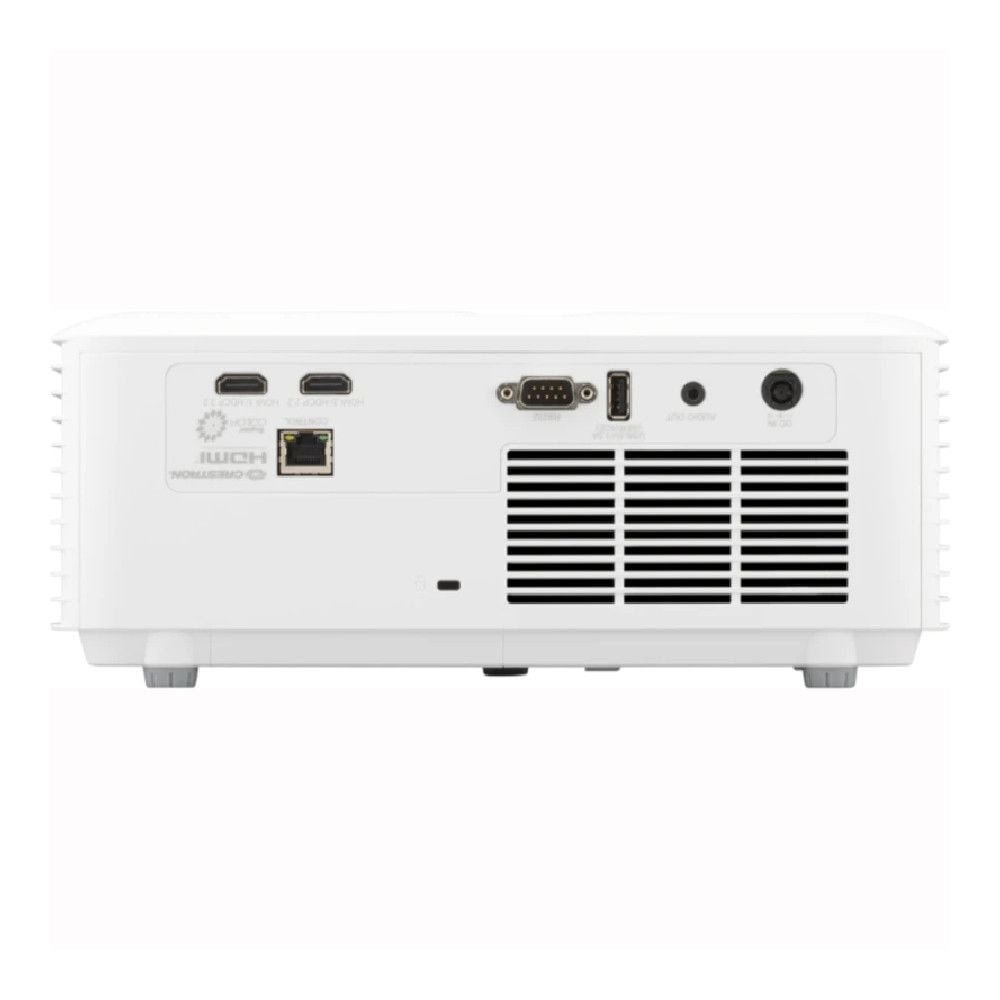

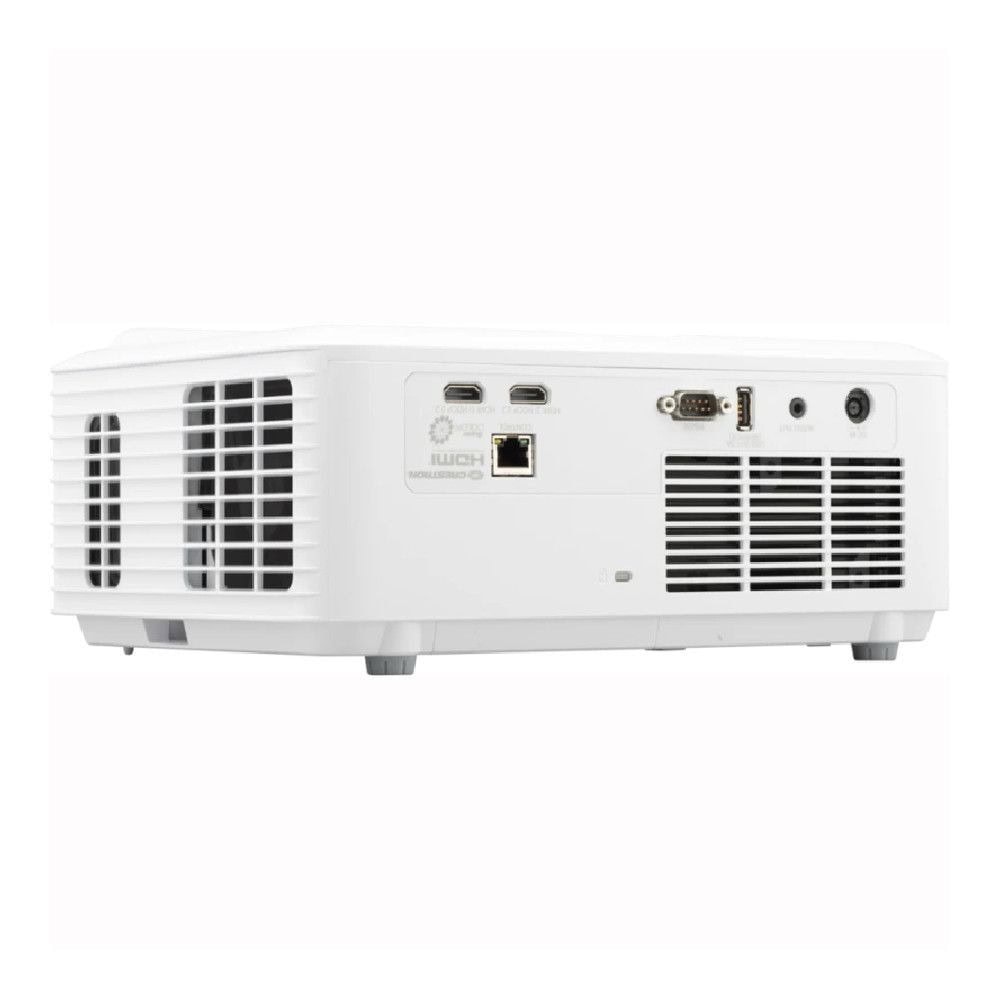

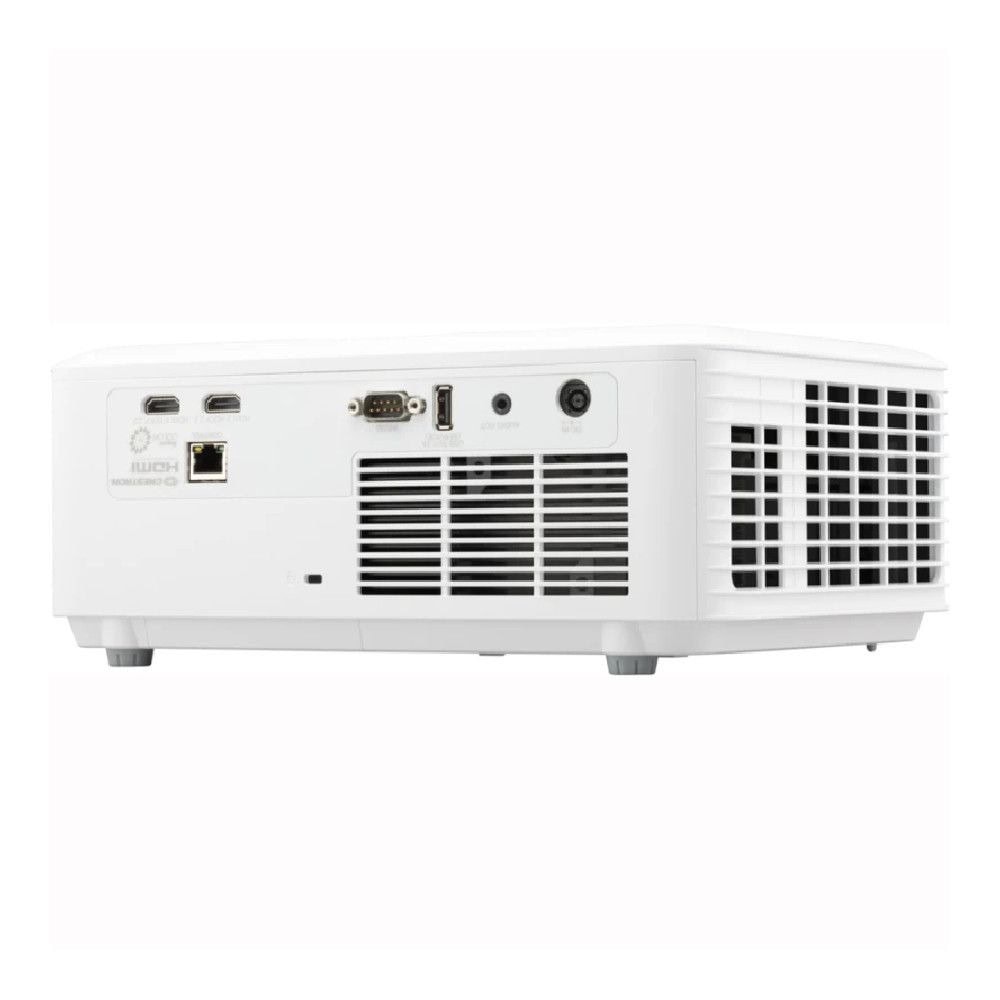

• Input

  HDMI: 2
  (HDMI 2.0, HDCP 2.2)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 11.79A
  Power Consumption: Normal: 165W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 2.9kg (6.39 lbs)
  Gross Weight: 4.6kg (10.14 lbs)
  Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm (11.3x8.5x5.1 in)
  Packing Dimensions: 400x280x155mm (15.7x11x6.1 in)
  OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
  User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
