Проектор ViewSonic LSD400HD-ST, DLP, Full HD (1920x1080), 3 000 000:1, 4000lm, HDMI, USB, LAN, RS232

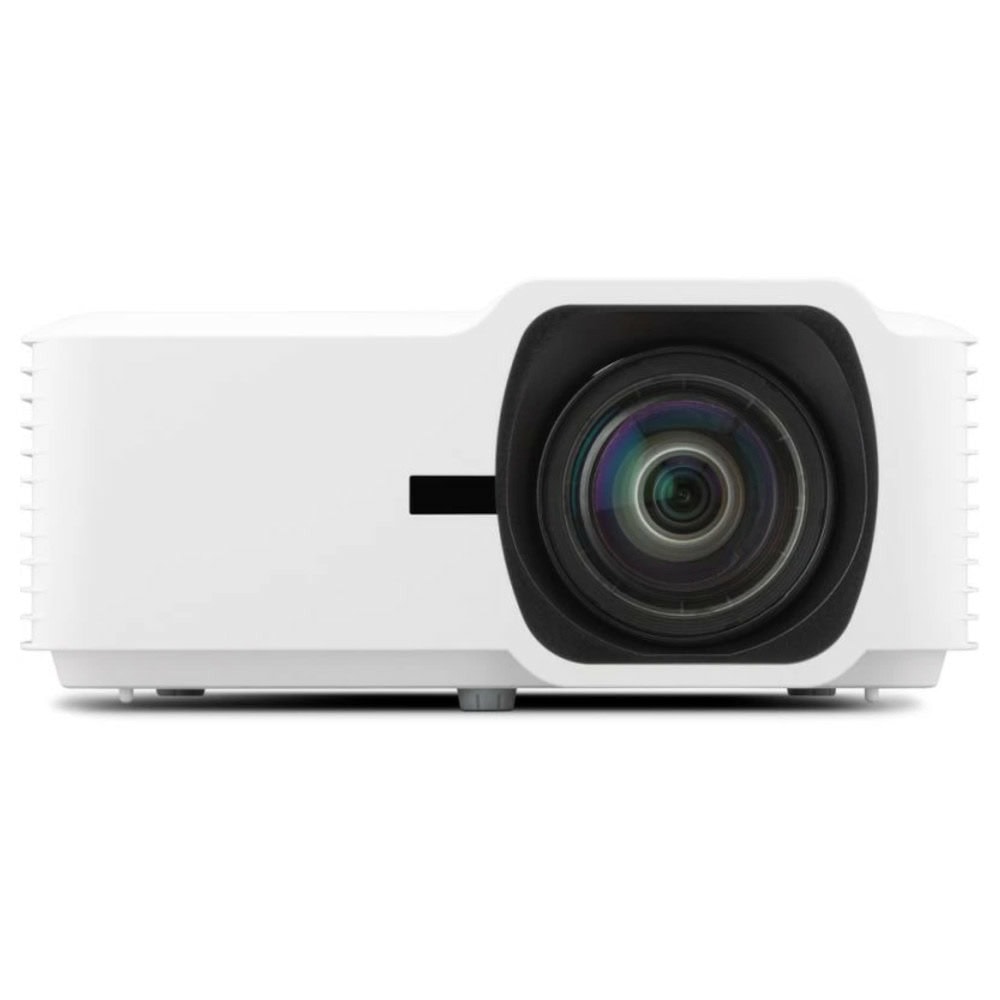

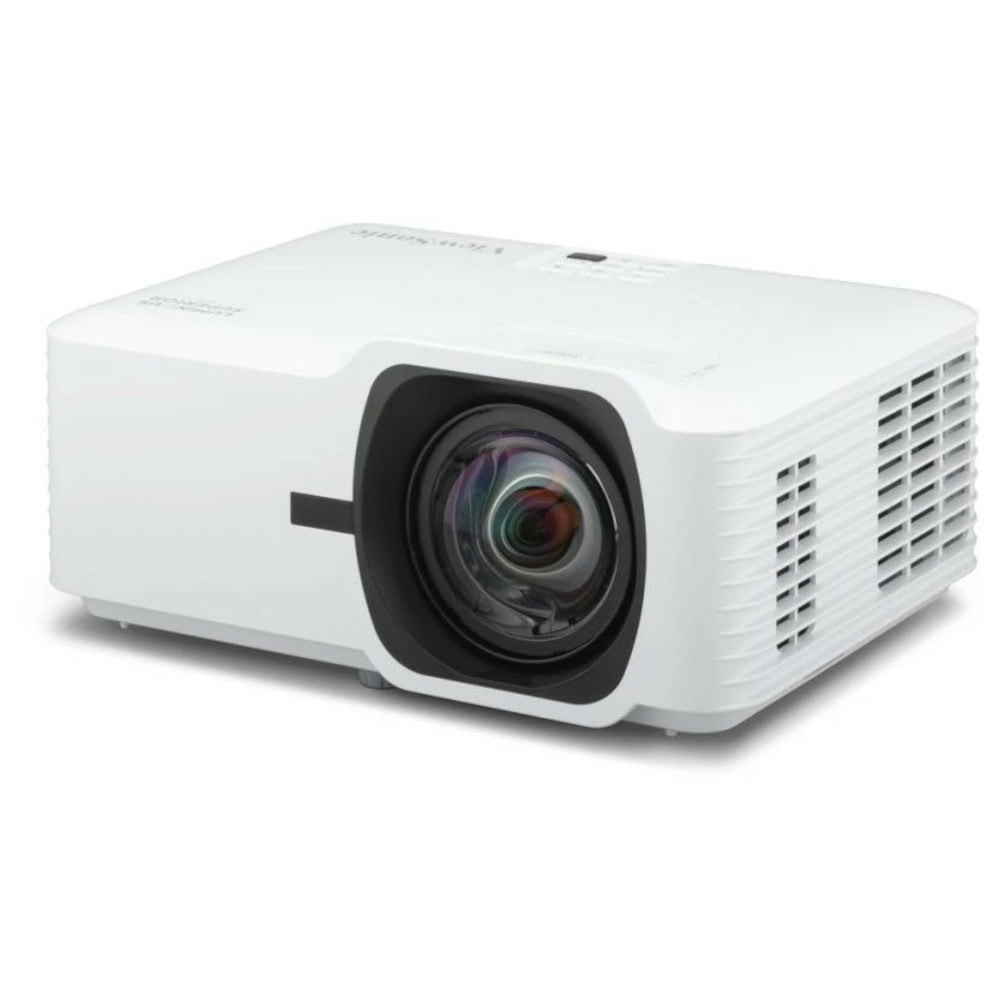

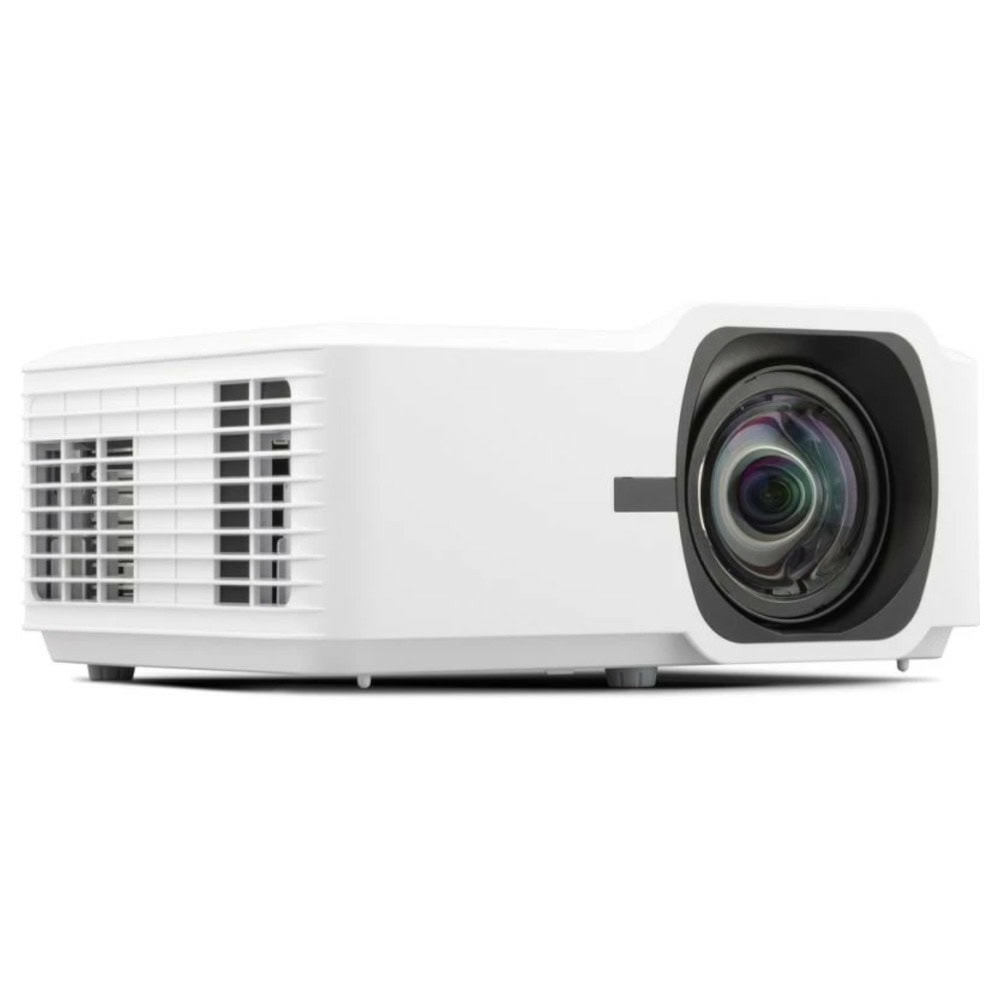

ViewSonic LSD400HD-ST

4,000 ANSI Lumens 1080p Short Throw Laser Installation Projector

• 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
• 0.5 short throw for large images even in limited spaces
• 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
• High native contrast ratio powered by a 0.65” DMD chip and DLP technology
• Installation flexibility: H/V keystone, 4 corner adjustment, and 360° projection
• Centralized LAN control for efficient management

Bright, Compact, Durable

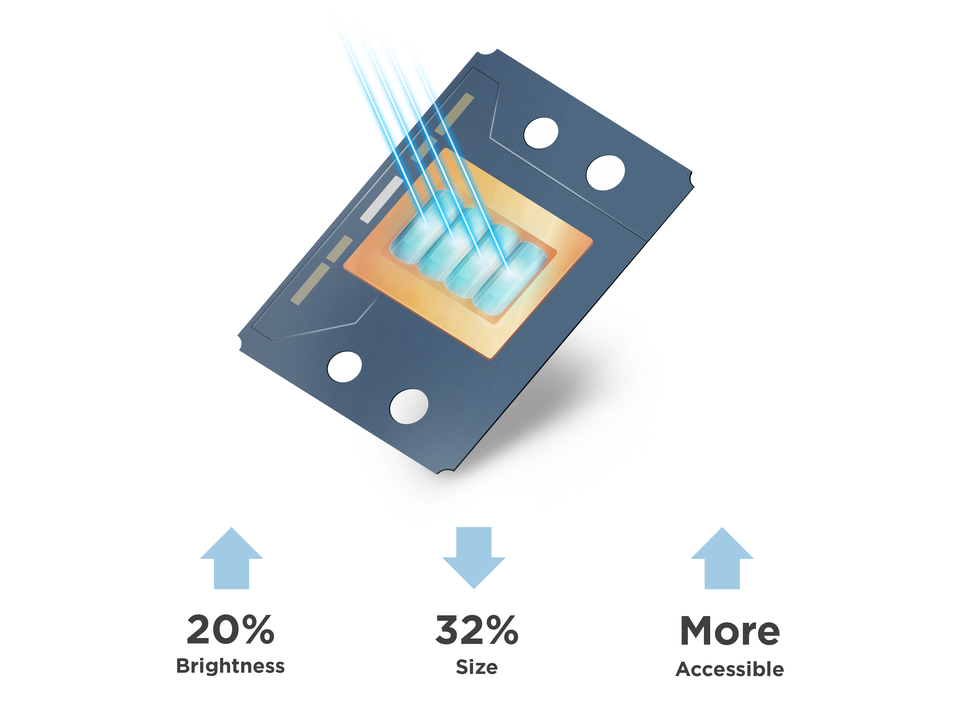

The LSD400HD-ST incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

3rd-gen Laser Phosphor Technology

Brilliant Clarity in Every Detail

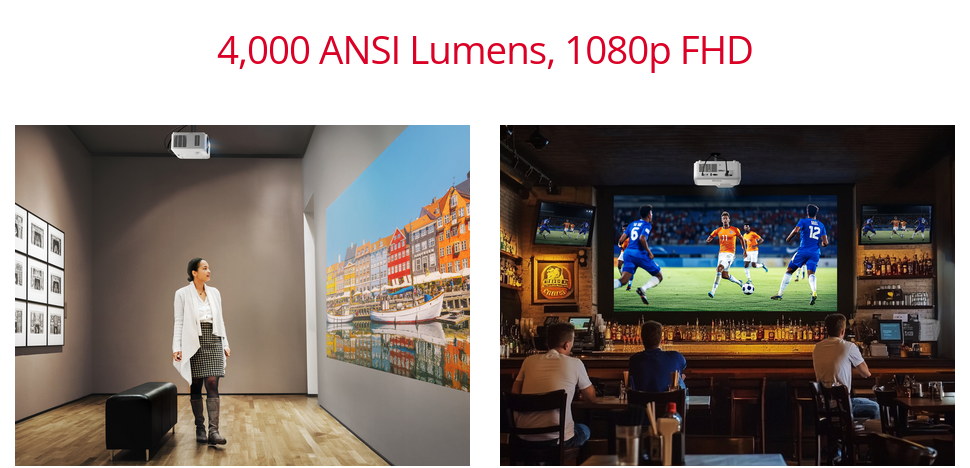

Delivering 4,000 ANSI Lumens, the LSD400HD-ST projects vibrant, razor-sharp images in 1080p Full HD, making it ideal for golf simulators, exhibitions, and retail environments.

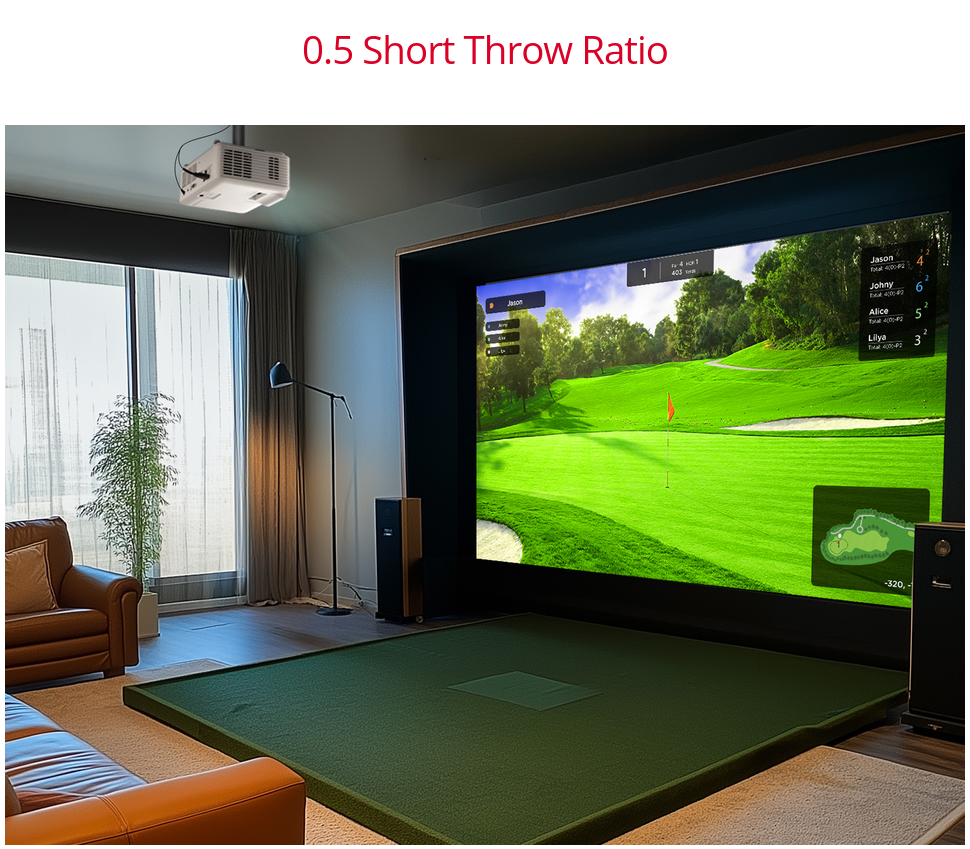

Go Big, ​Even in Small Spaces

Enjoy large images even in small spaces with a 0.5 short throw ratio. Capable of projecting a 100” screen from just 1.1 meters away, the LSD400HD-ST allows flexible installation—delivering immersive golf simulation experiences from the comfort of your home.

Unmatched Contrasts, Enhanced Visibility

Experience enhanced visuals with the LSD400HD-ST, boasting high contrast thanks to DLP technology and an advanced 0.65" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

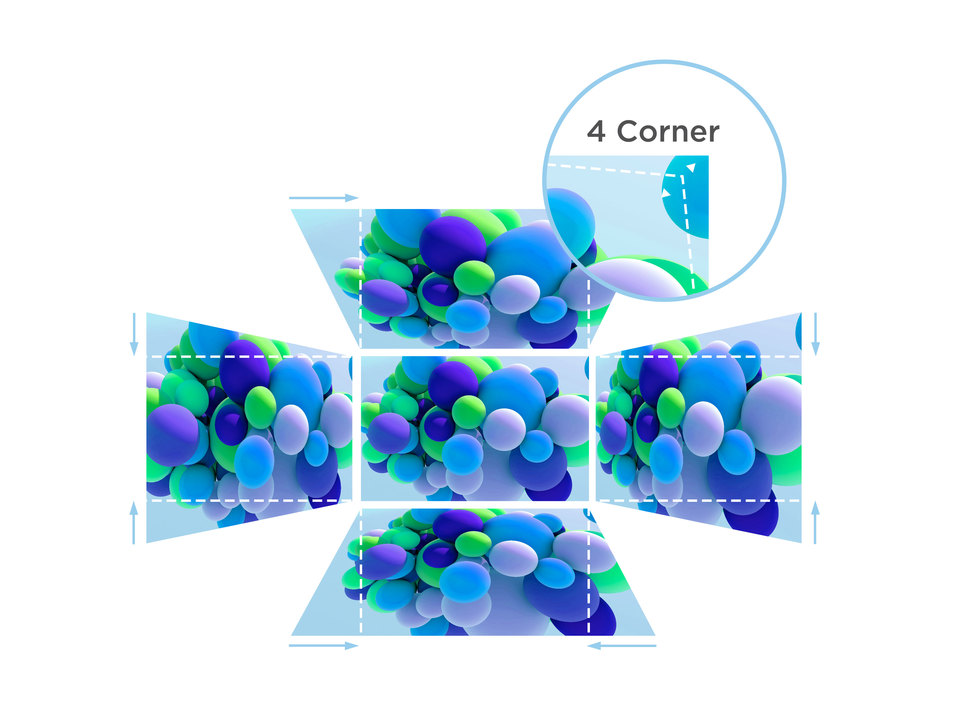

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.

H/V Keystone Correction, 4-corner Adjustment

SPECIFICATIONS:

• Specification

  Projection System: 0.65"1080P
  Native Resolution: 1920x1080
  Brightness: 4000 (ANSI Lumens)
  Brightness (Center Lumens): 4800
  Contrast Ratio: 3000000:1
  Display Color: 1.07 Billion Colors
  Light Source Type: Laser Phosphor
  Light Source Life (hours) with Normal Mode: 20000
  Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
  Lens: F=2.8, f=7.51mm
  Projection Offset: 132%+/-10%
  Throw Ratio: 0.5
  Optical Zoom: Fixed
  Digital Zoom: 0.8x-2.0x
  Image Size: 40"-300"
  Throw Distance: 0.44-3.29m
  (100"@1.10m)
  Keystone: H:+/-15° , V:+/-15°
  Audible Noise (Normal): 32dB
  Audible Noise (Eco): 27dB
  Input Lag: 16.7ms
  Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
  HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency: 15K-135KHz
  Vertical Scan Rate: 24-120Hz

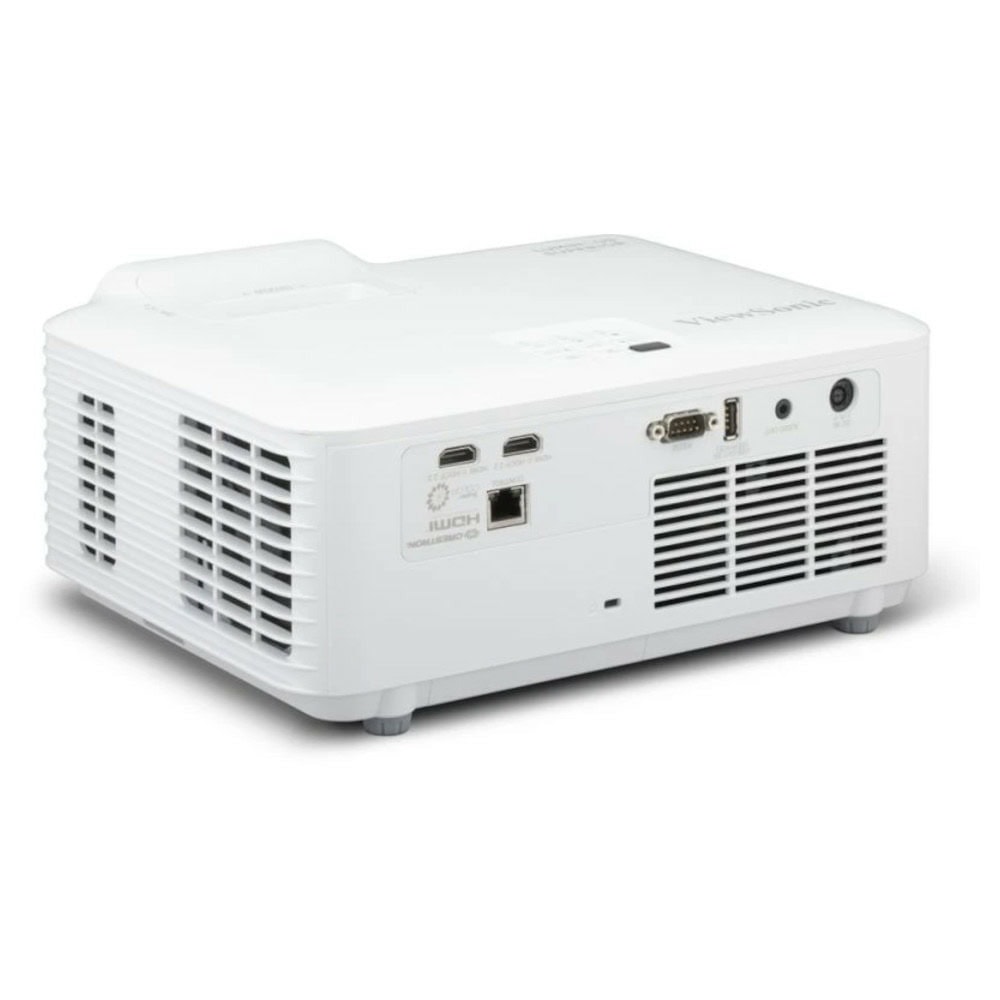

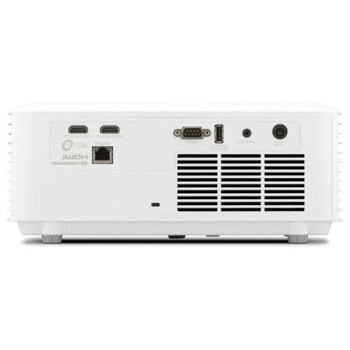

• Input

  HDMI: 2
  (HDMI 2.0, HDCP 2.2)


• Output

  Audio-out (3.5mm): 1
  Speaker: 15W
  USB Type A (Power): 1 (5V/ 1.5A)


• Control

  RS232 (DB 9-pin male): 1
  RJ45 (LAN control): 1
  USB Type A (Services): 1
  (share with USB A Output)


• Others

  Power Supply Voltage: Power adaptor:
  Input: 100~240V
  Output: 19.5VDC / 9.23A
  Power Consumption: Normal: 143W
  Standby: <0.5W
  Operating Temperature: 0~40℃
  Carton: Brown
  Net Weight: 3.10kg
  Gross Weight: 4.6kg
  Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
  Packing Dimensions: 400x280x155mm
