Захранване Thermaltake Toughpower iRGB Plus, 1250W, Active PFC, 80 Plus Titanium, 140mm вентилатор



Thermaltake Toughpower iRGB PLUS 1250W









80 PLUS Titanium certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with two native PCIe Gen 5.0 connector, it can power up latest GPU with the 12VHPWR cable. iRGB PLUS PSU comes with 16.8million-color, 18-LED RGB fan, can be controlled by software system to make power management smarter.









The Future of Digitalization

Toughpower iRGB PLUS Titanium Series (1650W/1250W) is designed to meet Intel ATX 3.0 specifications, 1650W comes with two PCIe Gen 5.0 12VHPWR modular connectors. This fully modular 80 PLUS Titanium certified PSU packs a patented 16.8 million-color Riing Duo 14 RGB fan with 18 addressable LEDs preinstalled to provide various illumination options. The series supports software control, so users get to digitally control the lighting and manage their PSU/PC easily.











Fully Compatible with Intel ATX 3.0

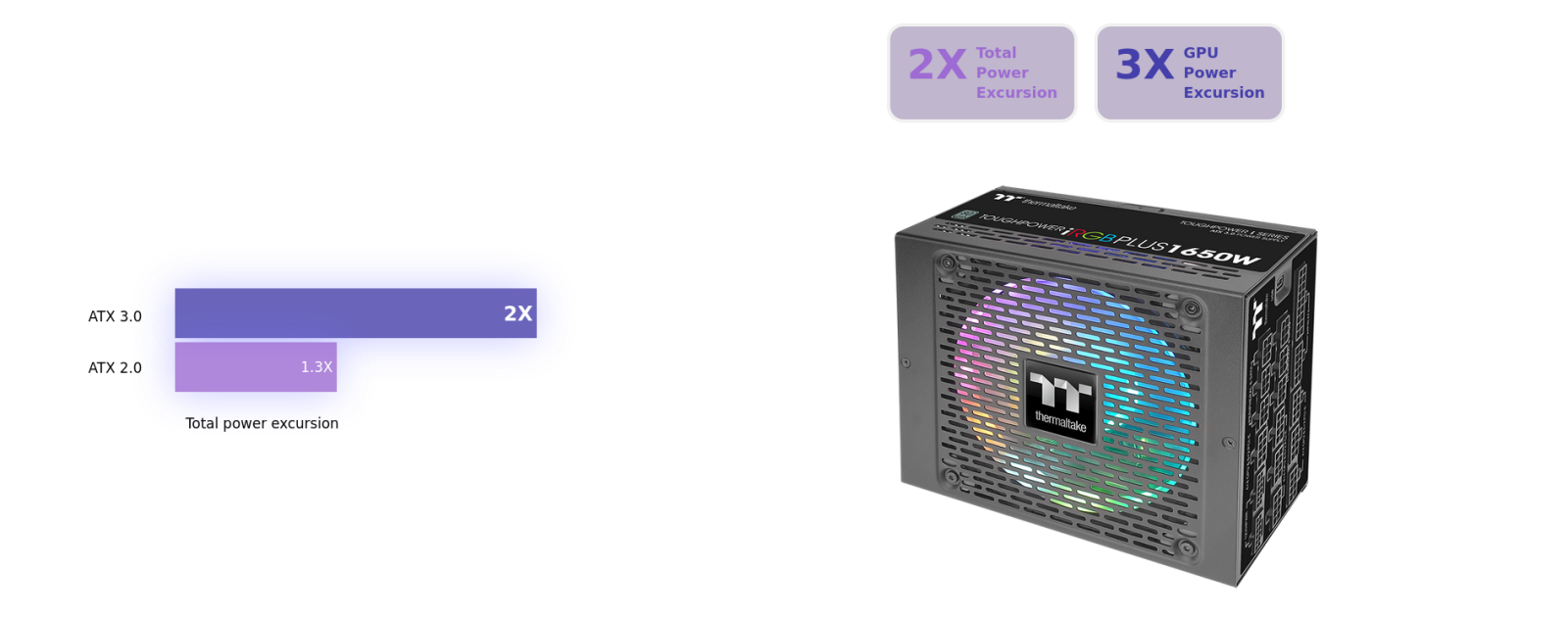

Toughpower iRGB PLUS Titanium series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.

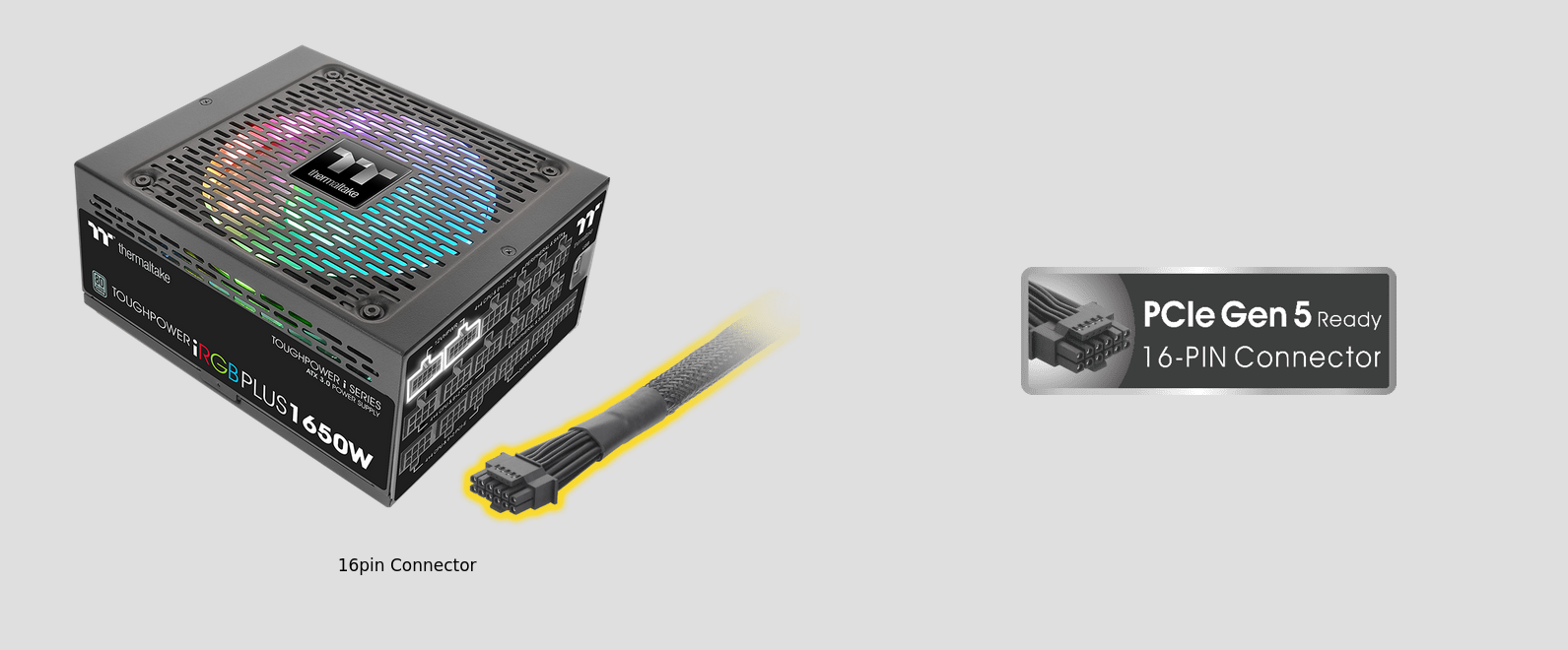

PCIe Gen 5.0 Ready

Toughpower iRGB PLUS Titanium 1650W comes with two 12VHPWR connectors to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connectors of the Toughpower iRGB PLUS Titanium 1650W can deliver up to 600W for PCIe 5.0 graphics cards.

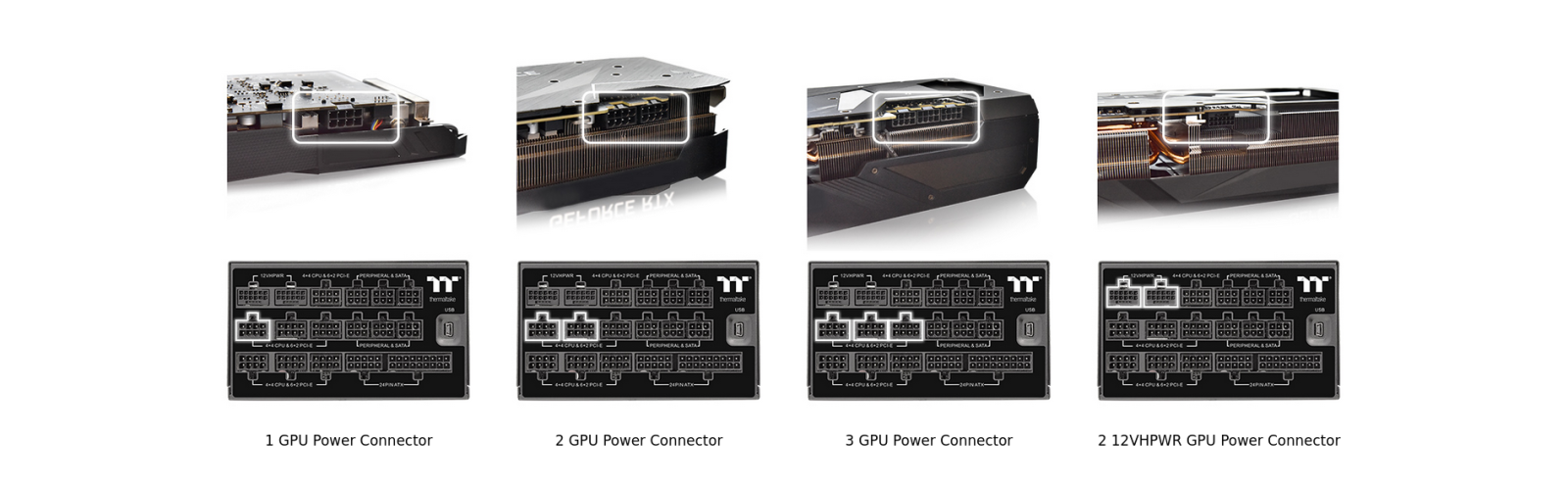

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The iRGB PLUS Titanium series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.









Specs:

Max. Output Capacity	1250W
Color	Black
Dimension ( W / H / D )	150mm(W)x86mm(H)x180mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	> 17msec
Input Current	15.0A
Input Frequency Range	50-60Hz
Input Voltage	100-240V~
OPERATING TEMPERATURE	0°C to + 50°C
Operating Humidity	20% to 90%,non-condensing
Storage Temperature	-20°C to + 70°C
Storage Humidity	5% to 95%, non-condensing
COOLING SYSTEM	14cm Riing Duo RGB Fan
Efficiency	80 PLUS Titanium at 115Vac input.
MTBF	100,000 hrs minimum
Safety Approval	CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI
PCI-E 6+2pin	5
PCIe 12+4pin	1(600W)
PROTECTION	OCP/OVP/UVP/OPP/OTP/SCP
