Name: Захранване Thermaltake Smart BX3 Pro, 750W, Active PFC, 80 Plus, 120mm вентилатор
Brand: Thermaltake
SKU: PWRPCTHERMALTAKEPSSPD0750NNSABE7
Price: 75.63 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

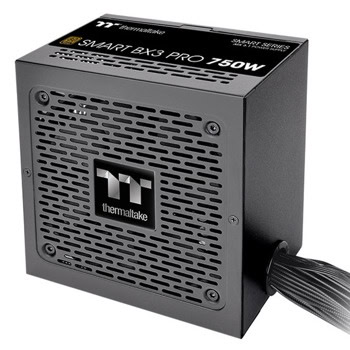

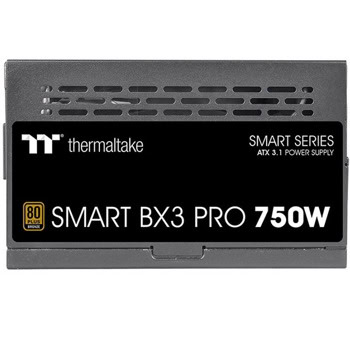

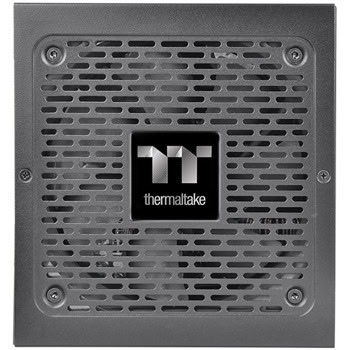

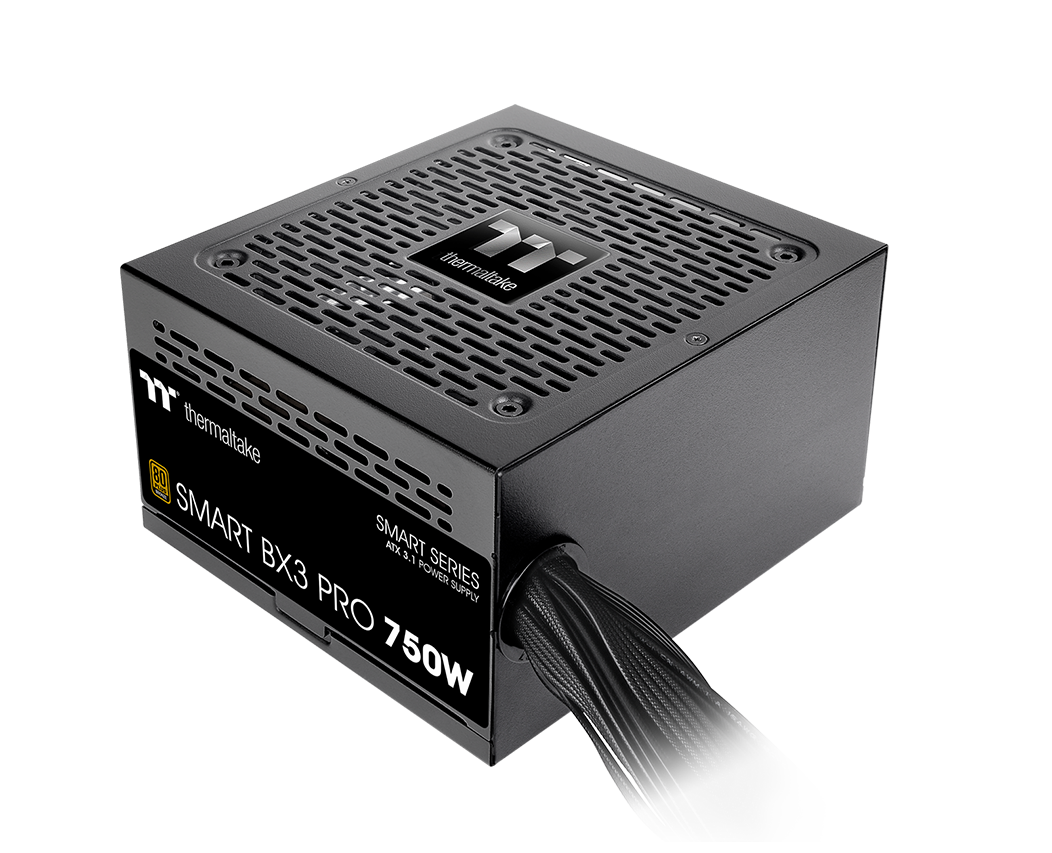

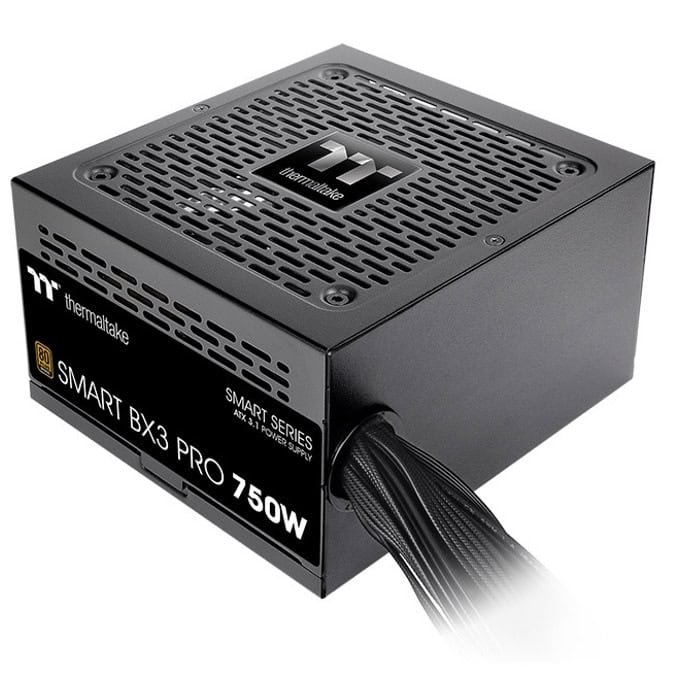

Smart BX3 Pro 750W

80 PLUS® Bronze certified PSU compatible with Intel ATX 3.1 standard and designed with a native PCIe Gen 5.1 12V-2×6 connector. The Smart BX3 Pro 750W features low-profile etched flat cables, a high-quality 105 °C main capacitor, and a powerful single +12 V rail with DC-to-DC designed for precise and stable power delivery.

Equipped with a high-quality 105°C main capacitor, it ensures outstanding durability and consistent performance even under high temperatures. With comprehensive protection mechanisms and a 5-year warranty, the Smart BX3 Pro 750W is designed to deliver dependable performance and long-lasting value for users who demand efficiency and reliability.

The Smart BX3 Pro 750W fully complies with the Intel ATX 3.1 specification, supporting Intel C6/C7 low power states and ErP readiness for enhanced energy efficiency. It delivers 750W of continuous power at 40°C, meeting strict power timing standards to ensure system stability and full compatibility with modern PC builds.

Specification	Details
Max. Output Capacity	750W
Color	Black
Dimensions (W × H × D)	150 mm × 86 mm × 140 mm
Power Factor Correction (PFC)	Active PFC
Power Good Signal	100–150 ms
Hold Up Time	> 17 ms at 80% load
Input Current	15A–6A
Input Frequency Range	50 Hz / 60 Hz
Input Voltage	100–240 Vac ~
Operating Temperature	5°C to +45°C
Operating Humidity	20% to 85%, non-condensing
Storage Temperature	-40°C to +55°C
Storage Humidity	10% to 95%, non-condensing
Cooling System	12 cm FDB Fan
Efficiency	Meets 80 PLUS® Bronze at 115 Vac input
MTBF	100,000 hours minimum
Safety Approvals	CE / UKCA / LVD / FCC / ICES / TUV / CB / cTUVus / BSMI / CCC
PCI-E 6+2 Pin Connectors	2
Protection Features	OCP / OVP / OPP / OTP / UVP / SCP
