Мрежови диск (NAS) Synology SA6400, дванадесетядрен AMD EPYC 7272 2.9/3.2GHz, 32GB DDR4, 12x 3.5"/2.5", 4x 1GbE / 2x 10GbE, 2x USB 3.0

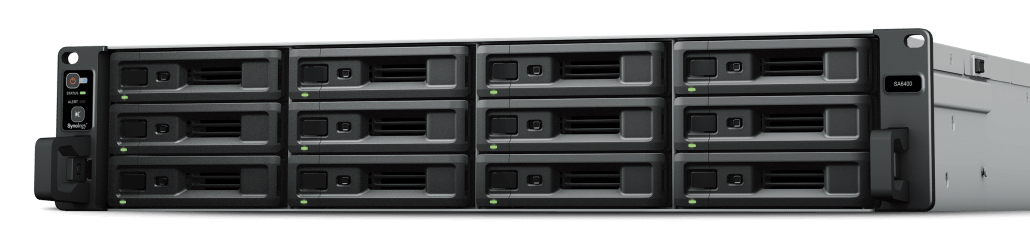

Synology SA6400



Highly scalable storage for enterprise and studios

The 12-bay Synology SA6400 is designed for rapid data scaling. With support for up to 108 drives after expansion, this unit is ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.

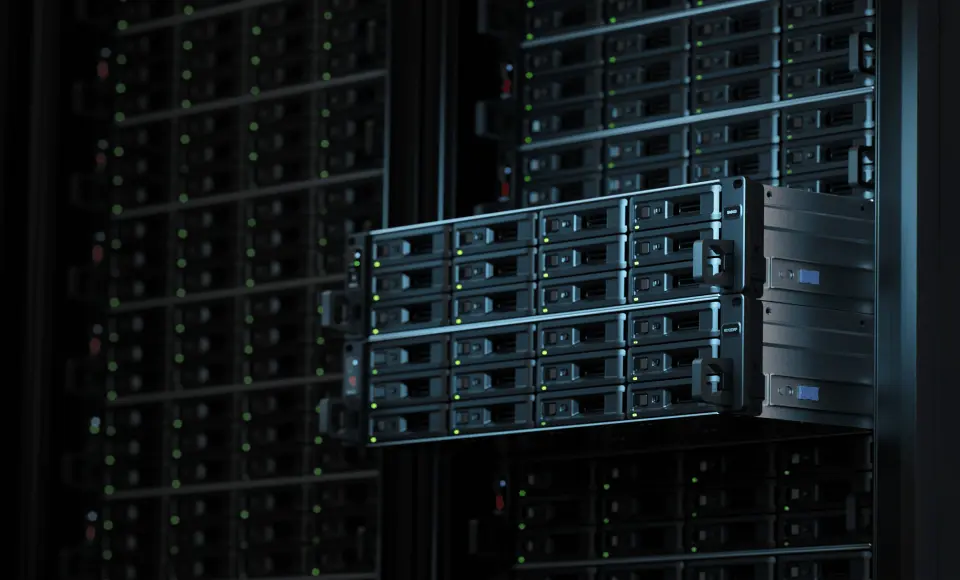

On-demand storage expansion

The SA6400 scales up flexibly whenever your data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.



Built for high reliability

The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.



Specifications:

CPU	CPU Model	AMD EPYC 7272
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	12-core 2.9 (base) / 3.2 (turbo) GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	32 GB DDR4 ECC RDIMM
	Memory Module Pre-installed	32 GB (32 GB x 1)
	Total Memory Slots	16
	Maximum Memory Capacity	1024 GB (64 GB x 16)
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	108 (RX1223RP x 8)
	Compatible Drive Type*	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)
	Management LAN Port	1
	Max. number of LAN ports	15
	USB 3.2 Gen 1 Port*	2
	Expansion Port	8
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	2 x Gen3 x8 slots (x8 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
	Weight	16.5 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	55.5 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	550 W
	Redundant Power Supply
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	180.5 W (Access) 88.56 W (HDD Hibernation)
	British Thermal Unit	615.89 BTU/hr (Access) 302.18 BTU/hr (HDD Hibernation)
	Notes	Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
