Разширителен блок Synology RX1223RP, 12x bay 3.5"/2.5", съвместим със Synology SA6400

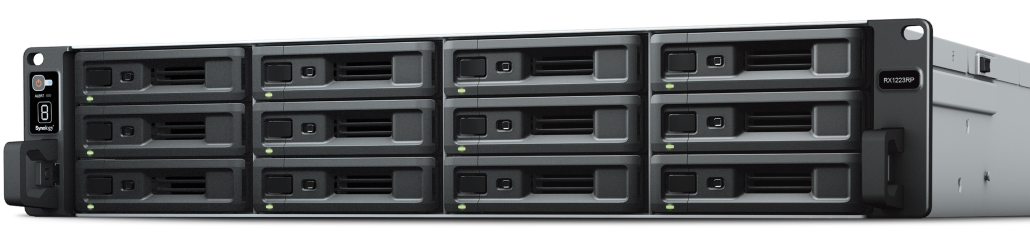

Synology RX1223RP

 Reliable storage expansion with redundant power

Seamless 12-bay capacity expansion

Add up to 96 storage bays to compatible units with Synology Expansion Unit RX1223RP. Enlarge or create new volumes without system or service downtime thanks to online storage expansion.

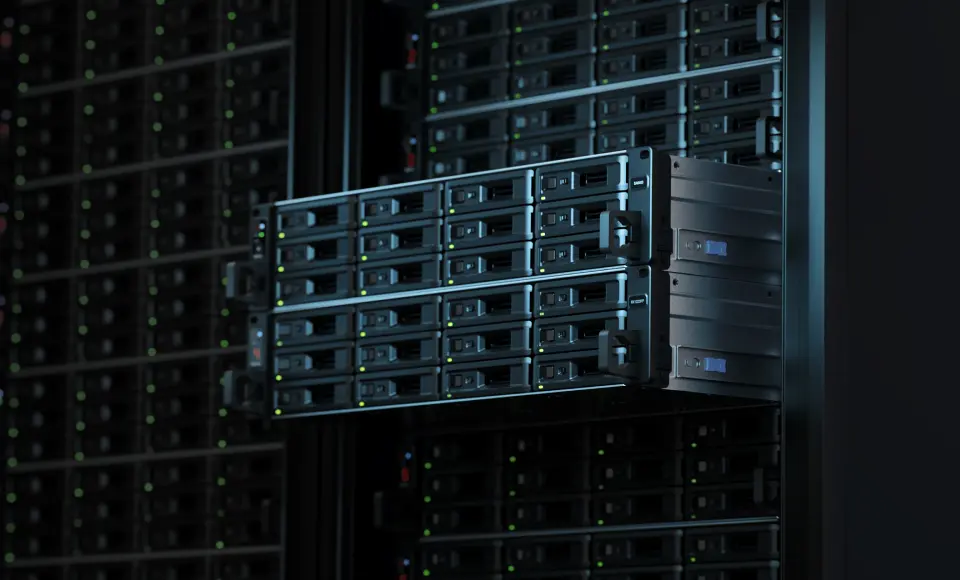

Expand storage on the fly

RX1223RP provides simple storage expansion with 12 drive bays for 3.5”/2.5” SATA HDD/SDD drives.

Up to eight RX1223RP expansion units can be added to compatible serves for up to 1.7 petabytes of additional raw storage.



Specifications:

Applied Models	Supports creating volumes across different units	SA6400
	Notes	To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage	Drive Bays	12
	Compatible Drive Type*	3.5" SATA HDD 2.5" SATA SSD
	Maximum Internal Raw Capacity	216 TB (18 TB drive x 12) (Capacity may vary by RAID types)
	Hot Swappable Drive*
	RAID Management through Synology DSM
External Ports	Expansion Port	1
Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	13.9 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Power	Power Recovery	Synchronized with the Synology RackStation
	Power Supply Unit / Adapter	550 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	93.59 W (Access) 30.73 W (HDD Hibernation)
	British Thermal Unit	319.34 BTU/hr (Access) 104.86 BTU/hr (HDD Hibernation)
	Redundant Power Supply (for RP model)
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Others	System Fan	80 mm x 80 mm x 4 pcs
	Easy Replacement System Fan
	Noise Level*	54.3 dB(A)
	Notes	Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification	UL FCC CE BSMI UKCA EAC VCCI RCM KC
