Мрежови диск (NAS) Synology FS3600, дванадесетядрен Broadwell Intel Xeon D-1567 2.1/2.7 GHz, без твърд диск (24x 2.5" SATA 6Gb/s SSD), 16GB DDR4, 4x 4GbE, 2x 10GbE, 2x USB 3.2 Gen 1

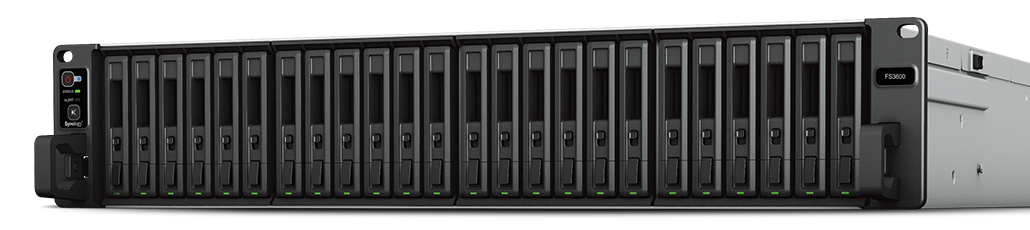

Synology FS3600



Fast and scalable all-flash NAS

FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP). Featuring a 12-core CPU and high-speed network connection, FS3600 delivers over 195,000 iSCSI 4K random write IOPS to satisfy enterprise demand for high-speed infrastructure.







Fully certified storage virtualization solutions

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.



Specifications:

CPU	CPU Model	Intel Xeon D-1567
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	12-core 2.1 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine (AES-NI)	Yes
Memory	System Memory	16 GB DDR4 ECC RDIMM
	Memory Module Pre-installed	16 GB (16 GB x 1)
	Total Memory Slots	4
	Maximum Memory Capacity	128 GB (32 GB x 4)
Storage	Drive Bays	24
	Maximum Drive Bays with Expansion Unit	48 (RX1217sas x 2) / 72 (FX2421* x 2)
	Compatible Drive Type*	2.5" SAS HDD* 2.5" SAS SSD* 2.5" SATA SSD
	Hot Swappable Drive*	Yes
External Ports	RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
	RJ-45 10GbE LAN Port	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	Expansion Port	1
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x8 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
	Notes	exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
	Weight	14.9 kg
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	Yes
	Power Recovery	Yes
	Noise Level*	57 dB(A)
	Scheduled Power On / Off	Yes
	Wake on LAN / WAN	Yes
	Power Supply Unit / Adapter	500 W
	Redundant Power Supply	Yes
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	258.23 W (Access) 127.99 W (HDD Hibernation)
	British Thermal Unit	881.12 BTU/hr (Access) 436.72 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s). Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EAC CCC VCCI RCM
