Проектор Sony VPL-SW636C, 3LCD, WXGA(1280x800), 3000:1, 3300 lm, HDMI, LAN, Wi-Fi, USB(Type A & B), D-Sub, RS232C, Microphone jack

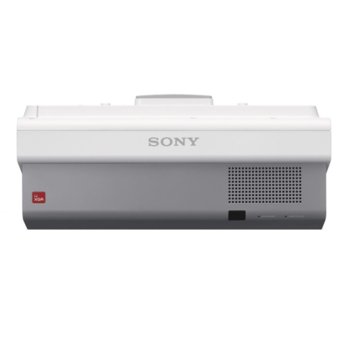

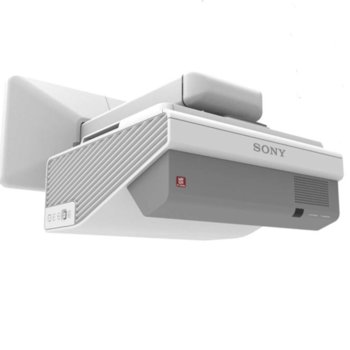

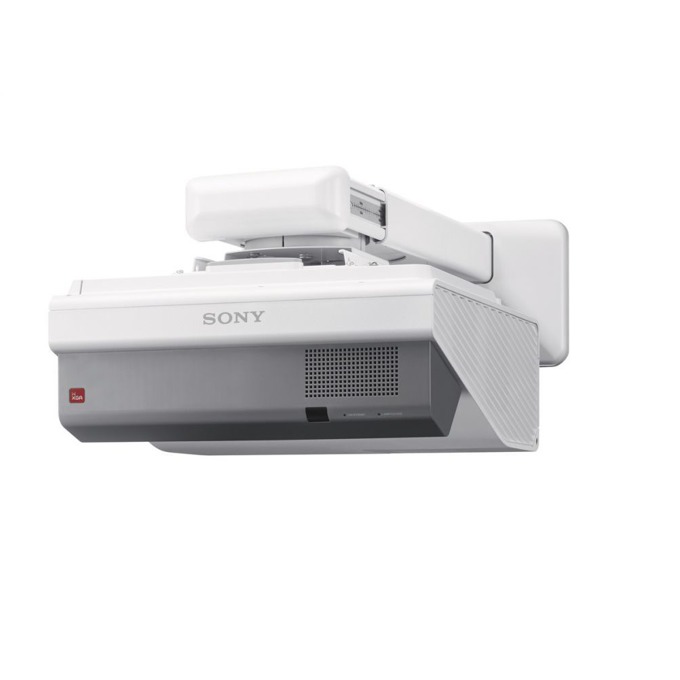

Sony VPL-SW636C

Bright, high contrast widescreen projector for mid-size classrooms and meeting rooms: with easy installation, a wide range of enhanced interactivity functions and low ownership costs.

The VPL-SW636C Ultra Short Throw projector is ideal for classroom or corporate use, with simple, flexible installation, low ownership costs, enhanced interactivity and easy connection to other devices.

Present big, bright images over 2m across with the projector as little as 47cm from the screen or whiteboard, with less distracting glare and shadows.

Advanced 3LCD BrightEra™ panel technology by Sony ensures high contrast, widescreen WXGA images with excellent colour stability. The projector’s powerful 3,300 lumens colour light output ensures that presentations are always seen clearly, even in brightly-lit environments.

Seamless integration with school or office networks can be enhanced with an optional Wi-Fi module, letting students wirelessly share homework, images and graphics from PCs, smartphones and tablets. Learning’s made richer and more collaborative with dual pen interactivity, allowing teacher and pupil to write on screen simultaneously. In PC-free interactive mode, you don't even need a connected PC to write, draw and annotate on-screen presentations.

There’s a wide range of smart energy-saving features built in. An extra-long lamp replacement time of up to 10,000 hours minimises costs and reduces downtime in busy classrooms and offices. A newly-designed wall mount bracket makes installation easier in rooms with low ceilings.


Display System
3 LCD system

Display Device

Size of effective display area
0.59”(15 mm) x 3 BrightEra LCD Panel
Aspect ratio 16:10

Number of pixels
3,072,000 (1280x800 x 3) pixels

Projection lens

Focus
Manual

Zoom - Powered/Manual
Manual

Zoom - Ratio
Approx. x1.03

Throw Ratio
0.27:1-0.27:1 (0.267:1-0.274:1)

Lens shift - Fix
0.81V

Lens shift - Powered/Manual
Manual

Lens shift - Range Vertical
+/-3.7%

Lens shift - Range Horizontal
+/-2.3%

Light source

Type
Ultra high pressure mercury lamp

Wattage
225W type

Recommended lamp replacement time *3

Lamp mode: High
4000 H

Lamp mode: Standard
6000 H

Lamp mode: Low
10000 H

Filter cleaning / replacement cycle (Max.)
Same time as the lamp replacement is recommended

Screen size
65"-110" (measured diagonally)

Light output *1

Lamp mode: High
3300 lm

Lamp mode: Standard
2300 lm

Lamp mode: Low
1900 lm

Color light output *1

Lamp mode: High
3300 lm

Lamp mode: Standard
2300 lm

Lamp mode: Low
1900 lm

Contrast ratio (full white / full black) *2
3000:1

Speaker
16W (monaural)

Displayable scanning frequency

Horizontal
15 kHz to 92 kHz

Vertical
48 Hz to 92 Hz

Display resolution

Computer signal input
Maximum display resolution:
1600 x 1200 dots, fV:60Hz

Video signal input
480/60i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p

Color system
NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N,PAL-60

Keystone correction (Max) *4

Vertical
+4/-1 degrees

OSD language
27-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese(簡・繁）, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian, Hungary, Greek, Czech, Slovakia, Romania)

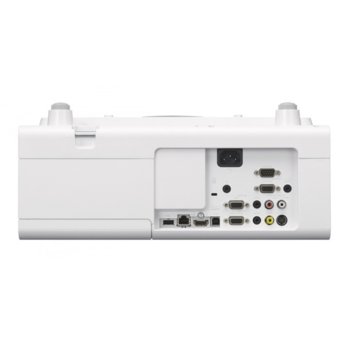

INPUT OUTPUT (Computer/Video/Control)

INPUT A
RGB / Y PB PR input connector: Mini D-sub 15 pin female
Audio input connector: Stereo mini jack

INPUT B
RGB input connector: Mini D-sub 15 pin female
Audio input connector: Stereo mini jack

INPUT C
HDMI input connector: HDMI 19-pin, HDCP support,
Audio input connector: HDMI audio support

S VIDEO IN
S Video input connector: Mini DIN 4-pin

VIDEO IN
Video input connector: Phono jack

OUTPUT
MONITOR output connector: Mini D-sub 15 pin female
Audio output connector: Stereo mini

REMOTE
D-sub 9-pin
male/RS232C

LAN
RJ-45,
10BASE-T/100BASE-TX

USB
Type-A

USB
Type-B

MICROPHONE IN

Microphone jack: Mini Jack
Acoustic Noise *5

Lamp mode: Low
28dB

Operating temperature / Operating humidity
0°C to 40°C (32°F to 104°F)
/20-80％(no condensation)

Storage temperature / Storage humidity
-10 °C to +60°C (-4°F to +140°F)
/20% to 80% (no condensation)

Power requirements
AC 100 V to 240 V, 3.5 A to 1.6 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V - Lamp mode: High
341 W

AC 220 V to 240 V - Lamp mode: High
328 W

Power Consumption (Standby Mode)

AC 100 V to 120 V
0.5W (when “Standby mode” is set to “Low”)

AC 220 V to 240 V
0.5W (when “Standby mode” is set to “Low”)

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V
5.3W (LAN) / 5.9W (optional WLAN module) / 6.1W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

AC 220 V to 240 V
5.6W(LAN) / 6.2W (optional WLAN module) / 6.4W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated
Approx. 10 Minutes

Wireless Network(s) On/Off Switch
Press the MENU button, then select [Connection/Power]
2) [WLAN Settings]
3) [WLAN Connection]
4) Select On or Off

Heat dissipation

AC 100 V to 120 V
1163 BTU

AC 220 V to 240 V
1119 BTU

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)
Aprox. 372×138×382mm
(14 21/32 x 5 7/16 x 15 1/32 inches)

Mass
Approx. 6.3 kg (14 lb)
