SHARP 60006146 X171Q-W
Икона нов продукт
НазадSHARP 60006146 X171Q-WSHARP 60006146 X171Q-WSHARP 60006146 X171Q-WSHARP 60006146 X171Q-WНапред

Проектор SHARP 60006146 X171Q-W, DLP, WUXGA (1920x1200), 3 000 000:1, 16500lm, DisplayPort, HDMI, USB, RS232, LAN, HDBaseT

id 294402 Код: PJSHARP60006146
63857.40 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументация

SHARP 60006146 X171Q-W

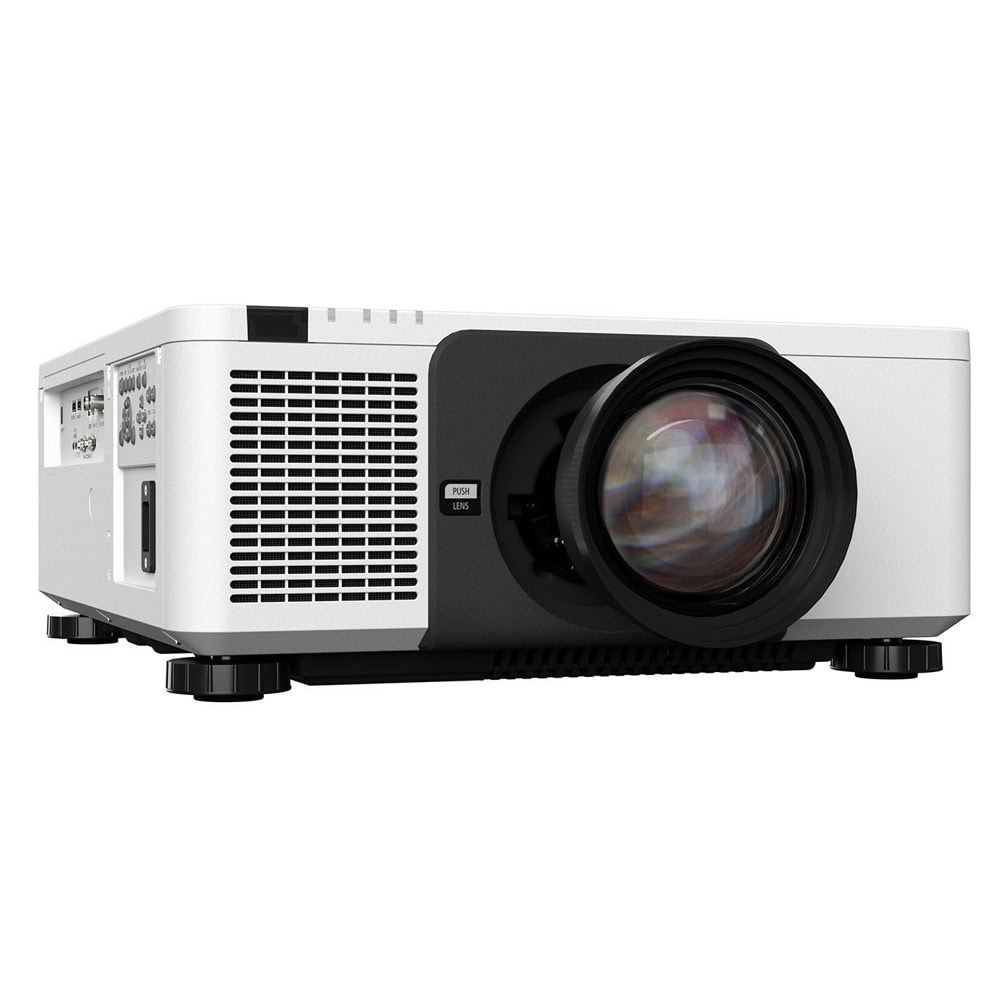

Sharp's X171Q-W (white cabinet) is a 16,500-lumen (Center: 17,000lm) 1-Chip DLP RB laser projector with a 4K UHD (3840x2400) screen resolution. With advanced professional installation features for corporate, higher education and museum users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!

  • 4K UHD (3840 x 2400) screen resolution for unsurpassed image detail for demanding graphics design and CAD/CAM applications
  • High-brightness(16,500 lumens), lower power consumption enhance always-on capabilities of laser projection
  • Ideal for new applications such as digital signage
  • Lamp-less operation reduces TCO
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
  • Seamlessly blend multiple images with integrated edge blending capabilities
  • Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals
  • ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.



CategorySpecification
Display
Aspect Ratio16:10
Screen ResolutionWUXGA 1920×1200
Maximum Resolution4K UHD 3840×2400
Brightness (Typical)16,500 Lumens
Brightness (Maximum)17,000 Center Lumens
Contrast Ratio (Typical)3,000,000:1 (Dynamic)
Color Processing10-bit (approx. 1.07 billion colors)
Synchronization Range
Horizontal15kHz, 24–153kHz
Vertical24, 25, 30, 48, 50–85, 100, 120 Hz
Signal Compatibility / Connectivity
Video StandardsNTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Compatibility480i/p, 576i/p, 720p, 1080i/p, 4K
PC Signal CompatibilityVGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD
Macintosh CompatibilityYes
Sync CompatibilitySeparate, Composite, Sync on G
External ControlRS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB 2.0

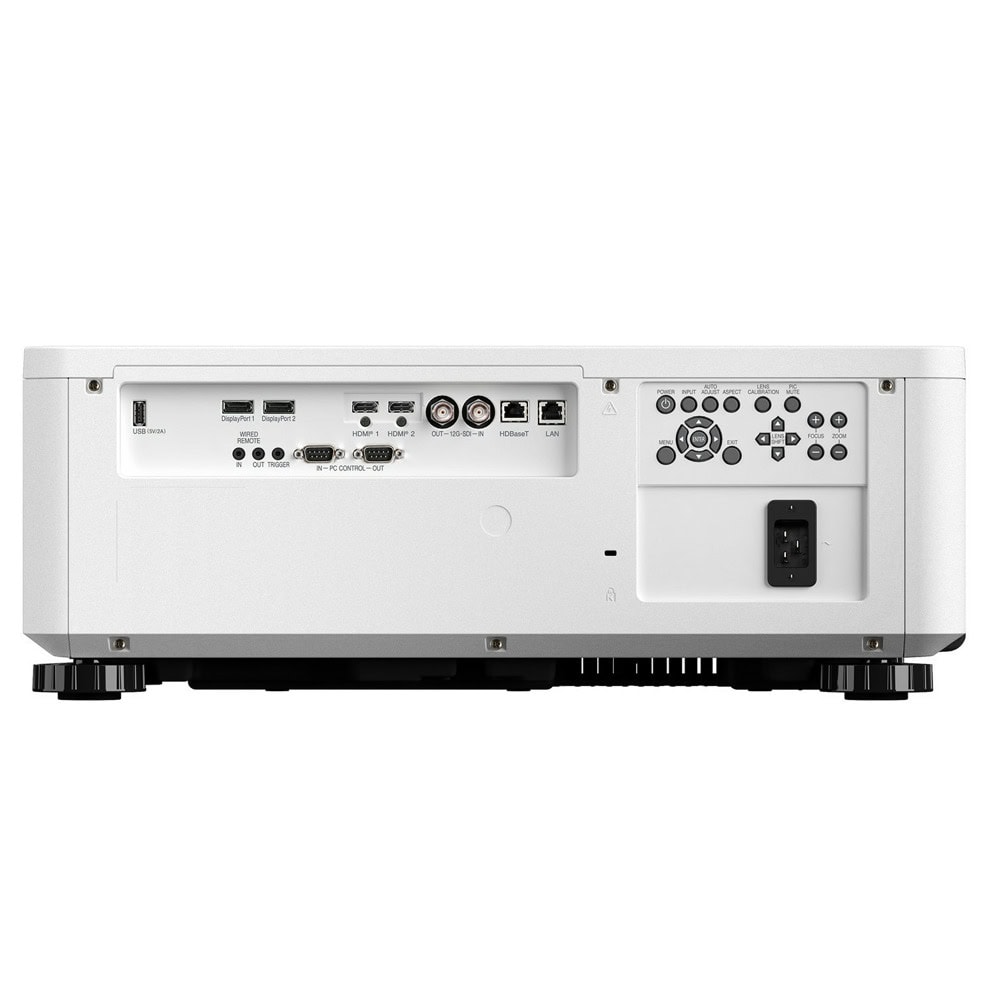

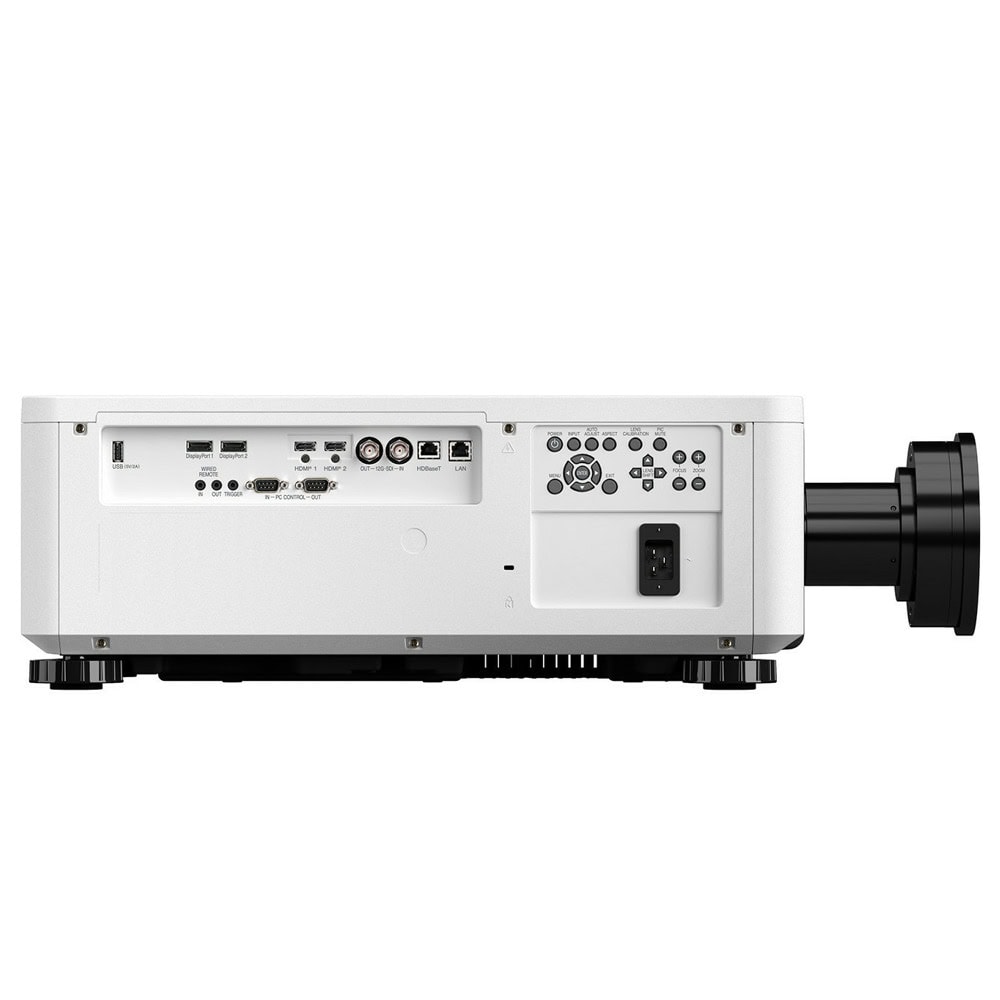

Input Terminals
RGB1HDMI 2.0 (HDCP 2.2/1.4)
RGB2HDMI 2.0 (HDCP 2.2/1.4)
RGB3DP (HDCP 1.3)
RGB4DP (HDCP 1.3)
RGB5HDBaseT (HDCP 2.2/1.4)
RGB612G SDI
Output Terminals
Digital12G SDI
Power
Power Consumption (Typical)1290W / 1100W / 1.9W / 0.4W
Input Current12.0A – 60A
Power Requirements100–240V AC, 50/60 Hz
Physical Dimensions (W×H×D)
Product500×216×606 mm (19.7×8.5×23.9 in)
External500×583×216 mm (19.7×23.0×8.5 in)
Shipping784×445×699 mm (30.9×17.5×27.5 in)
Weight
Net28.0 kg / 61.7 lbs
Shipping38.5 kg / 84.9 lbs
Environmental Conditions
Operating Temperature0–45°C / 32–113°F
Operating Humidity20–85% (Non-Condensing)
Operating Altitude2–3000 m (9,842 ft)
Storage Temperature-10–60°C / 14–140°F
Storage Humidity20–80% (Non-Condensing)
Storage Altitude0–12,000 m (0–39,370 ft)
Additional Features4K UHD, Motorized Lenses, Manual Keystone, Quick Power On/Off, ECO Mode, DiCom Simulation, NaViSet Admin 2, AccuBlend, AutoSense, ProAssist Software
Optical
Display Technology0.8" DLP HEP DMD
Light Output13,500 Lumens
Projection Distance1.09–43 m / 3.58–141 ft
Projector Angle5.8–18.1° (tele) / 11.4–25.8° (wide)
Zoom/FocusMotorized
Throw Ratios (Motorized Zoom Lenses)
XP-57UL0.31–0.33:1
XP-58ZL0.55–0.75:1
XP-59ZL0.74–1.08:1
XP-60ZL1.05–1.41:1
XP-61ZL1.40–2.11:1
XP-62ZL2.10–4.00:1
Lens Specs
XP-57ULF=2.05–2.11, f=5.81–6.17 mm
XP-58ZLF=2.04–2.35, f=10.03–13.60 mm
XP-59ZLF=2.02–2.33, f=13.47–16.67 mm, 3.06 kg
XP-60ZLF=1.90–2.09, f=18.78–25.30 mm, 2.91 kg
XP-61ZLF=1.80–2.11, f=25.04–37.57 mm, 2.23 kg
XP-62ZLF=1.90–2.44, f=37.23 mm




    Виж още Проектори Sharp
    Виж всички Проектори в категорията
    Документация
    Технически характеристики
    Тип:  DLP
    3D:  Не
    Разделителна способност (native):  1920 x 1200
    Разделителна способност (max):  3840 x 2400
    Яркост:  16500 lm
    Контраст:  3000000
    Мрежови възможности:  RJ-45 & HDBaseT
    Говорители:  Не
    4K:  Да
    Разстояние на проектиране:  Зависи от обектива
    Short Throw:  Да
    Живот на лампата:  20000 h
    Предназначен за:  Бизнес
    Формат:  16:10
