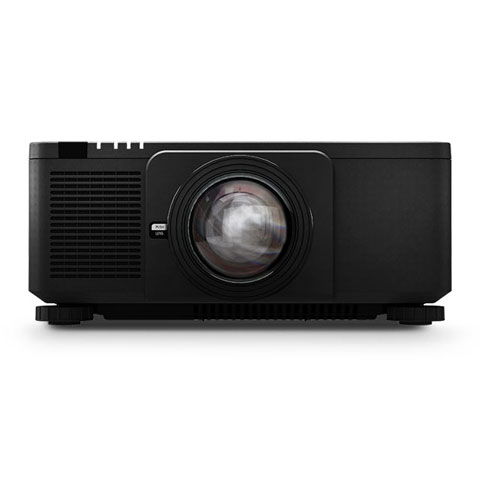

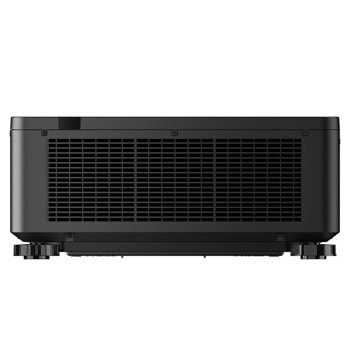

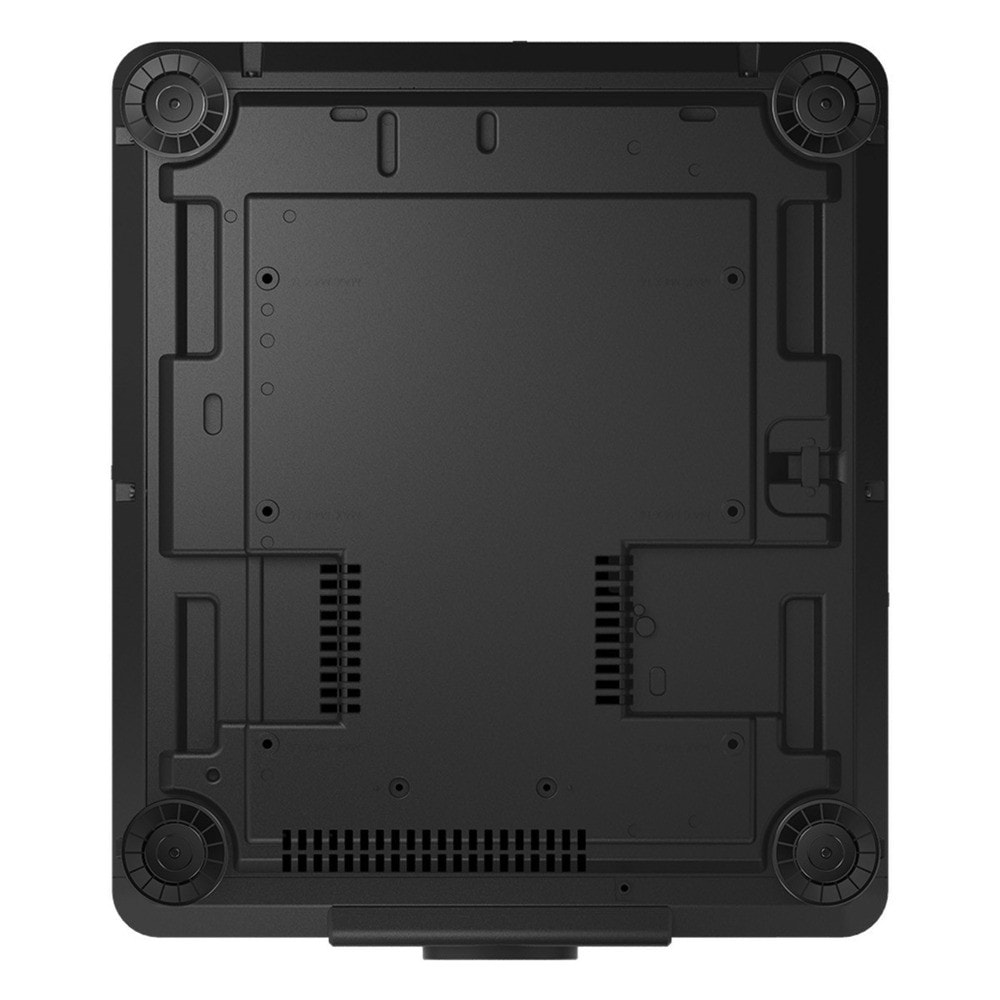

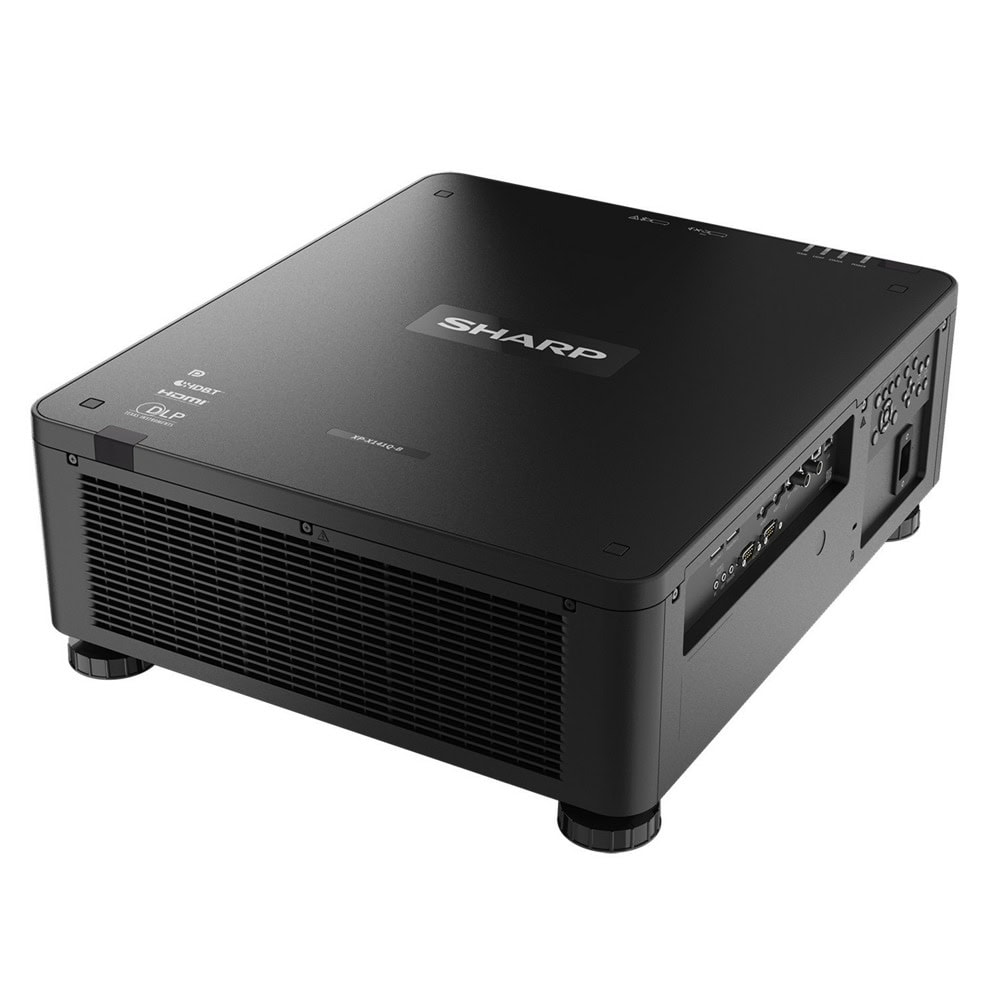

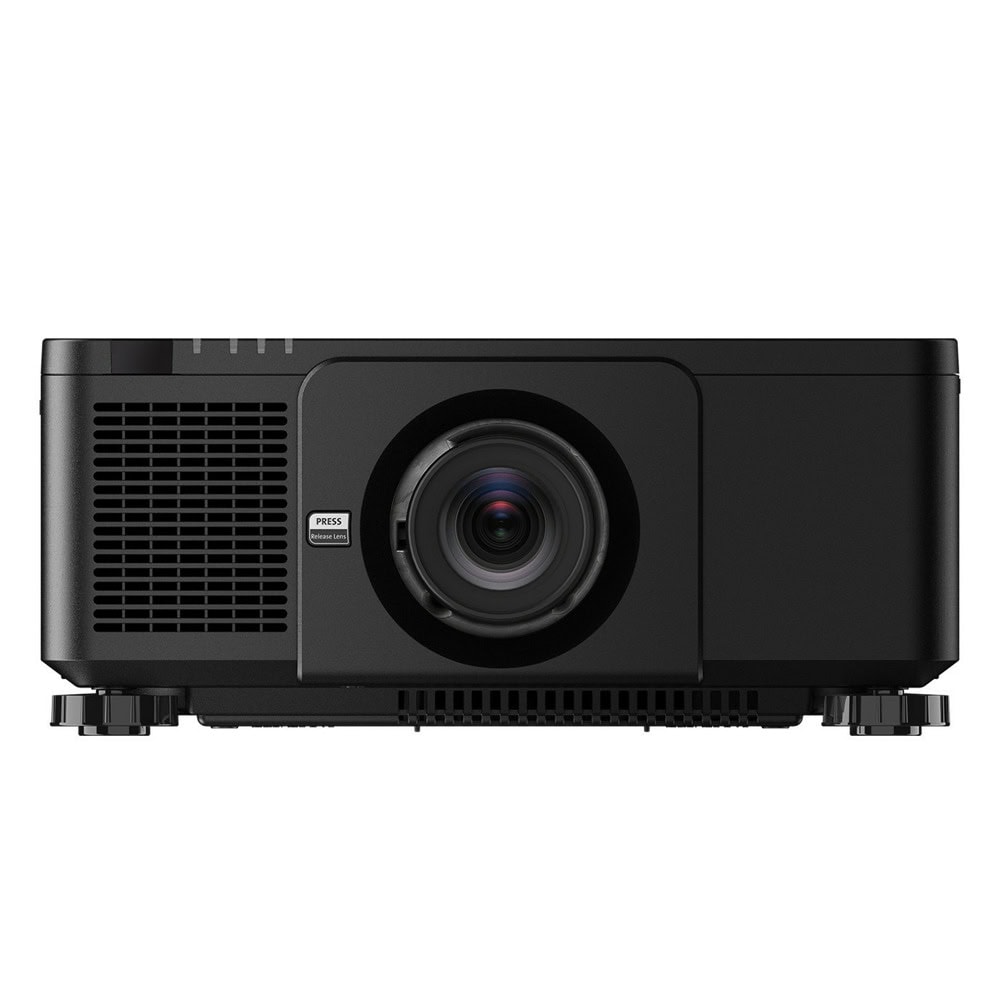

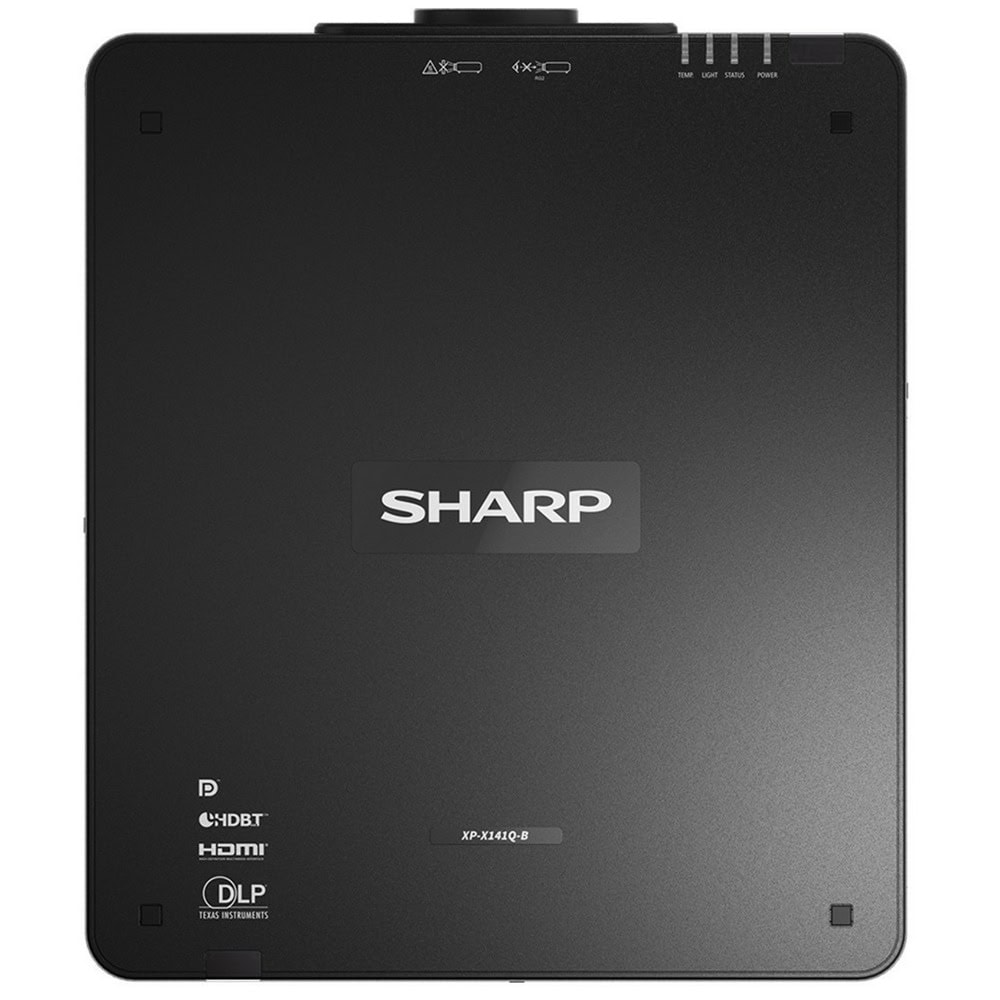

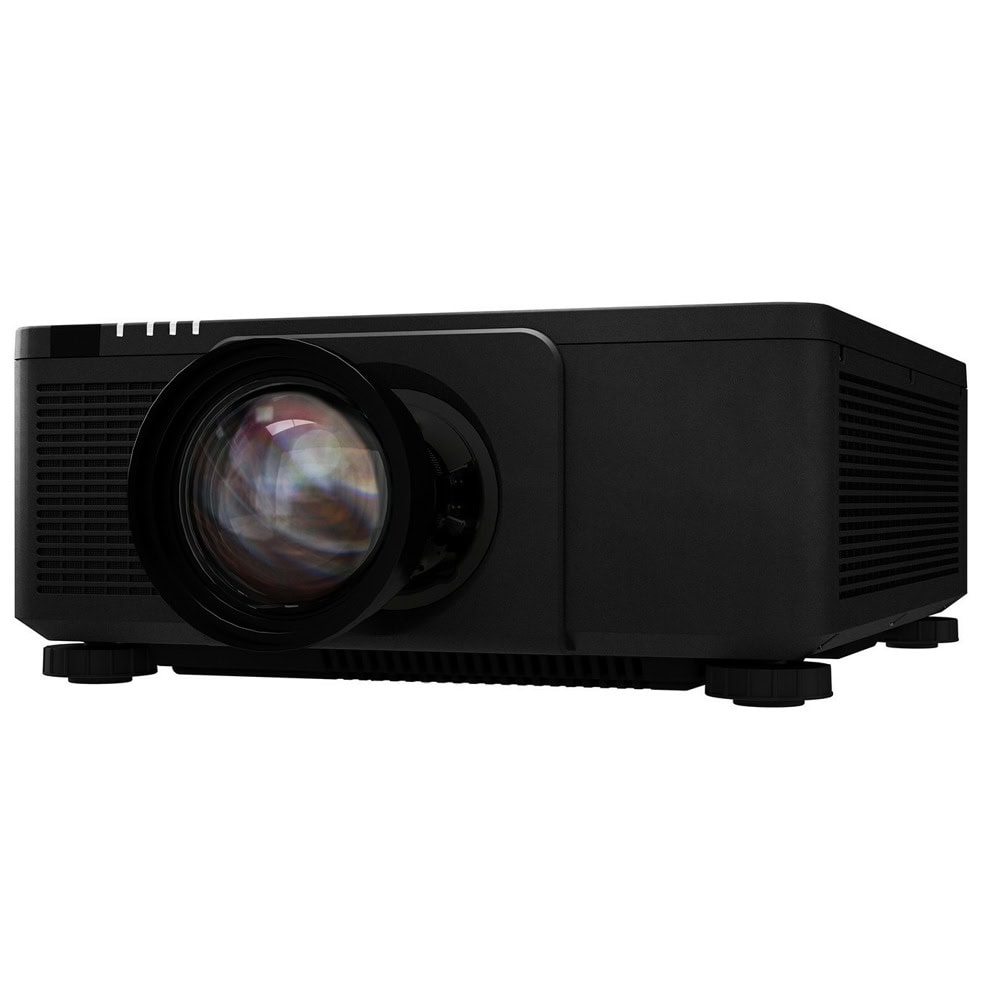

SHARP 60006069 X141Q-B

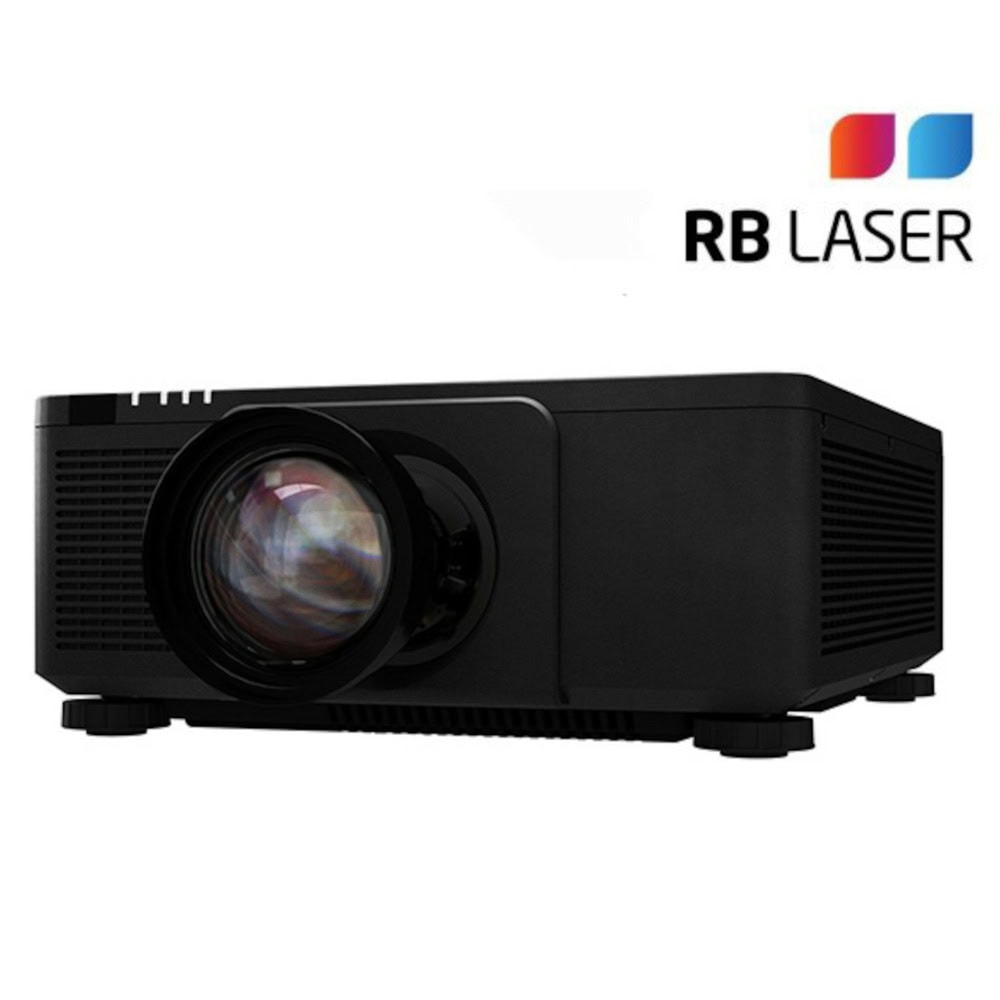

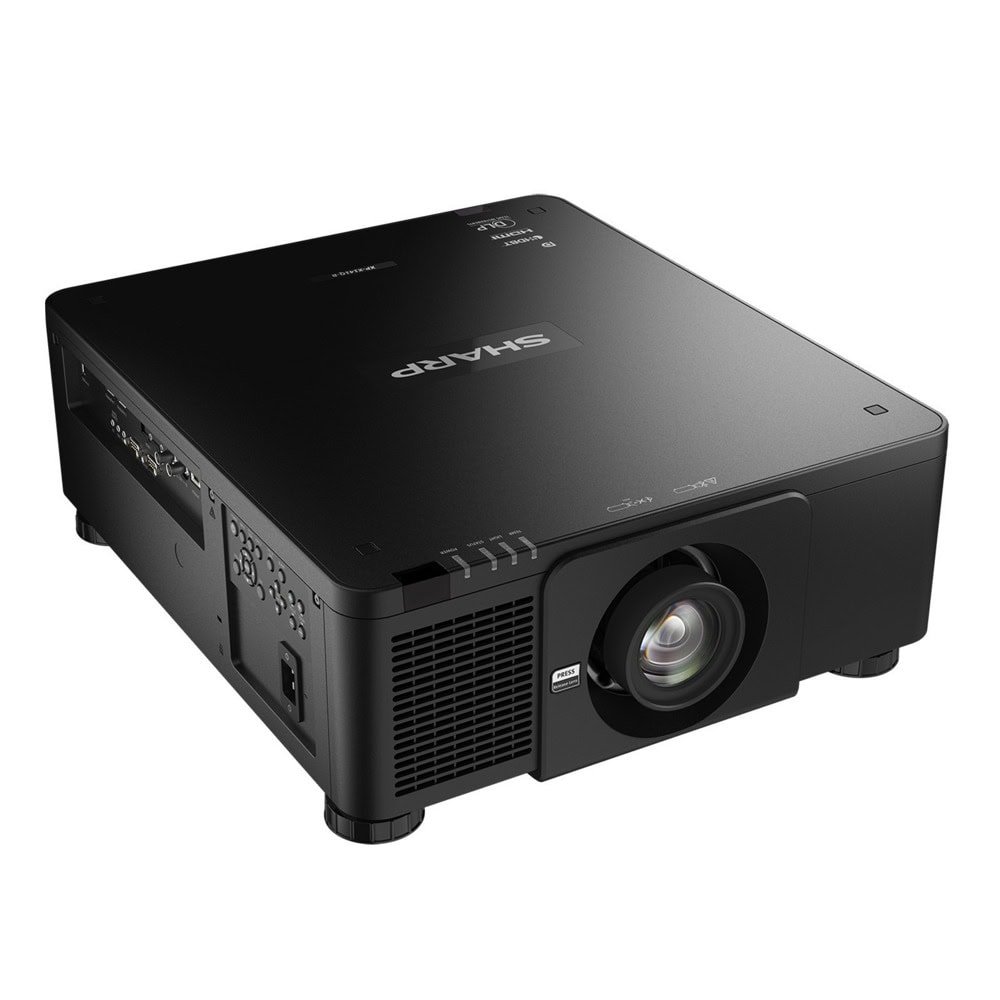

Sharp's X141Q-B (black cabinet) is a 13,500-lumen (Center: 13,900lm) 1-Chip DLP RB laser projector with a 4K UHD (3840x2400) screen resolution. With advanced professional installation features for corporate, higher education and museum users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
- 4K UHD (3840 x 2400) screen resolution for unsurpassed image detail for demanding graphics design and CAD/CAM applications
- High-brightness(13,500 lumens), lower power consumption enhance always-on capabilities of laser projection
- Ideal for new applications such as digital signage
- Lamp-less operation reduces TCO
- Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
- Seamlessly blend multiple images with integrated edge blending capabilities
- Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals
- ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.

Category | Specification |
---|---|
Display | |
Aspect Ratio | 16:10 |
Screen Resolution | WUXGA 1920x1200 |
Maximum Resolution | 4K 3840x2400 |
Brightness (Typical) | 13,500 Lumens |
Brightness (Maximum) | 13,900 Center Lumens |
Contrast Ratio | 3,000,000:1 (Dynamic) |
Color Processing | 10-bit, ~1.07 billion colors |
Synchronization Range | |
Horizontal (Analog/Digital) | 15kHz, 24–153kHz |
Vertical | 24, 25, 30, 48 Hz, 50–85 Hz, 100, 120 Hz |
Signal Compatibility | |
Video Standards | NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
SD/HD Compatibility | 480i/p, 576i/p, 720p, 1080i/p, 4K |
PC Signal Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, QHD |
Macintosh Compatibility | Yes |
Sync Compatibility | Separate, Composite, Sync on G |
External Control | RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB 2.0 |

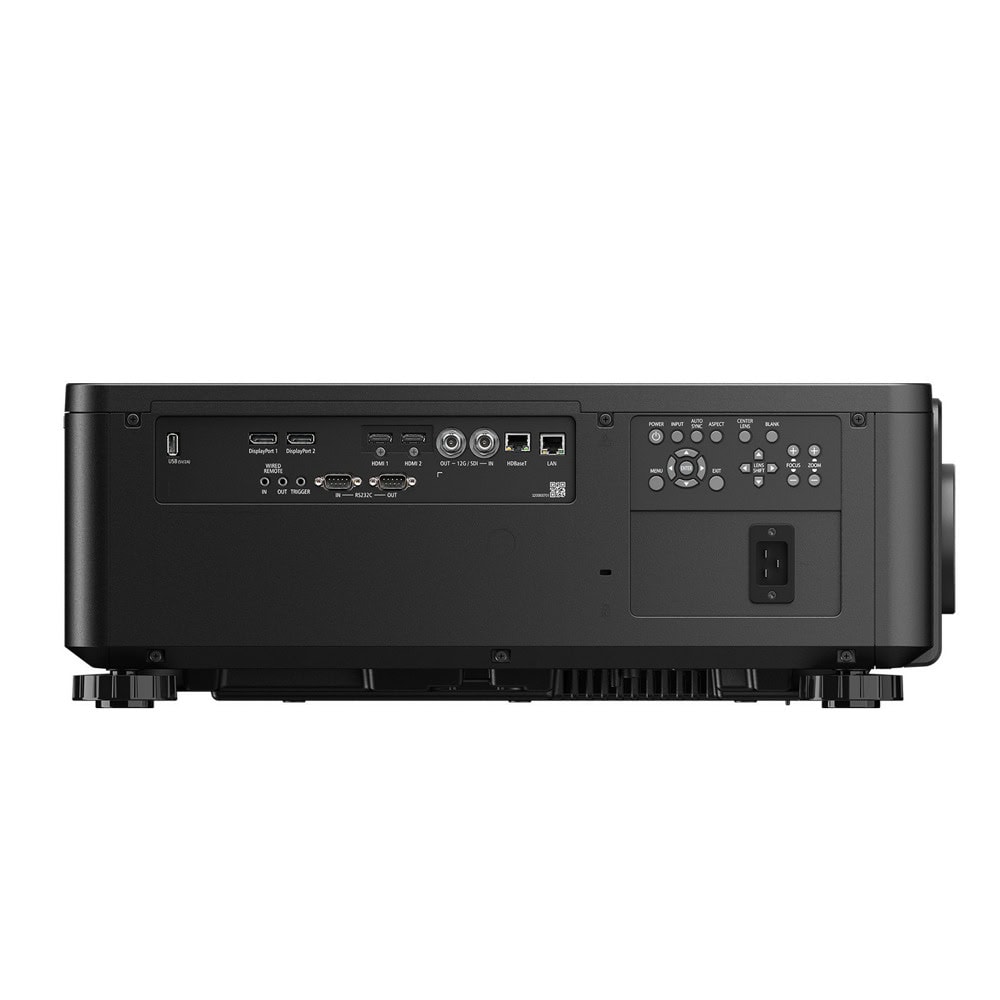

Input Terminals | |
RGB1 (Digital) | HDMI 2.0 w/ HDCP 2.2/1.4 |
RGB2 (Digital) | HDMI 2.0 w/ HDCP 2.2/1.4 |
RGB3 (Digital) | DP w/ HDCP 1.3 |
RGB4 (Digital) | DP w/ HDCP 1.3 |
RGB5 (Digital) | HDBaseT w/ HDCP 2.2/1.4 |
RGB6 (Digital) | 12G SDI |
Output Terminals | 12G SDI |
Power | |
Power Consumption (Typical) | 1080W / 980W / 1.9W / 0.4W |
Input Current | 10.0A – 5.0A |
Power Requirements | 100–240V AC, 50/60Hz |
Physical Dimensions | |
Product (WxHxD) | 19.7 × 8.5 × 23 in / 500 × 216 × 583 mm |
External | 19.7 × 23.0 × 8.5 in / 500 × 583 × 216 mm |
Shipping | 30.9 × 17.5 × 27.5 in / 784 × 445 × 699 mm |
Weight | |
Net Weight | 64.8 lbs / 29.4 kg |
Shipping Weight | 88.2 lbs / 40 kg |
Environmental | |
Operating Temp | 32–113°F / 0–45°C |
Operating Humidity | 20–85% (Non-condensing) |
Operating Altitude | 0–3000 m / 9,842 ft |
Storage Temp | 14–140°F / -10–60°C |
Storage Humidity | 20–80% (Non-condensing) |
Storage Altitude | 0–12,000 m / 0–39,370 ft |
Additional Features | 4K UHD, Motorized Lenses, Manual Keystone, Quick Power On/Off, ECO Mode, DiCom Simulation, NaViSet Admin 2, AccuBlend, AutoSense, ProAssist Software |
Optical | |
Display Technology | 0.8" DLP HEP DMD |
Light Output | 13,500 Lumens |
Throw Ratio Options | 0.31–0.33:1, 0.55–0.75:1, 0.74–1.08:1, 1.05–1.41:1, 1.40–2.11:1, 2.10–4.00:1 (All Motorized Zoom Lens) |
Projection Distance | 3.58–141 ft / 1.09–43 m |
Projector Angle | 5.8–18.1° (tele), 11.4–25.8° (wide) |
Lens Zoom/Focus | Motorized |
Lens Models & Specs | XP-57UL: F=2.05–2.11, f=5.81–6.17mmXP-58ZL: F=2.04–2.35, f=10.03–13.60mmXP-59ZL: F=2.02–2.33, f=13.47–16.67mm, 6.8 lbsXP-60ZL: F=1.90–2.09, f=18.78–25.30mm, 6.4 lbsXP-61ZL: F=1.80–2.11, f=25.04–37.57mm, 4.9 lbsXP-62ZL: F=1.90–2.44, f=37.23 |
Виж още Проектори Sharp
Виж всички Проектори в категорията
Тип: | DLP |
---|---|
3D: | Не |
Разделителна способност (native): | 1920 x 1200 |
Разделителна способност (max): | 3840 x 2160 |
Яркост: | 13500 lm |
Контраст: | 3000000 |
Мрежови възможности: | RJ-45 & HDBaseT |
Говорители: | Не |
4K: | Да |
Разстояние на проектиране: | Зависи от обектива |
Short Throw: | Да |
Живот на лампата: | 20000 h |
Предназначен за: | Бизнес |
Формат: | 16:10 |
