Видео карта AMD Radeon RX 7900 XT, 20GB, Sapphire NITRO+ Vapor-X, PCI-E 4.0, GDDR6, 320-bit, DisplayPort, HDMI

Sapphire NITRO+ AMD Radeon RX 7900 XT Vapor-X 20GB

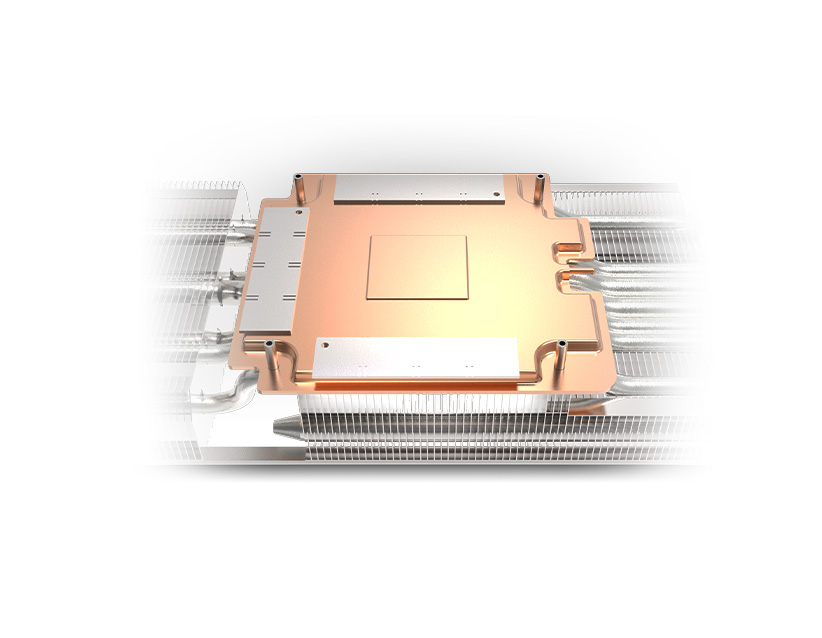

Vapor-X Cooling   The Vapor Chamber is mounted in contact with the surface of the main chip and memory. Since the entire area transfers heat at the same rate, the Vapor-X module has been engineered to operate more efficiently than a copper heat sink at carrying away heat. Upon gaining heat, the heat source is pushed to the Vaporization Wicks to begin the heat dissipation process. Due to extreme low pressure, working fluid and pure water are easily vaporized, and transferred through the vacuum until reaching the Condensing Wick which is adjacent to the cooled surface. From here, it turns back to a liquid state whereby the liquid is then absorbed into the Transportation Wick by capillary action and moved back towards the Vaporization Wick. A recycled liquid system occurs when the heat source reheats the liquid and it becomes re-vaporized by the Vaporization Wick to restart the Vapor-X Cooling process.

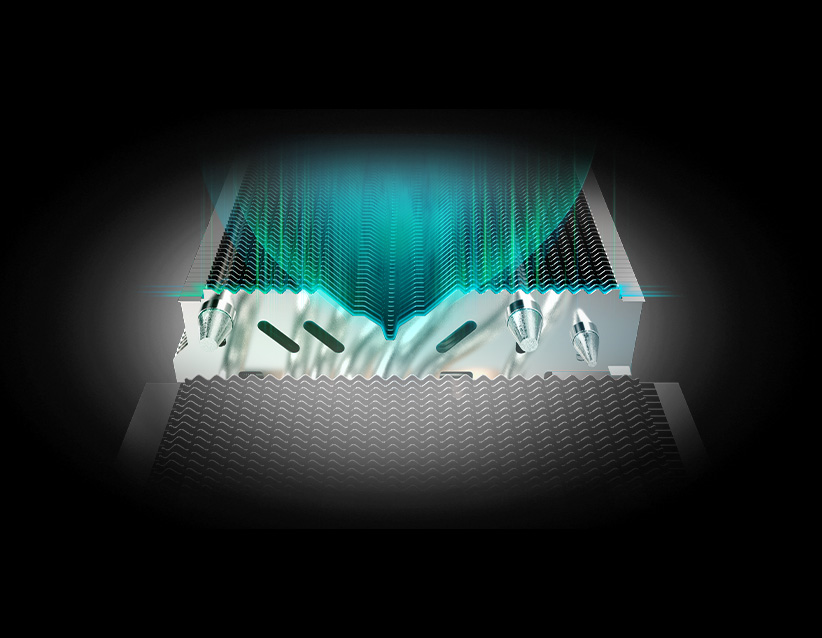

WAVE Fin Design & V-Shape Fin Design for GPU cooling   The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.    The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.

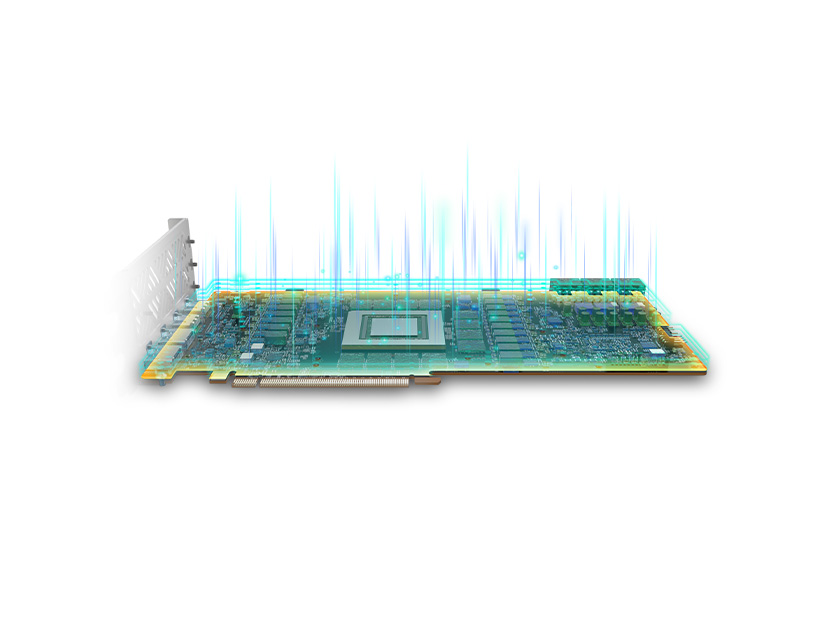

High TG Copper PCB   The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.



Specs:

GPU

AMD Radeon RX 7900 XT Graphics Card
5nm GPU
AMD RDNA 3 Architecture



Engine Clock

• Boost Clock: Up to 2560 MHz
• Game Clock: Up to 2220MHz



Stream Processors

5376



Compute Units

84 CU (with RT+AI Accelerators)



Infinity Cache

80MB



Ray Accelerators

84



Memory Size/Bus

20GB/320 bit GDDR6



Memory Clock

20 Gbps Effective



Displays

Maximum 4 Displays



Resolution

• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320



Interface

PCI-Express 4.0 x16



Output

• 2x HDMI
• 2x DisplayPort



BIOS Support

• Dual UEFI



Game Index

4K



Sapphire Features

• Dual BIOS
• TriXX Software Switch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• Vapor-X Cooling
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• Dual ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade
• Assistive System Fan Control
• Die Casted Aluminum-Magnesium Alloy Frame
• Frontplate Heatsink for VRM
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization



AMD Features

• AMD RDNA 3 Architecture
• 84 AMD RDNA 3 Compute Units (with RT+AI Accelerators)
• 80MB AMD Infinity Cache Technology
• DisplayPort 2.1 Support
• AMD Radiance Display Engine
• 20GB GDDR6 on 320-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD Link
• AMD FreeSync Technology



Cooling

3 Fans

Vapor-X Cooling



Form Factor

3.5 slot, ATX


Dimension

320(L)X 135.75(W)X 71.6 (H)mm



Power Consumption

368W Total Board Power



OS

Linux, Windows 10, and Windows 11. 64-bit  operating system required



System Requirement

• Minimum 750 Watt Power Supply
• 3 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
