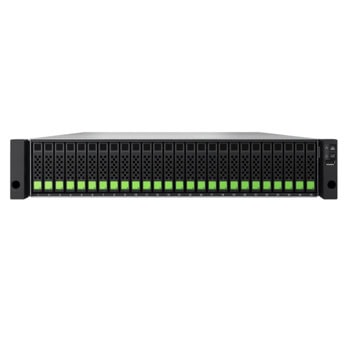

Name: Мрежови диск (NAS) QSAN 90-S3326D00-EU, осемядрен Intel Xeon, без твърд диск (26x 2.5 dual-port U.2/U.3 NVMe SSD), 8GB RAM, 1x 10/100/1000 LAN
Brand: QSAN
SKU: NASQSAN90S3326D00EU
Price: 8665.45 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Dual-Controller SAN System, iSCSI, Max 512GB RAM, 8-ported 10GbE SFP+ iSCSI with optical transceivers x 4, redundant power supply, redundant fan module, 4 slots for optional host cards, rail kit 8,192 LUNs (max), 2048 iSCSI host (max), 8,128 snapshots (max), local clone, remote replicaiton, thin provisioning

Optimized Performance and Capacity for Mixed Workloads
The XCubeSAN is a capacity-demanding hybrid flash storage. Its multi-bay design minimizes enterprise footprint and power consumption while maximizing storage space. Ultra-high performance is designed to be the ideal solution for applications in mission-critical data centers, high-performance computing, virtualization, or media environments.

High Availability and Enterprise Reliability
The XCubeSAN series is a proven high availability SAN storage system with full redundancy in modular design. Its dual-active architecture and automatic failover / failback mechanism, coupled with cache-to-flash technology, enables the system to withstand critical situations.

Specification	Details
CPU	Intel® Xeon® 64-bit 4-core
Maximum Memory Capacity	256 GB (per controller)
Memory Slots	4 (per controller)
Pre-installed Memory	8 GB DDR4 ECC DIMM (per controller)
USB Ports	1 (front) / 2 (rear)
Other Ports	Console Port x1, Service Port (UPS) x1
PCIe	2 × PCIe Gen3 x8 slots
SAS Wide Port	2 × 12 Gb/s (onboard per controller)
Form Factor	2U
Height	88 mm
Width	438 mm
Depth	491 mm
Weight	18.6 kg
Drive Bays	26 × 2.5" slots
Max Drive Bays (with expansion)	546
Drive Interface	SAS 12 Gb/s, SATA 6 Gb/s
Hot Swappable Drives	Yes
Max Internal Raw Capacity	798 TB
1 GbE RJ45 LAN	1 (management port per controller)
10 GbE SFP+ LAN	4 iSCSI onboard / 4 iSCSI optional
10 GbE RJ45 LAN	2 iSCSI optional
25 GbE SFP28 LAN	2 iSCSI optional
16 Gb Fibre Channel	4 optional / 2 optional
32 Gb Fibre Channel	2 optional
Management Software	Web UI, Serial Console, RESTful API, S.E.S., LCM
Operating System	XEVO
RAID Levels	0, 1, 3, 5, 6, 10, 30, 50, 60, 5EE, 6EE, 50EE, 60EE, N-way mirror
Storage Efficiency	Thin provisioning
Acceleration	SSD cache (optional), Auto tiering (optional)
Data Protection	Snapshot, Local volume clone
Remote Replication	Asynchronous (built-in), Synchronous (optional)
Security	HTTPS, SSH, iSCSI CHAP, ISE & SED
PSU Certification	Platinum
Power Supply	2 × 850 W
Power Consumption	429 W
System Fans	4 pcs
