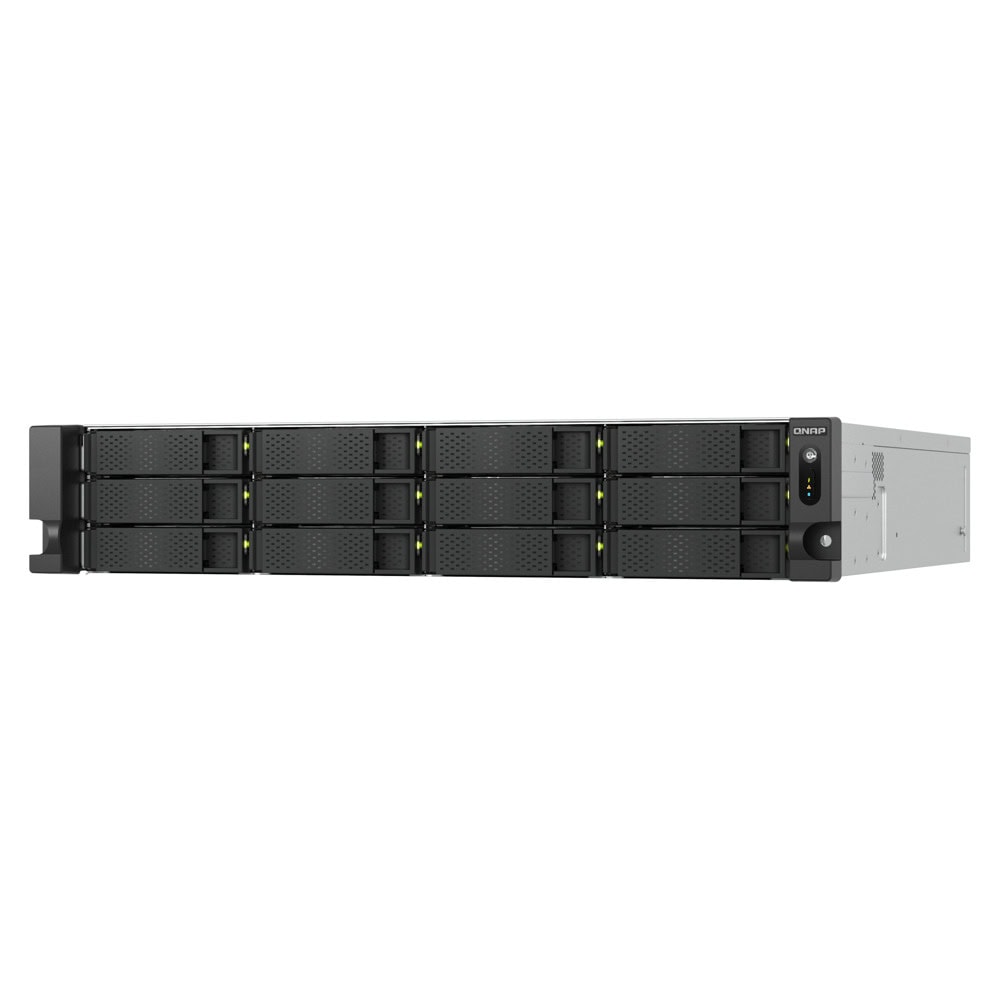

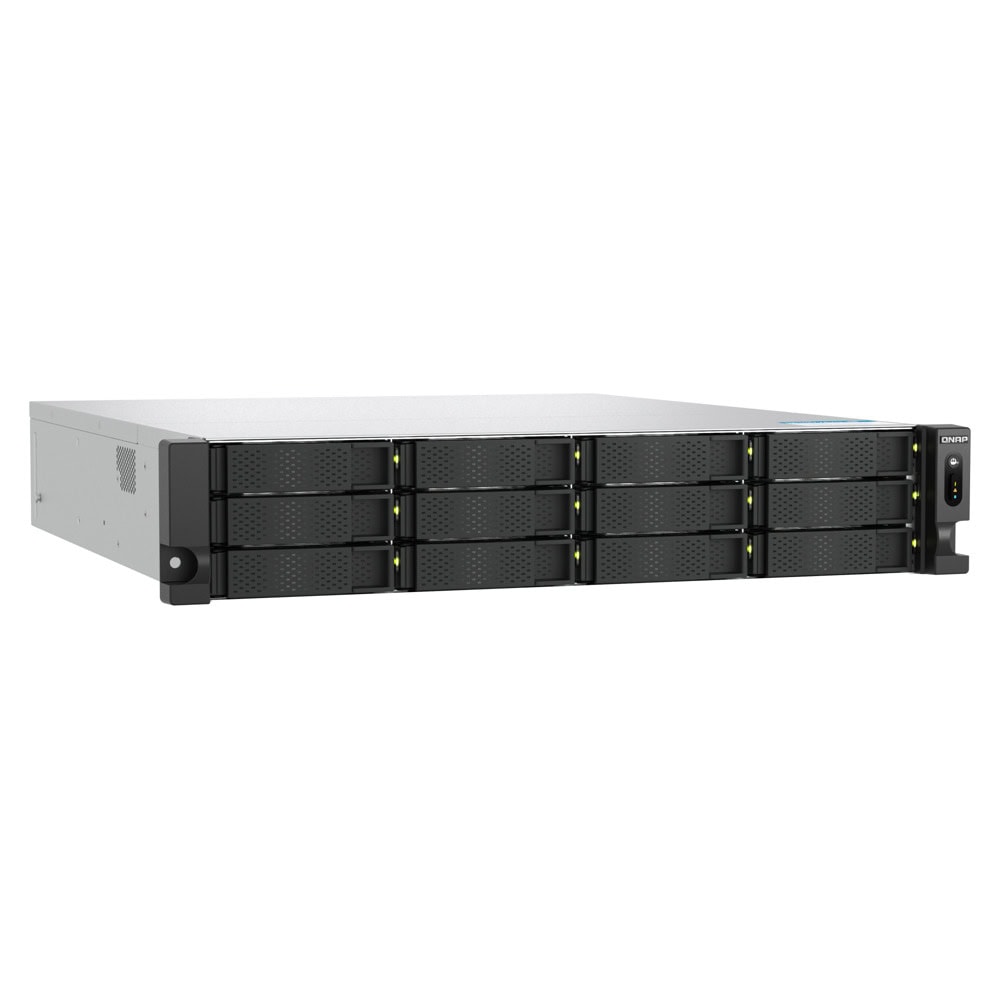

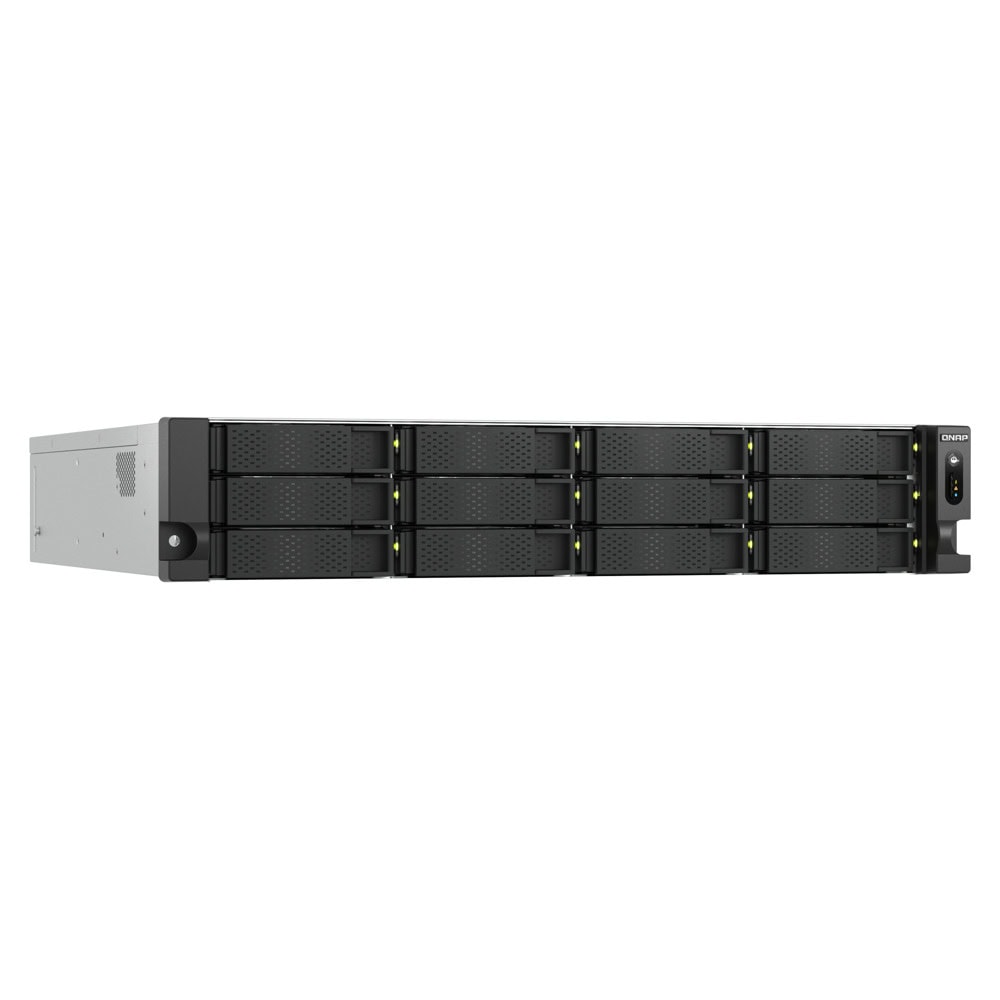

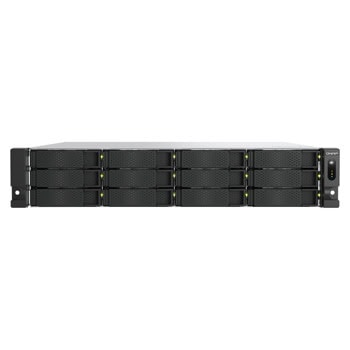

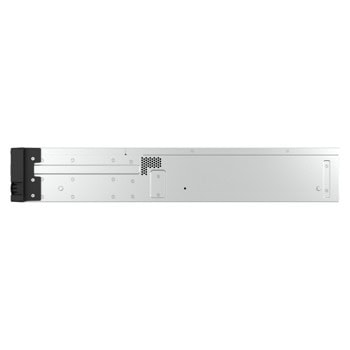

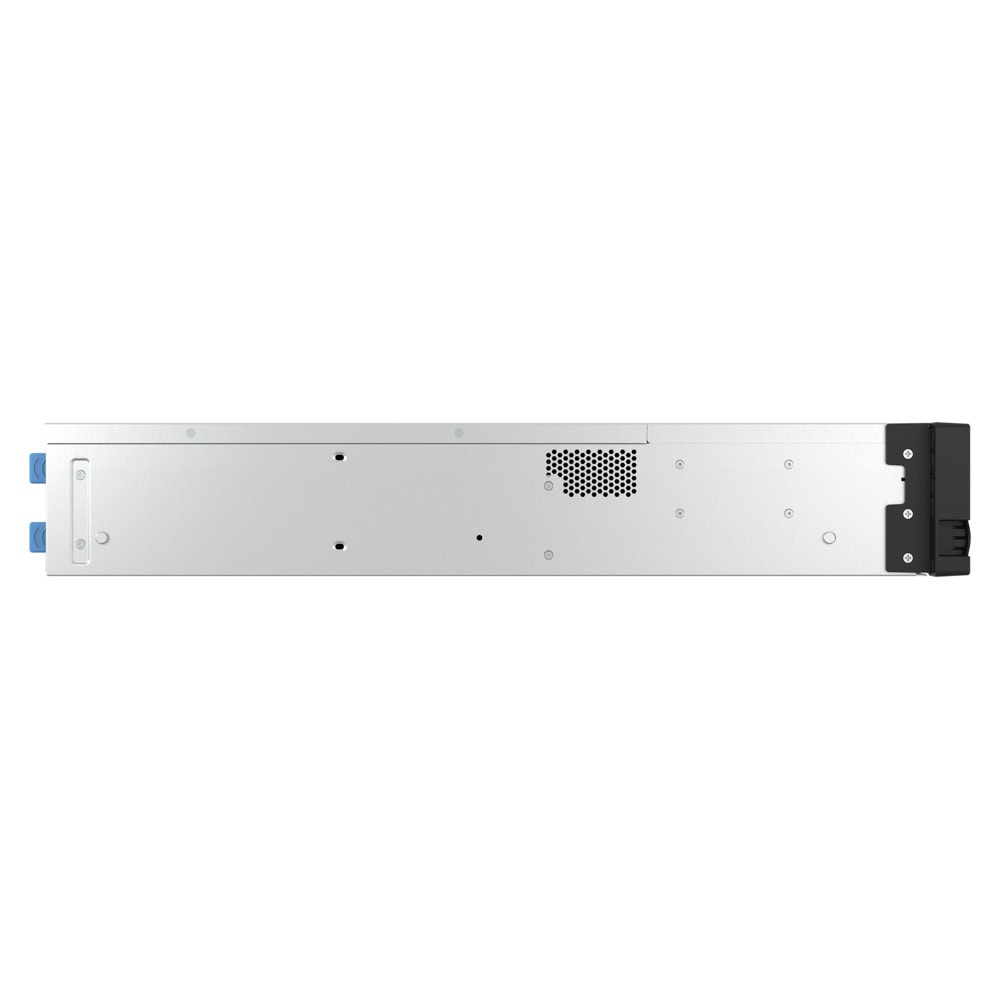

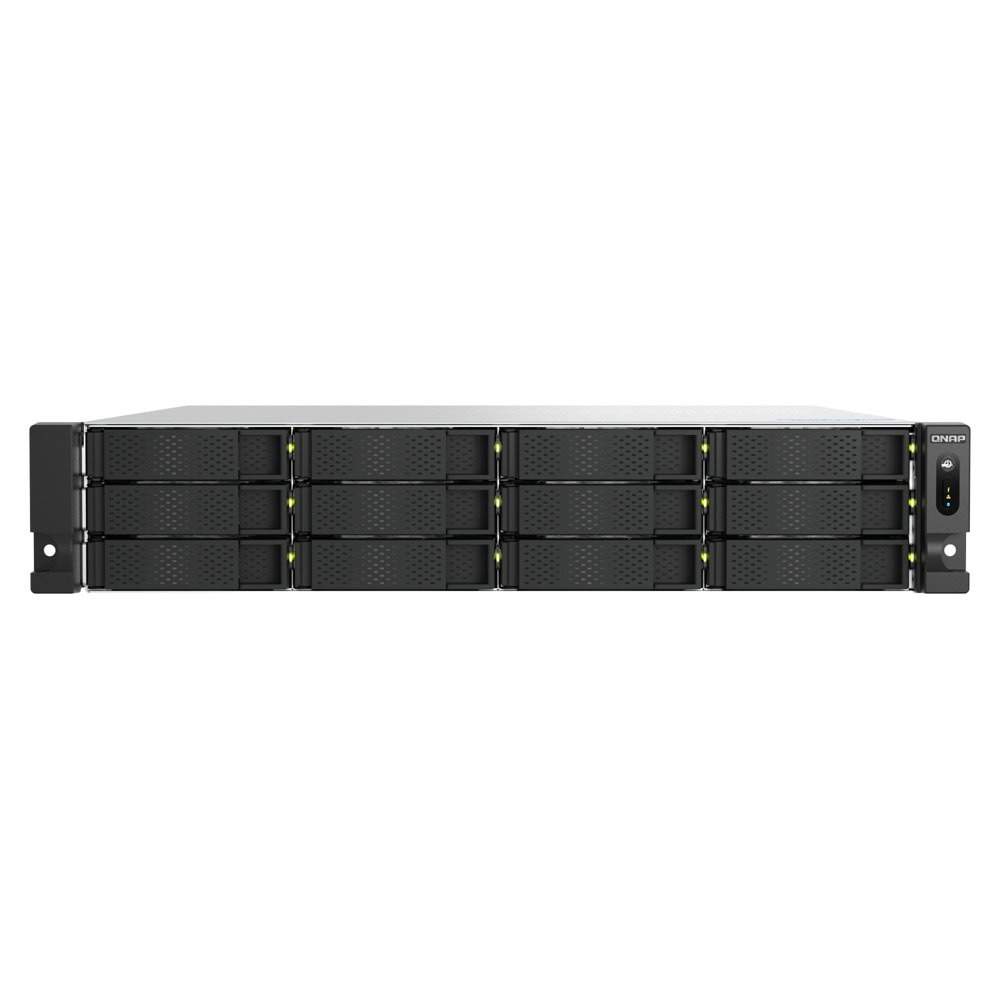

TS-h1277AXU-RP
Experience exceptional enterprise performance with the power of AMD Ryzen™ 7000 Series processors, DDR5, and M.2 PCIe Gen 5
Powered by AMD Ryzen™ 7000 Ser ies processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
| Parameter | Specification |
|---|---|
| CPU | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz |
| Integrated Graphics | AMD Radeon™ Graphics |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | Supported |
| Encryption Engine | AES-NI |
| Hardware-accelerated Transcoding | Supported |
| System Memory | 32 GB UDIMM DDR5 |
| Maximum Memory | 192 GB (4 × 48 GB) |
| Memory Slots | 4 × UDIMM DDR5 (Optional ECC support; dual-DIMM requires identical modules) |
| Flash Memory | 5 GB (Dual boot OS protection) |
| Drive Bays | 12 × 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5" SATA HDD, 2.5" SATA SSD |
| Hot-swappable | Not supported for M.2 SSD |
| M.2 Slots | 2 × M.2 2280 PCIe Gen5 x2 (NVMe Gen3 and above supported) |
| SSD Cache Acceleration | Supported |
| GPU Pass-through | Supported |
| 2.5 GbE Ports | 2 × 2.5G/1G/100M/10M |
| 10 GbE Ports | 2 × 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 GbE Port | Optional via adapter |
| Wake on LAN (WOL) | Supported |
| Jumbo Frame | Supported |
| PCIe Slots | Slot 1: Gen4 x4; Slot 2: Gen4 x8 or x4; Slot 3: Gen4 x4 (with size constraints) |
| USB Ports | 2 × USB 3.2 Gen2 Type-A (10 Gbps) |
| Form Factor | 2U Rackmount |
| LED Indicators | Power, Status, HDD 1–12, M.2 SSD 1–2, LAN, Storage Expansion |
| Buttons | Power, Reset |
| Dimensions (H × W × D) | 88.6 × 482 × 550 mm (excluding ear hook & PSU protrusion) |
| Weight (Net) | 13 kg |
| Weight (Gross) | 19 kg |
| Operating Temperature | 0–40°C (32°F–104°F) |
| Storage Temperature | -20–70°C (-4°F–158°F) |
| Relative Humidity | 5–95% RH non-condensing, wet bulb 27°C |
| Power Supply Unit | 550W ×2, 100–240V |
| Power Consumption (Disk Standby) | 82.247 W |
| Power Consumption (Operating, Typical) | 367.65 W (with drives fully populated) |
| Fan | 3 × 60 mm system fans (12VDC) |
| System Warning | Buzzer |
Виж още Мрежови дискове NAS Qnap
Виж всички Мрежови дискове NAS в категорията
Технически характеристики
| Формфактор: | Rack mounted |
|---|---|
| Капацитет: | Неокомплектован GB |
