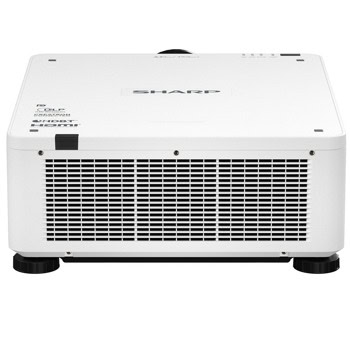

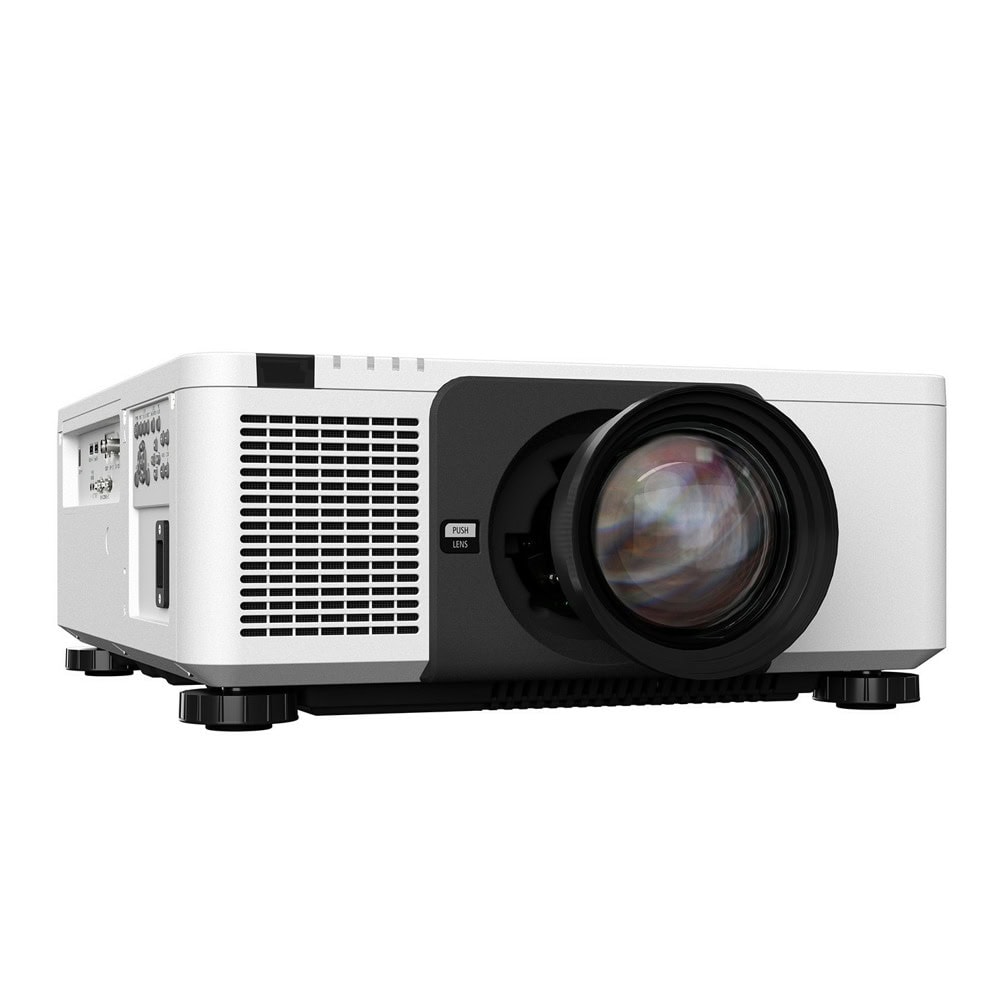

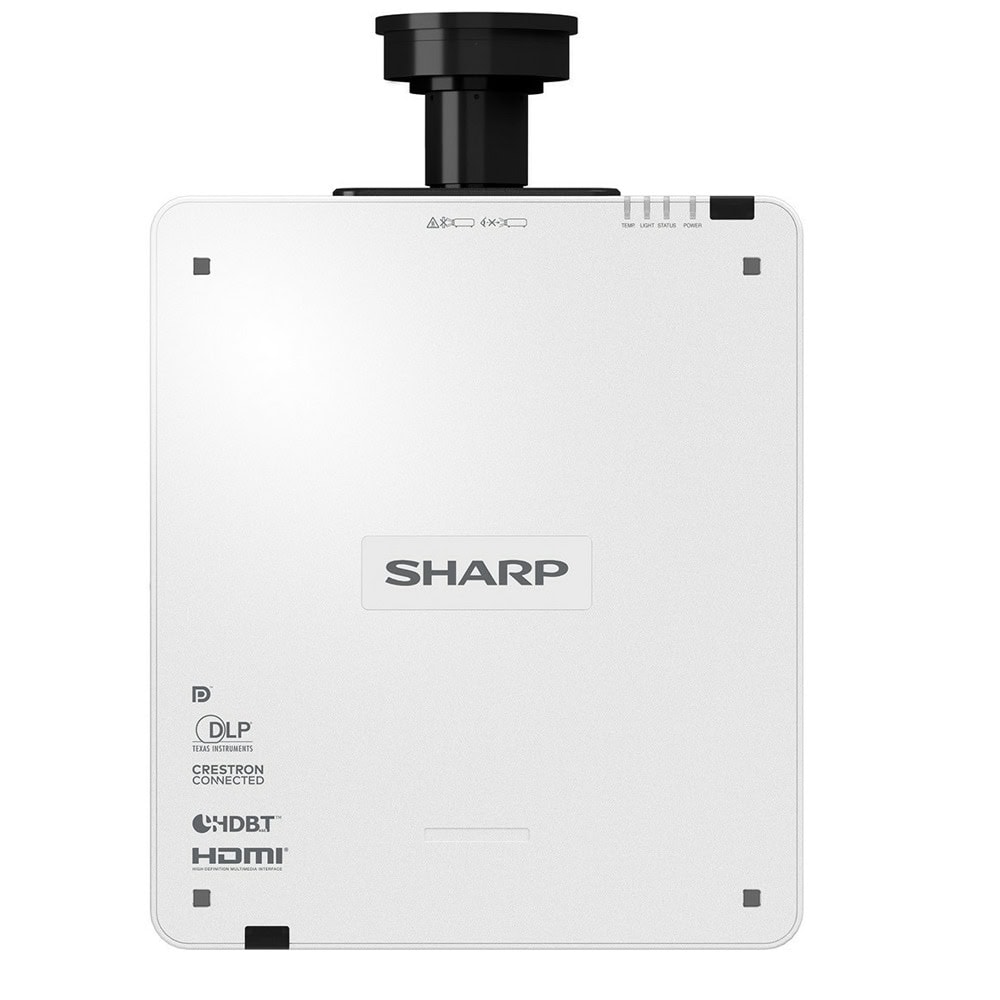

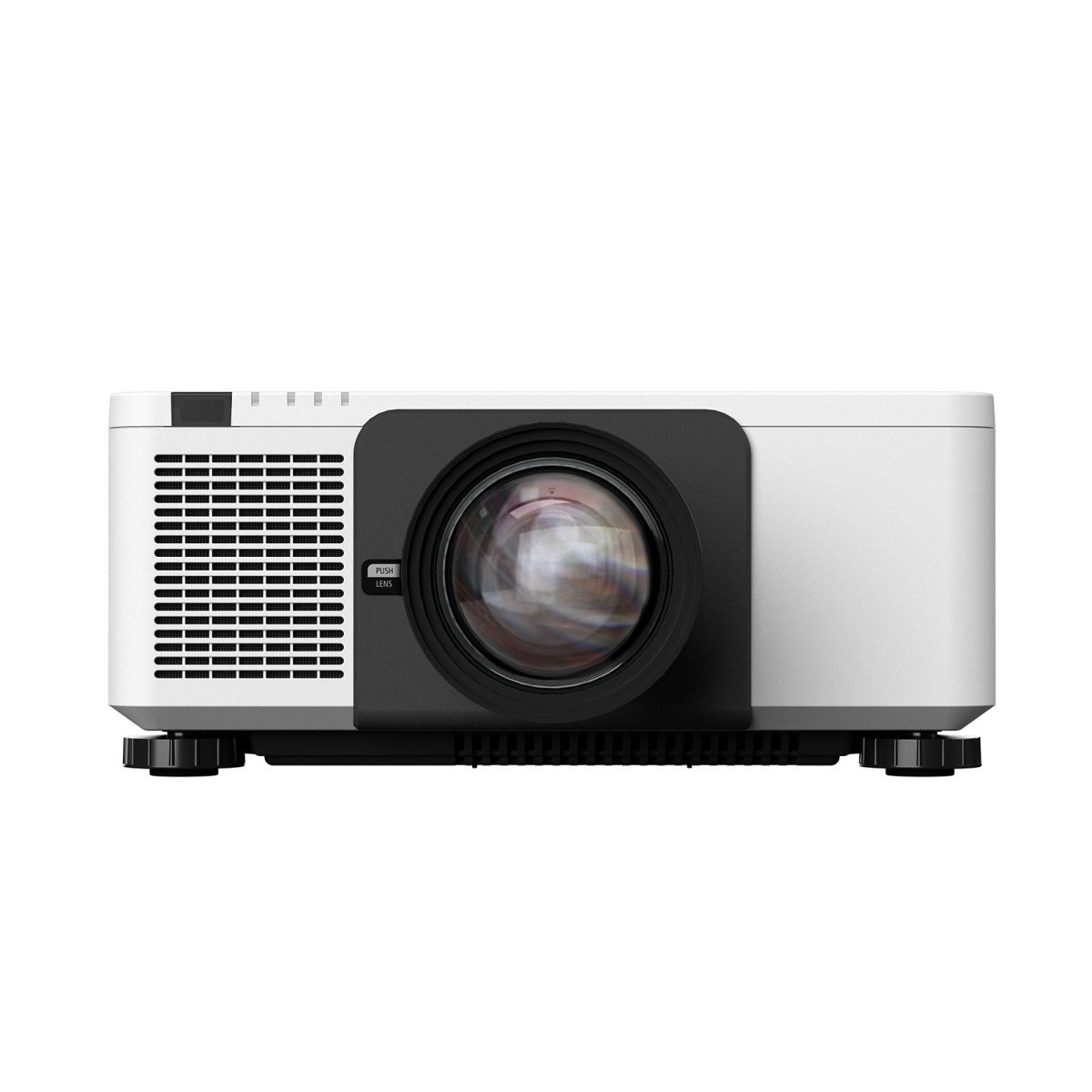

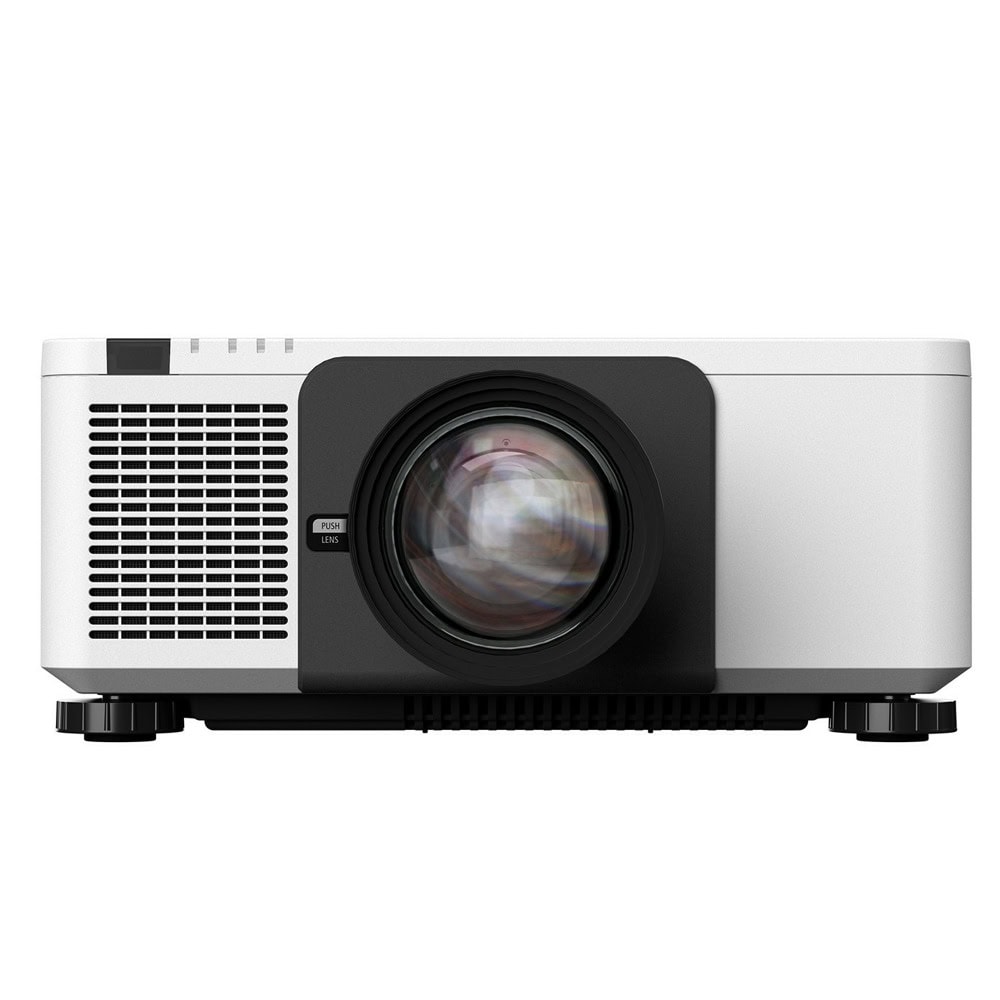

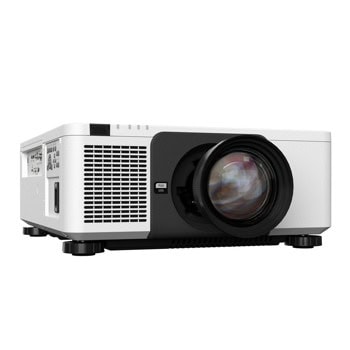

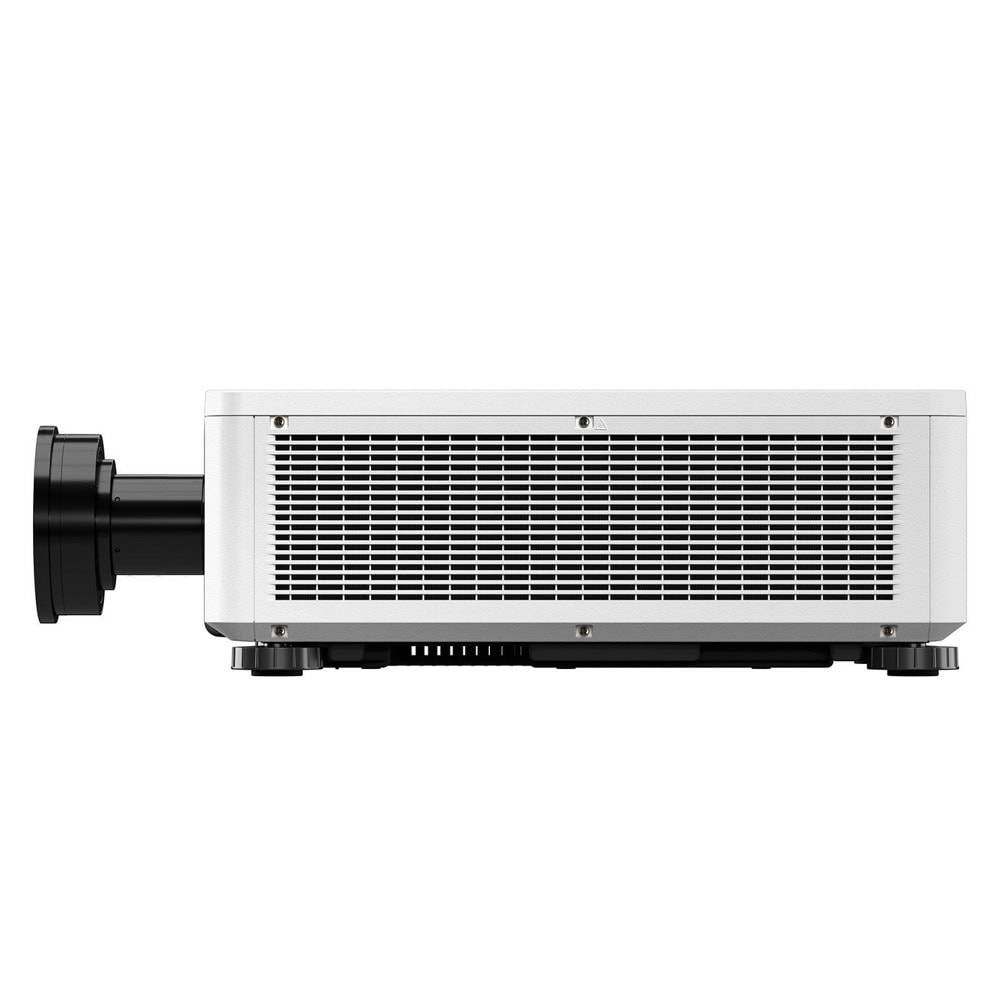

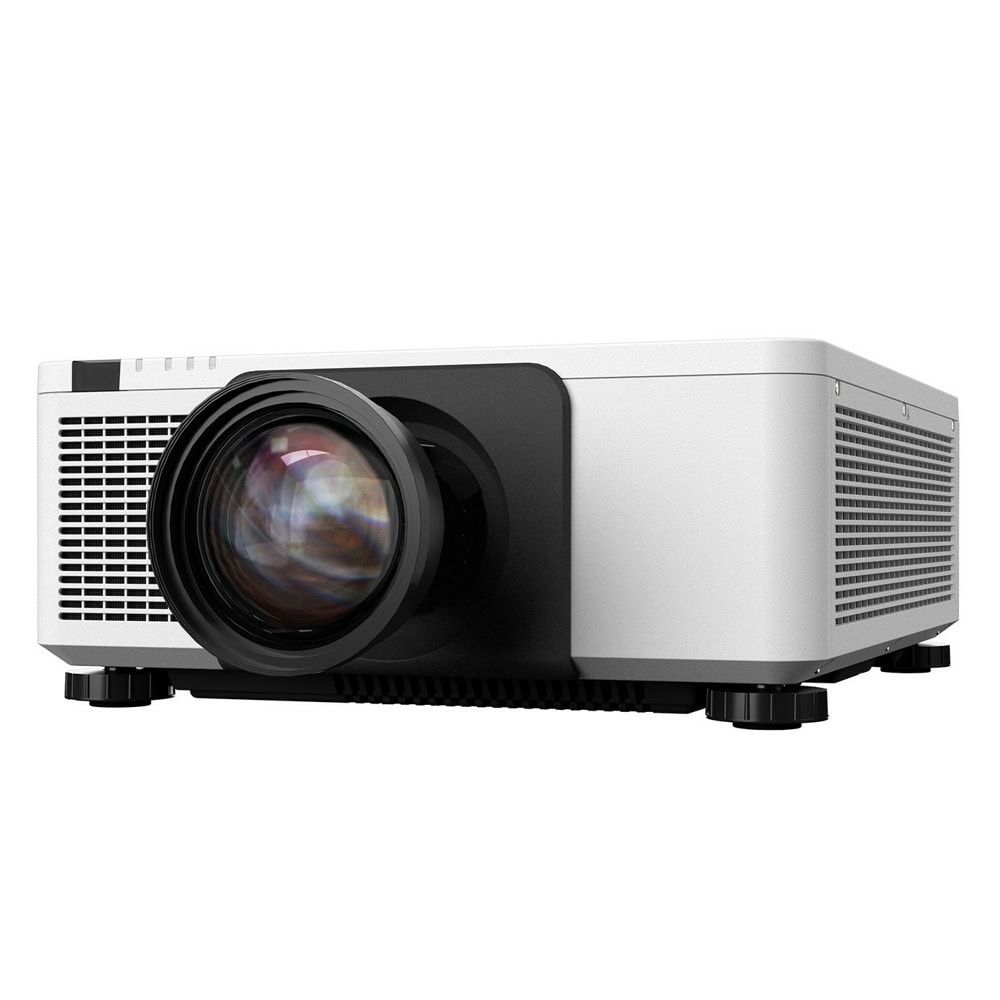

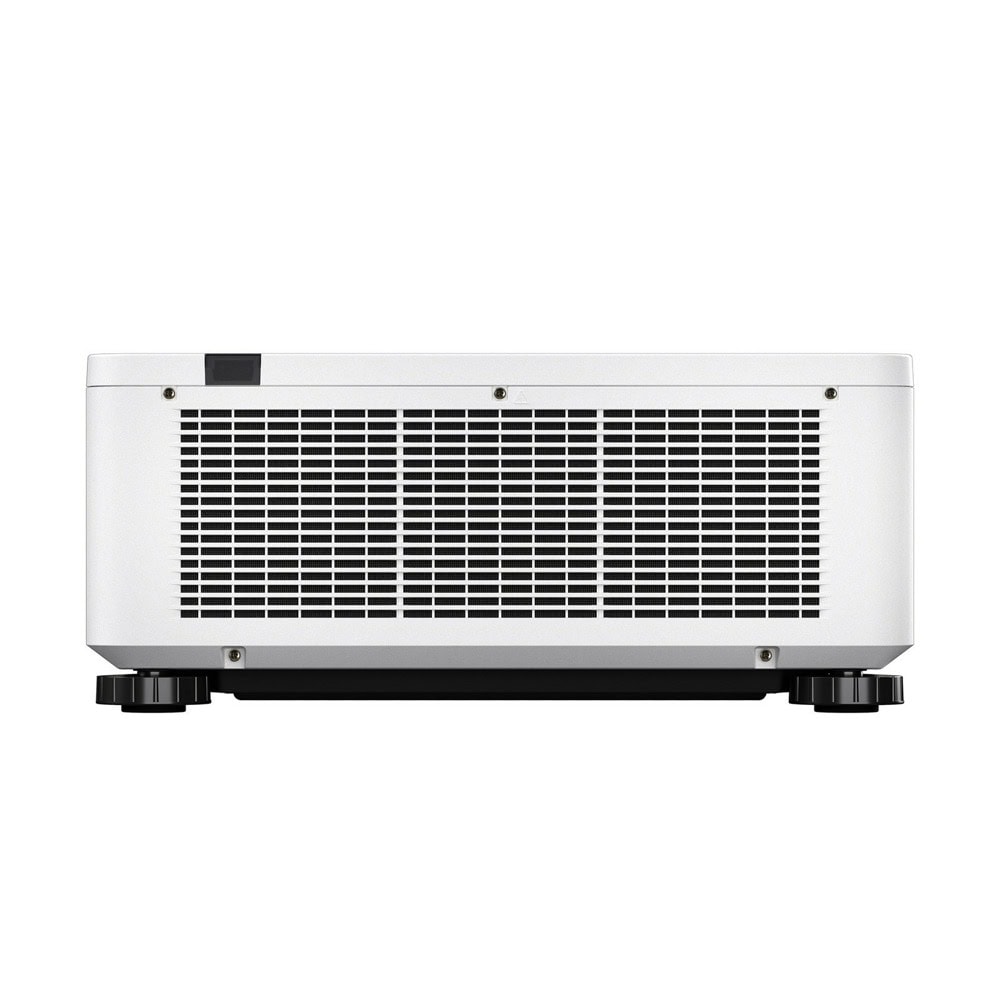

Проектор SHARP 60006145 X141Q-W
Икона нов продукт
НазадПроектор SHARP 60006145 X141Q-WПроектор SHARP 60006145 X141Q-WПроектор SHARP 60006145 X141Q-WПроектор SHARP 60006145 X141Q-WНапред

Проектор SHARP 60006145 X141Q-W, DLP, WUXGA (1920x1200), 3 000 000:1, 13500lm, DisplayPort, HDMI, USB, RS232, LAN, HDBaseT

id 294393 Код: PJSHARP60006145
53855.88 лв

Всички цени са с начислен ДДС

ОписаниеХарактеристикиРевюта / ВъпросиДокументация

SHARP 60006145 X141Q-W



Sharp's X141Q-B (white cabinet) is a 13,500-lumen (Center: 13,900lm) 1-Chip DLP RB laser projector with a 4K UHD (3840x2400) screen resolution. With advanced professional installation features for corporate, higher education and museum users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!

  • 4K UHD (3840 x 2400) screen resolution for unsurpassed image detail for demanding graphics design and CAD/CAM applications
  • High-brightness(13,500 lumens), lower power consumption enhance always-on capabilities of laser projection
  • Ideal for new applications such as digital signage
  • Lamp-less operation reduces TCO
  • Eco-friendly features, minimal maintenance and cost savings mean these projectors are still great for demanding integration applications such as higher education and corporate
  • Seamlessly blend multiple images with integrated edge blending capabilities
  • Built-in HDBaseT enabels simplified installations with a single cable for video, audio, and control signals
  • ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.



CategorySpecification
Display
Aspect Ratio16:10
Screen ResolutionWUXGA 1920x1200
Maximum Resolution4K 3840x2400
Brightness (Typical)13,500 Lumens
Brightness (Maximum)13,900 Center Lumens
Contrast Ratio3,000,000:1 (Dynamic)
Color Processing10-bit, ~1.07 billion colors
Synchronization Range
Horizontal (Analog/Digital)15kHz, 24–153kHz
Vertical24, 25, 30, 48 Hz, 50–85 Hz, 100, 120 Hz
Signal Compatibility
Video StandardsNTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Compatibility480i/p, 576i/p, 720p, 1080i/p, 4K
PC Signal CompatibilityVGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, QHD
Macintosh CompatibilityYes
Sync CompatibilitySeparate, Composite, Sync on G
External ControlRS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB 2.0

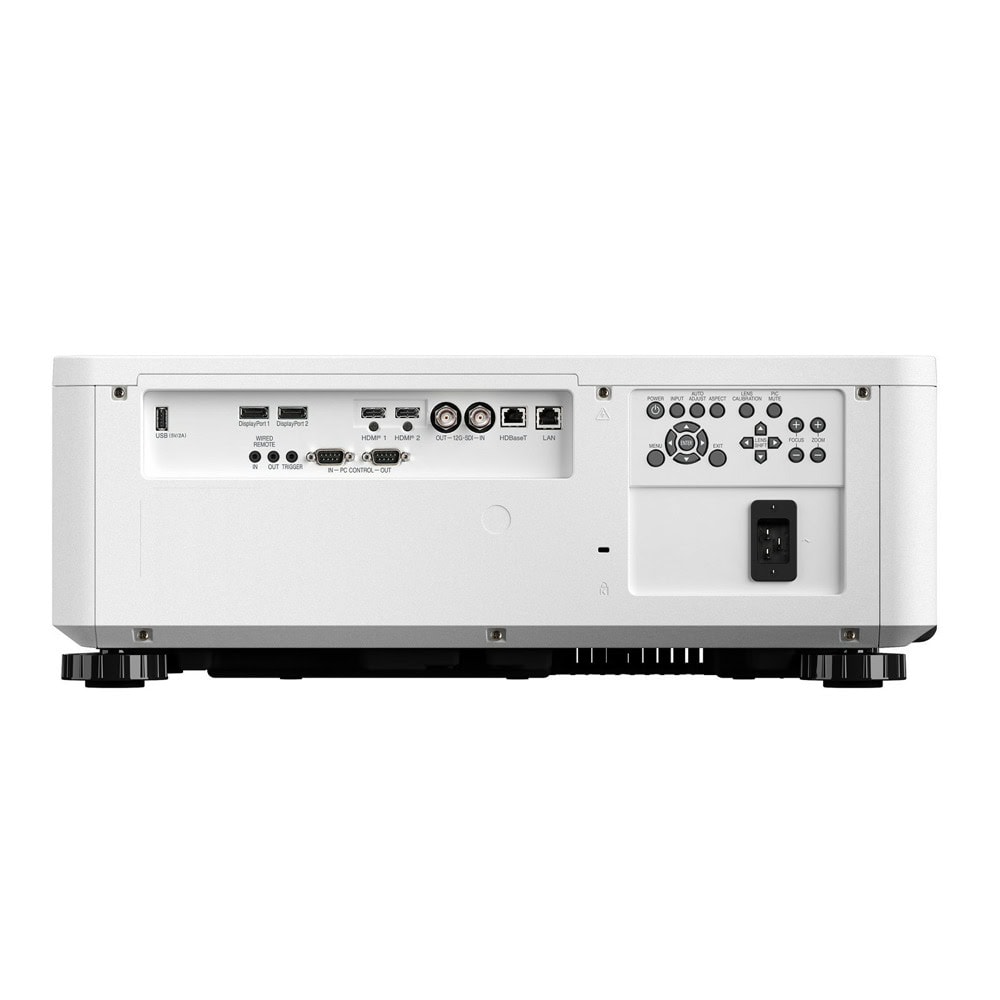

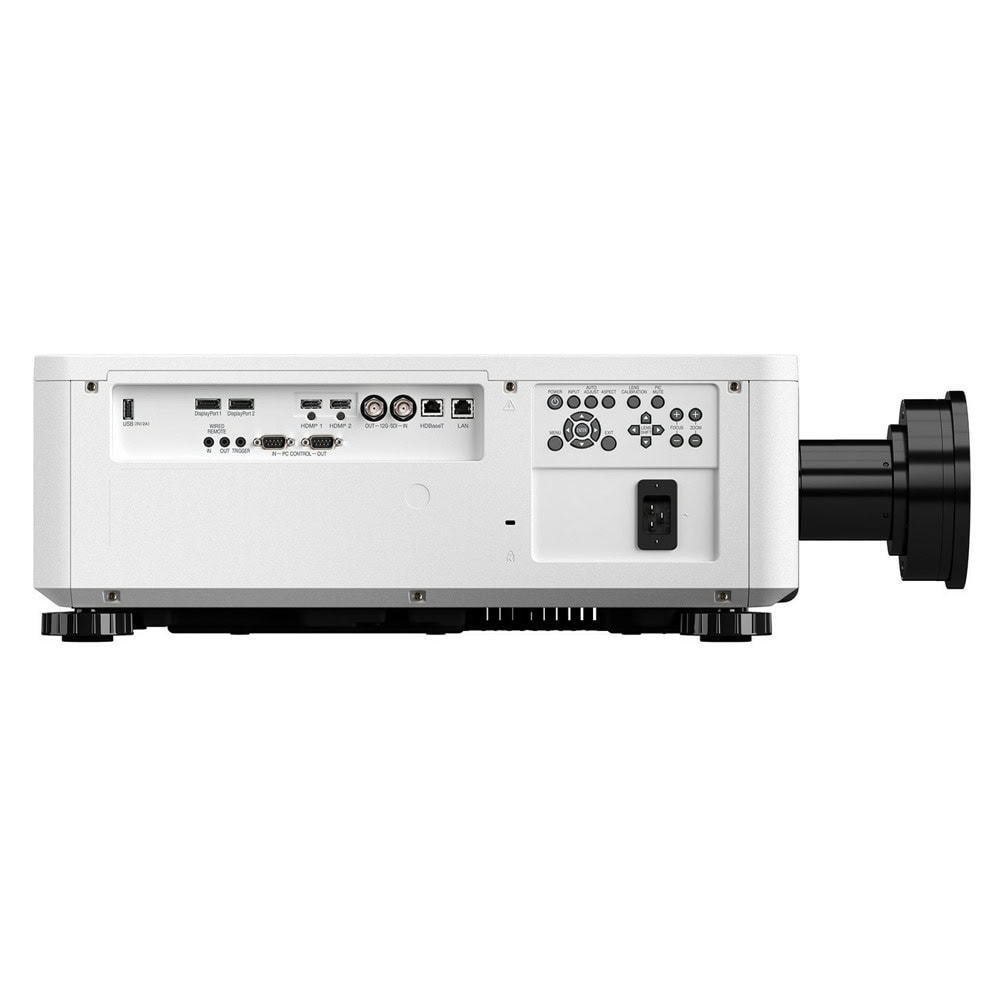

Input Terminals
RGB1 (Digital)HDMI 2.0 w/ HDCP 2.2/1.4
RGB2 (Digital)HDMI 2.0 w/ HDCP 2.2/1.4
RGB3 (Digital)DP w/ HDCP 1.3
RGB4 (Digital)DP w/ HDCP 1.3
RGB5 (Digital)HDBaseT w/ HDCP 2.2/1.4
RGB6 (Digital)12G SDI
Output Terminals12G SDI
Power
Power Consumption (Typical)1080W / 980W / 1.9W / 0.4W
Input Current10.0A – 5.0A
Power Requirements100–240V AC, 50/60Hz
Physical Dimensions
Product (WxHxD)19.7 × 8.5 × 23 in / 500 × 216 × 583 mm
External19.7 × 23.0 × 8.5 in / 500 × 583 × 216 mm
Shipping30.9 × 17.5 × 27.5 in / 784 × 445 × 699 mm
Weight
Net Weight64.8 lbs / 29.4 kg
Shipping Weight88.2 lbs / 40 kg
Environmental
Operating Temp32–113°F / 0–45°C
Operating Humidity20–85% (Non-condensing)
Operating Altitude0–3000 m / 9,842 ft
Storage Temp14–140°F / -10–60°C
Storage Humidity20–80% (Non-condensing)
Storage Altitude0–12,000 m / 0–39,370 ft
Additional Features4K UHD, Motorized Lenses, Manual Keystone, Quick Power On/Off, ECO Mode, DiCom Simulation, NaViSet Admin 2, AccuBlend, AutoSense, ProAssist Software
Optical
Display Technology0.8" DLP HEP DMD
Light Output13,500 Lumens
Throw Ratio Options0.31–0.33:1, 0.55–0.75:1, 0.74–1.08:1, 1.05–1.41:1, 1.40–2.11:1, 2.10–4.00:1 (All Motorized Zoom Lens)
Projection Distance3.58–141 ft / 1.09–43 m
Projector Angle5.8–18.1° (tele), 11.4–25.8° (wide)
Lens Zoom/FocusMotorized
Lens Models & SpecsXP-57UL: F=2.05–2.11, f=5.81–6.17mmXP-58ZL: F=2.04–2.35, f=10.03–13.60mmXP-59ZL: F=2.02–2.33, f=13.47–16.67mm, 6.8 lbsXP-60ZL: F=1.90–2.09, f=18.78–25.30mm, 6.4 lbsXP-61ZL: F=1.80–2.11, f=25.04–37.57mm, 4.9 lbsXP-62ZL: F=1.90–2.44, f=37.23




    Виж още Проектори Sharp
    Виж всички Проектори в категорията
    Документация
    Технически характеристики
    Тип:  LCD
    3D:  Не
    Разделителна способност (native):  1920 x 1200
    Разделителна способност (max):  3840 x 2160
    Яркост:  13500 lm
    Контраст:  3000000
    Мрежови възможности:  RJ-45 & HDBaseT
    Говорители:  Не
    4K:  Да
    Разстояние на проектиране:  Зависи от обектива
    Short Throw:  Да
    Живот на лампата:  20000 h
    Предназначен за:  Бизнес
    Формат:  16:10
