| Basic | ||
|---|---|---|
| Product Type | Barebone System | |
| Maximum Memory Supported | 64 GB | |
| Chipset | Intel | |
| Processor Type | Core i7 | |
| RAID Levels | 0, 1 | |
| Controller Type | NVMe | |
| Controller Type | Serial ATA/600 | |
| Brand Name | Shuttle | |
| Operating System Supported | Linux | |
| Operating System Supported | Windows 11 | |
| Operating System Supported | Windows 10 | |
| Memory Technology | DDR4 SDRAM | |
| Memory Standard | DDR4-3200/PC4-25600 | |
| Processor Core | Deca-core (10 Core) | |
| Processor Manufacturer | Intel | |
| Graphics Controller Manufacturer | Intel | |
| Graphics Controller Model | UHD Graphics | |
| Number of SATA Interfaces | 1 | |
| Number of Total Memory Slots | 2 | |
| Graphics Memory Accessibility | Shared | |
| Ethernet Technology | Gigabit Ethernet | |
| Maximum Power Supply Wattage | 65 W | |
| DisplayPort | Yes | |
| Product Family | XPC nano NC40U | |
| Total Number of USB Ports | 7 | |
| Energy Star | Yes | |
| Product Color | Black | |
| Color Family | Black | |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | |
| Chipset | ||
| Chipset Manufacturer | Intel | |
| Controllers | ||
| RAID Levels | 0, 1 | |
| Controller Type | Serial ATA/600 | |
| Controller Type | NVMe | |
| RAID Supported | Yes | |
| Display & Graphics | ||
| Graphics Controller Manufacturer | Intel | |
| Graphics Controller Model | UHD Graphics | |
| Graphics Memory Technology | DDR4 SDRAM | |
| Graphics Memory Accessibility | Shared | |
| General Information | ||
| Product Type | Barebone System | |
| Manufacturer Part Number | NC40U7 | |
| Manufacturer Website Address | http://www.shuttle.com | |
| Manufacturer | Shuttle, Inc | |
| Product Model | NC40U7 | |

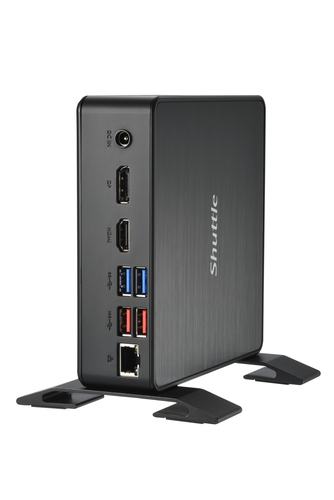

| Product Name | XPC nano Barebone NC40U7 | |
| Product Line | XPC nano | |
| Product Series | NC40U | |
| Brand Name | Shuttle | |
| Marketing Information | MANY PORTS AND HIGH PERFORMANCE IN NANO-FORMAT The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed Alder Lake-U. Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5 hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia. | |
| I/O Expansions | ||
| Number of Internal 2.5 Bays | 1 | |
| Number of Total Expansion Bays | 1 | |
| Number of M.2 Interfaces | 2 | |
| Interfaces/Ports | ||
| Number of SATA Interfaces | 1 | |
| Network (RJ-45) | Yes | |
| DisplayPort | Yes | |
| Total Number of USB Ports | 7 | |
| USB Type-C Detail | 1x USB 3.2 Gen 1, Type C supports DisplayPort 1.4a | |
| HDMI (Rear) | Yes | |
| USB Type-C (Front) | Yes | |
| Number of USB 3.2 Gen 1 Ports | 4 | |
| Number of USB 3.2 Gen 2 Ports | 2 | |
| Memory | ||
| Maximum Memory Supported | 64 GB | |
| Maximum Memory Supported | 64 GB | |
| Memory Technology | DDR4 SDRAM | |
| Memory Standard | DDR4-3200/PC4-25600 | |
| Number of Total Memory Slots | 2 | |
| Miscellaneous | ||
| Package Contents | ||
| Environmentally Friendly | Yes | |
| Energy Star | Yes | |
| Network & Communication | ||
| Ethernet Technology | Gigabit Ethernet | |
| Operating System | ||
| Operating System Supported | Windows 11 | |
| Operating System Supported | Windows 10 | |
| Operating System Supported | Linux | |
| Physical Characteristics | ||
| Weight (Approximate) | 400 g | |
| Height | 42 mm | |
| Width | 142 mm | |
| Depth | 142 mm | |
| Product Color | Black | |
| Color Family | Black | |
| Power Description | ||
| Frequency | 60 Hz | |
| Frequency | 50 Hz | |
| Number of Power Supplies Installed | 1 | |
| Maximum Power Supply Wattage | 65 W | |
| Processor | ||
| Processor Speed | 1.70 GHz | |
| Processor Speed | 1.70 GHz | |
| Processor Type | Core i7 | |
| Processor Model | i7-1255U | |
| Processor Core | Deca-core (10 Core) | |
| Processor Manufacturer | Intel | |
| Maximum Turbo Speed | 4.70 GHz | |
| Processor Generation | 12th Gen | |
| Processor & Chipset | ||
| Processor Speed | 1.70 GHz | |
| Processor Type | Core i7 | |
| Processor Model | i7-1255U | |
| Processor Core | Deca-core (10 Core) | |
| Processor Manufacturer | Intel | |
| Chipset Manufacturer | Intel | |
| Maximum Turbo Speed | 4.70 GHz | |
| Processor Generation | 12th Gen | |
| Software | ||
| Operating System Supported | Linux | |
| Operating System Supported | Windows 11 | |
| Operating System Supported | Windows 10 | |
-
