Audio | ||
---|---|---|
Built-in speaker(s) | No | |
Design | ||
Chassis type | 1.3L sized PC | |
Cable lock slot | Yes | |
LED indicators | HDD, Power | |
Product colour | Black | |
Panel mounting interface | 75 x 75,100 x 100 mm | |
Housing material | Steel | |
On/off switch | Yes | |
Cooling type | Passive | |
Product type | Mini PC barebone | |
Cable lock slot type | Kensington | |
VESA mounting | Yes | |
General Information | ||

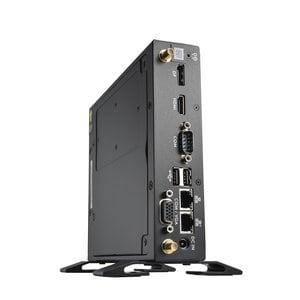

Marketing Information | Fanless Slim PC with integrated ULV processor in industrial design The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5 drive and two M.2-2280 SSD cards. Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia. | |
Graphics | ||
Graphics card family | Intel | |
On-board graphics card model | Intel® UHD Graphics | |
On-board graphics card | Yes | |
Logistics data | ||
Harmonized System (HS) code | 84733080 | |
Memory | ||
Maximum internal memory | 64 GB | |
Memory voltage | 1.1 V | |
Supported memory clock speeds | 5200 MHz | |
Supported memory types | DDR5-SDRAM | |
Memory channels | Dual-channel | |
Memory slots type | SO-DIMM | |
Number of memory slots | 2 | |
Network | ||
Ethernet LAN | Yes | |
LAN controller | Intel® I219, Intel I226-LM | |
Wi-Fi | No | |
Operational conditions | ||
Operating relative humidity (H-H) | 10 - 90% | |
Operating temperature (T-T) | 0 - 40 °C | |
Packaging content | ||
AC adapter included | Yes | |
Quick start guide | Yes | |
Power cord included | Yes | |
Performance | ||
BIOS type | UEFI AMI | |
Trusted Platform Module (TPM) | Yes | |
Number of processors supported | 1 | |
Trusted Platform Module (TPM) version | 2.0 | |
Audio chip | RealTek ALC888S | |
Ports & interfaces | ||
Serial ports quantity | 1 | |
USB 2.0 ports quantity | 2 | |
Ethernet LAN (RJ-45) ports | 2 | |
Headphone outputs | 1 | |
Microphone in | Yes | |
DC-in jack | Yes | |
VGA (D-Sub) ports quantity | 1 | |
HDMI ports quantity | 1 | |
HDMI version | 2.0b | |
DisplayPorts quantity | 1 | |
DisplayPort version | 1.4 | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 | |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 | |
Power | ||
Power supply type | External AC adapter | |
Number of power supply units | 1 | |
AC adapter output voltage | 19 V | |
AC adapter output current | 1.6 A | |
Power supply | 90 W | |
AC input frequency | 50/60 Hz | |
AC input voltage | 100 - 240 V | |
Processor | ||
Processor model | 7305 | |
Processor manufacturer | Intel | |
Processor family | Intel® Celeron® | |
Processor cores | 5 | |
Processor threads | 5 | |
Built-in processor | Yes | |
ECC supported by processor | No | |
Efficient cores | 4 | |
Performance cores | 1 | |
Software | ||
Operating system installed | No | |
Windows operating systems supported | Windows 10, Windows 11 | |
Linux operating systems supported | Yes | |
Storage | ||
Storage drive interface | PCI Express, Serial ATA III | |
Number of storage drives supported | 3 | |
Storage drive sizes supported | 2.5,M.2 | |
Supported storage drive types | HDD & SSD | |
NVMe | Yes | |
Sustainability | ||
Sustainability compliance | Yes | |
Sustainability certificates | ENERGY STAR, ErP | |
Technical details | ||
Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus | |
Weight & dimensions | ||
Weight | 1.6 kg | |
Package weight | 2.3 kg | |
Height | 39.5 mm | |
Width | 200 mm | |
Depth | 165 mm |
-
