GeForce RTX™ 4080 16GB VENTUS 3X OC
WITH DLSS 3
The NVIDIA® GeForce RTX™ 4080 delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics with DLSS 3. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and up to 16GB of superfast G6X memory.
Boost Clock / Memory Speed
- Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz
22.4 Gbps - 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
Metal Backplate
- Thermal pads under the sturdy flow-through metal backplate helps with cooling.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Take The Essentials
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.

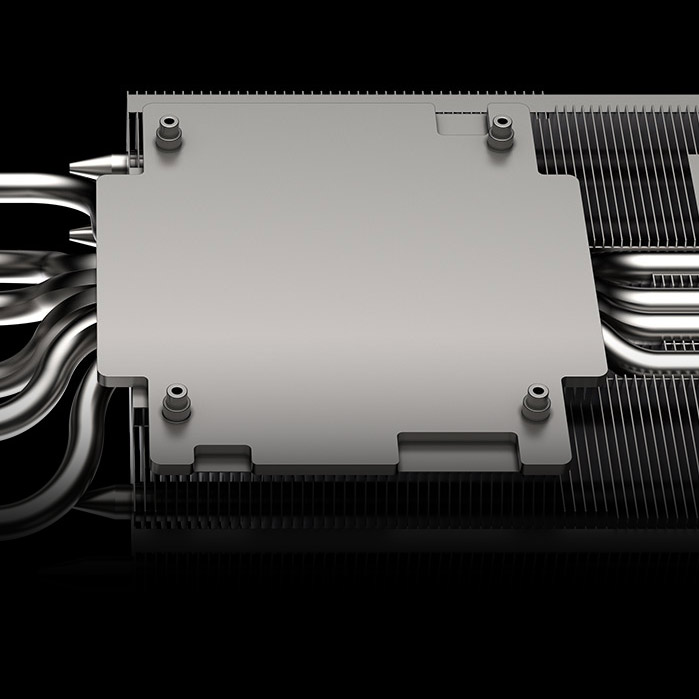

Copper baseplateHeat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency. |
 |

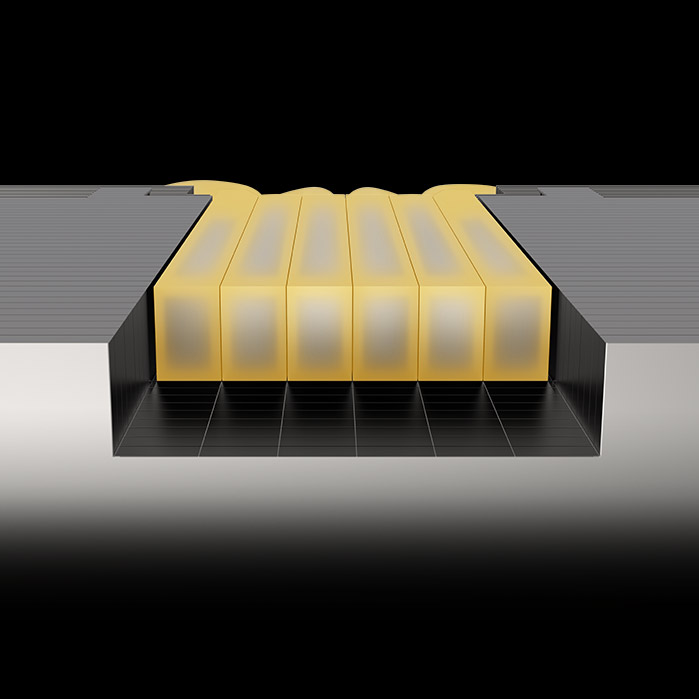

CorepipeCore Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink. |
 |

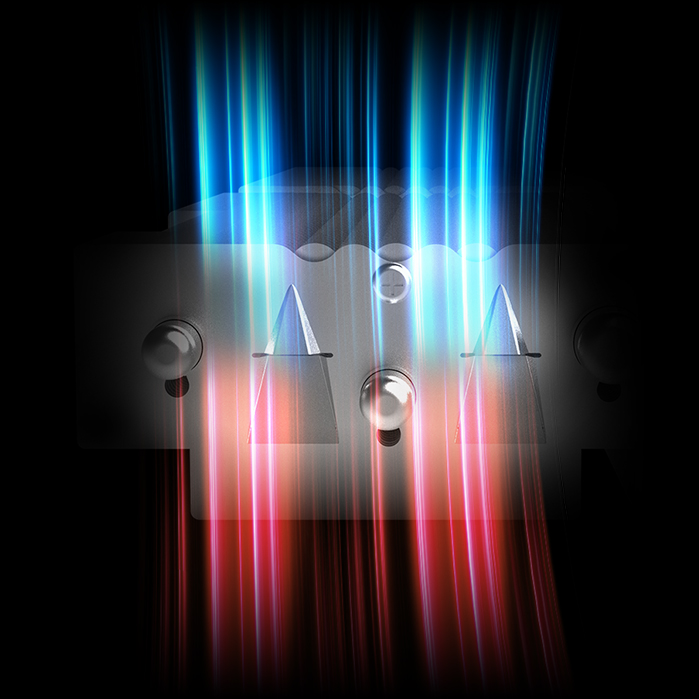

Airflow controlStay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. |
 |

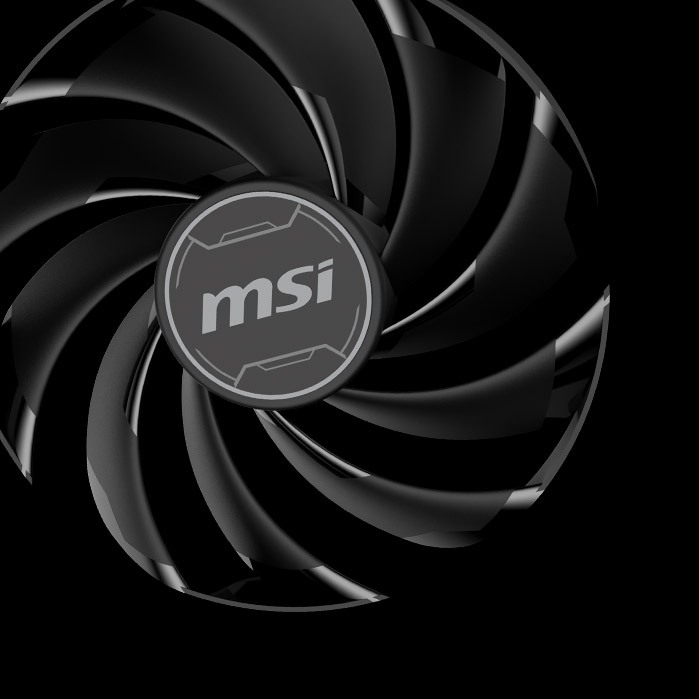

TORX FAN 4.0TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system. |
 |

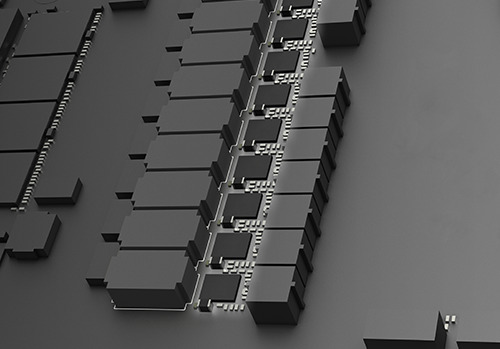

DrMosDrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls. |
 |

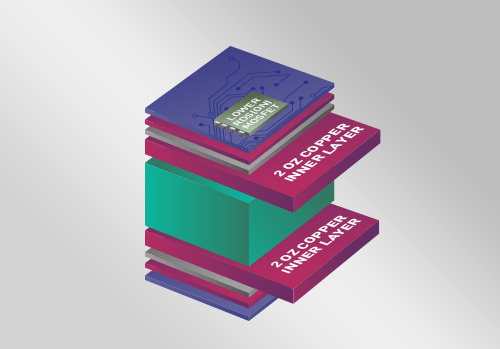

2 Oz CopperA thickened copper layer inside the PCB increases conductivity which improves heat dissipation and reliability. |
.jpg) |

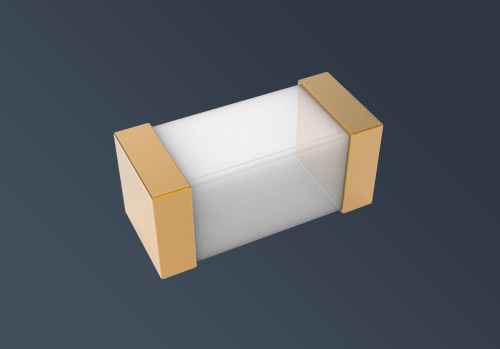

FuseAdditional fuses built into the custom PCB provide additional safeguards against electrical damage. |
 |

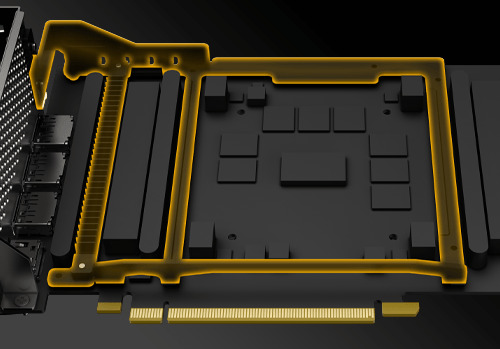

Sheet-Metal Anti-BendingA sheet-metal anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath. |
 |
Support BracketA bundled support bracket can be attached to your PC case for additional graphics card reinforcement. |
 |
Specifications:
- Graphics Processing Unit NVIDIA® GeForce RTX™ 4080 16GB
- Interface PCI Express® Gen 4
- Core Clocks
- Extreme Performance: 2550 MHz (MSI Center)
- Boost: 2535 MHz
- CUDA® CORES 9728 Units
- Memory Speed 22.4 Gbps
- Memory 16GB GDDR6X
- Memory Bus 256-bit
Output
- DisplayPort x 3 (v1.4a)
- HDMI™ x 1 (Supports 4K@120Hz HDR,
- 8K@60Hz HDR, and Variable Refresh Rate as
- specified in HDMI 2.1a)
- HDCP Support Y
- Power consumption 320W
- Power connectors 16pin x 1
- Recommended PSU 750W
- Card Dimension (mm) 322 x 136 x 63mm
- Weight (Card / Package) 1595g / 2200g
- DirectX Version Support 12 Ultimate
- OpenGL Version Support 4.6
- Maximum Displays 4
- G-SYNC® technology Y
- Digital Maximum Resolution 7680 x 4320
