| Audio | ||
|---|---|---|
| Number of built-in speakers | 2 | |
| Built-in speaker(s) | Yes | |
| Design | ||
| Product colour | Black | |
| Placement supported | Indoor | |
| Panel mounting interface | 800 x 400 mm | |
| Product design | Interactive flat panel | |
| Anti-glare screen | Yes | |
| VESA mounting | Yes | |
| Screen shape | Flat | |
| Orientation | Horizontal | |
| Positioning accuracy | 1 mm | |
| Display | ||
| Contrast ratio (typical) | 1200:1 | |
| Horizontal scan range | 30 - 135 kHz | |
| Viewing angle, horizontal | 178° | |
| Viewing angle, vertical | 178° | |
| Display diagonal | 189.3 cm (74.5) | |
| Display brightness | 500 cd/m² | |
| Response time | 5 ms | |
| Display resolution | 3840 x 2160 pixels | |
| Display diagonal (metric) | 189.273 cm | |
| Touchscreen technology | Infrared | |
| Native aspect ratio | 16:9 | |
| HD type | 4K Ultra HD | |
| Panel type | IPS | |
| Active display area (W x H) | 1650 x 928 mm | |
| Haze rate | 25% | |
| General Information | ||

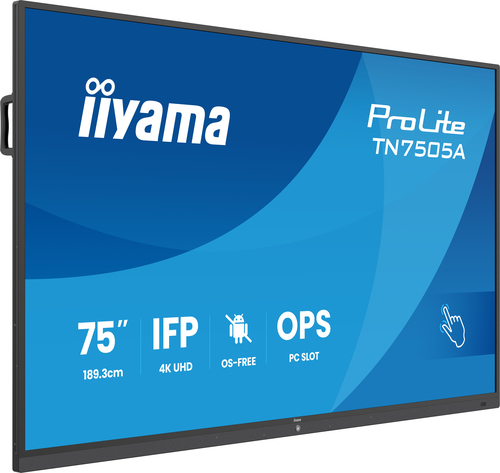

| Marketing Information | The ProLite TN7505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN8605A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential. | |
| Network | ||
| Ethernet LAN | Yes | |
| Operational conditions | ||
| Storage temperature (T-T) | -20 - 60 °C | |
| Operating temperature (T-T) | 0 - 40 °C | |
| Other features | ||
| Power supply type | Internal | |
| Brightness | 450 cd/m² | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. | |
| Packaging content | ||
| Remote control included | Yes | |
| Cables included | RS-232 | |
| Performance | ||
| Purpose | Education | |
| On Screen Display (OSD) | Yes | |
| Picture-in-Picture | Yes | |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian | |
| Number of OSD languages | 8 | |
| Ports & interfaces | ||
| USB connector type | USB Type-C, USB Type-B | |
| Ethernet LAN (RJ-45) ports | 2 | |
| PC Audio in | Yes | |
| HDMI ports quantity | 2 | |
| DisplayPorts quantity | 1 | |
| PC Audio out | Yes | |
| Remote (IR) output | 1 | |
| VGA (D-Sub) input ports | 1 | |
| USB ports quantity | 1 | |
| USB port | Yes | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 | |
| USB Type-C DisplayPort Alternate Mode | Yes | |
| USB Power Delivery (USB PD) | Yes | |
| OPS module slot | Yes | |
| HDMI input ports quantity | 2 | |
| USB Power Delivery up to | 65 W | |
| Power | ||
| Power consumption (typical) | 175 W | |
| Power consumption (off) | 0.3 W | |
| Power consumption (standby) | 0.5 W | |
| Energy efficiency scale | A to G | |
| Energy efficiency class (SDR) | G | |
| Energy consumption (SDR) per 1000 hours | 175 kWh | |
| Weight & dimensions | ||
| Weight | 54.5 kg | |
| Height | 1036.3 mm | |
| Width | 1710.2 mm | |
| Depth | 120.4 mm | |
| Display depth | 120.4 mm | |
| Display height | 1036.3 mm | |
| Display weight | 54.5 kg | |
| Display width | 1710.2 mm | |
-
