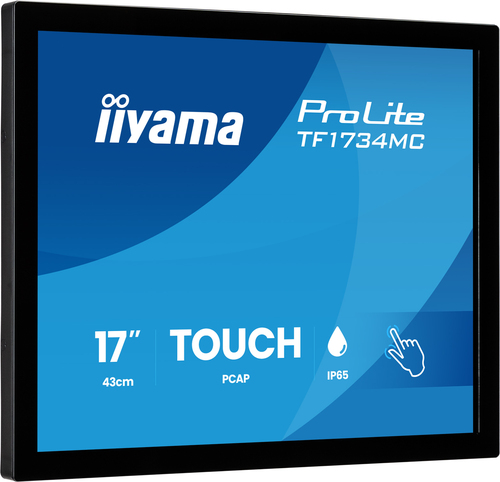

Name: Монитор IIYAMA TF1734MC-B8X 17IN
Price: 616.18 EUR
Availability: InStock

Design
Glass thickness	3 mm

Front bezel colour	Black
Display
Pixel pitch	0.264 x 0.264 mm

Contrast ratio (typical)	1000:1

Horizontal scan range	31 - 80 kHz

Viewing angle, horizontal	170°

Viewing angle, vertical	160°

Viewable size, horizontal	33.8 cm

Viewable size, vertical	27 cm

Display diagonal	43.2 cm (17)

Display brightness	300 cd/m²

Response time	5 ms

Display resolution	1280 x 1024 pixels

Display diagonal (metric)	43 cm

Maximum refresh rate	75 Hz

Touchscreen technology	Projected capacitive system

Number of simultaneous touchpoints	10

Native aspect ratio	5:4

Panel type	TN

Display number of colours	16.7 million colours

Display brightness (typical)	350 cd/m²
Ergonomics
On Screen Display (OSD)	Yes

Panel mounting interface	100 x 100 mm

On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian

VESA mounting	Yes
General Information
Marketing Information	The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Other features
Weight	3.6 kg

User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)

AC adapter included	Yes

Height	307 mm

Brightness	300 cd/m²

Width	369 mm

Depth	47.5 mm

Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

International Protection (IP) code	IP65

Packaging content	AC adapter

Active display area (W x H)	338 x 270 mm

Touch method	stylus, finger, glove (latex)

Positional accuracy	2 mm

Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Packaging content
Cables included	AC, USB, HDMI, DisplayPort

Quick start guide	Yes

Power cable length	1.8 m

HDMI cable length	1.8 m

DisplayPort cable length	1.8 m
Packaging data
Package weight	5.2 kg

Package depth	455 mm

Package height	145 mm

Package width	387 mm

USB cable length	1.8 m
Performance
Palm rejection	Yes
Ports & interfaces
VGA (D-Sub) ports quantity	1

DisplayPorts quantity	1

USB Touch port	Yes
Power
Power consumption (typical)	13 W

Power supply type	External

AC adapter output voltage	12 V

Power consumption (off)	0.3 W

Power consumption (standby)	1.5 W

Energy efficiency class (SDR)	E
Sustainability
Sustainability certificates	ErP
Weight & dimensions
Width (with stand)	369 mm

Height (with stand)	307 mm

Depth (with stand)	47.5 mm

Weight (with stand)	3.6 kg
