The SM311LM (TL-SM311LM) Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

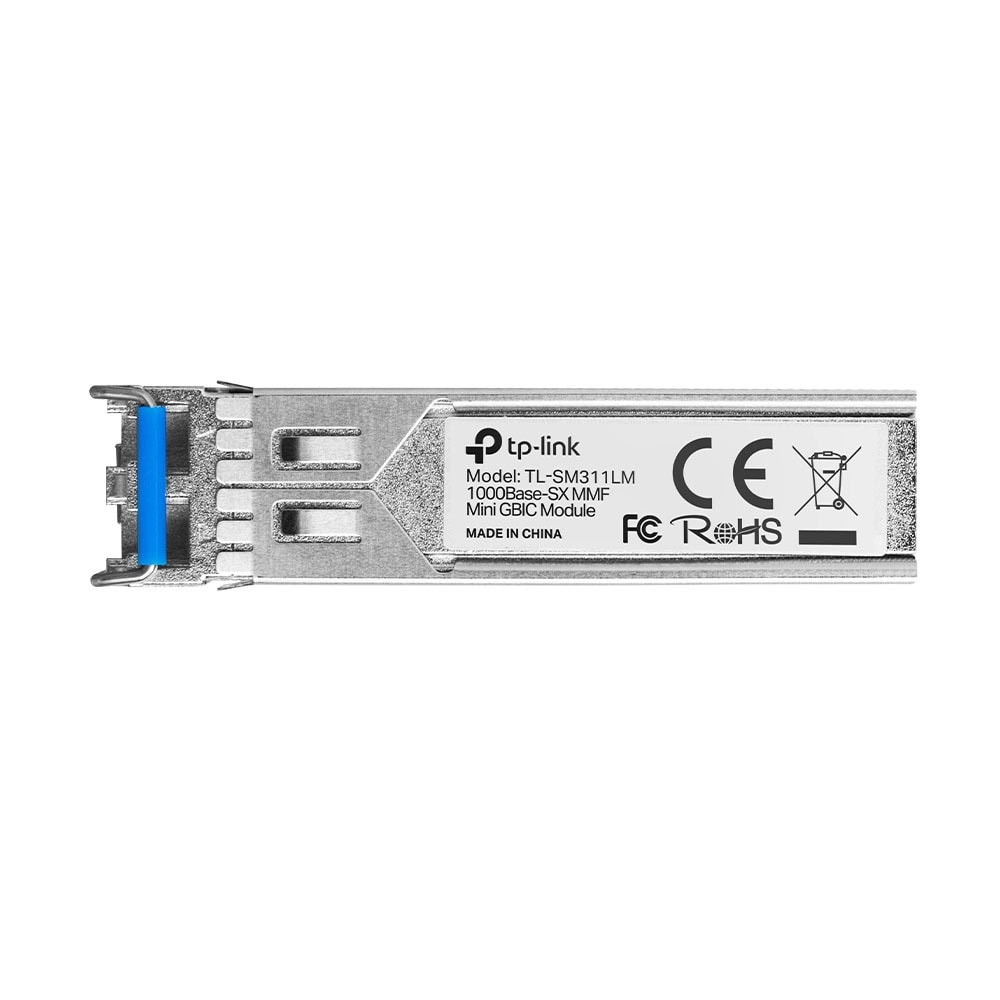

SM311LM
Omada 1000-Base-SX MMF Mini GBIC Module
- Multi-mode MiniGBIC module
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
| MEDIA CONVERTER & MODULE | |
|---|---|
| Стандарти и протоколи | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Размери | 2.2*0.5*0.5 in (55.4*13.7*12.9 mm) |
| Захранване | 4.0 V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 275m or 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Hardware Features | • DDM • SFP-MSA • Hot Swappable |
| Package Content | • SM311LM • Installation Guide |
| Околна среда | • Operating Temperature: 0℃~70℃ (32℉~158℉) • Storage Temperature: -40℃~80℃ (-40℉~176℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Виж още Адаптери за оптични връзки TP-Link
Виж всички Адаптери за оптични връзки в категорията
Документация
User Guide- TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - GigE User manual
- TP-Link TL-SM311LM - SFP (mini-GBIC) transceiver module - GigE User manual
- Инструкция за употреба - TP-SM311LM
- Ценова листа - Активно мрежово оборудване Omada TP-Link
- Ценова листа - Активно мрежово оборудване TP-Link
- Ценова листа – Активно мрежово оборудване Omada by TP
Технически характеристики
| Тип: | SFP модул multi mode |
|---|
