| Design | ||
|---|---|---|
| Front bezel colour | Black | |
| Display | ||
| Pixel pitch | 0.264 x 0.264 mm | |
| Horizontal scan range | 31 - 80 kHz | |
| Vertical scan range | 50 - 75 Hz | |
| Viewable size, horizontal | 33.8 cm | |
| Viewable size, vertical | 27.1 cm | |
| Viewing angle, horizontal | 170° | |
| Viewing angle, vertical | 160° | |
| Contrast ratio (typical) | 1000:1 | |
| Response time | 5 ms | |
| HD type | SXGA | |
| DDC/CI | Yes | |
| Screen shape | Flat | |
| Display number of colours | 16.7 million colours | |
| Maximum refresh rate | 75 Hz | |
| Number of simultaneous touchpoints | 10 | |
| Display brightness (typical) | 250 cd/m² | |
| Panel type | TN | |
| Display diagonal (metric) | 43 cm | |
| Touch technology | Multi-touch | |
| Touchscreen technology | Projected capacitive system | |
| Display brightness | 225 cd/m² | |
| Ergonomics | ||
| Cable lock slot | Yes | |
| Plug and Play | Yes | |
| Tilt angle range | -5 - 90° | |
| Panel mounting interface | 100 x 100 mm | |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese | |
| On Screen Display (OSD) | Yes | |
| Cable lock slot type | Kensington | |
| Cable management | Yes | |
| Tilt adjustment | Yes | |
| General Information | ||

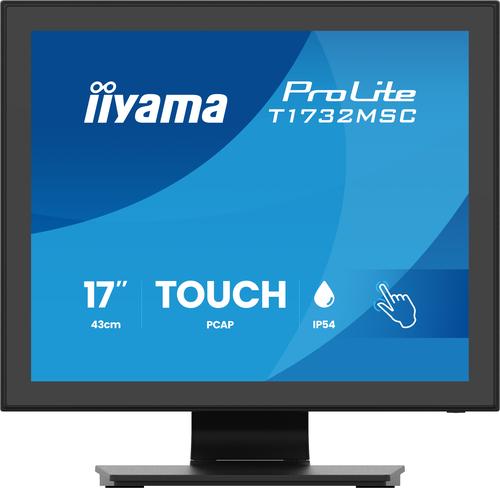

| Marketing Information | The T1732MSC-B2S 17 multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. | |
| Multimedia | ||
| RMS rated power | 2 W | |
| Number of speakers | 2 | |
| Operational conditions | ||
| Operating relative humidity (H-H) | 20 - 80% | |
| Storage temperature (T-T) | -20 - 60 °C | |
| Operating temperature (T-T) | 0 - 40 °C | |
| Storage relative humidity (H-H) | 10 - 90% | |
| Other features | ||
| User controls | contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute | |
| Brightness | 225 cd/m² | |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. | |
| Packaging content | Touch Panel Driver Disk (CD-ROM) | |
| Active display area (W x H) | 338 x 270.5 mm | |
| Touch method | stylus, finger, glove (latex) | |
| International Protection (IP) code | IP54 | |
| Weight | 4.9 kg | |
| Height | 378 mm | |
| Width | 387 mm | |
| Depth | 240 mm | |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power | |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE | |
| Packaging content | ||
| Cables included | AC, USB, HDMI, DisplayPort, Audio | |
| Quick start guide | Yes | |
| Packaging data | ||
| Package type | Box | |
| Performance | ||
| Component video sync | Separate Sync | |
| Ports & interfaces | ||
| VGA (D-Sub) ports quantity | 1 | |
| Audio input | Yes | |
| HDMI ports quantity | 1 | |
| HDCP | Yes | |
| DisplayPorts quantity | 1 | |
| HDMI | Yes | |
| USB Touch port | Yes | |
| Power | ||
| Power consumption (standby) | 1.5 W | |
| Power consumption (typical) | 20 W | |
| Power consumption (off) | 0.3 W | |
| Input current | 1 A | |
| Power supply type | Internal | |
| AC input voltage | 100 - 240 V | |
| AC input frequency | 50/60 Hz | |
| Energy efficiency scale | A to G | |
| Energy efficiency class (SDR) | E | |
| Energy efficiency class (HDR) | Not available | |
| Energy consumption (SDR) per 1000 hours | 11.9 kWh | |
| Sustainability | ||
| Sustainability certificates | ErP | |
| Weight & dimensions | ||
| Depth (with stand) | 240 mm | |
| Height (with stand) | 378 mm | |
| Width (with stand) | 387 mm | |
| Weight (with stand) | 4.9 kg | |
-
