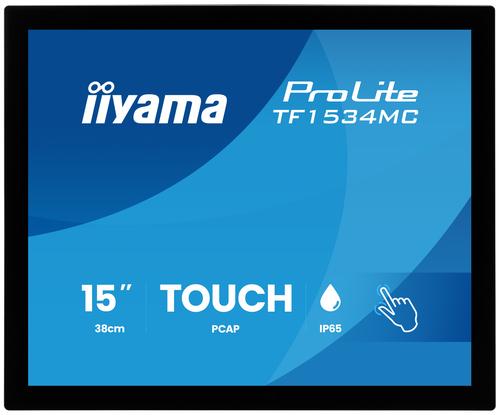

Name: Монитор IIYAMA 15IN PCAP
Availability: OutOfStock

Design
Front bezel colour	Black
Display
Pixel pitch	0.297 x 0.297 mm

Horizontal scan range	31 - 60 kHz

Viewable size, horizontal	30.4 cm

Viewable size, vertical	22.8 cm

Viewing angle, horizontal	170°

Viewing angle, vertical	160°

Contrast ratio (typical)	800:1

Response time	8 ms

HD type	XGA

Screen shape	Flat

Display number of colours	16.2 million colours

Surface hardness	7H

Maximum refresh rate	75 Hz

Number of simultaneous touchpoints	10

Display brightness (peak)	350 cd/m²

Display brightness (typical)	300 cd/m²

Panel type	TN

Display diagonal (metric)	38 cm

Touchscreen technology	Projected capacitive system

Display brightness	300 cd/m²
Ergonomics
Cable lock slot	Yes

Panel mounting interface	100 x 100 mm

On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese

On Screen Display (OSD)	Yes

Height adjustment	No

Cable lock slot type	Kensington
General Information
Marketing Information	The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance. With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction. For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Logistics data
Pallet net height	2.43 m

Pallet net length	114 cm

Pallet net width	91 cm
Other features
Mean time between failures (MTBF)	50000 h

User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)

AC adapter included	Yes

Brightness	300 cd/m²

Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

Packaging content	AC adapter

Active display area (W x H)	304 x 228 mm

Touch method	stylus, finger, glove (latex)

International Protection (IP) code	IP65

Weight	2.7 kg

Height	267 mm

Width	338 mm

Depth	45 mm

Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power

Positional accuracy	2 mm

Compliance certificates	CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Packaging content
Cables included	AC, USB, HDMI, DisplayPort

Quick start guide	Yes

Power cable length	1.8 m

DisplayPort cable length	1.8 m

HDMI cable length	1.8 m
Packaging data
Package weight	4 kg

Package depth	435 mm

Package height	165 mm

Package width	355 mm

USB cable length	1.8 m
Performance
Palm rejection	Yes
Ports & interfaces
VGA (D-Sub) ports quantity	1

HDMI ports quantity	1

HDCP	Yes

DisplayPorts quantity	1

HDMI	Yes

Headphone out	No

USB Touch port	Yes
Power
Power consumption (standby)	1.5 W

Power consumption (typical)	9 W

Power consumption (off)	0.3 W

Power supply type	External

AC adapter output voltage	12 V

Energy efficiency class (SDR)	D

Energy efficiency class (HDR)	Not available

Energy consumption (SDR) per 1000 hours	9 kWh
Sustainability
Sustainability certificates	ErP
Technical details
Native refresh rate	75 Hz
Weight & dimensions
Depth (with stand)	45 mm

Height (with stand)	267 mm

Width (with stand)	338 mm

Weight (with stand)	2.7 kg
