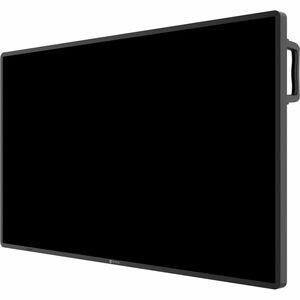

Монитор Ag Neovo Technology QX4302 43IN
Икона нов продукт
empty image 1empty image 2empty image 3

Монитор Ag Neovo Technology QX4302 43IN

id s6204330
  • Наличност: Не е наличен
    Описание
    Basic
    Application/UsageSecurity
    Product TypeDigital Signage Display
    Display Resolution3840 x 2160
    Brightness450 cd/m²
    Mount TypeCeiling Mount
    Mount TypeFloor Mount
    Mount TypeWall Mountable
    Viewable Screen Size1092.20 mm
    Brand NameAG Neovo
    Number of Screens1
    Scan Format2160p
    Display Screen TypeLCD
    USBYes
    HDMIYes
    VESA Mount CompatibleYes
    VESA Mount Standard400 x 200
    Native Contrast Ratio1,200:1
    DisplayPortYes
    Product FamilyQX
    Panel TechnologyIn-plane Switching (IPS) Technology
    Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
    Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    Mount SurfaceWall
    Mount SurfaceCeiling
    Mount SurfaceFloor
    Display & Graphics
    Pixel Pitch0.25 mm
    Display Resolution3840 x 2160
    Response Time5 ms
    Viewable Screen Size1092.20 mm
    Number of Screens1
    Display Screen TypeLCD
    Screen Size Class1092.20 mm
    Environmental Conditions
    Minimum Operating Temperature0°C
    Maximum Operating Temperature40°C
    Minimum Storage Temperature-20°C
    Maximum Storage Temperature60°C
    Minimum Operating Humidity10%
    Maximum Operating Humidity90%
    Minimum Storage Humidity5%
    Maximum Storage Humidity95%
    General Information
    Product TypeDigital Signage Display
    Manufacturer Part NumberQX432011E0000
    Manufacturer Website Addresshttp://www.agneovo.com
    ManufacturerAG Neovo Technology Corporation
    Product ModelQX4302
    Product Name43 4K Display with 4 HDMI Multiviewer
    Product SeriesQX
    Brand NameAG Neovo
    Marketing Information

    Clarity, Control, and Confidence for Mission-Critical Monitoring

    The AG Neovo QX4302 is a 43-inch 4K display purpose-built for environments where precision, control, and uptime are paramount. With 4× HDMI and native quad-view capabilities, also DP inputs, it allows operators to monitor up to four video sources simultaneously, eliminating the need for external switchers. The display supports remote management via RS232 and LAN, enabling seamless integration into control room systems. Combined with blackout mode for low-light conditions, industrial-grade durability, and optional custom keypad shortcuts, the QX4302 empowers system integrators to simplify installations while ensuring long-term operational stability.

    Native 4K Display for Detailed Multi-Source Monitoring

    The QX Series features native 4K UHD resolution (3840 × 2160), delivering exceptional image clarity and detail. Each input port supports 4K signal sources, allowing multiple feeds to be displayed simultaneously with sharp, accurate visuals. Ideal for monitoring security footage, data dashboards, and real-time operations where clarity is critical.

    Quad-view, PIP, and PBP Modes With Flexible Monitor Layout

    Display up to four HDMI sources simultaneously with quad-view, PIP, or PBP layouts, and adjust each window's aspect ratio independently. This allows operators to keep priority feeds prominent while maintaining visibility of supporting sources, delivering a clear, adaptable viewing setup for dynamic, multi-system environments.

    Optimised for Dark or Sensitive Environments

    Designed for operators who work in low-light control rooms, night-shift environments, and situations requiring absolute discretion.

    Ultra-Low 2 cd/m² Brightnes

    Reduce backlight all the way down to 2 cd/m²-far below the 50-100 cd/m² limit of standard displays-ensuring glare-free, comfortable visibility without affecting situational awareness.

    Instant Blackout Mode

    Blank the screen immediately without powering down, keeping systems running while maintaining full discretion during sensitive moments.

    Streamlined Multi-System Integration

    With four native HDMI and DisplayPort inputs, the QX Series eliminates the need for external matrix switchers or complex cabling. Connect up to four systems directly and manage them through built-in quad-view or PIP/PBP modes-saving installation time and reducing failure points.

    DisplayPort Daisy-Chain

    The DisplayPort daisy-chain function allows one QX display to share its active on-screen sources with the following unit, enabling scalable visual configurations with minimal cabling.

    Centralised Management & Control

    Control multiple displays as one through RS232 loop-through, keeping key settings aligned across units. When remote access is required, LAN control enables configuration over IP. Fully compatible with Neovo Controller for simple, unified management.

    Personalised Display Settings

    Save and recall up to five customised configurations, ensuring fast adaptation to different operators, shifts, or operational scenarios.

    Interfaces/Ports
    USBYes
    HDMIYes
    Number of Network (RJ-45) Ports1
    DisplayPortYes
    Number of DisplayPort Outputs1
    Number of HDMI Inputs4
    Number of USB 2.0 Ports1
    SerialYes
    DisplayPort InYes
    Number of DisplayPorts2
    DisplayPort OutputYes
    RS-232C InputYes
    RS-232C OutputYes
    Number of HDMI 2.0 Ports4
    Number of DisplayPort 1.2 Ports2
    Infrared OutputYes
    Miscellaneous
    Application/UsageSecurity
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
    Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Network & Communication
    EthernetYes
    Physical Characteristics
    Mount TypeCeiling Mount
    Mount TypeFloor Mount
    Mount TypeWall Mountable
    Height59.2 cm
    Width100.2 cm
    Depth8.5 cm
    VESA Mount CompatibleYes
    VESA Mount Standard400 x 200
    Housing MaterialMetal
    Mount SurfaceWall
    Mount SurfaceFloor
    Mount SurfaceCeiling
    Front Glass Thickness3.20 mm
    Power Description
    Input Voltage120 V AC
    Input Voltage230 V AC
    Technical Information
    Panel TechnologyIn-plane Switching (IPS) Technology
    Bezel Width12.80 mm
    Surface Hardness8H
    Impact Protection (IK) RatingIK10
    Impact Protection (IK) RatingIK08
    Operation Hours24 Hours/7 Days
    Video
    Brightness450 cd/m²
    Scan Format2160p
    Native Contrast Ratio1,200:1
    Color Gamut72% NTSC
