MB ASUS PRIME B860M-K, DP/HDMI, 2xD5, 2xM.2

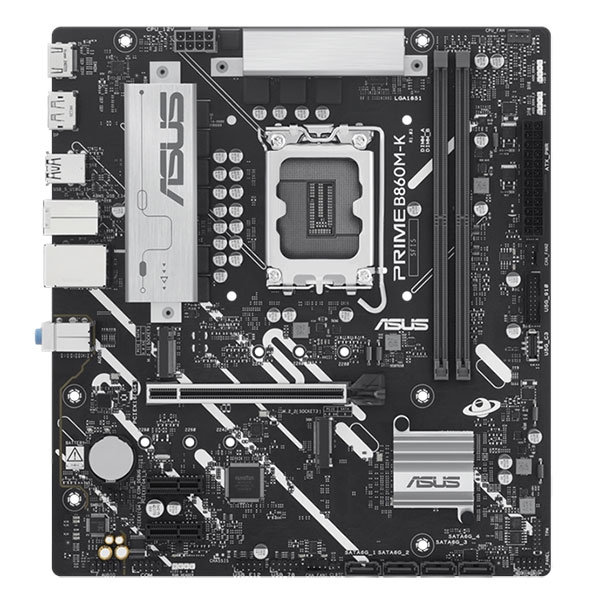

ASUS PRIME B860M-K

• USB: Rear USB (Total 6 ports);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Manufacturer: ASUS

• Memory type: 2 x DIMM slots, max. 128GB, DDR5;Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII)

• Features: ASUS 5X PROTECTION III;- DIGI+VRM;- LANGuard;- Overvoltage protection;- SafeSlot Core+;- Stainless-steel back I/O;ASUS Q-Design;- Q-Dashboard;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- VRM heatsink design;ASUS EZ DIY;- ProCool;Aura Sync- Aura RGB header;- Addressable Gen2 headers

• CPU`s supported: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Chipset: Intel® B860 Chipset

• Graphics: 1 x DisplayPort;1 x HDMI™ port

• Expansion Slots: Intel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® B860 Chipset;2 x PCIe 4.0 x1 slots

• Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports;* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

• I/O: 1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);1 x DisplayPort;1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port

• Connectors: Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connectorStorage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;2 x Addressable Gen2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header1 x SPI TPM header (14-1 pin);1 x 10-1 pin Front Panel System header

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

• LAN: 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard

• BIOS: 256(128+128) Mb Flash ROM, UEFI AMI BIOS

• Form Factor: micro-ATX Form Factor;24.4cm x 22.2cm

• OS: Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

• Warranty: 36 Months
