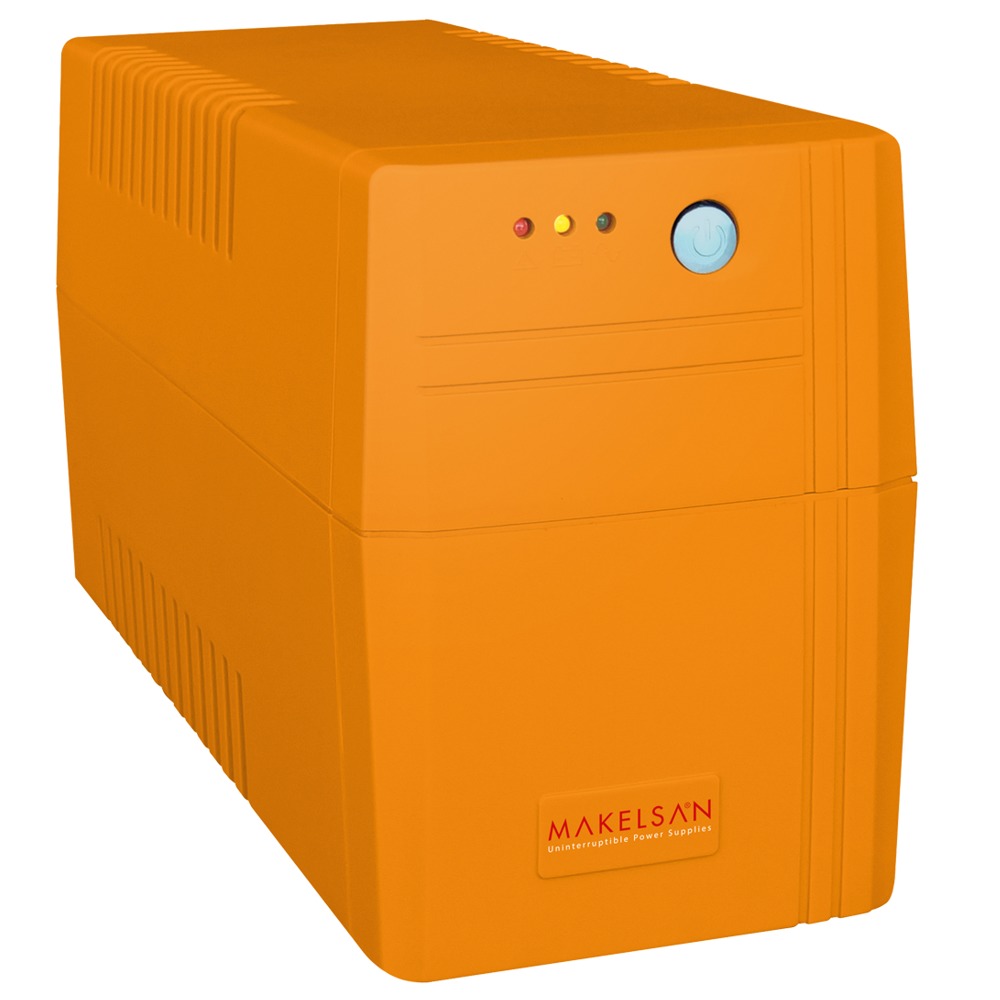

UPS Makelsan (MU00650L11MP005) (нарушена опаковка) 650VA/ 360W Lion ТЗИ, AVR, 1x 12V 7Ah, mini tower, жълт

• Microprocessor Controlled Digital Design
• Wide Input Frequency Range
• Smart Battery Charger Design for Optimal Battery Performance
• Off the Kerb Working in Battery Mode
• Overload, Short Circuit and battery deep discharge protection
• Low-High Voltage Protection
• simulated output sine wave
• Automatic battery Charge Off Location
• Cold Start
• DC Startup
• Clear, Solution Focused Alarm System
• Automatic Voltage Regulation
• Rugged Metal Design
• RS232 communication port (optional)
• RCJ11 / RJ45 Protection

input Voltage 100V / 110V / 120VAC ± 25% or 220V / 230V / 240VAC ± 25% (- 35% Optional)
Operating Frequency Range 50/60 Hz ± 10% (Automatic Detection)
Exit
Output Voltage 100V / 110V / 120 VAC ± 10% or 220V / 230V / 240 VAC ± 10%
Power factor 0.6
Voltage Regulation 100V / 110V / 120VAC ± 10% or 220V / 230V / 240VAC ± 10%
Frequency Network Mode 50/60 Hz ± 1% (Automatic Detection)
Battery Mode 50-60 Hz ± 1%
Waveform AC Mode: Pure sine wave battery mode; Simulated sine wave
Crest Factor 3: 1
Transfer Time Typical 2-7ms, 10ms max
Excess Capacity Network Mode 110%: 60 h and then closes; 120%: 30 s, then turns off
Yield
Inverter Mode ≥ 85%
Battery Mode ≥ 85%
Battery
Battery Voltage 12VDC
Standard Model Internal Battery 1 x 12V 7Ah
Charging Current 1 A
Typical Recharge Time 6 ~ 8 hours (90% of full capacity)
Protection
full Protection Short Circuit Protection and Battery Charge-Discharge
System Specifications
Charging Current 1 A
overheating 150ºC
Intelligent Alarm System Battery mode, Low battery, Overload, Fault
Alarm
Network Failure 6 sec cycle with buzzer
Low Battery Voltage beep every 2 sec period
Overload beep twice in 1 sec intervals
physical Features
Dimensions (WxDxH) (mm) 95 x 320 x 165
Package Dimensions (WxDxH) (mm) 145 x 375 x 230
Net Weight (kg) 5.5
Gross Weight (kg) 6.0
Environmental Conditions
Operating temperature 0 ~ 40 ° C
Storage Temperature -20 ° C ~ 55 ° C
Relative humidity 20 ~ 0 ~ 40 ° C @ 90% RH (non-condensing)
Noise Level ≤ 45dB (1m)
Governance
Communication Interface 1500VA-2000VA Standard RS232
Software Windows 98/2000/2003 / XP / Vista / 2008 / Windows 7/8 Support Software
standards
Security CE LVD
EMC CE EMC
