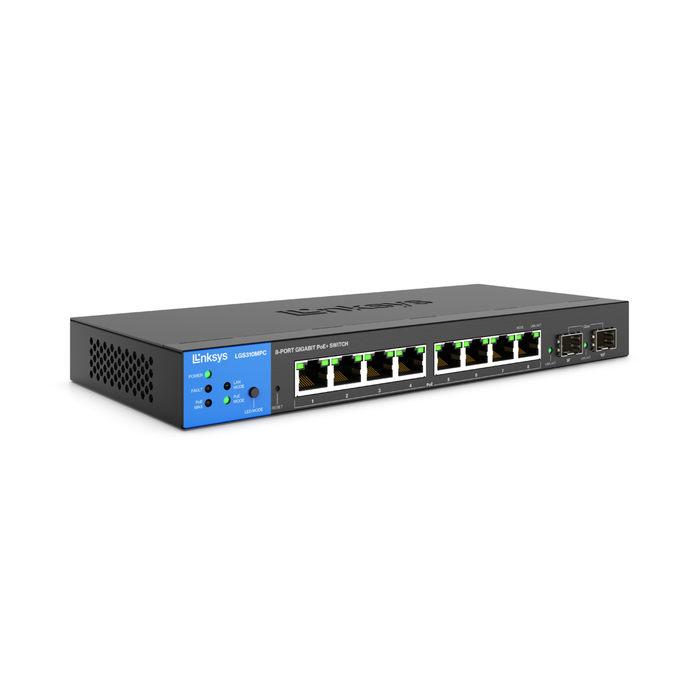

Name: LINKSYS LGS310MPC :: 8-портов Managed Gigabit Switch, PoE+, 2x SFP
Brand: LINKSYS
Price: 342.47 EUR
Availability: InStock

Описание

Linksys LGS310MPC 8-портов управляем гигабитов с PoE+ превключвател.

8 х Gigabit Ethernet PoE+ порта
2 х Gigabit SFP uplink порта
PoE мощност: 110 W общa

model:	LGS310MPC
Total System Ports:	8GE + 2 SFP
Copper FE/GE Ports/PoE+ (RJ-45):	Ports 1-8
Ports SFP:	Ports 9-10
Status LEDs:	System (blue/yellow), Link/Act(green)
CPU Memory DRAM:	256MB
Power Input:	12V/1A
Green Power Mode:	EEE
Max Power Consumption:	133.77W
Forwarding Rate:	14.88 Mpps
Switching Capacity:	20 Gbps
MAC Address:	8K
Jumbo Frame (FE, GE):	10Kbytes
Enclosure Dimension	240 x 105 x 27 mm
(L x H x W):	240 x 105 x 27 mm
Device Weight:	636 g (1.34 lb)
Operating Temperature:	0 to 40°C (32 to 104°F)
Operating Humidity:	10 to 90% RH
Storage Temperature:	-40 to 70°C (-40 to 158°F)
Storage Humidity:	5 to 95% RH (non-condensing)

Standards:	802.3 10Base-T Ethernet, 802.3u 100Base-T Fast Ethernet, 802.3ab 1000Base-T Gigabit Ethernet, 802.3z Gigabit Ethernet,
	802.3x Flow Control, 802.3ad, 802.1d STP, 802.1w RSTP, 802.1s MSTP, 802.1q VLAN, 802.1p Priority QoS,
	802.1x Port Access Authentication, 802.1ab Link Layer Discovery Protocol, 802.3az Energy Efficient Ethernet
Spanning Tree:	IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Link Aggregation:	IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
VLAN:	Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Number of VLANs:	256 active VLANs (4,096 range))
Auto Voice VLAN:	Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping	IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
Head-of-Line (HOL) Blocking:	Head-of-line (HOL) blocking prevention
Security:	802.1x Radius authentication, DHCP snooping, IP-MAC binding, port security supports limited dynamic lock and
Security:	locked MAC address (256 max entries per port), DOS Attack Prevention, Port Isolation (Protected Ports)management access control
Storm Control:	Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
QoS - Priority Levels:	8 hardware queues
QoS - Class of Service:	Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
QoS - Scheduling:	Priority queuing and weighted round robin (WRR)
RMON:	Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Port Mirroring:	Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Management Interface:	Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)
Other Management:	Telnet (menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
SNMP:	Version 1, 2c and 3

EAN: 4260184670642
