Захранване Lian Li SP750 V2 White, 750W, Active PFC, 80 Plus Gold, 92mm вентилатор

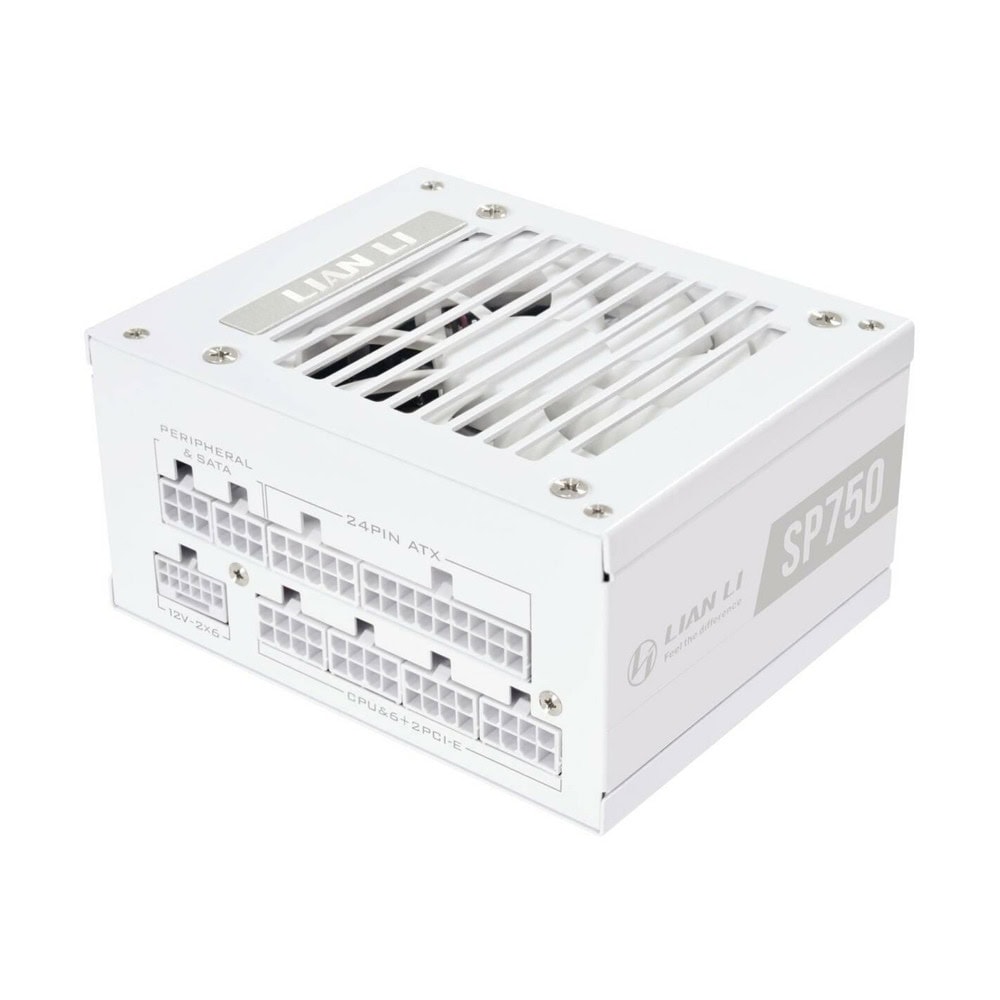

Lian Li SP750 V2

PERFORMANCE SFX FORM FACTOR POWER SUPPLY

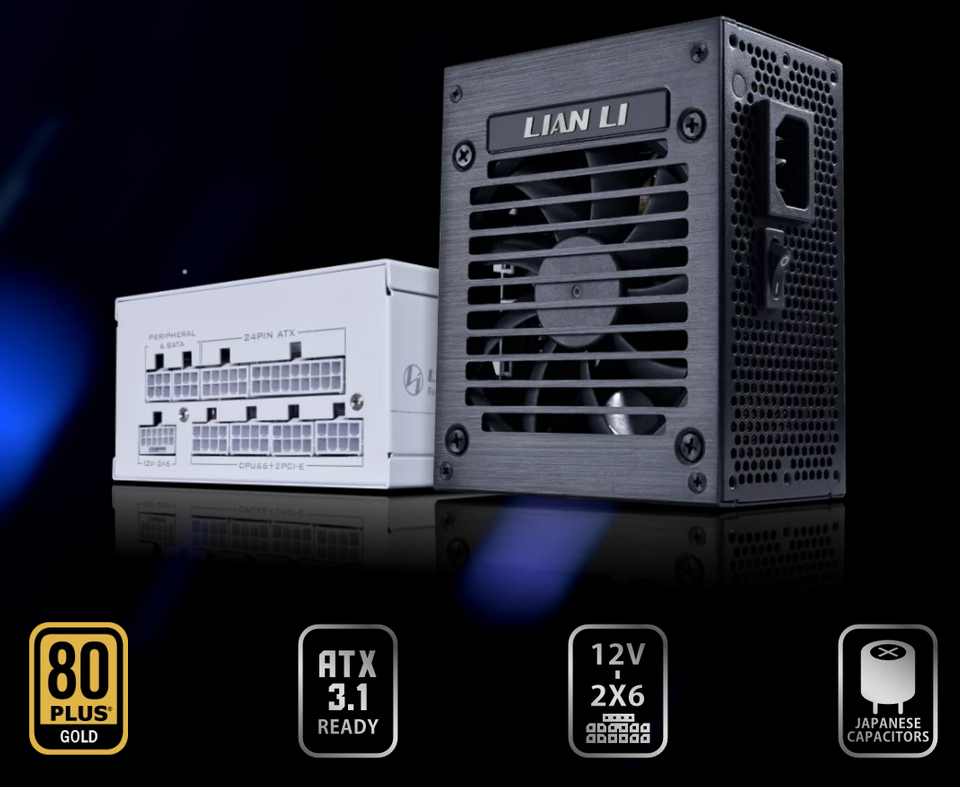

The SP V2 Gold is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.

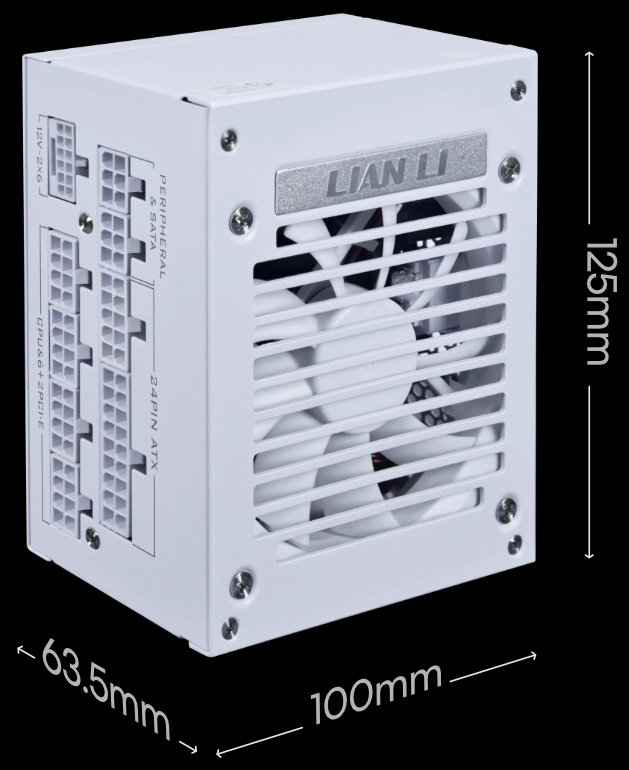

COMPACT SIZE, BIG PERFORMANCE Measuring 125 × 100 × 63.5 mm, this compact PSU saves valuable space inside the builds without compromising on power delivery.

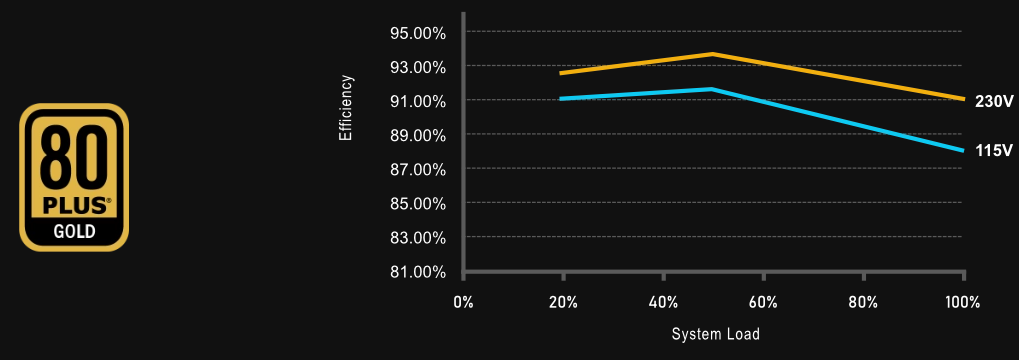

80 PLUS GOLD CERTIFICATE

With 80 PLUS Gold certification, the SP V2 Gold delivers over 90% efficiency at 50% system load under 115V AC input conditions, ensuring high energy efficiency with stable power delivery and minimal energy loss.

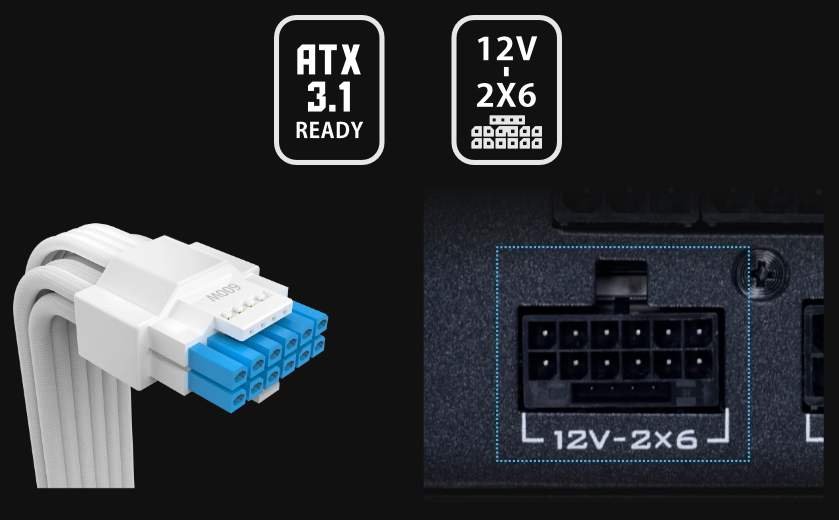

ATX 3.1 READY WITH 12V-2×6 CONNECTOR

The SP V2 Gold features a next-gen 12V-2×6 power connector compliant with the latest ATX 3.1 specification, providing direct support for PCIe 5.0 graphics cards and addressing the growing power demands of modern systems.

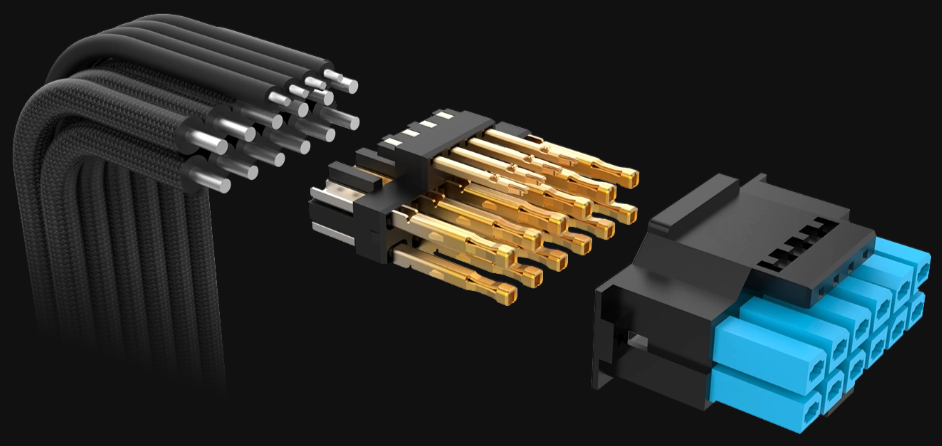

LIAN LI CUSTOM 12V-2×6 POWER CABLE

LIAN LI’s in-house developed 12V-2×6 power cable features a custom-molded design combined with alloy copper soldered terminals to deliver superior stability and efficient power delivery. Built to meet the demanding needs of high-end graphics cards, this cable ensures safer, more durable connections for your cutting-edge system.

Each cable is engineered for ease of use, with dual-color connector housings for intuitive installation, reinforced soldering for improved reliability, and a 20.5mm connector width optimized to prevent interference during GPU mounting.

Note: The 12V-2×6 connector features a dual-color housing design on both sided. Ensure the blue part is fully inserted for a secure connection

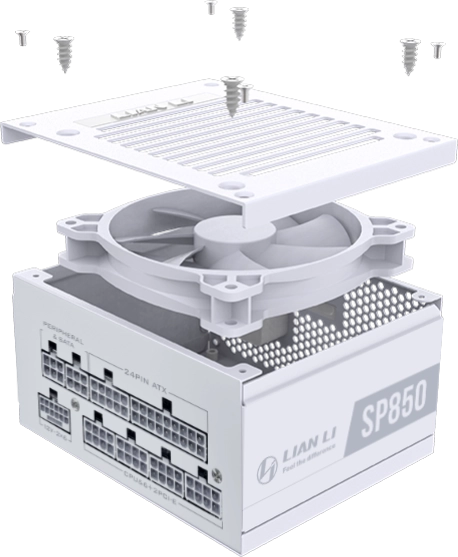

SP V2 Gold COMPOSITION Aesthetic - Aluminum Housing Silent - Zero RPM mode Powerful - 850 Watts / 750 Watts Perfect Size - SFX Form Practical - Fully Modular Design Longevity - Japanese Electrolytic Capacitors
FDB FAN FOR QUIET COOLING The SP V2 Gold utilizes a 92mm FDB fan to deliver efficient cooling with low noise. Even under sustained high workloads, it maintains stable performance while ensuring silent operation.

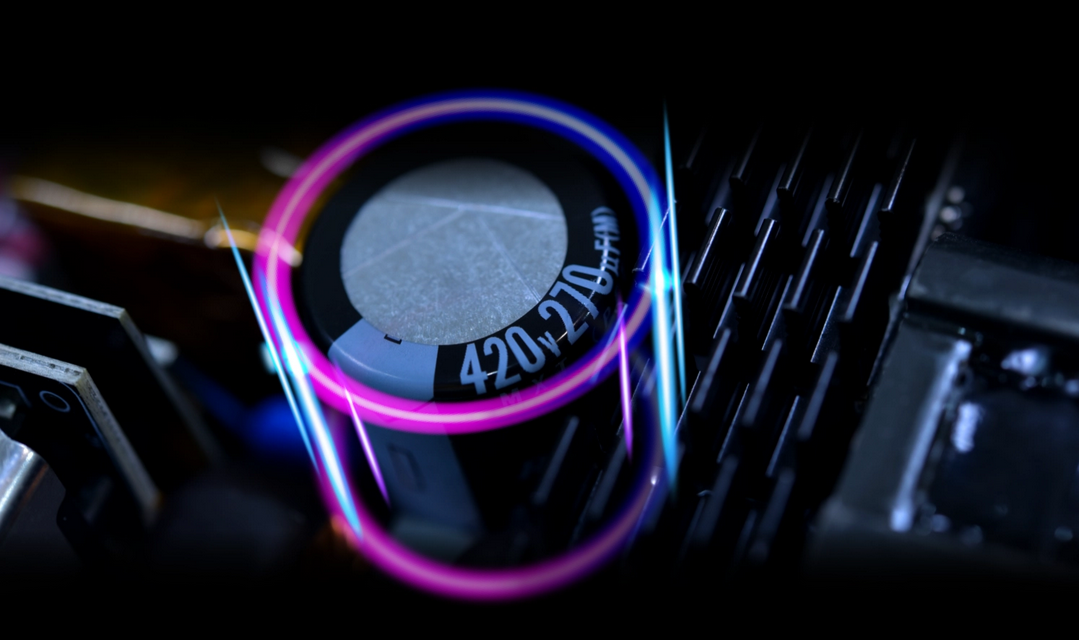

JAPANESE ELECTROLYTIC CAPACITORS

Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offer the highest stability.

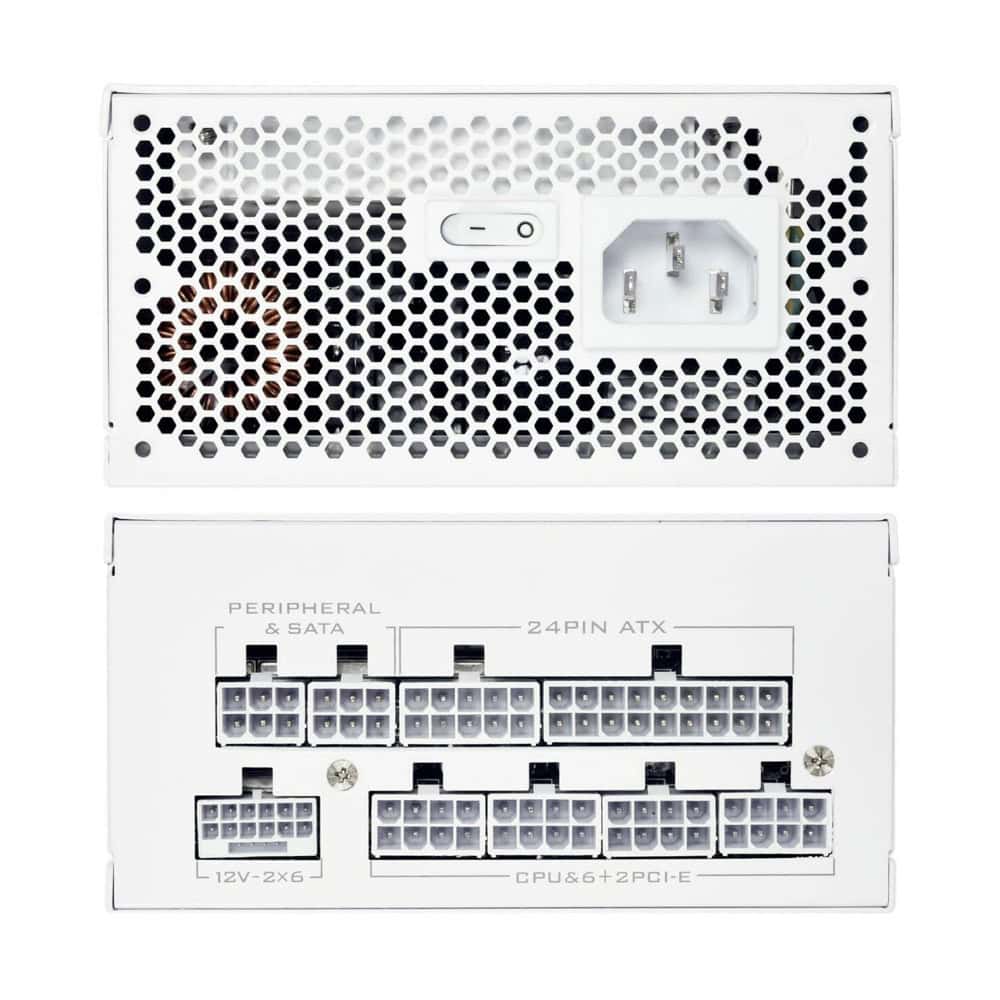

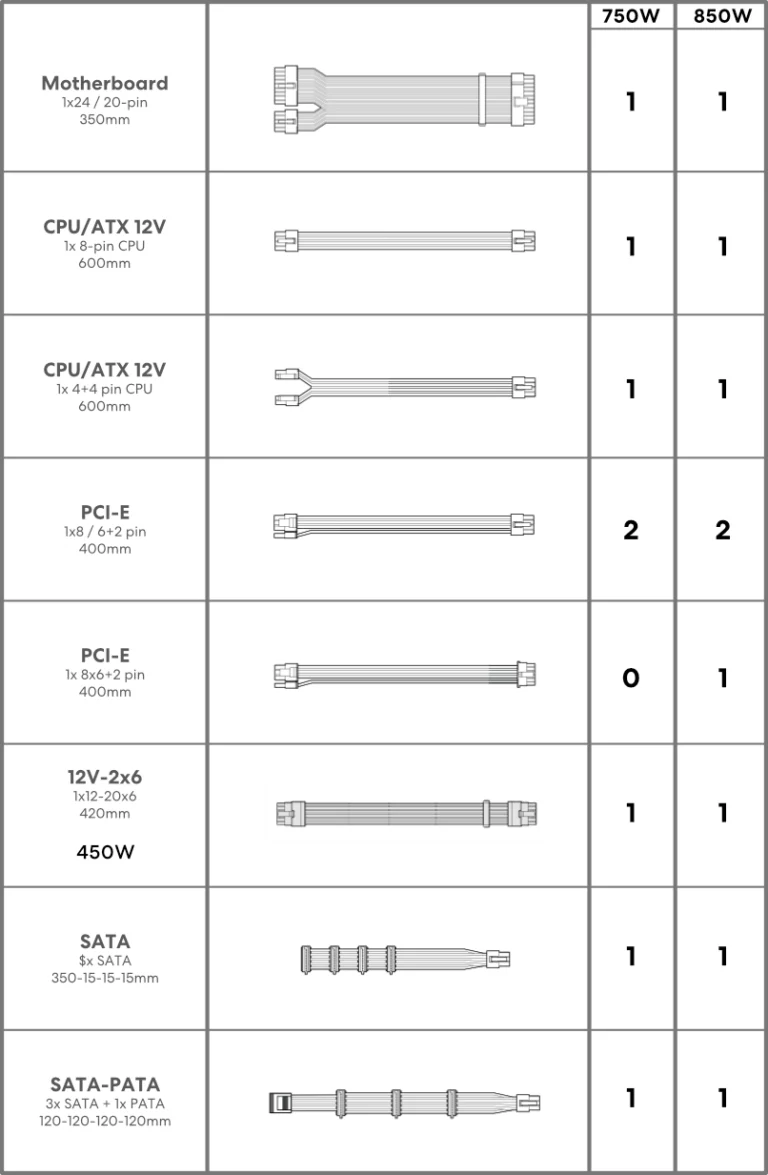

REFINED DESIGN WITH FULLY MODULAR CABLES

The SP V2 Gold features a fully modular cable system with all necessary braided cables included out of the box, reducing clutter and enhancing visual appeal.

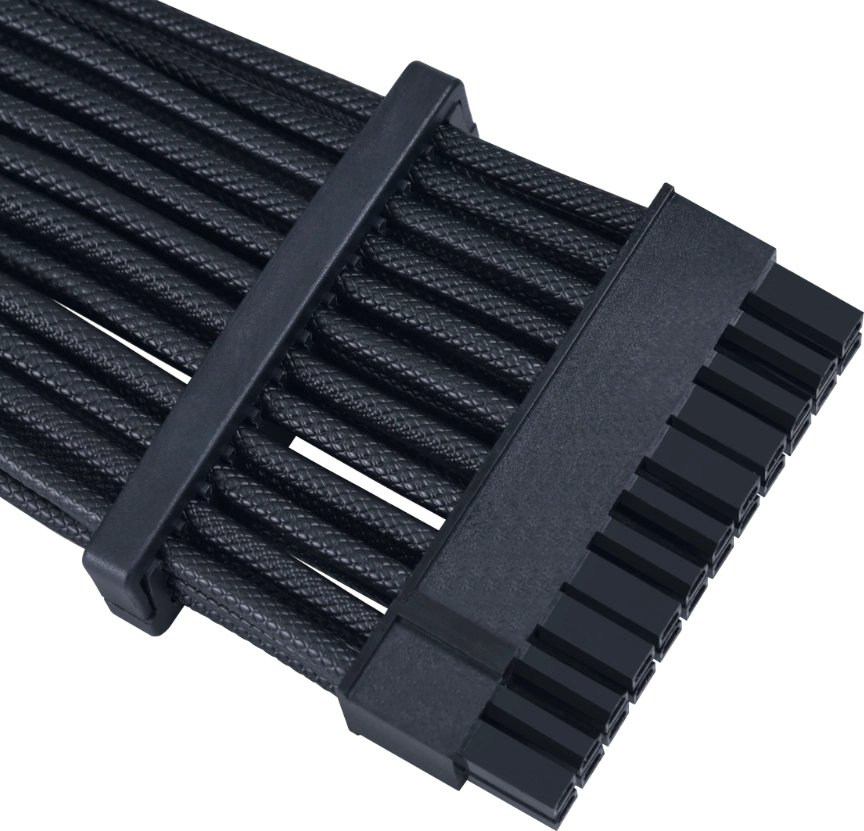

ENHANCED DURABILITY WITH EMBOSSED CABLE DESIGN The embossed cable design enhances both durability and flexibility, ensuring long-lasting performance even under frequent use. Its unique textured surface helps reduce tangling and knotting, delivering a smoother installation experience and cleaner cable management.

SUFFICIENT PROTECTION

Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection) and inrush current limiter that make the PSU operating in stable condition.

Specifications

DIMENSIONS

(W)125 mm X (H)63.5 mm X (D)100 mm

DC OUTPUT Cable

Fully-Modular

MATERIAL

SECC

FORM FACTOR

SFX

ATX12V Version

ATX 3.1

EFFICIENCY CERTIFICATION

80 PLUS Gold

MAX. DC OUTPUT

750W

COMBINE +3.3V & 5v

100W

COMBINED +12V

744W

INPUT RATING

100-240Vac 60-50Hz 10-5A

PFC

Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz

PROTECTION

OCP / OVP / OTP / OPP / SCP / UVP / NLP / SIP

Fan

92mm FDB Fan

FAN RPM

3000RPM

FANLESS MODE

Yes

NOISE LEVEL

32.5dBA @ 25℃

WORKING TEMPERATURE

0~40℃
