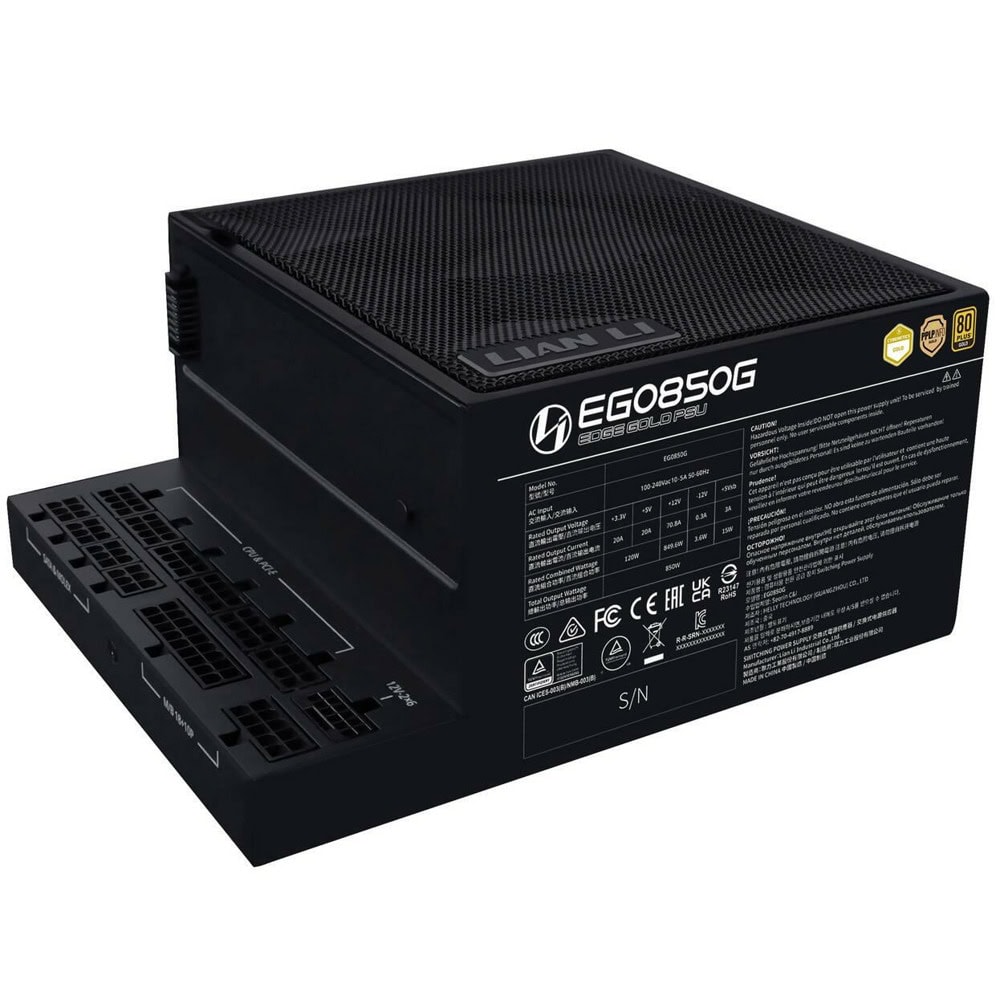

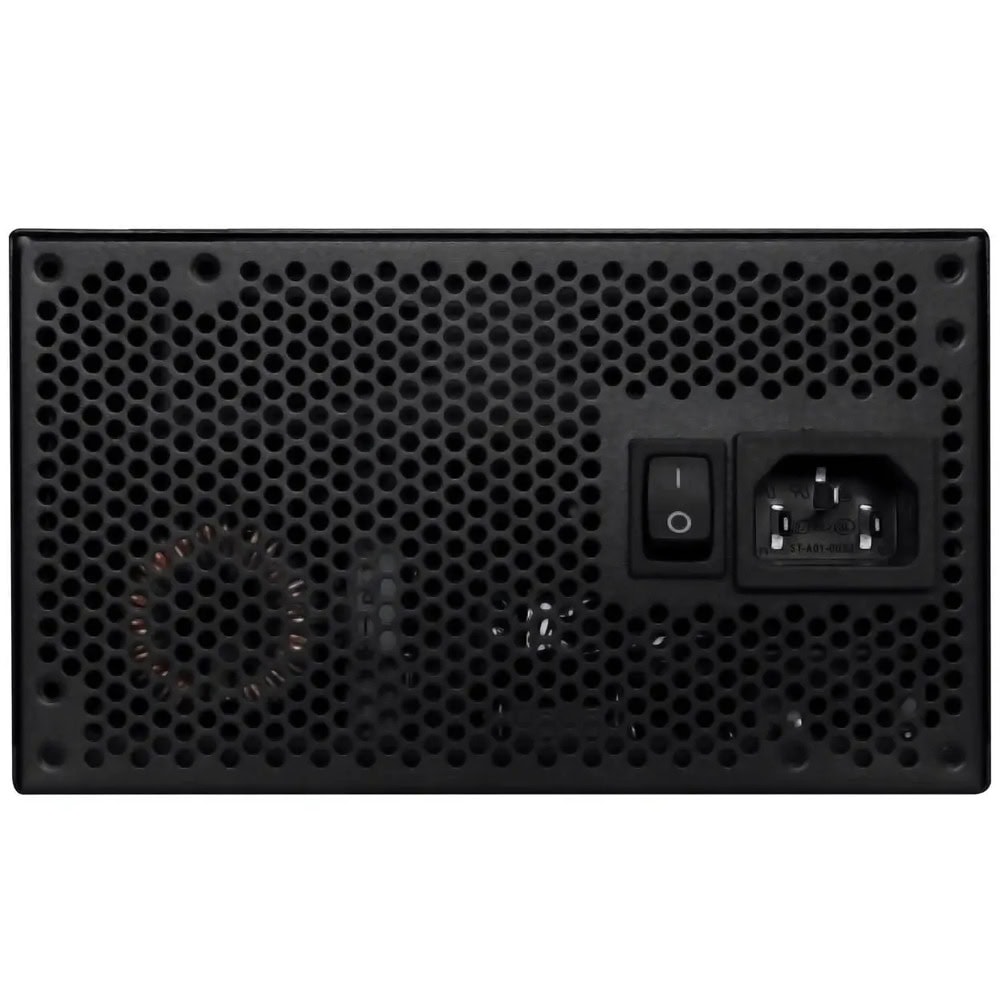

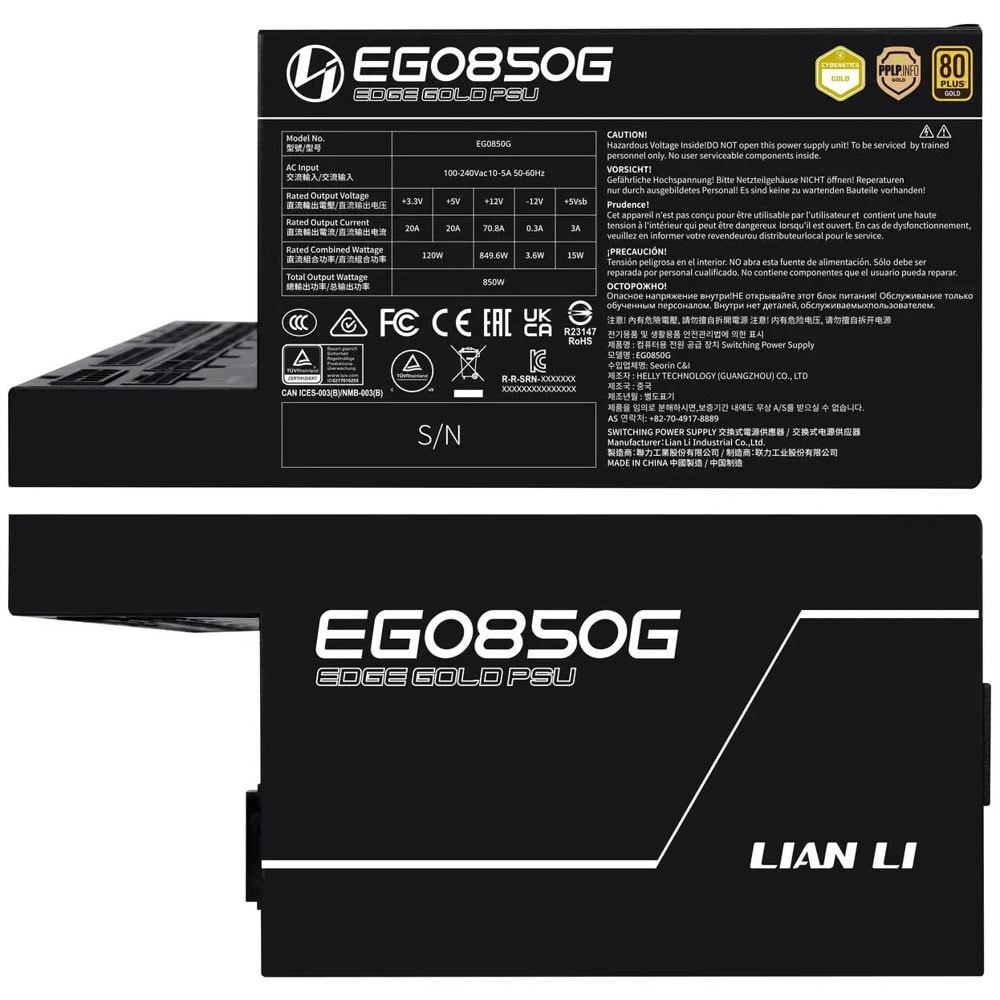

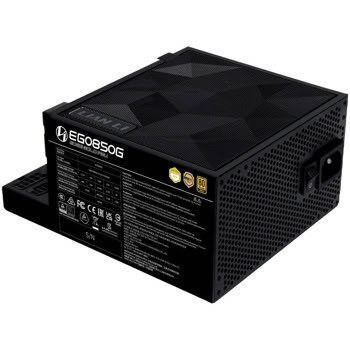

Lian Li EDGE Gold Black 850W G9P.EG0850G.B000.EU
Икона в кампания
НазадLian Li EDGE Gold Black 850W G9P.EG0850G.B000.EULian Li EDGE Gold Black 850W G9P.EG0850G.B000.EULian Li EDGE Gold Black 850W G9P.EG0850G.B000.EULian Li EDGE Gold Black 850W G9P.EG0850G.B000.EUНапред

Захранване Lian Li EDGE Gold Black, 850W, Active PFC, 80 Plus Gold, 120mm вентилатор

id 303803 Код: PWRPCLIANLIG9PEG0850GB000EU
  • Модел: EDGE Gold Black 850W
  • Марка: Lian Li
  • Код на продукта: G9P.EG0850G.B000.EU
  • Изходна мощност: 850 W
  • Модулен блок: Да
  • Форм фактор: ATX
  • Гаранция: 60 месеца
  • Наличност: Не е наличен
    ОписаниеХарактеристикиРевюта / Въпроси

    EDGE GOLD

    • L-shape design tailored for dual chamber cases
    • 80 PLUS Gold efficiency
    • PCIe 5.1 ready with in-house R&D 12V-2×6 alloy copper soldered terminals
    • Detachable USB hub with 4 internal usB 2.0 headers and 6 PWM headers, offered in 1200W and 1000W
    • Removable magnetic fan dust filter
    • Built with German top-end, industrial-grade EPCOS capacitors
    • Fully modular braided-texture cables with pre-installed cable combs on MB/CPU/GPU connectors

    The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.

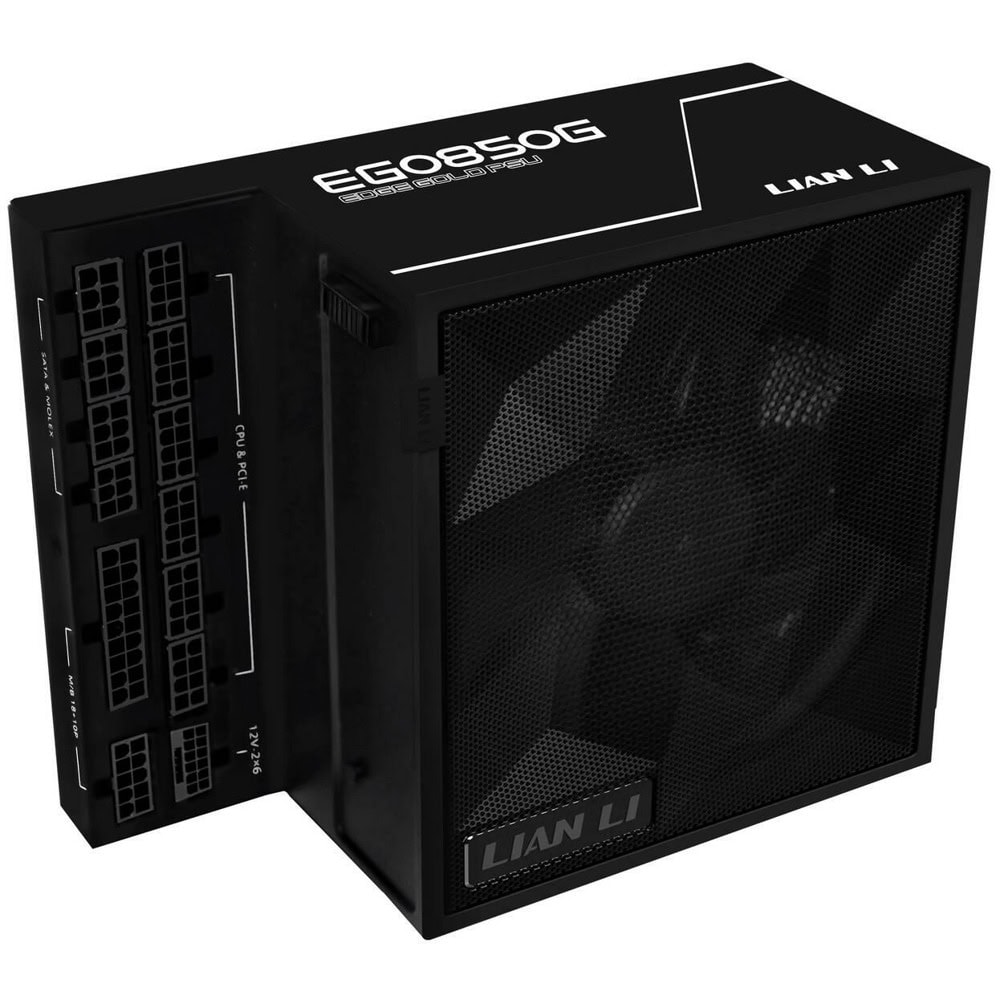

    INNOVATIVE L-SHAPE DESIGN

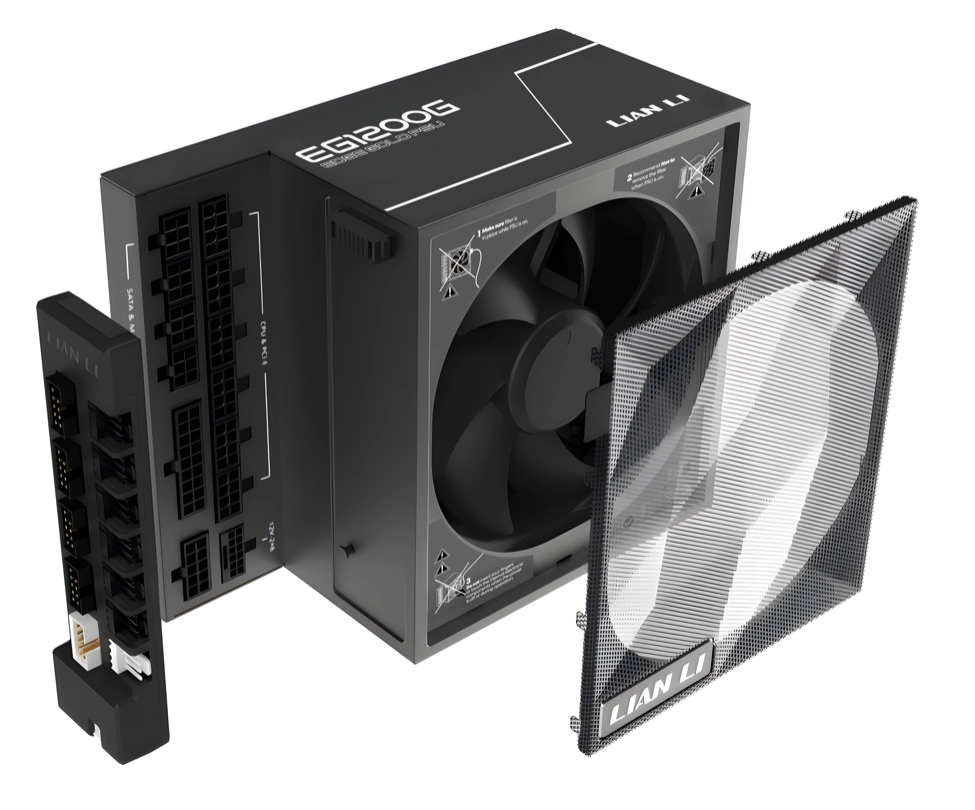

    Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.



    MAGNETIC DUST FILTER

    The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.

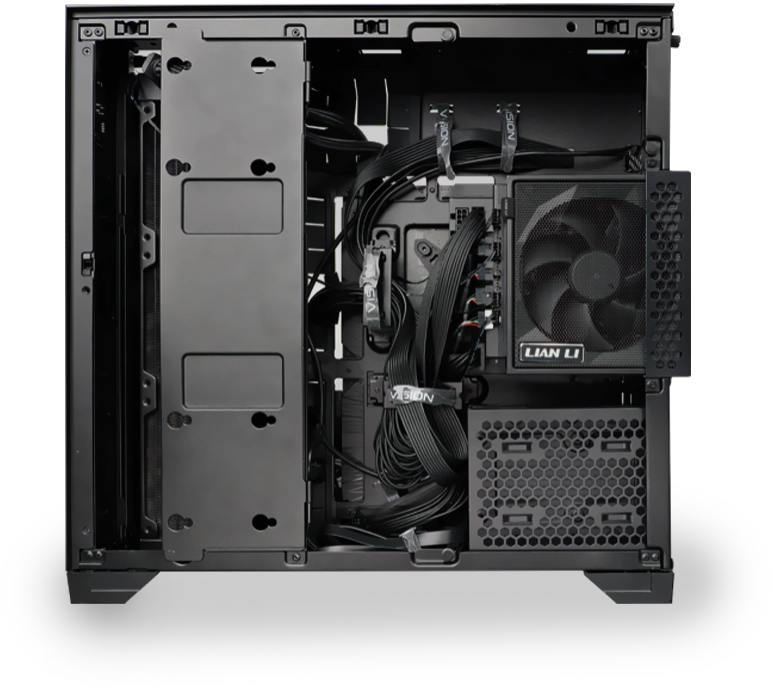

    CONVENIENT CABLE MANAGEMENT

    Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.

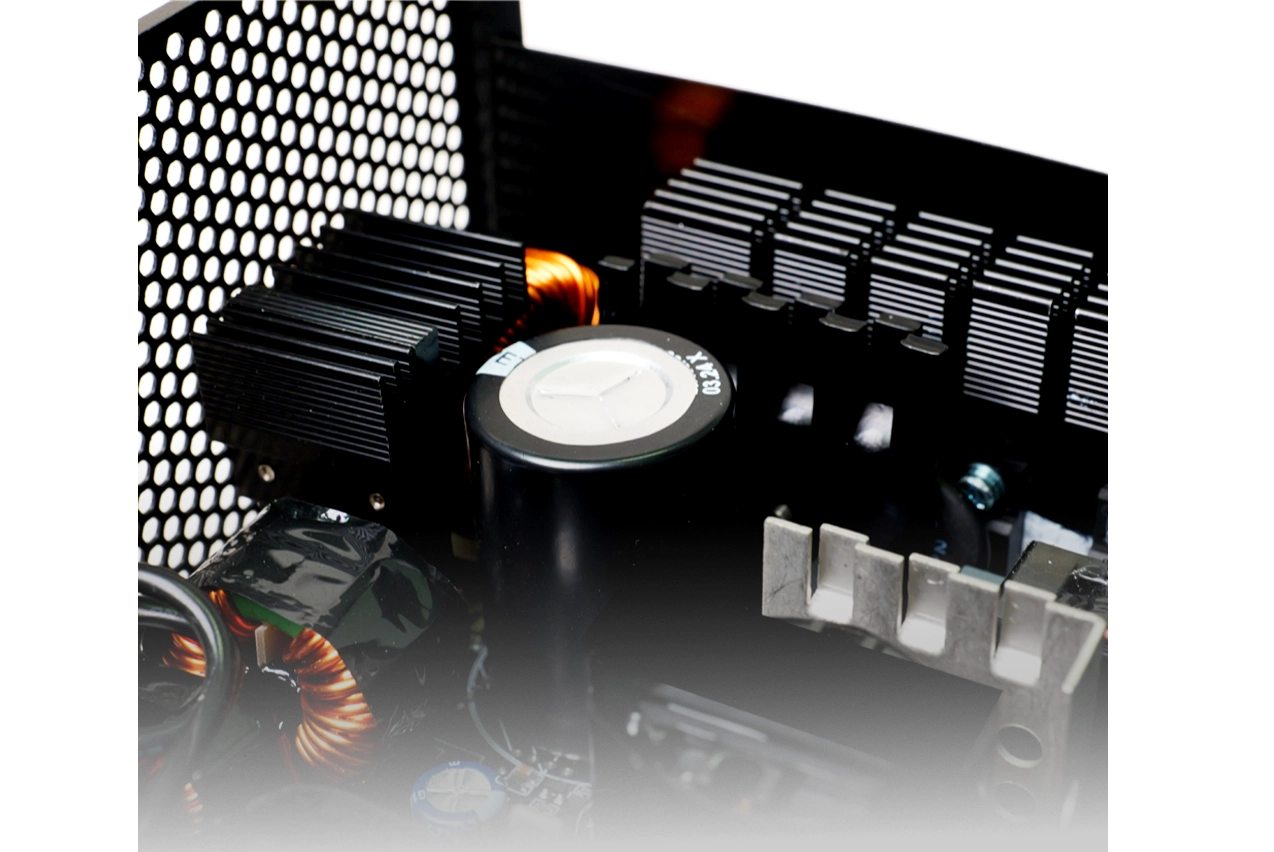

    INDUSTRIAL GRADE CAPACITORS

    The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.





    SpecificationEDGE GOLD 850
    Dimensions (D × W × H)182 mm × 86 mm × 150 mm
    Power Supply DesignFully Modular
    ColorBlack
    MaterialSteel
    Form FactorATX 3.1
    Certification80 PLUS Gold / Cybenetics Gold / PPLP Gold
    Max DC Output850W
    Combined +3.3V & +5V120W
    Combined +12V849W
    Input Voltage100–240Vac
    Input Frequency Range10–5A, 50–60Hz
    PFCActive PFC, PF > 0.90 under full load @ 115Vac, 60Hz
    Efficiency (Max)90.71%
    Protective CircuitOCP / OVP / OTP / OPP / SCP / UVP
    Connectors1 x 24/20-Pin motherboard connector (620mm) x1pcs
    1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs
    1 x 4+4 Pin CPU connector (750mm) x1pcs
    1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs
    1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs
    1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs
    1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs
    4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs
    1 x 12V – 2X6 450W connector (650mm) x1pcs
    2 x 6+2 Pin GPU connector (650mm) x2pcs
    Fan Type120mm FDB Fan
    Fan Speed2000 RPM
    Fan Noise Level30.9dBA


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Захранвания Настолни компютри Lian Li
    Виж всички Захранвания Настолни компютри в категорията
    Технически характеристики
    Изходна мощност:  850 W
    Модулен блок:  Да
    Форм фактор:  ATX
