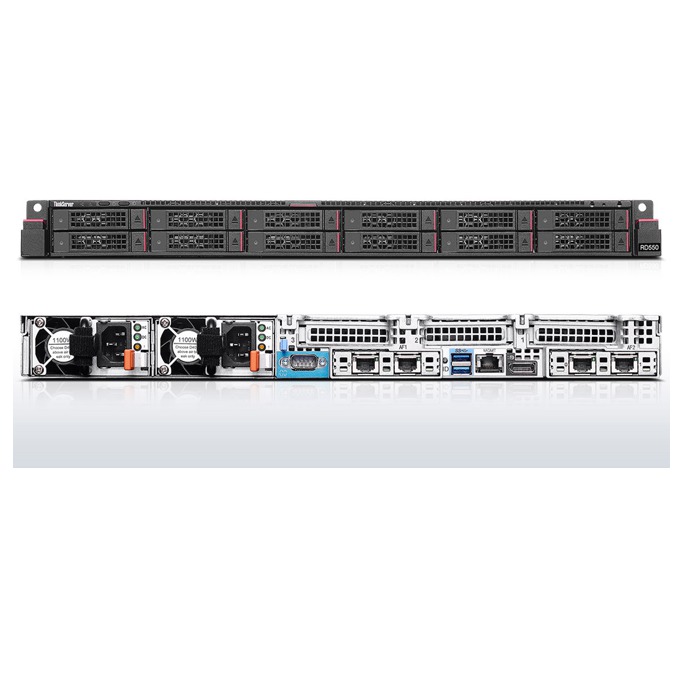

Lenovo ThinkServer RD550
(70CX0011EA)
Extremely Versatile Storage
Innovation is built in to the ThinkServer RD550. A cleverly engineered design allows more storage density and I/O connectivity than ever before—giving you the performance and capacity of a 2U system in a 1U form factor. By creating smaller drive trays and a slightly larger chassis within the same 1U space, the RD550 offers a total of up to 12 bays, which can be used for data storage or better performance. Two additional enterprise-class M.2 solid-state drives (SSDs) are available as an option for secure booting, as well as SD card options for hypervisor booting. Plus, for ultimate performance, the industry-unique Lenovo AnyBay design allows multiple storage types in the same drive bay, including front-accessible PCIe SSD.
Chipset: Intel® C612 Chipset
LAN: Integrated Gigabit LAN
CPU: Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2)
Part No.: 70CX0011EA
Model No.: 70CX
Memory Max: 768
Memory Slots: 24
Weight, kg: 13.5
Memory Standard: 8
Memory type: PC4-17000R 2133MHz RDIMM
HDD Controller: 12 port SAS/SATA
RAID Level: 0,1,10,5,50,6,60
Opticals: w/o optical drive
Total USB: 2
Power W: 750
vendor: Lenovo
Шаси: 1U rack-mount
Бр.процесори ст./макс.: 1 / 2
Макс. брой дискове: 12
Брой захр. / макс: 2 / 2
HDDs installed: 0
Тип дискове: 2.5"
Виж още Сървъри Lenovo
Виж всички Сървъри в категорията
(70CX0011EA)
Extremely Versatile Storage
Innovation is built in to the ThinkServer RD550. A cleverly engineered design allows more storage density and I/O connectivity than ever before—giving you the performance and capacity of a 2U system in a 1U form factor. By creating smaller drive trays and a slightly larger chassis within the same 1U space, the RD550 offers a total of up to 12 bays, which can be used for data storage or better performance. Two additional enterprise-class M.2 solid-state drives (SSDs) are available as an option for secure booting, as well as SD card options for hypervisor booting. Plus, for ultimate performance, the industry-unique Lenovo AnyBay design allows multiple storage types in the same drive bay, including front-accessible PCIe SSD.
Chipset: Intel® C612 Chipset
LAN: Integrated Gigabit LAN
CPU: Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2)
Part No.: 70CX0011EA
Model No.: 70CX
Memory Max: 768
Memory Slots: 24
Weight, kg: 13.5
Memory Standard: 8
Memory type: PC4-17000R 2133MHz RDIMM
HDD Controller: 12 port SAS/SATA
RAID Level: 0,1,10,5,50,6,60
Opticals: w/o optical drive
Total USB: 2
Power W: 750
vendor: Lenovo
Шаси: 1U rack-mount
Бр.процесори ст./макс.: 1 / 2
Макс. брой дискове: 12
Брой захр. / макс: 2 / 2
HDDs installed: 0
Тип дискове: 2.5"
Виж още Сървъри Lenovo
Виж всички Сървъри в категорията
Документация
DataSheetТехнически характеристики
| Формфактор: | Rackmount |
|---|---|
| Марка процесор: | Intel |
| Брой процесори: | 1 (+1 optional) |
| RAM памет: | 8 GB |
| Твърд диск: | Няма GB |
