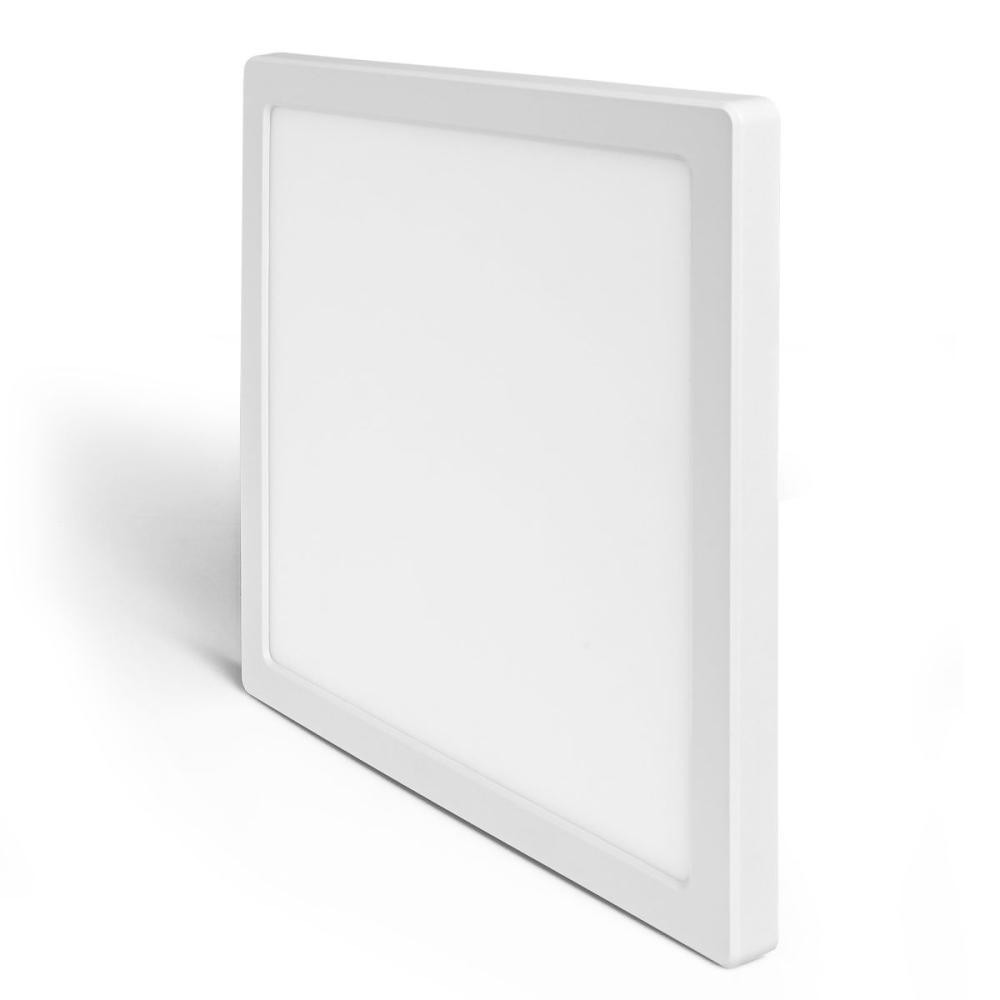

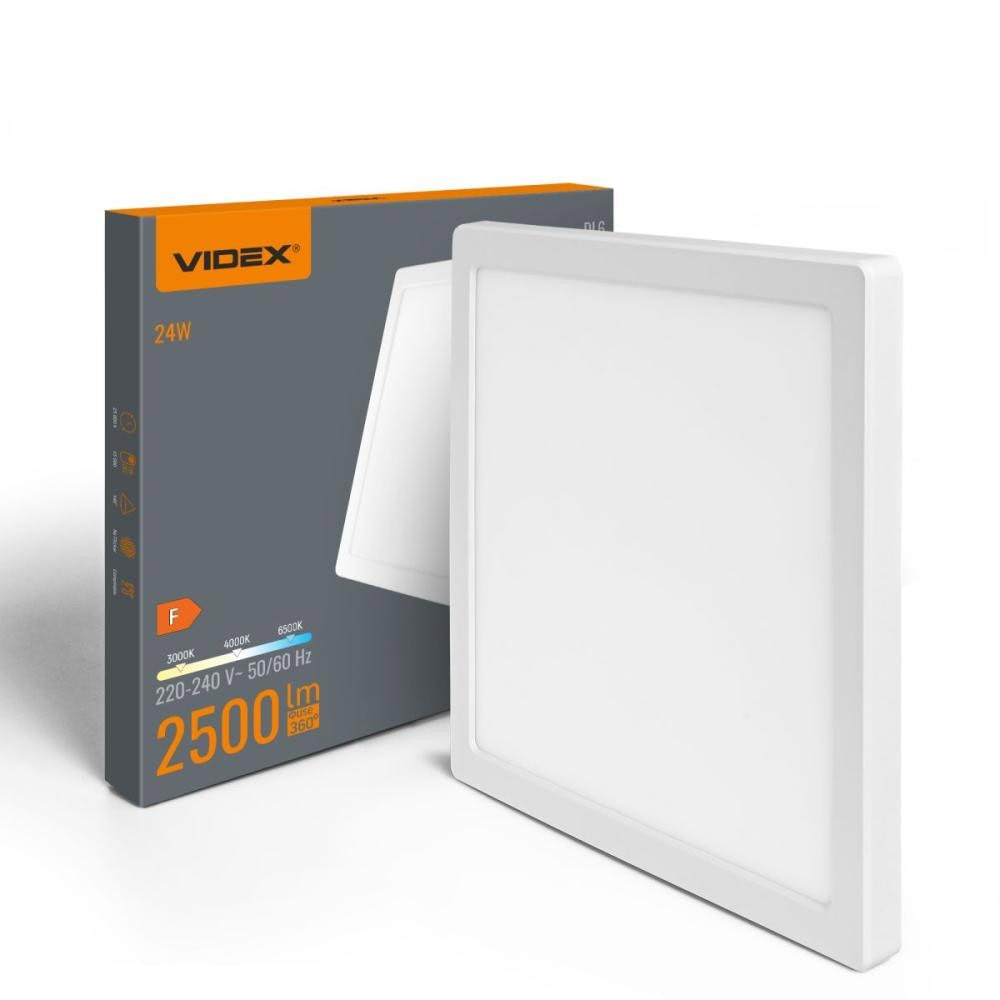

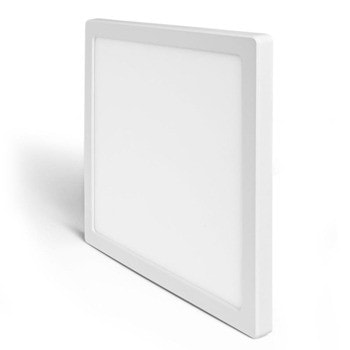

LED панел Videx VL-DL6S-24CW, 24W, 240V, 2500lm, регулируем (3000K-6500K), бяла рамка, защита (IP20), бял

INSTALLATION AND CONNECTION INSTRUCTIONS
Before installation, carefully read the manual. Installation must be performed by a qualified specialist. Work should only be carried out with the power supply turned off. Please perform installation and connection according to the diagram provided in the manual. All work must be done with the power disconnected. Connection should be made using the built-in terminal block. Before first use, check the correctness of mechanical mounting and electrical connections. The luminaire can only be used with a power network that meets the energy requirements and quality standards specified by law.

Specifications

On-mode power (Pon):

24 W

Useful luminous flux (Φuse):

2500 Lm

Light source or containing product:

Light source

Correlated color temperature:

6500K (cold white), 4000K (neutral white), 3000K (warm white)

Energy class of the light source:

F

Mounting hole size:

Ø50-230 mm

Rated voltage, frequency:

AC 220-240 V, 50/60 Hz

Beam angle:

140°

Place of installation :

Ceiling

Place of application:

indoor

Rated current:

150 mA

Displacement factor (cos φ1):

0.7

Color rendering index (CRI):

Ra > 80

Lifetime (L70B50):

25000 h

On/Off cycles:

15000

Housing colour:

White

Input interface:

Terminal block

Useful luminous flux of the light source reference:

in a sphere (360°)

Electric shock protection class:

II

Diffuser material:

Polycarbonate (PC)

Ultraviolet radiation:

no

Operating temperature range:

-20° +40°C

Dimmable:

no

Control gear replaceable:

-

Light source replaceable:

no

Ingress protection:

IP20

Mercury content:

Does not contain

Housing material:

PC

Height:

292 mm

Width:

292 mm

Depth:

17 mm
