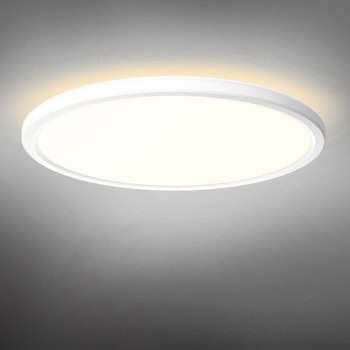

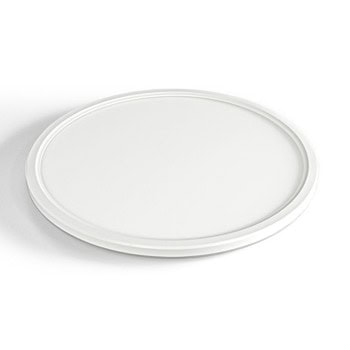

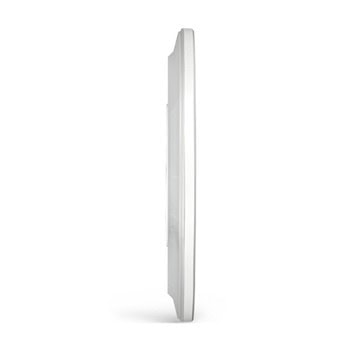

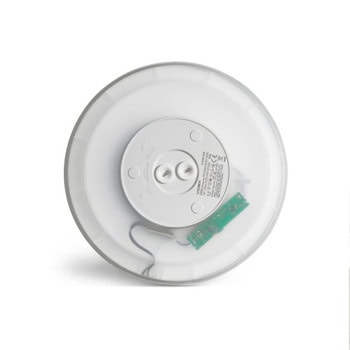

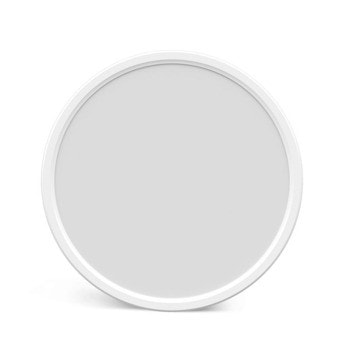

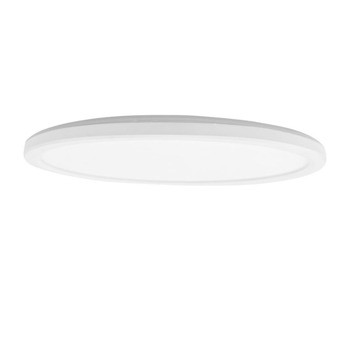

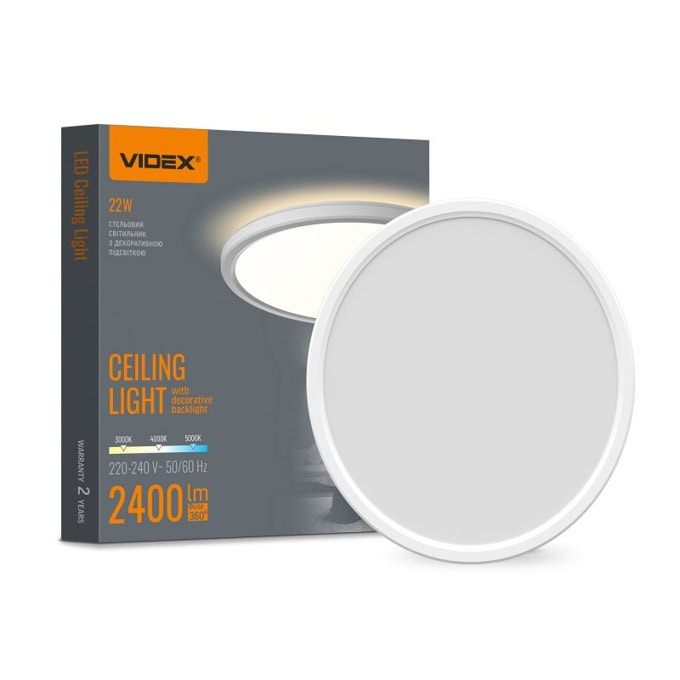

LED панел Videx VL-DL5R-22CW, 24W, 240V, 2400lm, регулируем (3000K-5000K), бяла рамка, защита (IP54), бял

INSTALLATION AND CONNECTION INSTRUCTIONS
Please read the manual before installation. Installation must be carried out by a qualified specialist. The installation should only be performed with the power supply disconnected. The product must be installed on a flat surface, primarily on the ceiling. Connection should be made using the terminal block included in the package. Before first use, check the correctness of the mechanical mounting and connections. The product should only be used in an electrical network that complies with the energy requirements and quality standards established by law.

Specifications

On-mode power (Pon):

22 W

Useful luminous flux (Φuse):

2400 Lm

Light source or containing product:

Light source

Correlated color temperature:

5000K (neutral white), 4000K (neutral white), 3000K (warm white)

Energy class of the light source:

F

Rated voltage, frequency:

AC 220-240 V, 50/60 Hz

Beam angle:

140°

Place of installation :

Ceiling

Place of application:

indoor, outdoor

Rated current:

136 mA

Displacement factor (cos φ1):

0.7

Color rendering index (CRI):

Ra > 80

Lifetime (L70B50):

30000 h

On/Off cycles:

20000

Housing colour:

White

Input interface:

Terminal block

Useful luminous flux of the light source reference:

in a sphere (360°)

Electric shock protection class:

II

Minimum distance from the illuminated object:

0.5 m

Diffuser material:

Polypropylene (PP)

Ultraviolet radiation:

no

Operating temperature range:

-20° +40°C

Dimmable:

no

Light source replaceable:

no

Ingress protection:

IP54

Mercury content:

Does not contain

Housing material:

ABS

Height:

293 mm

Width:

293 mm

Depth:

26 mm

In the package:

1 pc.

Outer box:

20 pcs.

Unit nett weight:

580g
