VIGI PS90
VIGI Solar System Controller
- 93.6Ah/10.95V Automotive-Grade Lithium Battery (31.2Ah Per Lithium Battery)
- Remote Management and Maintenance via the VIG app or VIGI Cloud VMS
- Indendent Protection Circuit Ensures Battery Safety and Uninterrupted Device Operation
- Intelligent Auxiliary Heating Technology Ensures Optimal Battery Performance in Extreme Cold Weather
- Maximum Power Point Tracking (MPPT) Charging Controller Increases Charging Efficiency by 20%*
- Remaining Capacity > 70%** after 500 Cycles
- IP66 Weatherproof

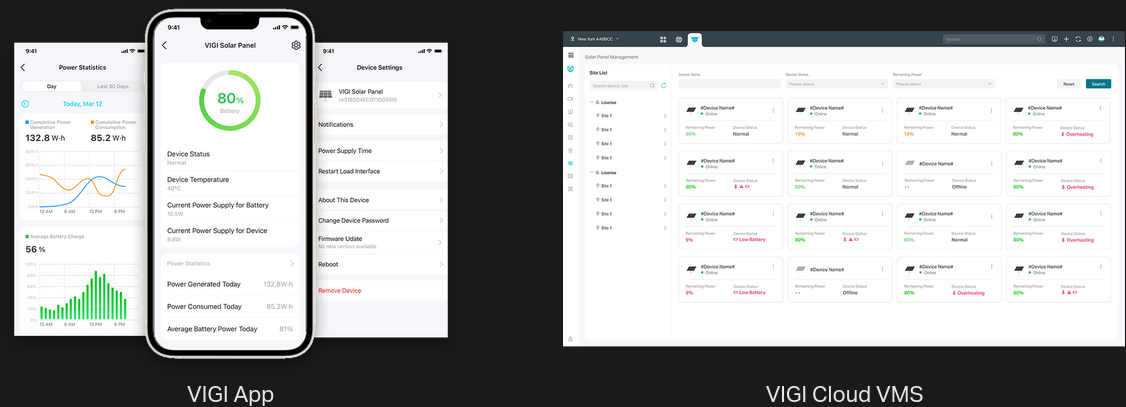

Remote Management
Equipped with a built-in MPPT Controller, VIGI PS90 integrates seamlessly with network devices, allowing centralized control via the VIGI app or VIGI Cloud VMS. Remotely monitor power statistics, receive low-battery alerts, update firmware, and reboot the system—all without needing on-site presence. Enjoy peace of mind, wherever you are.

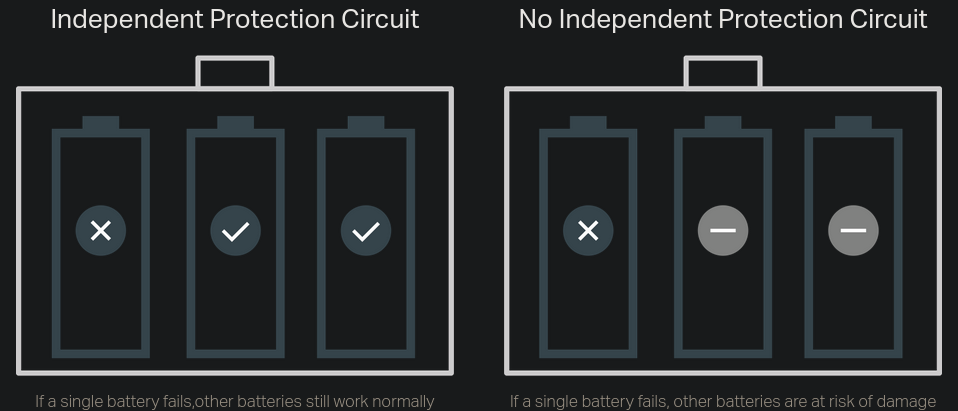

Independent Protection Circuit
Each individual battery has its own protection circuit, which prevents failures in one battery from affecting the entire battery pack. This design ensures battery safety and uninterrupted device operation.
| Category | Specification |
|---|---|
| BATTERY | |
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 93.6Ah (Max), 31.2Ah (Per Lithium Battery) |
| Voltage | 10.95 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Dimension | 9.4 × 2.9 × 2.8 in (240 × 74 × 72 mm) (Per Lithium Battery) |
| Charging Condition | 0°C45°C-30°C45°C (With intelligent auxiliary heating) |
| Discharging Condition | -20°C60°C-30°C60°C (With intelligent auxiliary heating) |
| HARDWARE | |
| Interface | 1× Three-pin Female Connector (To Controller)1× Three-pin Male Connector (To Battery)2× Four-pin Female Connectors (To Solar Panel)1× 10/100 Mbps RJ453× 5.5mm DC Power Plugs (#1, #2: 9V-12.6VDC/2A, #3: 12VDC/2A) |
| Indicator LED | 6 LEDs: 1× SYS, 1× LAN, 1× PV, 3× BATColor: Blue |
| SOFTWARE FEATURES | |
| Load Control | Yes |
| High and Low Temp Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Stats | Yes |
| Real-time Load Display | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Intelligent Aux Heating Control | -30°C~5°C |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
| Certification | CB, PSE (Battery); CE, FCC, VCCI, IC, IP66 |
| Box Dimensions (W × D × H) | 18.9 × 16.8 × 6.4 in (481 × 426 × 163 mm) |
| Weight | Product: 16.5 kgPackage: 24 kg |
| Environment | Operating Temp: -30°C~60°C (With intelligent auxiliary heating)Operating Humidity: 10%~90%RH, Non-condensing |
Виж още Модули за фотоволтаици TP-Link
Виж всички Модули за фотоволтаици в категорията
Технически характеристики
| Тип: | Контролер |
|---|
