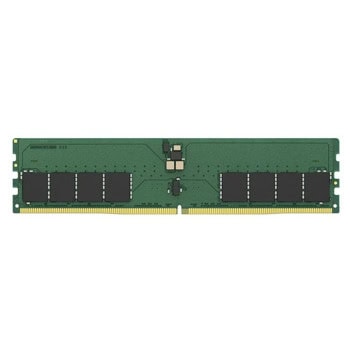

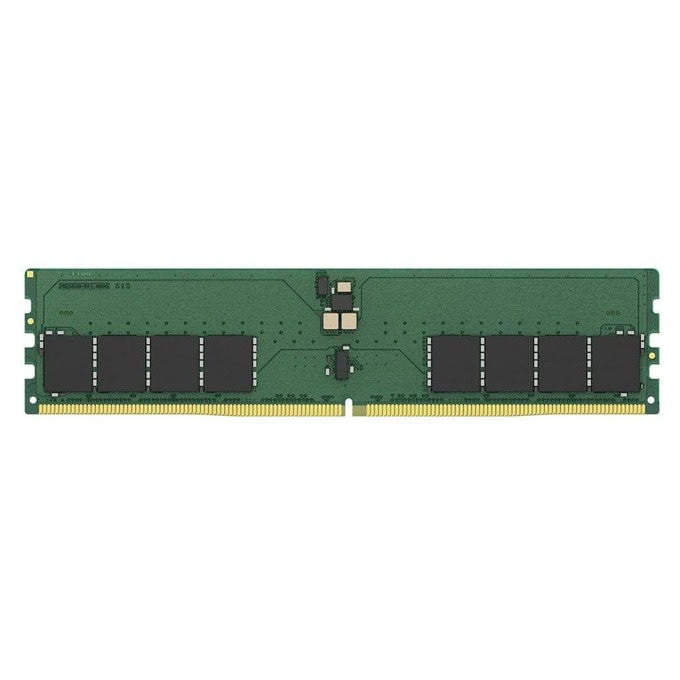

Name: Памет 64GB DDR5 6400MT/s, Kingston ValueRAM, KVR64A52BD8-64, 1.1V
Brand: Kingston
SKU: MRAMKINGSTONKVR64A52BD864
Price: 1012.99 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

64GB DDR5 6400MT/s Non-ECC Clocked Unbuffered DIMM CL52 2Rx8 1.1V 288-pin 32Gbit

This document describes ValueRAM's KVR64A52BD8-64 is a 8G x 64-bit (64GB) DDR5-6400 CL52 Clocked Unbuffered DIMMs (CUDIMMs), 2Rx8, memory module, based on sixteen 4G x 8-bit FBGA components and one Clock Driver (CKD). The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

Features:
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
• With Clock Driver

Operating Temperature: 0 o C to +85o C
Storage Temperature: -55 o C to +100 o C

Capacity
64GB

Chip Organisation
X8

Ranking
2R

DRAM Density
32Gbit
