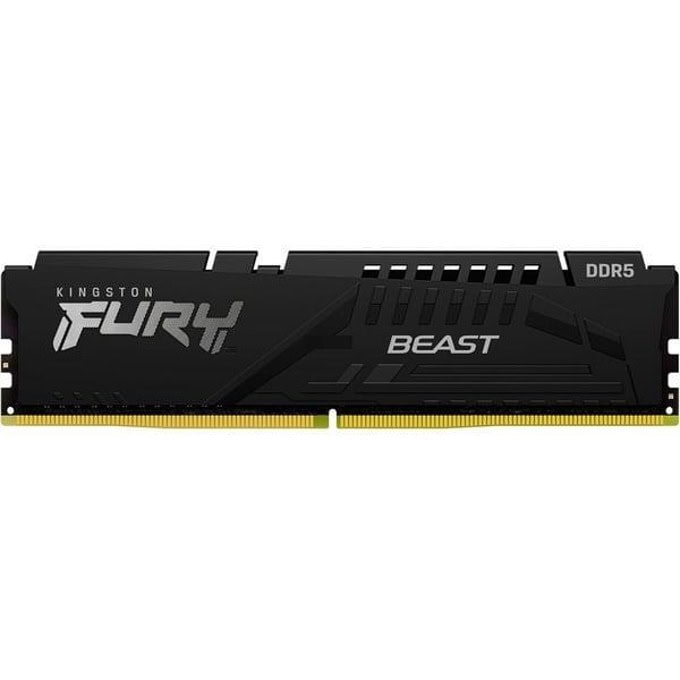

Памет 16GB DDR5 6800MT/s, Kingston Fury BEAST, KF568C34BBE-16, 1.40V

Kingston FURY KF568C34BBE-16 is a 2G x 64-bit (16GB) DDR5-6800 CL34 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6800 at a low latency timing of 34-45-45 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

 • Power Supply: VDD = 1.1V Typical

 • VDDQ = 1.1V Typical

 • VPP = 1.8V Typical

 • VDDSPD = 1.8V to 2.0V

 • On-Die ECC

 • Height 1.37” (34.9mm), w/heatsink

FACTORY TIMING PARAMETERS

 • Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

 • EXPO Profile #0: DDR5-6800 CL34-45-45 @1.4V

 • EXPO Profile #1: DDR5-6400 CL32-39-39 @1.4V

 • XMP Profile #1: DDR5-6800 CL34-45-45 @1.4V

 • XMP Profile #2: DDR5-6400 CL32-39-39 @1.4V
