iFi iDSD Diablo 2
Your ultimate portable DAC/amp for Home and Mobile.
Heavenly Sound. Devilish Power.
The Diablo 2, dressed in Devilish Red, succeeds the Diablo-X, boasting a slew of enhancements such as increased headphone output power, support for lossless Bluetooth codecs, xMEMS technology, iEMatch, a USB-C input, improved circuitry, and more.
As an audiophile, you likely use different systems for home and mobile setups. The Diablo 2 offers the best of both worlds with its powerful 5,180mW maxmium output and balanced dual-mono circuitry, making it the most powerful headphone amplifier of its size.
Diabolical Innovation. Shattering Boundaries. The Diablo 2 is the world’s first portable DAC/Amp with Bluetooth 5.4, it supports aptX Lossless, the only Bluetooth codec for lossless CD-quality streaming without sacrificing audio quality. The predecessor of Diablo 2 pioneered support for xMEMS solid-state micro-speaker technology, enhancing IEM and headphone performance with several unique benefits:

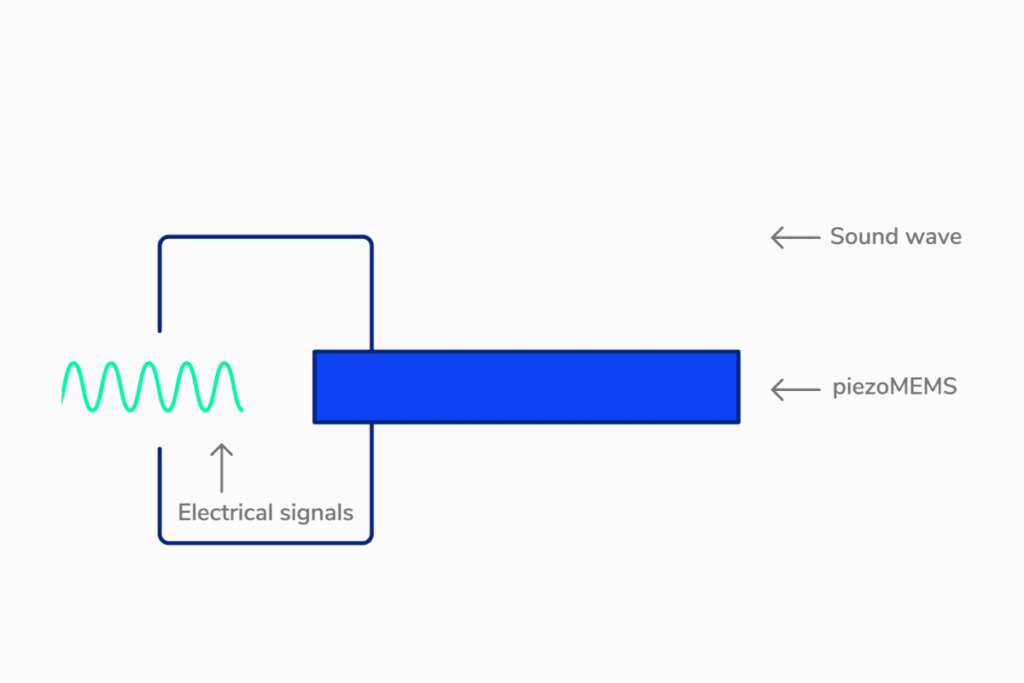

Due to the high voltage requirements of xMEMS, iFi has partnered with them to integrate this technology into the new Diablo 2. It utilises the piezoelectric effect to create paper-thin solid-state speakers by converting electrical energy into mechanical energy, exciting an integrated silicon membrane to generate powerful acoustic sound waves for enhanced audio output. |
“It’s got a NOS fogger system and a T4 Turbo, Dominic.”

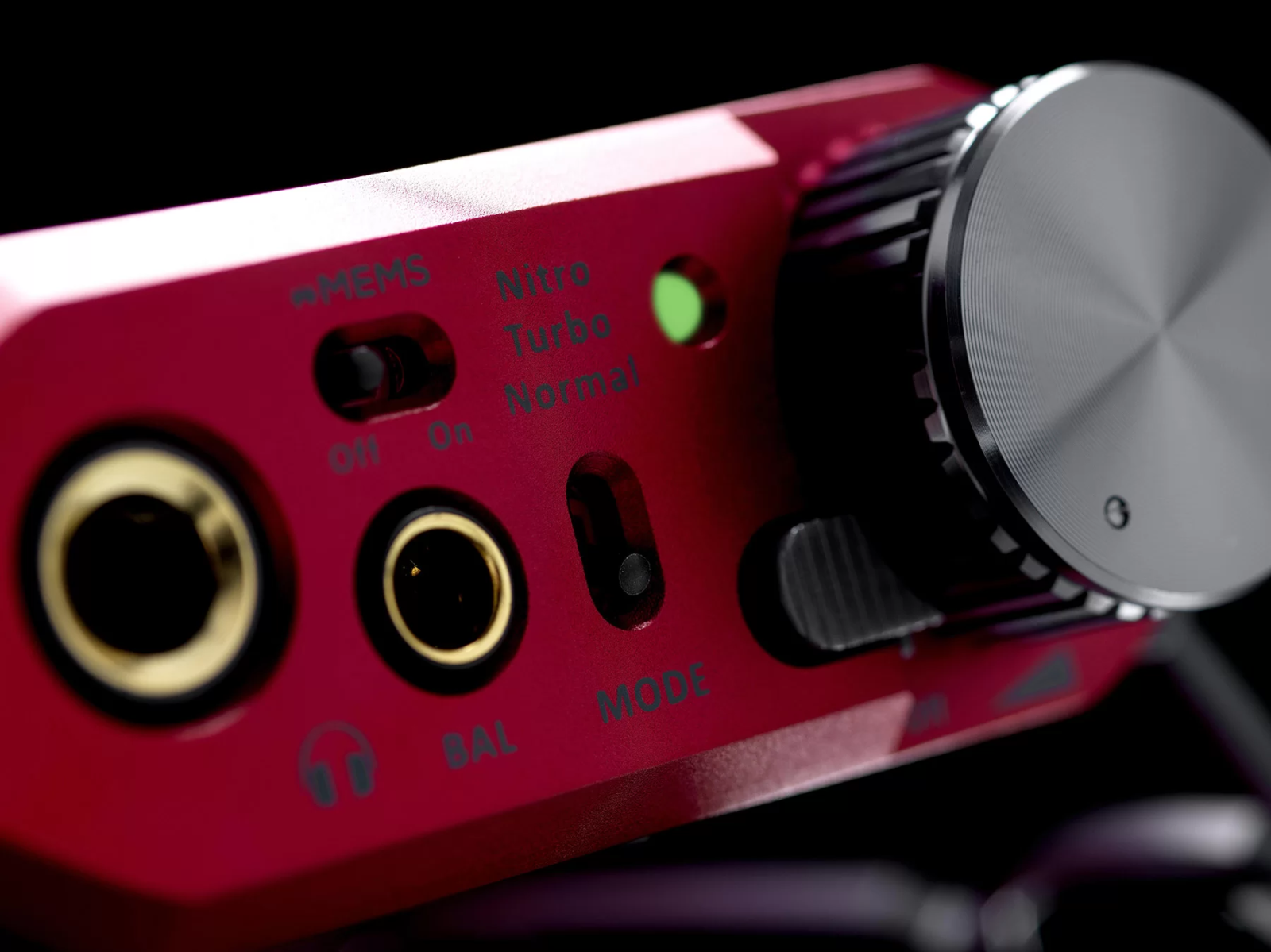

Struggling with your power-hungry headphones? Press the NOS button, and our Diablo goes into beast mode. The Diablo 2 offers three power modes: Normal for IEMs, Turbo for mid-sensitivity headphones, and Nitro for demanding headphones, boasting a 19.2V maximum output.
A switch underneath activates iFi’s iEMatch technology. This feature is tailored for high-sensitivity headphones and earphones, greatly benefiting your in-ear monitors (IEMs). It removes background noise and increases the usable volume range.
The Diablo 2 accommodates a wide range of headphones, from IEMs to power-hungry over-ears. It features a 6.3mm single-ended headphone socket and a 4.4mm balanced output. Additionally, a 3.5mm to 6.35mm adapter is included for versatile connectivity.

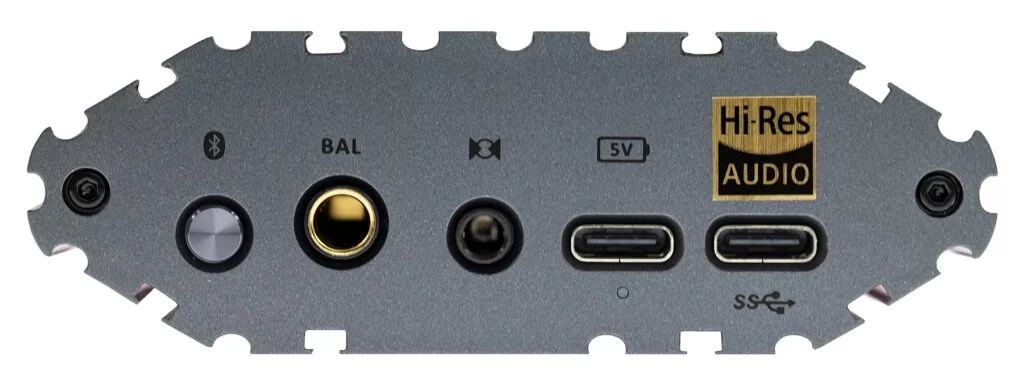

Devil in the details. When examining the Diablo 2’s front panel, you’ll find a new Volume Lock switch next to the volume control, preventing accidental adjustments during transport. At the back panel’s left side, there’s a switch for mode selection and Bluetooth pairing. On the right side, two USB-C ports streamline cable management—one for audio and the other for charging. |
Tech specs:
Digital | |
Hi-res support | 768kHz DSD512 full MQA |
Bluetooth formats | aptX Lossless aptX Adaptive aptX LDAC LHDC/HWA AAC SBC |
Maximum^ output power | |
Output | 4.4mm 6.3mm |
4.4mm | >19.2V/611mW (@600Ω); >12.87V/5180mW (@32Ω) |
6.3mm | >9.6V/153mW (@600Ω); >8.85V/2450mW (@32Ω) |
xMEMS | >28Vpp (4.4mm output) |
RMS output power | |
4.4mm | >19.2V/611mW (@600Ω); >7.4/1710mW (@32Ω); >11.5/2060mW (@64Ω) |
6.3mm | >9.6V/150mW (@600Ω); >8.1V/2050mW (@32Ω); >9.3V/1360mW (@64Ω) |
Line output | |
Output impedance | ≤200Ω |
SNR | ≥114dB(A) |
DNR | ≥114dB(A) |
THD+N | 0.002% @ 0dBFS 200kΩ |
General | |
Power consumption | Nitro 12W Turbo 5W Normal 2W xMEMS 8W |
Battery | Lithium-polymer 4800mAh |
Charging | Via USB-C – BC v1.2 compliant up to 1900mA |
Dimensions | 166x85x28.5mm |
Net weight | 455g |
Connectivity | |
Digital inputs | 1x USB-C; 1x S/PDIF (optical/coaxial) Bluetooth 5.4 |
Headphone outputs | 1x balanced 4.4mm 1x 6.3mm |
Line output | 1x balanced 4.4mm |
Power/charging | 1x USB-C |
