Предусилвател Musical Fidelity M6x Vinyl, съвместим с MM/MC дози, RCA, balanced XLR, черен

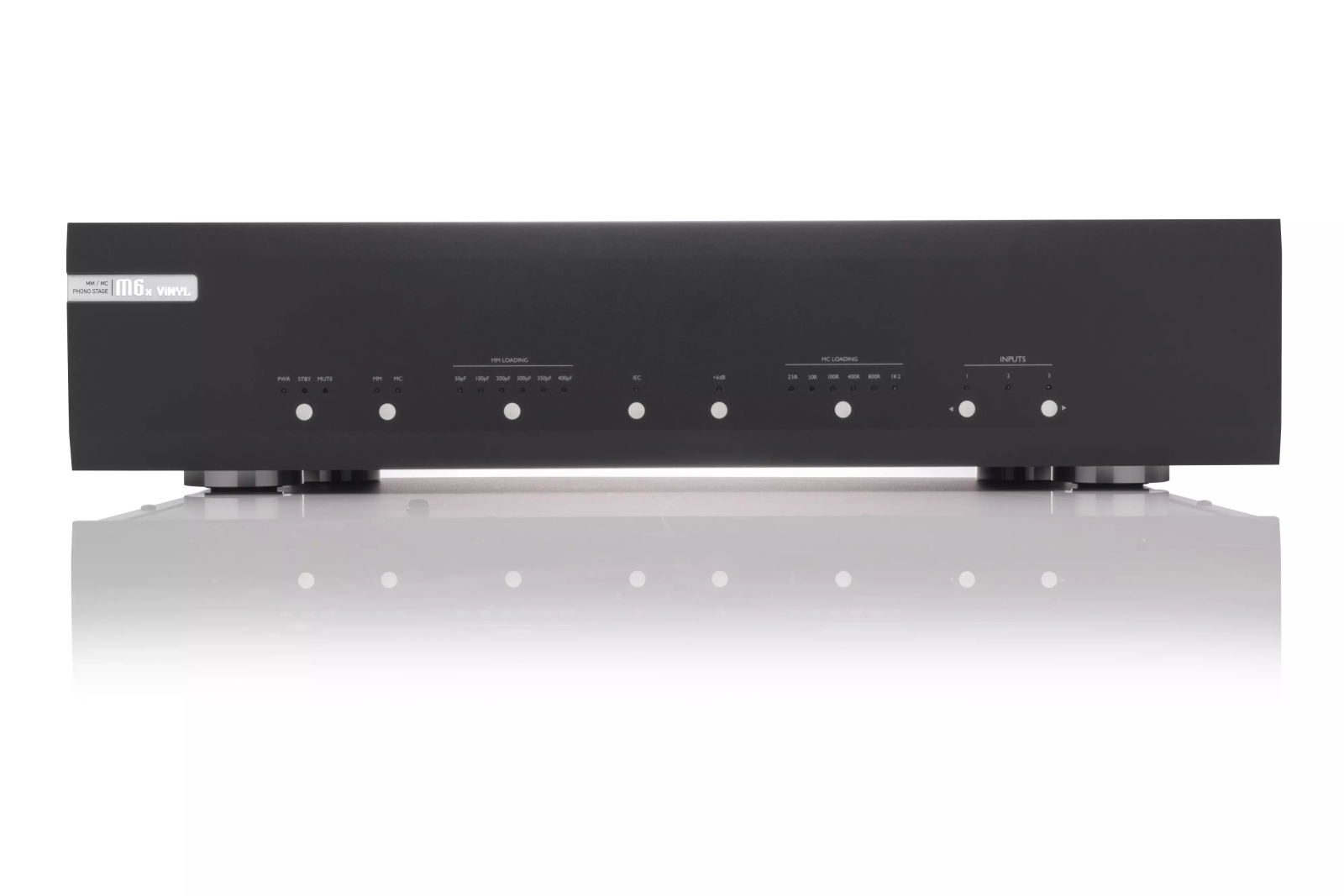

Musical Fidelity M6x Vinyl

The M6x ViNYL is a very high performance, highly accurate phono MM/MC cartridge amplifier in a beautifully designed and executed casework. We set out to make a phono stage without any practical limits. It’s designed in such a way to ensure you cannot overload the input stage or encounter any practical limitations in the output driving capacity during regular use, whether running single-ended or balanced. It has three inputs, and each can be individually set for either MM/MC and loading. Each input also then remembers its own settings. It offers state-of-the art technical and sonic performance at a very competitive price and is the epitome of the true spirit of high-end audio.

Specifications

MM Input
• Frequency response: RIAA or RIAA/IEC ±0 .2dB
• Input sensitivity: 5mV in for 500mV out (at 1 kHz)
• Input impedance: 47KΩ
• Input capacitance: 50-400pF selectable
• THD at 1 kHz: <0.005%
• Overload margin: 26dB
• Signal to noise ratio: >101dB


MC Input
• Frequency response: RIAA or RIAA/IEC ±0.25dB
• Input sensitivity: 500μV in for 500mV out (at 1 kHz)
• Input impedance: 25Ω to 1,2KΩ selectable
• Input capacitance: 470pF fixed
• THD at 1 kHz: <0 .02%
• Overload margin: 26dB
• Signal to noise ratio: >90dB


Outputs (RCA/XLR)
• 1 pair RCA: left and right 500mV nom 10V max
• 1 pair XLR (balanced): left and right 1V nom 20V max


Power requirement
• Mains voltages: 230V/115V Internally set or 100V optional. AC 50/60Hz
• Consumption: 20 Watts maximum. <0 .5W in standby (orange LED on)


Weight and Dimensions
• Unit only, unboxed: 5.5 kg
• W x H(incl. feet) x D(incl. terminals): 440 x 100 x 385mm
