Усилвател iFi hip-dac 3, за слушалки, USB-C input, 3.5mm Jack-out, 4.4mm Jack-out, PCM384kHz и DSD256 декодиране, сив

iFi hip-dac 3



Titanium shadow. Trendsetting innovations.

Now, our battery-powered portable hi-res DAC/headphone amp is adorned in the Titanium Shadow hue, exuding timeless elegance with a touch of modern sophistication. The transformation extends beyond aesthetics. The hip-dac 3’s sleek Aluminium case houses new features, tailored to elevate your audio experience.

Two USB-C ports simplify your cable management: one for audio and the other for charging. A switch on the underside activates iFi’s iEMatch technology, which is optimized for high-sensitivity headphones and earphones, making it especially beneficial for your in-ear monitors (IEMs).

Inside, the device boasts circuit enhancements, including new metal film capacitors for a better frequency response. Additionally, an updated version of iFi’s GMT circuitry, coupled with a new crystal oscillator, further reduces phase noise, delivering a purer sound to you.

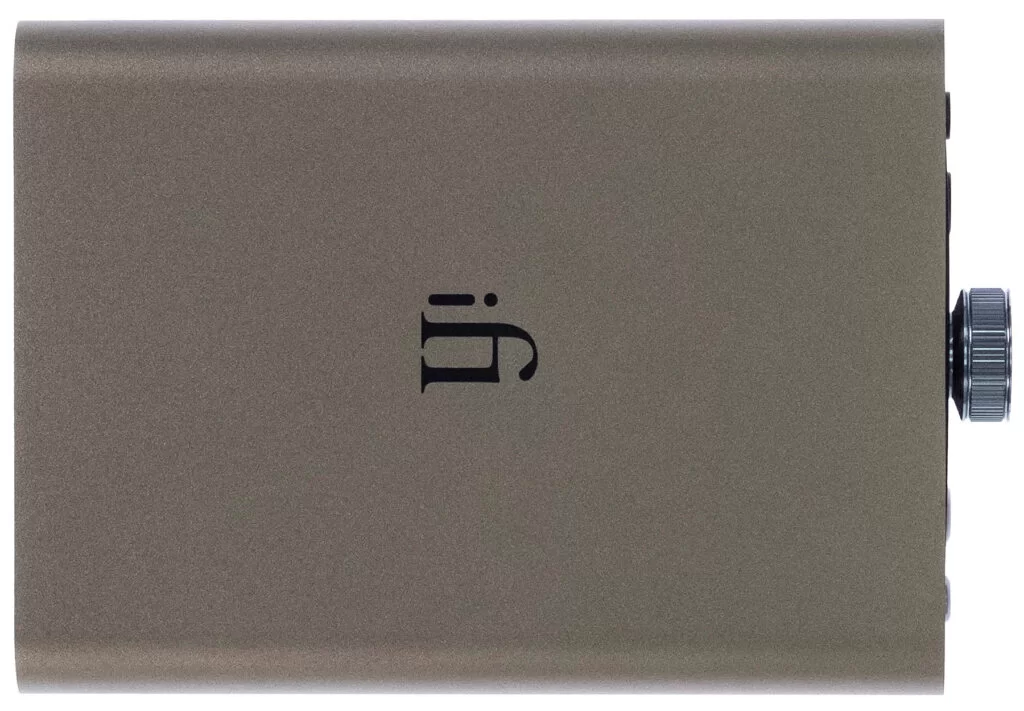

Hip flask size. Magnum performance. With its sleek, robust aluminium enclosure, the portable hip-dac 3 discreetly fits in a pocket or bag. It replaces the subpar DAC and amplifier in smartphones, tablets, PCs, and Macs. Just connect via USB-C, plug in your favourite headphones, and enjoy rich, dynamic sound. iFi’s expertise with the Burr-Brown chipset ensures optimal performance. However, a superior DAC stage involves more than just the DAC chip. A crucial element is the XMOS chip for processing digital audio inputs. The hip-dac 3 features a 16-core XMOS microcontroller, programmed by iFi’s in-house team to optimise sound quality and ensure a perfect hi-res partnership with the Burr-Brown DAC.







hip-dac 3 your power-hungry headphone.

The hip-dac 3 features a true balanced circuit design, rare for its price range. This design minimizes signal distortion, resulting in a purer, more captivating sound for your headphones.

The circuitry incorporates high-quality components, including a custom iFi OV op-amp, a low-noise power supply IC from Texas Instruments, and a premium analogue volume pot.

The amp stage can deliver up to 400mW into a 32-ohm headphone load, making it compatible with a wide range of headphones. Additionally, it efficiently drives high-impedance headphones with an output voltage of 6.3V into 600 ohms from the balanced output.

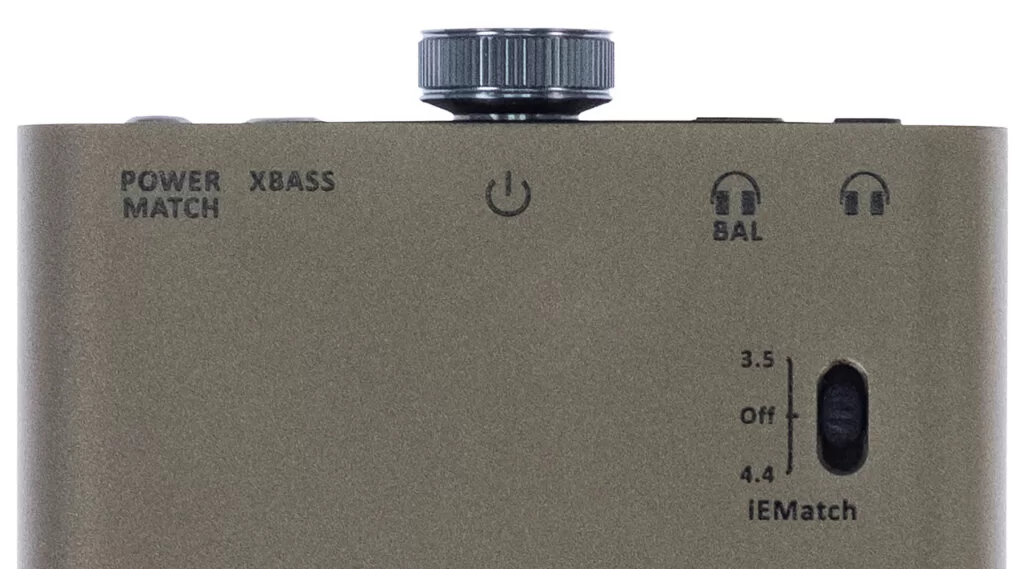

Tailored for your headphones and earphones The amp stage has switchable gain, called PowerMatch, to ensure optimal power for the headphones you are using. An underside switch engages iFi’s iEMatch technology, optimising output for high-sensitivity headphones, especially in-ear monitors (IEMs). It reduces hiss, enhances detail and dynamic range, and improves volume control range. XBass is a user-selectable feature that boosts bass without muddying the midrange, ideal for your earphones and open-back headphones. It works in the analogue domain, avoiding alterations via DSP.





Play all your files, including MQA

Hi-res PCM and DXD audio data is supported at sample rates up to 384kHz, alongside DSD from 2.8MHz to 12.4MHz (DSD64, 128 and 256).

Full decoding of MQA – the hi-res streaming technology, as used by Tidal’s ‘HiFi Plus’ tier – is also supported, performing the full ‘three unfold’ decoding process (as opposed to just the final unfold in the manner of an MQA ‘renderer’).

Either side of the rotary volume control reside a pair of LEDs that change colour to indicate the format and sample rate of the incoming audio.





Tech specs:

Input		USB-C
Formats Supported		DSD256 / PCM384kHz / Full MQA Decoder
DAC		Burr Brown
Headphone Outputs		4.4mm, 3.5mm
Output Power (RMS)	BAL	400mW @ 32Ω; 6.3V @ 600Ω
	UnBAL	280mW @ 32Ω; 3.2V @ 600Ω
SNR	BAL	<109dB(A) @ 0dBFS
	UnBAL	<103dB(A) @ 0dBFS
DNR	BAL	<109dB(A)
	UnBAL	<103dB(A)
THD + N	BAL	<0.006X% (360mW/2.0V @ 600Ω)
	UnBAL	<0.01% (100mW/1.27V @ 16Ω)
Frequency Response		20Hz - 45kHz (-3dB)
Power Consumption		<2W idle, 4W max
Battery		Lithium-polymer 2,200mAh up to 12 hours
Power System		Charging via USB-C, BC V1.2 compliant up to 1000mA charging current
Dimensions		102 x 70 x 14 mm (4.0" x 2.8" x 0.6")
Net weight		135 g
