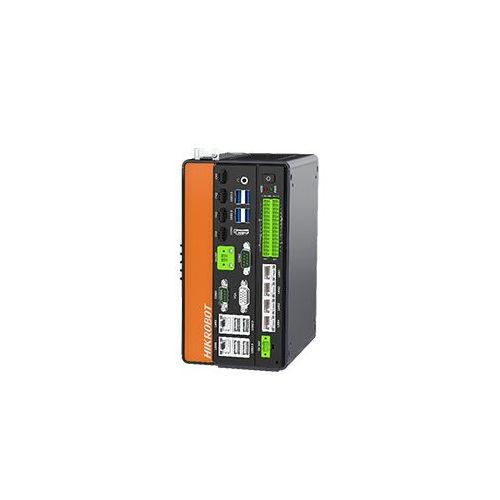

Name: HIKROBOT MV-VC3703H-128G60 :: Vision индустриален PC, 128 GB SSD + 2 TB HDD, 8 GB RAM, I7-8700 CPU, Win10 x64
Brand: HIKROBOT
Availability: OutOfStock

Описание

Model	Product Model	MV-VC3703H-128G60
Model	Type	VC3000H Vision Controller, I7-8700，8GB+128GSSD+2THDD， POE， PCI-E
Performance	CPU	i7-8700
	Memory	8 GB
	Storage	128 GB SSD + 2 TB HDD, mSATA interface × 1
	GPU	Intel® HD Graphics 630
	Operating system	Unactivated 64-bit Windows 10
External interface	Video output	HDMI interface × 1, VGA interface × 1Supports dual display outputs, max. resolution 1920 × 1080 @60 Hz
	Digital I/O	Opto-isolated input × 8, opto-isolated output × 16Output supports NPN/PNP switch
	Network interface	GigE interface × 2, GigE interface with PoE × 4
	USB interface	USB 2.0 × 4, USB 3.0 × 4, built-in USB 2.0 × 1
	Serial port	RS-232 × 2, supports switching to RS-485 and RS-422
	Light interface	24 VDC constant voltage × 4(Max. power consumption of single channel is 72 W, total max. power consumption 80 W.)
	Extended interface	PCIe 3.0 ×16 ( × 1)
Electrical feature	Power supply	24 VDC
Electrical feature	Power consumption	Typ. 150 W
Mechanical	Dimension	161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2")
	Weight	Approx. 2.1 kg (4.6 lb.)
	Temperature	0 °C to 50 °C (32 °F to 122 °F)
	Humidity	20% to 95% RH, non-condensing
General	Certification	CE, KC
