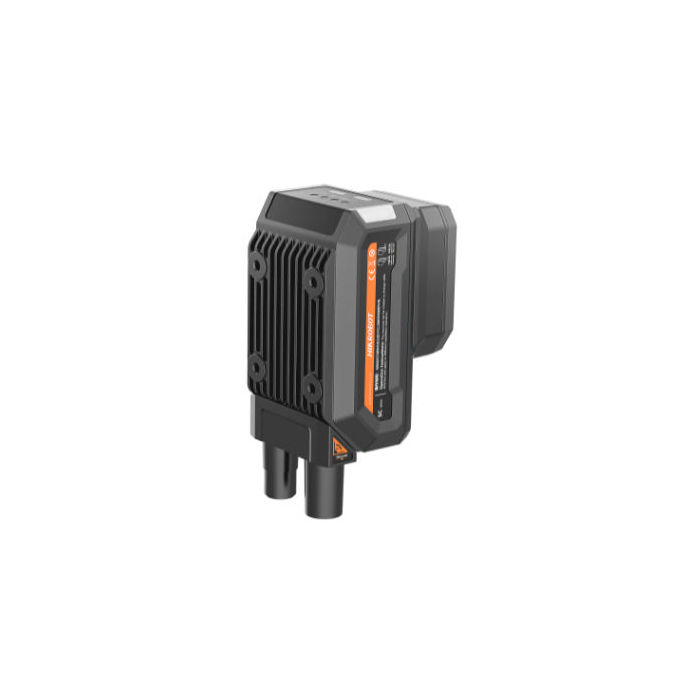

Name: HIKROBOT MV-SC5050XM-16M-WBN :: Smart Machine-Vision камера, SC5000X Series, 5MPix (2432×2048), 60 fps, 16мм foc. length, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва deep-learning алгоритъм с изкуствен интелект за OCR, разпознаване на обекти, откриване на дефекти и др.
Интегрира VM функции и поддържа повече от 140 алгоритъма.
Mножество I/O интерфейси за входно/изходни сигнали.
Поддържа множество комуникационни протоколи.
Поддържа индикатори, показващи състоянието на устройството за лесно отстраняване на грешки и поддръжка.
Защита от проникване IP67.

Model	Product Model	MV-SC5050XM-16M-WBN
Model	Type	SC5000X series Smart Camera，5MP，Mono, M12-16mm focal length
Tool	Function module	Vision Master Platform (include deep learning module)
Tool	Communication protocol	TCP, UDP, Modbus, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/1.45"
	Resolution	2432 × 2048
	Max. frame rate	60 fps
	Gain	0 dB to 37 dB
	Exposure time	15 μs to 3000 μs
	Pixel format	Mono 8
	Mono/color	Mono
Platform	Memory	8 GB
Platform	Storage	64 GB
Electrical feature	Data interface	Gigabit Ethernet (1000 Mbit/s)
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input × 3 (Line 0/1/2), opto-isolated output × 3 (Line 3/4/5), RS-232 × 1
	Power supply	24 VDC
	Power consumption	Typ. 12.3 W @ 24 VDC (with included light source on); Max. 48 W @ 24 VDC (with included light source on)
Mechanical	Lens mount	M12-mount, mechanical focus
	Focal length	16 mm
	Lens cap	Half polarization lens cap by default. Transparent or full polarization lens cap is optional.
	Light source	White light source by default. Red, blue, or IR light source is optional
	Indicator	Power indicator (PWR), network indicator (LNK), and user-defined indicator (U1/U2)
	Dimension	Straight angle: 112.3 mm × 54 mm × 60.2 mm (4.4" × 2.1" × 2.4"); Right angle: 88.7 mm × 54 mm × 82.5 mm (3.5" × 2.1" × 3.2")
	Weight	Approx. 370 g (0.8 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
Additional information	Certification	CE, KC
