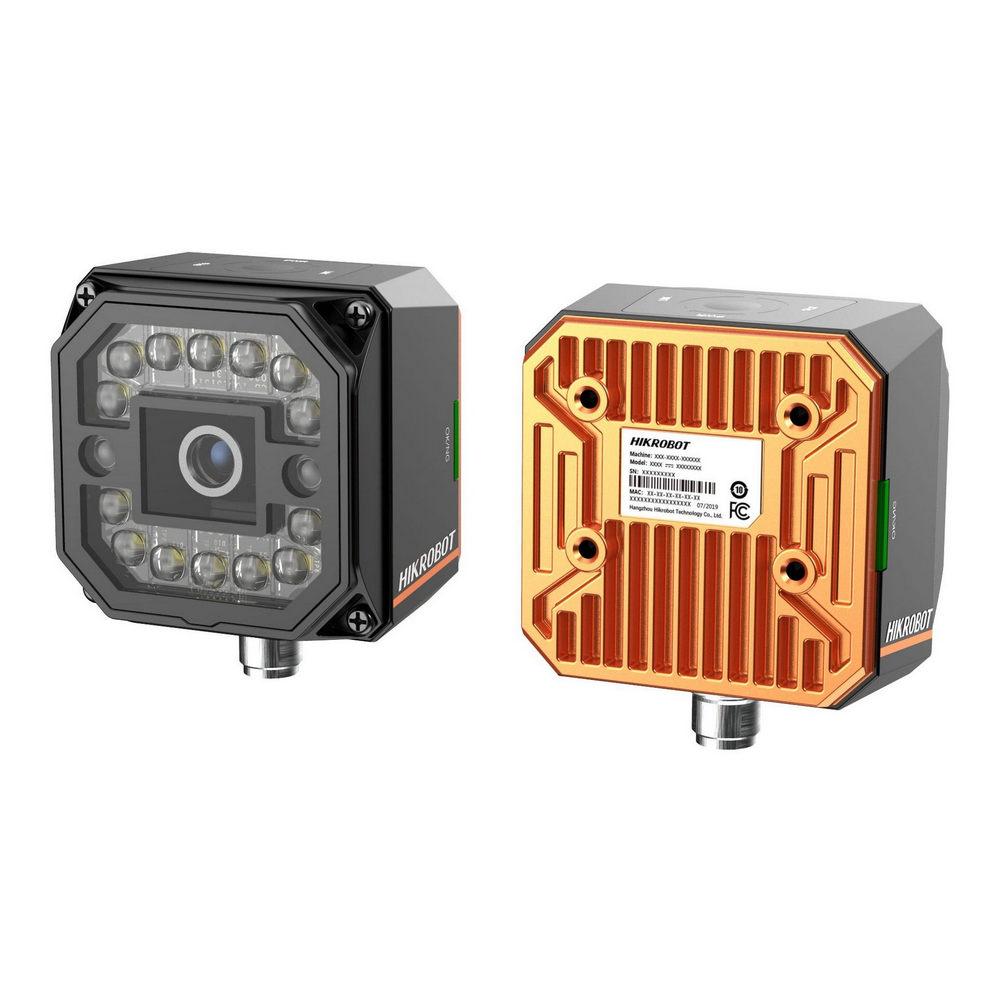

Name: HIKROBOT MV-SC3050M-08M-WBN :: Smart Machine-Vision камера, SC3000 Series, 30 fps, 5MPix (2368×1760), 8мм foc. length, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Прилага вградени алгоритми за позициониране и измерване спрямо съществуването, количеството, местоположението и др. на обекта
Множество IO интерфейси за входни и изходни сигнали.
Множество индикатори за показване на състоянието на устройството.
Използва светлинен източник, за да осигури равномерна яркост в осветената зона.
Поддържа множество комуникационни протоколи, включително Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.

Model	Product Model	MV-SC3050M-08M-WBN
Model	Type	SC3000 series vision sensor，8mm focal length，5MP，Mono
Tool	Vision tool	Count: Pattern count, spot count, edge countDefect detection: Exception detectionExistence: Pattern existence, spot existence, edge existence, circle existence, line existenceLocation: Match location, match calibration, fixtureLogic tool: If module, condition judge, logic judge, combination judge, character comparison, calculatorMeasurement: L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurementRecognition: OCR, code recognition
	Solution capacity	Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored.
	Communication protocol	Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	1/1.7"
	Resolution	2368 × 1760
	Max. frame rate	30 fps
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	0 dB to 18 dB
	Exposure time	16 μs to 1 sec
	Pixel format	Mono 8
	Mono/color	Mono
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
	Power supply	24 VDC
	Max. power consumption	Approx. 48 W@24 VDC
Mechanical	Lens mount	M12-mount, mechanical autofocus lens
	Focal length	8 mm (0.3")
	Lens cap	Transparent lens cap. Polarization or infrared filter lens cap is optional.
	Light source	White light by default. Red/blue/near-infrared is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	SCMVS
General	Certification	CE, FCC, KC
